FIAT IDEA 2007 1.G Dualogic Transmission Manual

20

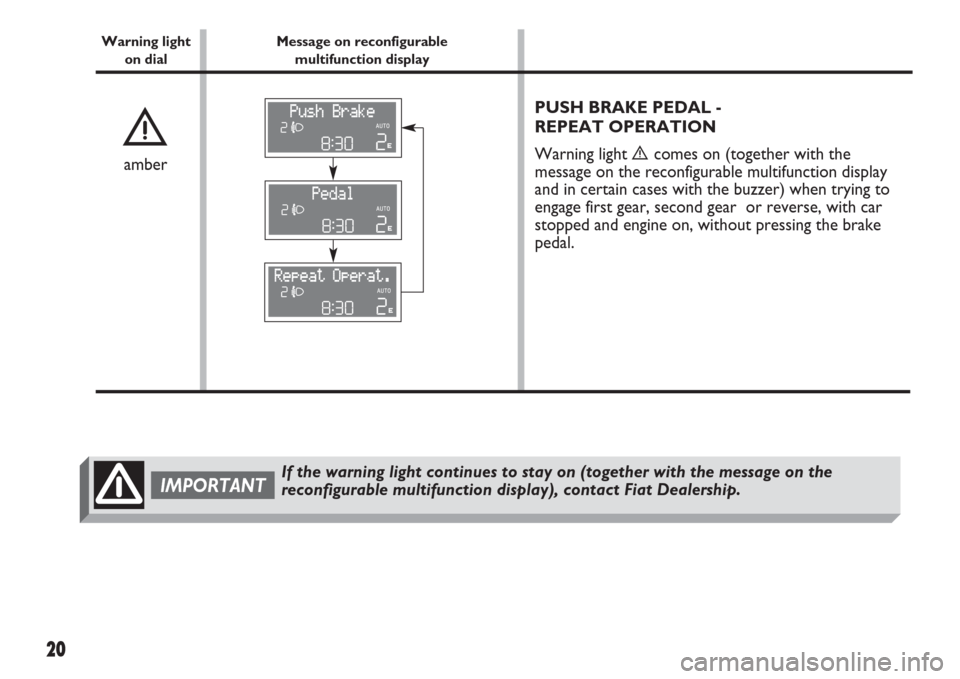

PUSH BRAKE PEDAL -
REPEAT OPERATION
Warning light
ècomes on (together with the
message on the reconfigurable multifunction display
and in certain cases with the buzzer) when trying to
engage first gear, second gear or reverse, with car
stopped and engine on, without pressing the brake
pedal.è
Message on reconfigurable
multifunction display Warning light
on dial
If the warning light continues to stay on (together with the message on the
reconfigurable multifunction display), contact Fiat Dealership.IMPORTANT
amber

21
Message on reconfigurable
multifunction displayWarning light
on dial

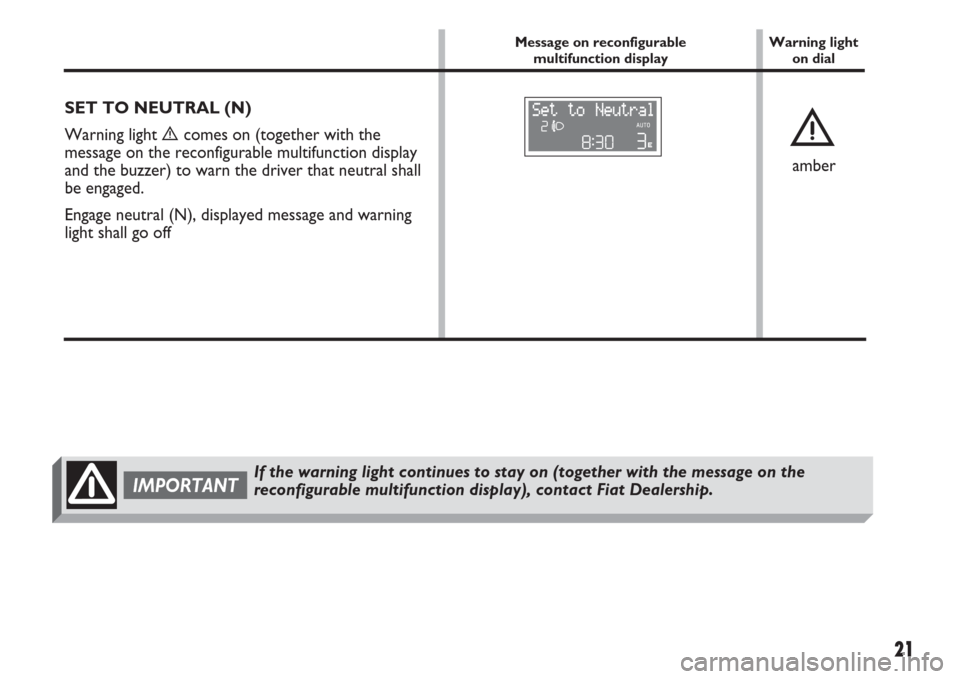

SET TO NEUTRAL (N)
Warning light
ècomes on (together with the
message on the reconfigurable multifunction display
and the buzzer) to warn the driver that neutral shall
be engaged.
Engage neutral (N), displayed message and warning
light shall go offè
If the warning light continues to stay on (together with the message on the
reconfigurable multifunction display), contact Fiat Dealership.IMPORTANT
amber

22
TOWING THE CAR
Make sure that the gearbox is in neutral (N) (checking
that the car moves if pushed) and tow as for a car with
traditional mechanical gearbox (see Owner
Handbook).
Should it be impossible to set to neutral, do not tow
the car and contact Fiat Dealership.
IF A FUSE BLOWS
FUSE AMPERE
Dualogic gearbox fuse box F23 15
Dualogic gearbox oil pump P01 30
Dualogic gearbox fuse box
power supply (+ key) F16 7.5
For fuse location see pictures in paragraph “If a fuse blows” in
section “In an emergency” in the Owner Handbook.

SERVICE SCHEDULE
Check Dualogic gearbox oil level every 20,000 km.
CHECKING OIL LEVEL
DUALOGIC GEARBOX HYDRAULIC
SYSTEM OIL
To have the oil level checked contact Fiat Dealership
only.
23
AIR CLEANER
Refer to Owner Handbook to replace the air cleaner.
Used gearbox oil contains dangerous substances for the environment. For changing the oil we advise
contacting Fiat Dealerships who are equipped for disposing of used oil respecting nature and the
law.

24

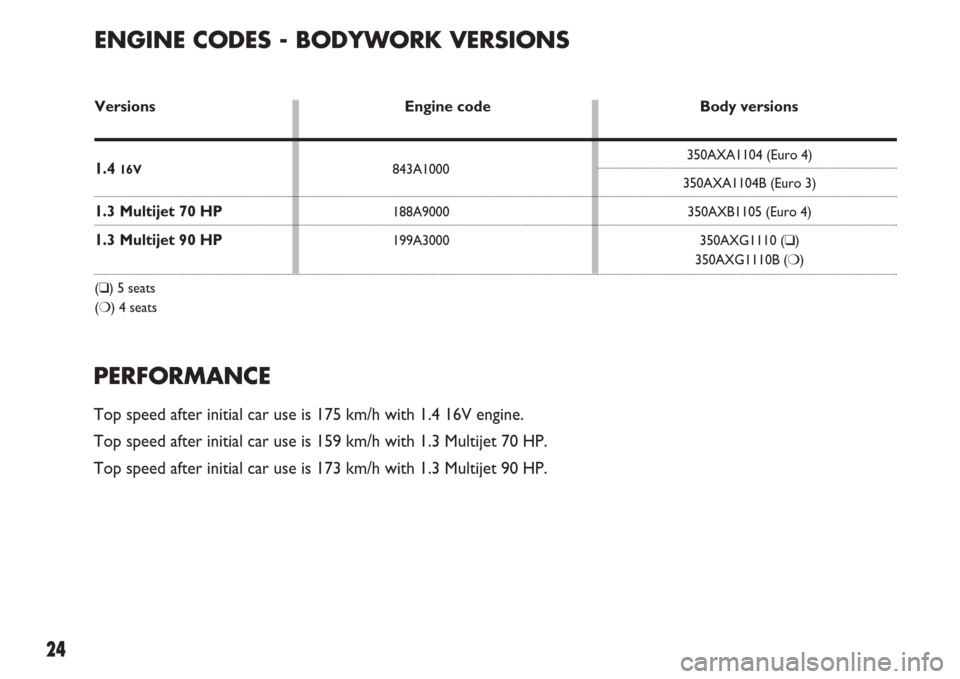

ENGINE CODES - BODYWORK VERSIONS
Versions Engine code Body versions
1.4 16V843A1000350AXA1104 (Euro 4)350AXA1104B (Euro 3)
1.3 Multijet 70 HP188A9000 350AXB1105 (Euro 4)
1.3 Multijet 90 HP199A3000 350AXG1110 (❑)
350AXG1110B (❍)
(❑) 5 seats
(❍) 4 seats
PERFORMANCE
Top speed after initial car use is 175 km/h with 1.4 16V engine.
Top speed after initial car use is 159 km/h with 1.3 Multijet 70 HP.
Top speed after initial car use is 173 km/h with 1.3 Multijet 90 HP.

25
TRANSMISSION
1.4 16V - 1.3 Multijet
Gearbox Five forward gears and reverse,
electrohydraulic system with electronic control
Clutch Electric-hydraulic device with electronic control
DriveFront

26
1.4 16V
1160
500
940
805
1660
1000
400
75
601.3 Multijet
1205
500
940
805
1705
1000
400
75
60
WEIGHTS
Weights (kg)
Kerb weight
(including fuel, space-saver spare wheel,
tools and accessories):
Payload (*)
including the driver:
Maximum admitted loads (**)
– front axle:
– rear axle:
– total:
Towable loads:
– trailer with brakes:
– trailer without brakes:
Maximum load on roof:
Maximum load on tow hitch:
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases
thus reducing the specified payload.
(**) Loads not to be exceeded. It is the driver’s responsibility to place goods in the boot and/or on the loading surface in accordance with the
maximum
permissible loads.

Specified fuels
Recommended products
TUTELA CAR CS SPEED -
Special oil with
“ATF DEXRON III” additive
CO2EMISSIONS
27
CO2emissions according to 1999/100/EC Directive (gr x 100 km)
CO
2emission value referred to combined consumption is 153 (gr x 100 km) with 1.4 16V engine.
CO
2emission value referred to combined consumption is 132 (gr x 100 km) with 1.3 Multijet 70 HP.
CO
2emission value referred to combined consumption is 122 (gr x 100 km) with 1.3 Multijet 90 HP.
1.4 16V1.3 Multijet
litres
0,70kg
0,59litres
0,70kg
0,59

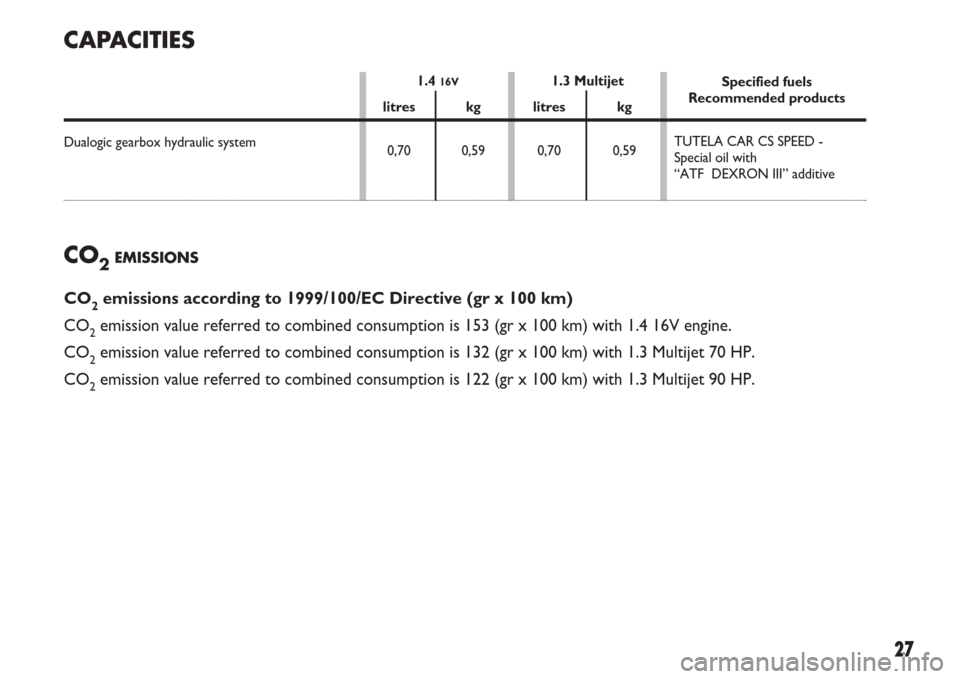

CAPACITIES
Dualogic gearbox hydraulic system

28

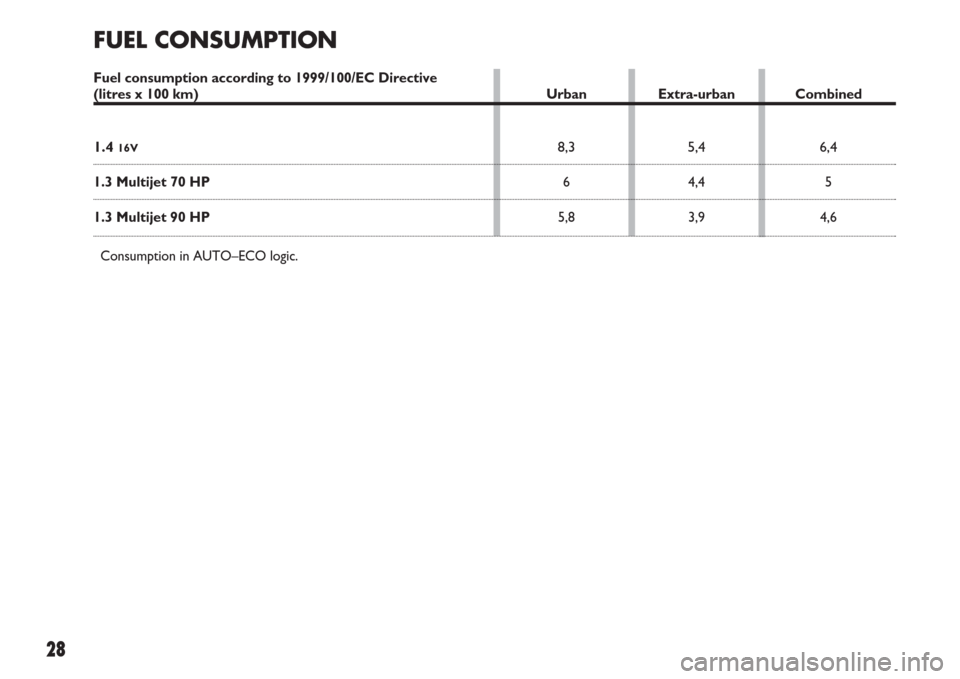

FUEL CONSUMPTION
Fuel consumption according to 1999/100/EC Directive(litres x 100 km) Urban Extra-urban Combined
1.4 16V8,3 5,4 6,4
1.3 Multijet 70 HP6 4,4 5
1.3 Multijet 90 HP5,8 3,9 4,6
Consumption in AUTO–ECO logic.
