PROTECTING THE ENVIRONMENT
The devices for curtailing petrol engine emissions are the following:
❒three-way catalytic converter;
❒Lambda sensor;
❒fuel evaporation system.
In addition, do not let the engine run, even for a test, with one or more spark plugs disconnected.
The devices for curtailing diesel fuel engine emissions are the following:
❒oxidising catalytic converter;
❒exhaust gas recirculation system (E.G.R.).
❒diesel particulate filter (DPF)
DIESEL PARTICULATE FILTER (DPF) (for 1.3 Multijet versions 90 HP)
The Diesel Particulate Filter is a mechanical filter, integral with the exhaust system, that physically traps particulates present
in the exhaust gases of Diesel engines.
The diesel particular filter has been adopted to eliminate almost totally particulates in compliance with current / future
law regulations.
During normal use of the vehicle, the engine control unit records a set of data (e.g.: travel time, type of route, temperatures,
etc.) and it will then calculate how much particulates has been trapped by the filter.
Since this filter physically traps particulates, it shall be cleaned (reclaimed) at regular intervals by burning carbon particles.
Reclaiming procedure is controlled automatically by the engine control unit according to the filter conditions and the
conditions of use of the vehicle.
During reclaiming the following phenomena could take place: idling slight increase, fan activation, slight smoke increase,
high exhaust temperatures. These situations shall not be considered as faults and they do not affect vehicle performance
and environment.
If the dedicated message is displayed, refer to paragraph “Warning lights and messages”.
150
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
During normal service the catalyst reaches high temperatures. Do not therefore
park the car over inflammable materials (grass, dry leaves, pine needles, etc.): fire
hazard.WARNING

151
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
SEAT BELTS............................................................................ 152
PRETENSIONERS ................................................................. 156
CARRYING CHILDREN SAFELY ..................................... 159
PRESETTING FOR MOUNTING THE
“TYPE ISOFIX” CHILD RESTRAINT SYSTEM .............. 166
FRONT AND SIDE AIR BAGS .......................................... 169
SIDE AIR BAGS (SIDE BAG -
FRONT WINDOW BAG).................................................. 173
S S
A A
F F
E E
T T
Y Y
D D
E E
V V
I I
C C
E E
S S

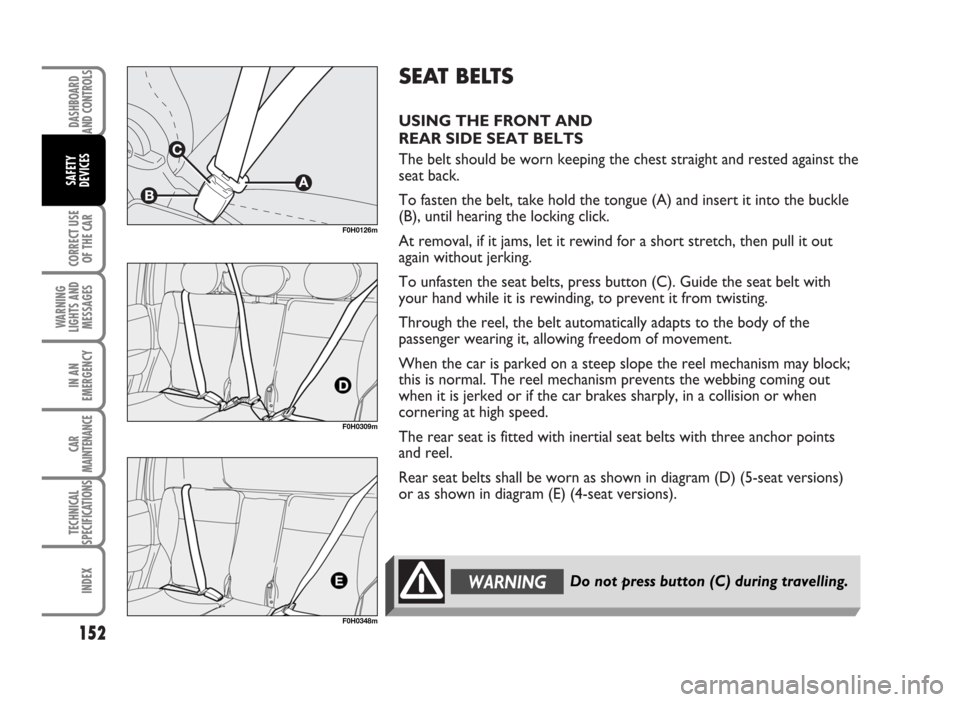

SEAT BELTS
USING THE FRONT AND
REAR SIDE SEAT BELTS
The belt should be worn keeping the chest straight and rested against the
seat back.
To fasten the belt, take hold the tongue (A) and insert it into the buckle
(B), until hearing the locking click.
At removal, if it jams, let it rewind for a short stretch, then pull it out
again without jerking.
To unfasten the seat belts, press button (C). Guide the seat belt with
your hand while it is rewinding, to prevent it from twisting.
Through the reel, the belt automatically adapts to the body of the
passenger wearing it, allowing freedom of movement.
When the car is parked on a steep slope the reel mechanism may block;
this is normal. The reel mechanism prevents the webbing coming out
when it is jerked or if the car brakes sharply, in a collision or when
cornering at high speed.
The rear seat is fitted with inertial seat belts with three anchor points
and reel.
Rear seat belts shall be worn as shown in diagram (D) (5-seat versions)
or as shown in diagram (E) (4-seat versions).
152
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
F0H0126m
WARNINGDo not press button (C) during travelling.
F0H0309m
F0H0348m

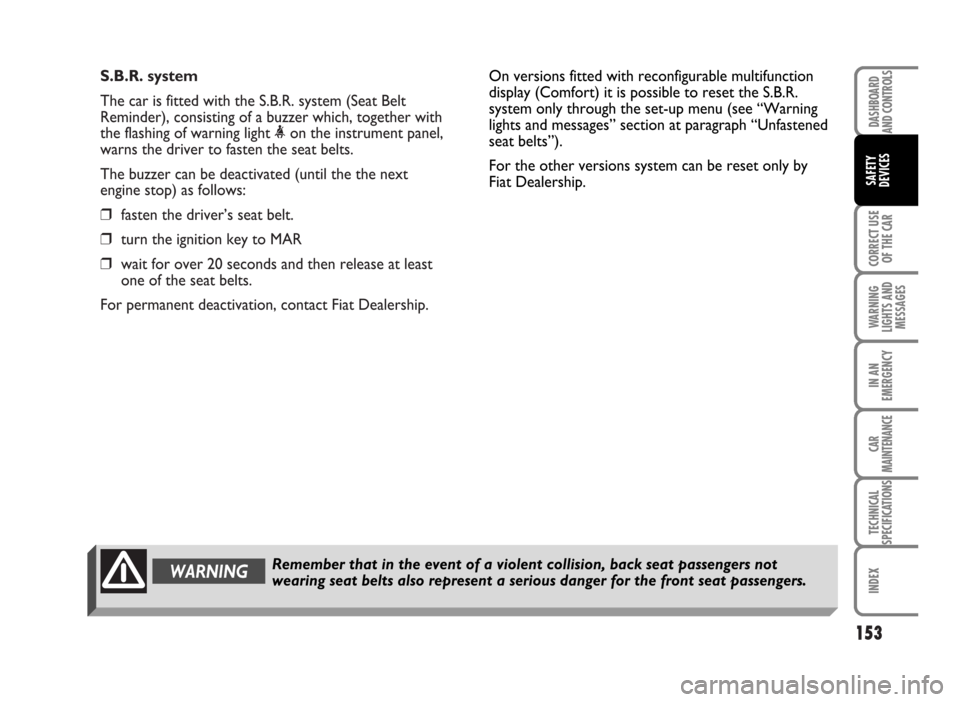

S.B.R. system
The car is fitted with the S.B.R. system (Seat Belt
Reminder), consisting of a buzzer which, together with
the flashing of warning light warns the driver to fasten the seat belts.
The buzzer can be deactivated (until the the next
engine stop) as follows:
❒fasten the driver’s seat belt.
❒turn the ignition key to MAR
❒wait for over 20 seconds and then release at least
one of the seat belts.
For permanent deactivation, contact Fiat Dealership.
153
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
Remember that in the event of a violent collision, back seat passengers not
wearing seat belts also represent a serious danger for the front seat passengers.WARNING
On versions fitted with reconfigurable multifunction
display (Comfort) it is possible to reset the S.B.R.
system only through the set-up menu (see “Warning
lights and messages” section at paragraph “Unfastened
seat belts”).
For the other versions system can be reset only by
Fiat Dealership.

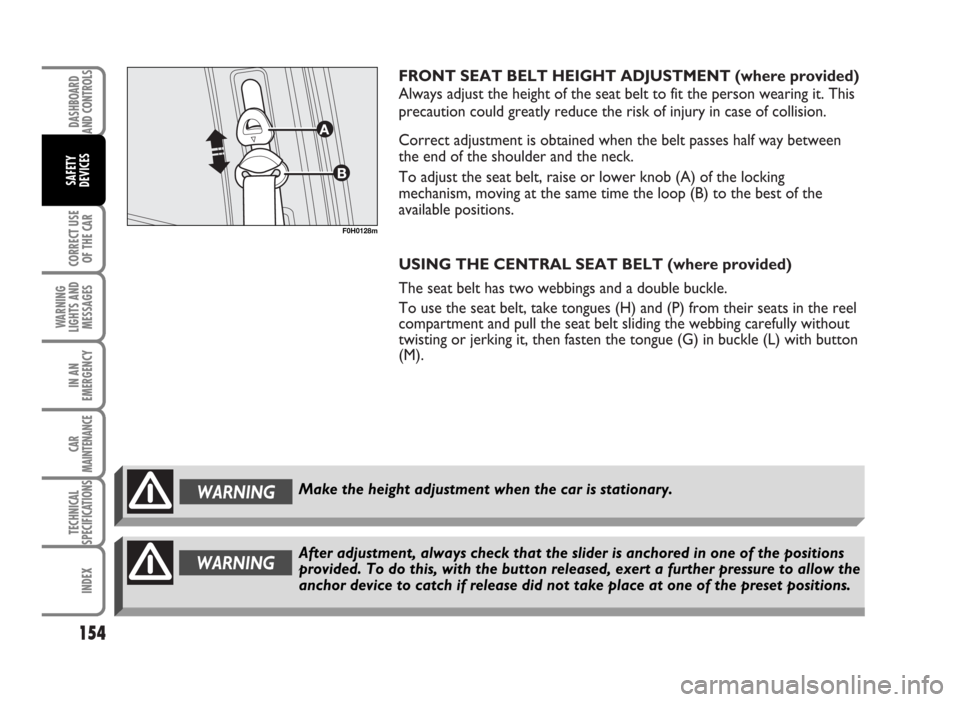

FRONT SEAT BELT HEIGHT ADJUSTMENT (where provided)
Always adjust the height of the seat belt to fit the person wearing it. This
precaution could greatly reduce the risk of injury in case of collision.
Correct adjustment is obtained when the belt passes half way between
the end of the shoulder and the neck.
To adjust the seat belt, raise or lower knob (A) of the locking
mechanism, moving at the same time the loop (B) to the best of the
available positions.
USING THE CENTRAL SEAT BELT (where provided)
The seat belt has two webbings and a double buckle.
To use the seat belt, take tongues (H) and (P) from their seats in the reel
compartment and pull the seat belt sliding the webbing carefully without
twisting or jerking it, then fasten the tongue (G) in buckle (L) with button
(M).
154
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
F0H0128m
WARNING
WARNINGAfter adjustment, always check that the slider is anchored in one of the positions
provided. To do this, with the button released, exert a further pressure to allow the
anchor device to catch if release did not take place at one of the preset positions. Make the height adjustment when the car is stationary.

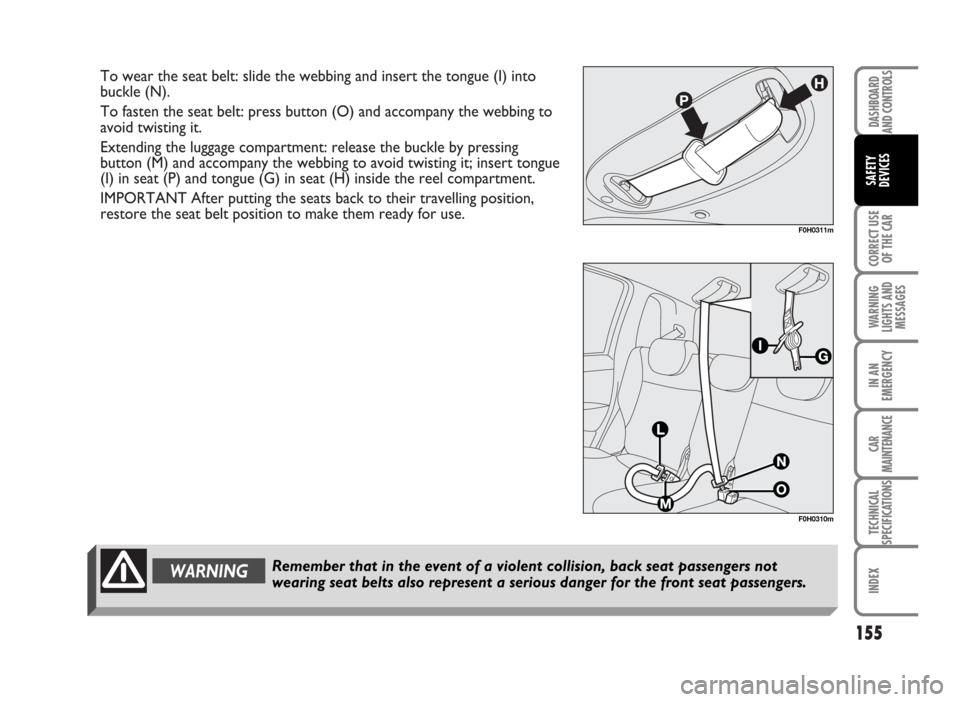

To wear the seat belt: slide the webbing and insert the tongue (I) into
buckle (N).
To fasten the seat belt: press button (O) and accompany the webbing to
avoid twisting it.
Extending the luggage compartment: release the buckle by pressing
button (M) and accompany the webbing to avoid twisting it; insert tongue
(I) in seat (P) and tongue (G) in seat (H) inside the reel compartment.
IMPORTANT After putting the seats back to their travelling position,
restore the seat belt position to make them ready for use.
155
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
F0H0310m
Remember that in the event of a violent collision, back seat passengers not
wearing seat belts also represent a serious danger for the front seat passengers.WARNING
F0H0311m

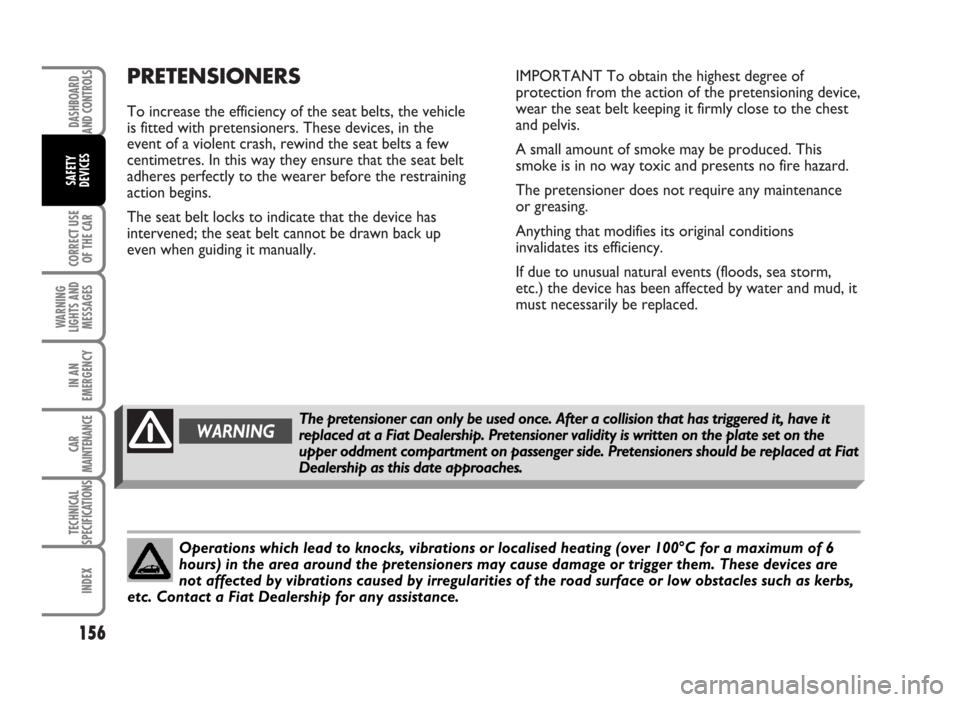

PRETENSIONERS
To increase the efficiency of the seat belts, the vehicle
is fitted with pretensioners. These devices, in the
event of a violent crash, rewind the seat belts a few
centimetres. In this way they ensure that the seat belt
adheres perfectly to the wearer before the restraining
action begins.
The seat belt locks to indicate that the device has
intervened; the seat belt cannot be drawn back up
even when guiding it manually.IMPORTANT To obtain the highest degree of
protection from the action of the pretensioning device,
wear the seat belt keeping it firmly close to the chest
and pelvis.
A small amount of smoke may be produced. This
smoke is in no way toxic and presents no fire hazard.
The pretensioner does not require any maintenance
or greasing.
Anything that modifies its original conditions
invalidates its efficiency.
If due to unusual natural events (floods, sea storm,
etc.) the device has been affected by water and mud, it
must necessarily be replaced.
156
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
WARNINGThe pretensioner can only be used once. After a collision that has triggered it, have it
replaced at a Fiat Dealership. Pretensioner validity is written on the plate set on the
upper oddment compartment on passenger side. Pretensioners should be replaced at Fiat
Dealership as this date approaches.
Operations which lead to knocks, vibrations or localised heating (over 100°C for a maximum of 6
hours) in the area around the pretensioners may cause damage or trigger them. These devices are
not affected by vibrations caused by irregularities of the road surface or low obstacles such as kerbs,
etc. Contact a Fiat Dealership for any assistance.

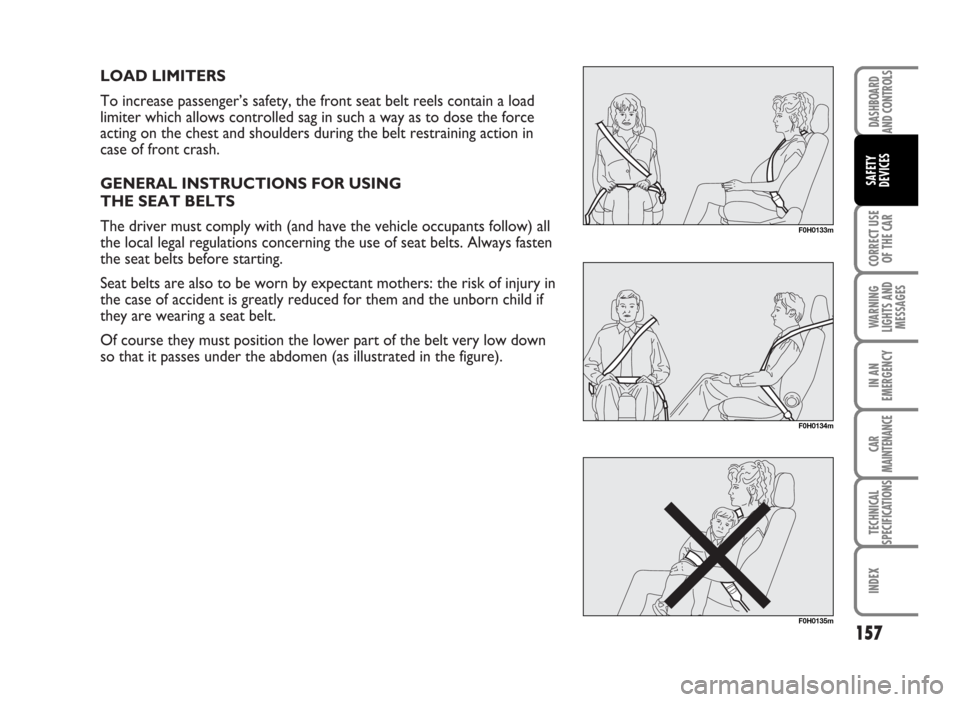

LOAD LIMITERS
To increase passenger’s safety, the front seat belt reels contain a load
limiter which allows controlled sag in such a way as to dose the force
acting on the chest and shoulders during the belt restraining action in
case of front crash.
GENERAL INSTRUCTIONS FOR USING
THE SEAT BELTS
The driver must comply with (and have the vehicle occupants follow) all
the local legal regulations concerning the use of seat belts. Always fasten
the seat belts before starting.
Seat belts are also to be worn by expectant mothers: the risk of injury in
the case of accident is greatly reduced for them and the unborn child if
they are wearing a seat belt.
Of course they must position the lower part of the belt very low down
so that it passes under the abdomen (as illustrated in the figure).
157
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
F0H0133m
F0H0134m
F0H0135m

158
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES

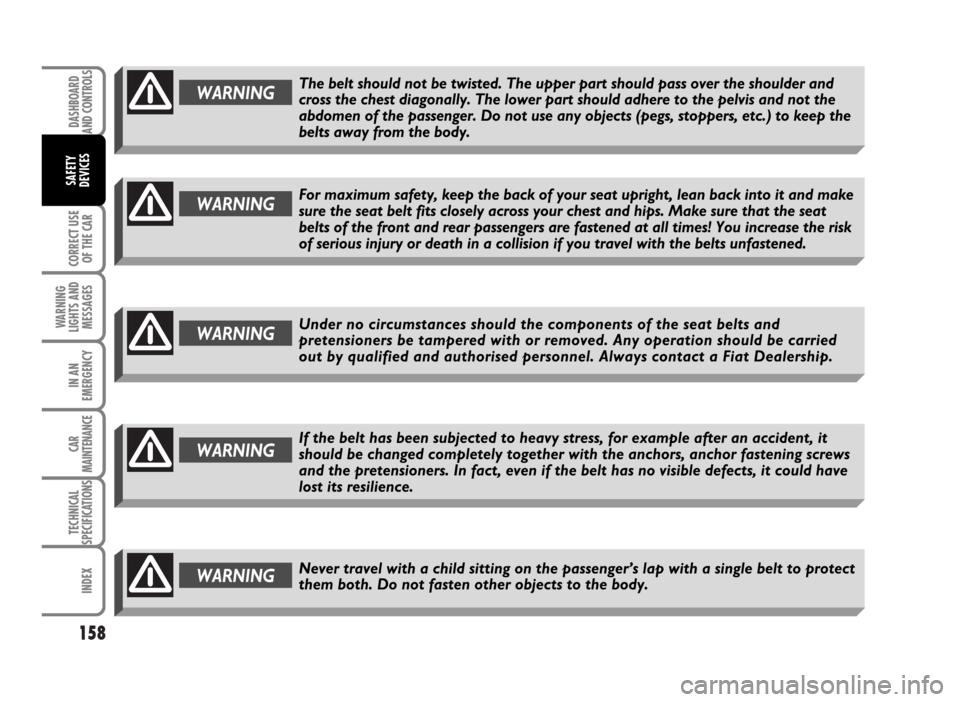

WARNINGThe belt should not be twisted. The upper part should pass over the shoulder and
cross the chest diagonally. The lower part should adhere to the pelvis and not the
abdomen of the passenger. Do not use any objects (pegs, stoppers, etc.) to keep the
belts away from the body.
WARNINGFor maximum safety, keep the back of your seat upright, lean back into it and make
sure the seat belt fits closely across your chest and hips. Make sure that the seat
belts of the front and rear passengers are fastened at all times! You increase the risk
of serious injury or death in a collision if you travel with the belts unfastened.
WARNINGUnder no circumstances should the components of the seat belts and
pretensioners be tampered with or removed. Any operation should be carried
out by qualified and authorised personnel. Always contact a Fiat Dealership.
WARNINGNever travel with a child sitting on the passenger’s lap with a single belt to protect
them both. Do not fasten other objects to the body.
WARNINGIf the belt has been subjected to heavy stress, for example after an accident, it
should be changed completely together with the anchors, anchor fastening screws
and the pretensioners. In fact, even if the belt has no visible defects, it could have
lost its resilience.

HOW TO KEEP THE SEAT BELTS ALWAYS
IN EFFICIENT CONDITIONS
❒Always use the belt with the tape taut and never
twisted; make sure that it is free to run without
impediments.
❒After a serious accident, replace the belt being
worn at that time, even if it does not appear
damaged. Always replace the seat belts if
pretensioners have been activated.
❒To clean the belts, wash by hand with neutral soap,
rinse and leave to dry in the shade. Never use
strong detergents, bleach or dyes or other
chemical substance that might weaken the fibres.
❒Prevent the reels from getting wet: their correct
operation is only guaranteed if water does not get
inside.
❒Replace the seat belt when showing significant wear
or cut signs.CARRYING CHILDREN
SAFELY
For optimal protection in the event of a crash, all
passengers must be seated and wearing adequate
restraint systems.
This is even more important for children.
According to 2003/20/EC Directive, this prescription
is compulsory for all European Community countries.
Compared with adults, their head is proportionally
larger and heavier than the rest of the body, while the
muscles and bone structure are not completely
developed. Therefore, correct restraint systems are
necessary, other than adult seat belts. The results of
research on the best child restraint systems are
contained in the European Standard ECE-R44. This
Standard enforces the use of restraint systems
classified in five groups:
Group 0 0-10 kg in weight
Group 0+ 0-13 kg in weight
Group 1 9-18 kg in weight
Group 2 15-25 kg in weight
Group 3 22-36 kg in weight
As it may be noted, the groups overlap partly and in
fact, in commerce it is possible to find devices that
cover more than one weight group.
159
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
