DRIVING STYLE
Starting
Do not warm the engine with the car at a standstill or
at idle or high speed: under these conditions the
engine warms up much more slowly, increasing
electrical consumption and emissions. It is therefore
advisable to move off immediately, slowly, avoiding
high speeds. This way the engine will warm faster.
Unnecessary actions
Avoid accelerating when waiting at traffic lights or
before switching off the engine. This and also double
declutching is absolutely pointless on modern cars and
also increase consumption and pollution.
Gear selection
As soon as the conditions of the traffic and road allow,
use a higher gear. Using a low gear to obtain brilliant
performance increases consumption.
In the same way improper use of a high gear increases
consumption, emissions an engine wear.
Top speed
Fuel consumption considerably increases with speed.
Keep speed as constant as possible, avoid superfluous
braking and accelerating, which cost in terms of both
fuel and emissions. Acceleration
Accelerating violently increasing the revs will greatly
affect consumption and emissions: acceleration should
be gradual and should not exceed the maximum
torque.
CONDITIONS OF USE
Cold starting
Short journeys and frequent cold starts do not allow
the engine to reach optimum operating temperature.
This results in a significant increase in consumption
levels (from +15 to +30% on the urban cycle) and
emission of harmful substances.
Traffic situations and road conditions
Rather high consumption levels are tied to situations
with heavy traffic, for example in queues with frequent
use of the lower gears or in cities with many traffic
lights. Also winding mountain roads and rough road
surfaces adversely affect consumption.
Traffic hold-ups
During prolonged hold-ups (e.g.: level crossings) the
engine should be switched off.
184
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
CORRECT USE
OF THE CAR

TOWING TRAILERS
IMPORTANT NOTES
For towing caravans or trailers the car must be fitted
with a certified tow hook and an adequate electric
system. Installation should be carried out by
specialised personnel who release a special document
for circulation on the road.
Install any specific and/or additional rear-view mirrors
as specified by law.
Remember that when towing a trailer, steep hills are
harder to climb, the braking spaces increase and
overtaking takes longer depending on the overall
weight.
Engage a low gear when driving downhill, rather than
constantly using the brake.The weight the trailer exerts on the car tow hook
reduces by the same amount the actual vehicle loading
capacity. To make sure the maximum towable weight
is not exceeded (given in the log book) account should
be taken of the fully laden trailer, including accessories
and personal belongings.
Do not exceed the speed limits of the country you are
driving in. In any case do not exceed 100 km/h.
185
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
CORRECT USE
OF THE CAR
WARNING
Under no circumstances should the vehicle brake system be altered to control the
trailer brake. The trailer braking system must be fully independent of the vehicle’s
hydraulic system.WARNING
The ABS system with which the car may be fitted does not control the trailer
braking system. Great care should therefore be taken when driving on slippery
road surfaces.

INSTALLING THE TOW HOOK
The towing device should be fastened to the body by
specialised personnel according to any additional
and/or integrative information supplied by the
Manufacturer of the device.
The towing device must meet current regulations with
reference to 94/20/EC Directive and subsequent
amendments.
For any version the towing device used must match
the towable weight of the vehicle on which it is to be
installed.
For the electric connection a unified connector should
be used which is generally placed on a special bracket
normally fastened to the towing device, and a special
ECU for external trailer light control shall be installed
on the car. For the electrical connection 7 or 13 pins 12VDC
connection is to be used (CUNA/UNI and ISO/DIN
Standards). Follow the instructions provided by the car
manufacturer and/or the tow hitch manufacturer.
An electric brake should be supplied directly by the
battery through a cable with a cross section of no less
than 2.5 mm
2.
IMPORTANT Electric brake or other device shall be
used with running engine.
In addition to the electrical branches, the car’s electric
system can only be connected to the supply cable for
an electric brake and to the cable for an internal light,
though not above 15W.
For connections use a preset control unit with battery
cable no less than 2.5 mm
2.
186
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
CORRECT USE
OF THE CAR

187
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
CORRECT USE
OF THE CAR
ASSEMBLY DIAGRAM
The tow hook structure must be fastened in the points
shown by the symbol
Øusing a total of 4 M8 screws,
2 M10 screws and 2 M12 screws.
The hook should be fastened to the body avoiding any
type of drilling and trimming of the rear bumpers that
remains visible when the hook is removed.
IMPORTANT It is compulsory to fasten a label (plainly
visible) of suitable size and material with the following
wording:
MAX LOAD ON BALL 60 kg
WARNINGAfter fitting, screw holes shall be sealed to prevent exhaust gas inlet.
F0H0151m
Full load
Standard ball Existing holes
Existing holes Existing holes
≥65

SNOW TYRES
Use snow tyres of the same size as the normal tyres
provided with the car.
Fiat Dealership will be happy to provide advice
concerning the most suitable type of tyre for the
customer’s requirements.
For the type of tyre to be used, inflation pressures and
the specifications of snow tyres, follow the
instructions given in paragraph “Wheels” in section
“Technical specifications”.
The winter features of these tyres are reduced
considerably when the tread depth is below 4 mm. In
this case, they should be replaced.Due to the snow tyre features, under normal
conditions of use or on long motorway journeys, the
performance of these tyres is lower than that of
normal tyres. It is therefore necessary to limit their
use to the purposes for which they are certified.
IMPORTANT When snow tyres are used with a max
speed index below the one that can be reached by the
car (increased by 5%), place a notice in the passenger
compartment, plainly in the driver’s view which states
the max permissible speed of the snow tyres (as per
EC Directive).
All four tyres should be the same (brand and track) to
ensure greater safety when driving and braking and
better driveability.
Remember that it is inappropriate to change the
direction of rotation of tyres.
188
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
CORRECT USE
OF THE CAR
The max speed for snow tyres with “T” marking is 190 km/h. The Road Traffic
Code speed limits must however be always strictly observed.WARNING

SNOW CHAINS
Use of snow chains should be in compliance with local
regulations.
Snow chains should only be applied to the driving
wheels (front wheels). We recommend using
Lineaccessori Fiat snow chains.
Check the tension of the chains after driving some ten
metres.IMPORTANT Snow chains cannot be fitted to the
space-saver spare wheel. So, if a front (drive) wheel is
punctured and chains are needed, a rear wheel should
be fitted to the front of the vehicle and the spare
wheel should be fitted to the rear. This way with two
normal drive wheels, snow chains can be fitted to
them to solve an emergency.
IMPORTANT Tyres 205/50 R16 87V cannot be fitted
with snow chains.
189
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
CORRECT USE
OF THE CAR
Versions
ACTIVE
DYNAMIC
EMOTION
Tyres on which chains can be fitted
185/65 R14 86T
195/60 R15 88T
195/60 R15 88T
195/60 R15 88T
Type of snow chains to be used
Snow chains with standard size
with max protrusion beyond the tyre profile of 12 mm.
Keep your speed down when snow chains are fitted. Do not exceed 50 km/h. Avoid potholes,
steps and pavements and avoid also to drive for long distances on roads not covered with
snow to prevent damaging the car and the roadbed.
Refer to the above mentioned table for information on the wheels where snow chains can be fitted.
Follow the prescriptions.

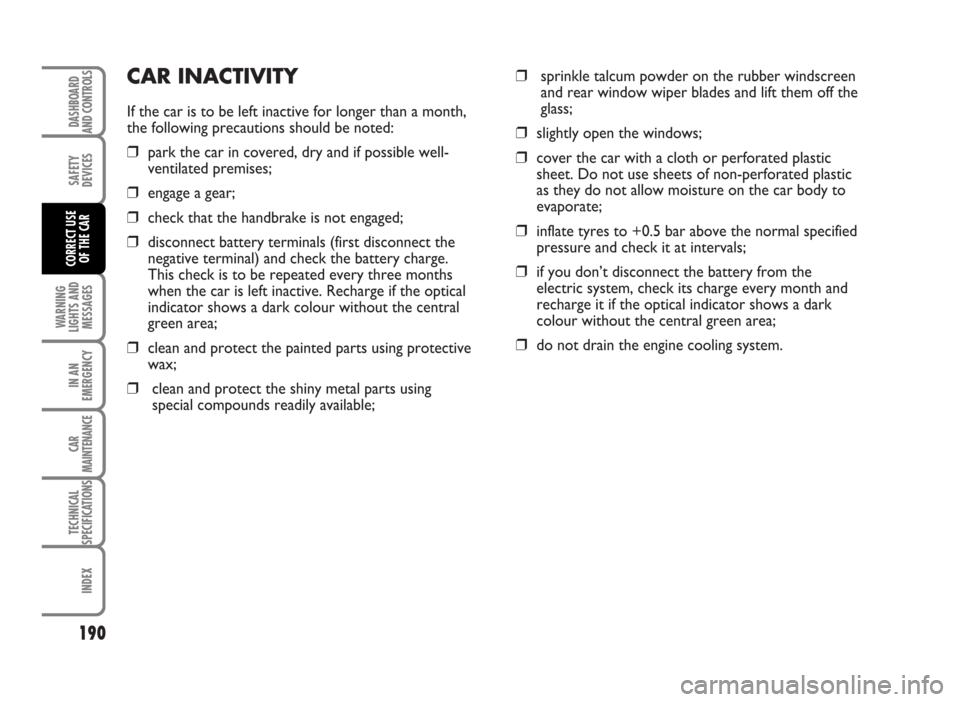

CAR INACTIVITY
If the car is to be left inactive for longer than a month,
the following precautions should be noted:
❒park the car in covered, dry and if possible well-
ventilated premises;
❒engage a gear;
❒check that the handbrake is not engaged;
❒disconnect battery terminals (first disconnect the
negative terminal) and check the battery charge.
This check is to be repeated every three months
when the car is left inactive. Recharge if the optical
indicator shows a dark colour without the central
green area;
❒clean and protect the painted parts using protective
wax;
❒clean and protect the shiny metal parts using
special compounds readily available;❒sprinkle talcum powder on the rubber windscreen
and rear window wiper blades and lift them off the
glass;
❒slightly open the windows;
❒cover the car with a cloth or perforated plastic
sheet. Do not use sheets of non-perforated plastic
as they do not allow moisture on the car body to
evaporate;
❒inflate tyres to +0.5 bar above the normal specified
pressure and check it at intervals;
❒if you don’t disconnect the battery from the
electric system, check its charge every month and
recharge it if the optical indicator shows a dark
colour without the central green area;
❒do not drain the engine cooling system.
190
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
CORRECT USE
OF THE CAR

191
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
WARNING
LIGHTS AND
MESSAGES
W W
A A
R R
N N
I I
N N
G G
L L
I I
G G
H H
T T
S S
A A
N N
D D
M M
E E
S S
S S
A A
G G
E E
S S
FUEL CUTOFF SWITCHED ON...................................... 207
CAR PROTECTION SYSTEM FAILURE -
FIAT CODE ............................................................................ 208
“DUALDRIVE” ELECTRIC POWER
STEERING FAILURE............................................................. 209
DIESEL FUEL FILTER SENSOR FAILURE ........................ 209
GLOW PLUG WARMING FAILURE ............................... 209
ABS SYSTEM FAILURE - SYSTEM
UNAVAILABLE ...................................................................... 210
RAIN SENSOR FAILURE..................................................... 210
EBD SYSTEM FAILURE - SYSTEM UNAVAILABLE ...... 211
EXTERNAL LIGHT FAILURE............................................. 212
BRAKE LIGHT FUSE FAILURE .......................................... 214
PARKING SENSOR FAILURE ............................................ 215
ANTIPINCH SYSTEM
FAILURE .................................................................................. 215
AIR BAG FAILURE................................................................ 216
TWILIGHT SENSOR FAILURE.......................................... 217
INJECTION SYSTEM FAILURE ......................................... 217
ENGINE CONTROL SYSTEM FAILURE
(EOBD) .................................................................................... 218
GENERIC FAILURE INDICATION .................................. 219 GENERAL WARNINGS ...................................................... 192
LOW BRAKE FLUID ............................................................ 193
HANDBRAKE ON ............................................................... 193
FRONT PASSENGER AIR BAG DEACTIVATED ......... 194
SEAT BELTS NOT FASTENED ......................................... 194
LOW BATTERY CHARGE................................................. 195
LOW ENGINE OIL PRESSURE ......................................... 195
ENGINE COOLANT FLUID HIGH TEMPERATURE .. 196
INCOMPLETE DOOR LOCKING ................................... 198
“DUALDRIVE” ELECTRIC POWER STEERING
SYSTEM .................................................................................. 198
SPEED LIMIT EXCEEDED ................................................. 199
FUEL RESERVE....................................................................... 199
WATER IN DIESEL FUEL FILTER ..................................... 200
GLOW PLUGS ...................................................................... 201
REAR FOGLIGHTS............................................................... 202
FRONT FOG LIGHTS ......................................................... 202
LEFT-HAND DIRECTION INDICATOR ....................... 203
RIGHT-HAND DIRECTION INDICATOR ................... 203
SIDELIGHTS AND LOW BEAMS ..................................... 204
BRAKE PAD WEAR ........................................................... 204
FOLLOW ME HOME ........................................................... 205
MAIN BEAM HEADLIGHTS............................................... 205
CRUISE CONTROL ............................................................. 206
POSSIBLE PRESENCE OF ICE ON THE ROAD ........... 206

192
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
WARNING
LIGHTS AND
MESSAGES
GENERAL WARNINGS
Failure indicationsshown on the reconfigurable
multifunction display together with buzzer sounding
(adjustable) and warning light (if any) coming on on the
cluster, are accompanied by specific warning
messages(e.g.: “Switch off engine”, etc...). These
indications are concise and cautionaryand are
aimed to suggest the prompt actionthe driver must
adopt when a car malfunctioning appears. These
indications, however, shall not be considered as
exhaustive and/or as an alternative to the
specifications contained in this “Owner Handbook”,
which shall always be read through carefully and
thoroughly. In case of failure indication always refer
to the specifications contained in this section.
IMPORTANT Failure indications displayed on the
reconfigurable multifunction display are divided into
two categories: very serious failures and
serious/minor failures.
The message and the warning indication corresponding
to very serious failures are displayed alternately for
few seconds. This “cycle” is repeated indefinitely and it
stops any previous indication on the display. It is
displayed every time the ignition key is turned to MAR,
until the cause of malfunctioning is removed. Should failure disappear, message and warning light will
however stay on for about 2 seconds. Eliminating the
failure, the warning light and the displayed message will
go off. It is possible to stop this “cycle” by pressing
button Q; in this case the screen active before the
failure will be resumed and the warning light will stay
on until eliminating the failure cause.
The message and the warning indication corresponding
to serious/minorfailures are displayed alternately for
few seconds. This “cycle” is repeated for about 20
seconds and then goes off, but it comes on again every
time the ignition key is turned to MAR.
Should failure disappear during the 20 seconds
displaying, message and warning light will stay on for
about 2 seconds. Eliminating the failure, the warning
light and the displayed message will go off.
At the end of the display cycle (which lasts approx. 20
seconds), or if button Qis pressed, the screen active
before the failure will be resumed and the warning
light will stay on until eliminating the failure cause.
Q= Press button “MODE” for less than two seconds
R= Press button “MODE” for over two seconds

193
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
WARNING
LIGHTS AND
MESSAGES
LOW BRAKE FLUID LEVEL
Turning the ignition key to MAR the warning light
on the dial turns on, but it should go off after few
seconds.
The warning light turns on (together with the
message on the display, on certain versions) when
the level of the brake fluid in the reservoir falls
below the minimum level, due to possible leak in
the circuit.x
HANDBRAKE ON
Turning the ignition key to MAR the warning light
on the dial turns on, but it should go off after few
seconds. The warning light turns on when the
handbrake is on.
IMPORTANT If the warning light
xturns on
when travelling
check that the handbrake is not engaged.
x
Warning
light on dialMessage on
multifunction display Message on reconfigurable
multifunction display
WARNINGIf the warning light xturns on when travelling (on certain versions together with the
message on the display) stop the car immediately and contact Fiat Dealership.red
red
