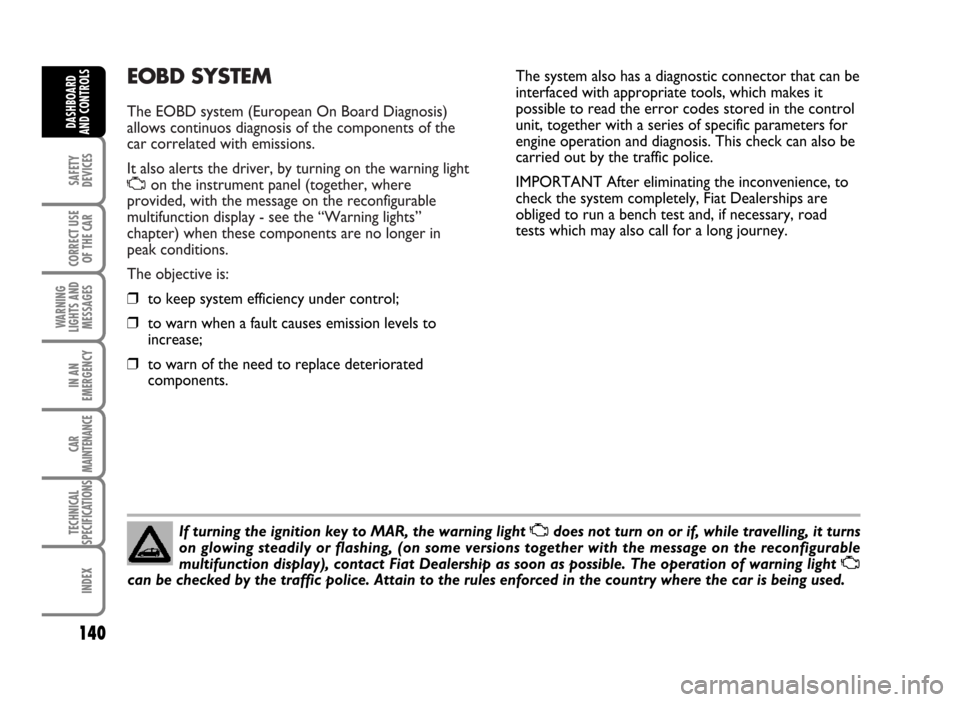

EOBD SYSTEM
The EOBD system (European On Board Diagnosis)
allows continuos diagnosis of the components of the
car correlated with emissions.
It also alerts the driver, by turning on the warning light
Uon the instrument panel (together, where
provided, with the message on the reconfigurable
multifunction display - see the “Warning lights”
chapter) when these components are no longer in
peak conditions.
The objective is:
❒to keep system efficiency under control;
❒to warn when a fault causes emission levels to
increase;
❒to warn of the need to replace deteriorated
components.The system also has a diagnostic connector that can be
interfaced with appropriate tools, which makes it
possible to read the error codes stored in the control
unit, together with a series of specific parameters for
engine operation and diagnosis. This check can also be
carried out by the traffic police.
IMPORTANT After eliminating the inconvenience, to
check the system completely, Fiat Dealerships are
obliged to run a bench test and, if necessary, road
tests which may also call for a long journey.
140
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
If turning the ignition key to MAR, the warning light Udoes not turn on or if, while travelling, it turns
on glowing steadily or flashing, (on some versions together with the message on the reconfigurable
multifunction display), contact Fiat Dealership as soon as possible. The operation of warning light U
can be checked by the traffic police. Attain to the rules enforced in the country where the car is being used.

251
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY
FUSE SUMMARY TABLE
Control box on dashboard
USERFUSE AMPERE
Right-hand dipped beam headlightF12 15
Left-hand dipped beam headlight / headlight aiming device F13 15
Reversing lights / engine compartment control box relay coils / body computer F31 7.5
+30 Driver’s / passenger’s door control units (*)F32 15
Left rear power windowF33 20
Right rear power windowF34 20
+15 Cruise control, signal from switch on brake pedal for control units (*) F35 7.5
+30 Presetting for trailer control unit, rear locks front locks with single door control unit (*) F36 20
+15 Third brake light, instrument panel, brake lights (*) F37 10
Boot unlockingF38 15
+30 EOBD diagnostic socket, sound system, navigator, tyre pressure control unit (*)F39 10
Rear heated screenF40 30
Heated door electric mirrorsF41 7.5
+15 ABS / ESP control unit (*)F42 7.5
Windscreen wiper/washerF43 30
Cigar lighter / current socket on tunnelF44 20
Heated seatsF45 15
Boot current socketF46 20
Driver’s door control unit power supply (power window, lock) F47 20
Passenger’s door control unit power supply (power window, lock) F48 20
+15 utilities (left and central dashboard control lights, electric mirrors, heated seat control
lighting,presetting for radiotelephone, navigator, rain / daylight sensors, parking sensor control unit,
sunroof control lighting) (*)F49 7.5
Airbag control unitF50 7.5
+15 Tyre pressure control unit, ECO / Sport control (*) F51 7.5
Rear screen wiper/washerF52 15
+30 Direction indicators, hazard lights, instrument panel (*) F53 10
(*) +30 = battery directive positive terminal (not under key)
+15 = positive terminal under key
