The innovating Windows Mobile™-based Telematic
Solution for the car
CONTENTS
OVERVIEW .............................................................................. 3
The hands-free kit.................................................................... 3
Message reader......................................................................... 5
Media player ............................................................................. 6
Road safety ............................................................................... 7
DISPLAY AND BUTTONS ON THE STEERING
WHEEL....................................................................................... 8
HANDS-FREE KIT QUICK REFERENCE GUIDE............. 10
Prepare your mobile phone phonebook ............................ 10
Try out the voice commands ............................................... 11
Pair your mobile phone ......................................................... 11
Make a phone call .................................................................... 12

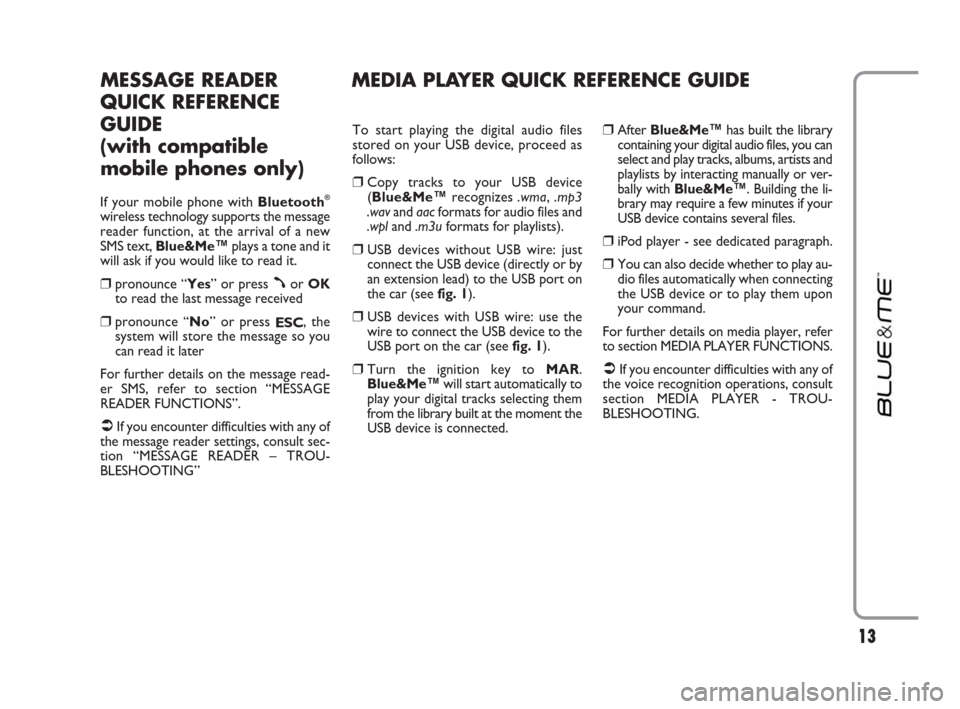

MESSAGE READER QUICK REFERENCE GUIDE............ 13
MEDIA PLAYER QUICK REFERENCE GUIDE ................ 13
HOW TO USE Blue&Me™ ................................................ 14
Steering wheel controls ......................................................... 14
Voice commands ..................................................................... 14
Display ....................................................................................... 17Audio ......................................................................................... 17

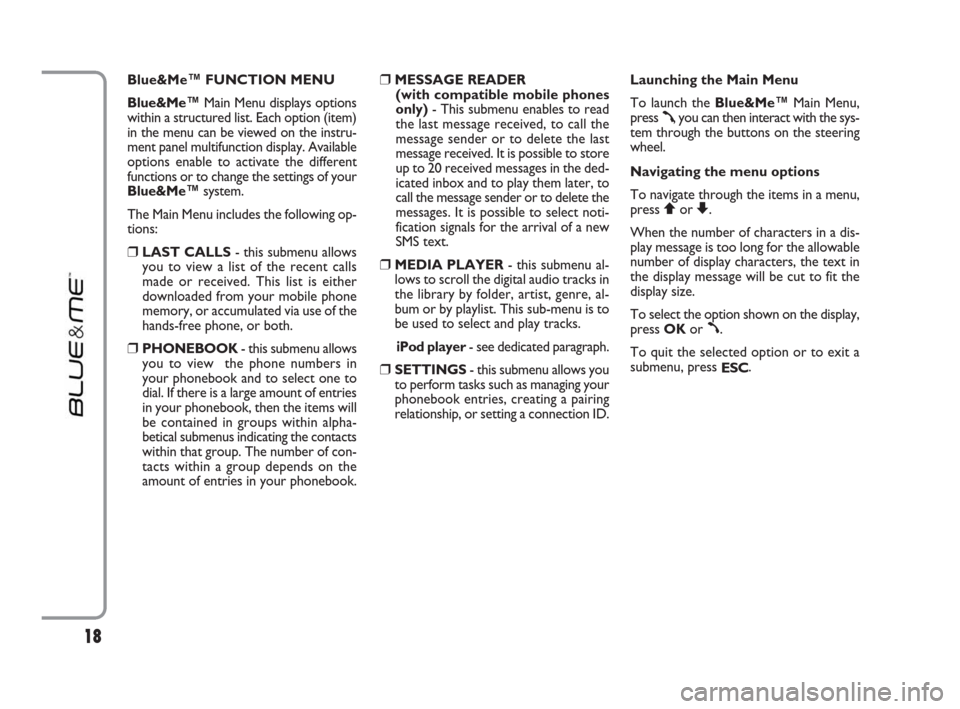

Blue&Me™ function menu ................................................. 18
HANDS-FREE KIT FUNCTIONS ......................................... 19
Making a phone call ................................................................. 19
Incoming calls ........................................................................... 23
Managing phone calls .............................................................. 23
Conference call function ........................................................ 24
MESSAGE READER FUNCTIONS ....................................... 25
How to read the last SMS text received............................. 25
Inbox........................................................................................... 26
Managing messages................................................................... 26
Deleting all messages............................................................... 27
Signal types................................................................................. 27
MEDIA PLAYER FUNCTIONS ............................................ 28
How to connect the USB device to Blue&Me™ ............ 28
How to manage the media library ....................................... 29
- Selection by folder ............................................................... 29
- Selection by artist ................................................................. 30
- Selection by genre ................................................................ 30
- Selection by album ............................................................... 31
- Selection by playlist .............................................................. 31
603_97_217 IDEA Blue&Me GB 1ed 1-10-2009 8:40 Pagina 1
Page 3 of 82
Playing audio tracks ................................................................ 32
- Shuffle playback of the whole media library..................... 32
- Now playing (track data) .................................................... 32
- Audio play .............................................................................. 32
- Pause ....................................................................................... 32
- Play ........................................................................................... 32
- Stop ......................................................................................... 33
- Next track .............................................................................. 33
- Previous track ....................................................................... 33
- Changing audio source ........................................................ 33
Practical hints for using the media player............................ 34
- Scrolling .................................................................................. 34
- Organizing media files .......................................................... 34
- Building the media library on Blue&Me™ .................... 34
- Building playlists for Blue&Me™ .................................... 34
SETTINGS FUNCTIONS....................................................... 35
Pairing a mobile phone ........................................................... 35
Managing user data .................................................................. 38
Media player settings .............................................................. 41
- Autoplay ................................................................................. 41
- Shuffle ...................................................................................... 41
- Loop ........................................................................................ 42
Advanced options ................................................................... 42
- Accessing the device ID ....................................................... 42
- Changing the GPRS code .................................................... 43
Exit the settings menu ............................................................ 43Blue&Me™ SUPPORTED MOBILE PHONES ............... 44
Mobile phones with Bluetooth®wireless technology...... 44
- “Pull” phones
(phonebook automatically downloaded) ......................... 44
- “Push” phones
(phonebook not automatically downloaded) ................. 44
- Mobile phones with message reader................................. 44
Supported USB memory devices ......................................... 45
- Management of audio files from iPod devices ................ 45
- USB memory devices ........................................................... 45
- Supported digital audio files ............................................... 46
- Supported playlist formats................................................... 47
VOICE COMMANDS (KEYWORDS) - SUMMARY ...... 48
Always available voice commands......................................... 48
Hands-free phone kit voice commands ............................... 49
Message reader voice commands (keywords)................... 51
Media player voice commands............................................... 52
Settings function voice commands........................................ 55
TROUBLESHOOTING........................................................... 56
Hands-free kit .......................................................................... 56
- General - display screen ...................................................... 56
Message reader......................................................................... 64
Media player.............................................................................. 66
iPod ............................................................................................ 70
PERSONAL DATA PROTECTION .................................... 72
SYSTEM SOFTWARE USE NOTICE .................................. 73
603_97_217 IDEA Blue&Me GB 1ed 1-10-2009 8:40 Pagina 2
Page 4 of 82
The Blue&Me™system, fully integral
with voice commands, buttons on the
steering wheel and multifunction display
messages, gives you the possibility of in-
teracting with your Bluetooth
®wireless
technology mobile phone (even if you
keep it in your pocket or bag) without hav-
ing to take your eyes off the road or re-
moving your hands from the steering
wheel. To use voice commands you are
not required to train the voice recognition
system to recognize your voice. This im-
plies that the system is nearly equally per-
forming with different persons, i.e.: the
voice recognition system is of the “speak-
er independent” type.
With this system you can also play your
favourite music stored on USB device and
select tracks and playback modes with
both voice commands or buttons on the
steering wheel.THE HANDS-FREE KIT
The basic characteristic of this hands-free
kit is voice recognition with Bluetooth
®
wireless technology. With this system you
can make and receive calls safely and se-
curely using either voice commands or
buttons on the steering wheel under what-
ever driving condition without having to
take your eyes off the road or removing
your hands from the steering wheel, as re-
quired by current law regulations.
Bluetooth
®wireless technology enables
wireless connection between your mobile
phone and the hands-free kit installed on
your car.
Hands-free kit with Bluetooth®wireless technology,
message reader and media player
Windows Mobile™-based Fiat Blue&Me™
is a personal telematic system enabling to
use communication and entertainment ap-
plications expressly designed for use in the
car.
The Blue&Me™system installed on your
car is equipped with hands-free kit, mes-
sage reader and media player, and it is pre-
set for future installation of additional ser-
vices.
Note
Not all mobiles support the voice reading
of SMS or the automatic transfer of the di-
rectory through Bluetooth
®. For further
information, surf the web site www.fiat.com
to find out the list of compatible mobiles.
OVERVIEW
3
603_97_217 IDEA Blue&Me GB 1ed 1-10-2009 8:40 Pagina 3
Page 5 of 82
To use the hands-free kit, you need a
Bluetooth®wireless technology enabled
mobile phone. This hands-free kit gives
you the possibility of interacting vocally
with your mobile phone while driving,
even if your mobile device does not fea-
ture this capability. You can also interact
with your mobile phone manually and vi-
sually using the steering wheel controls
and the instrument panel multifunction
display.
For further details on the mobile phones
supported by Blue&Me™, refer to sec-
tion Blue&Me™SUPPORTED MOBILE
PHONES.
To get started with Blue&Me™hands-
free kit with voice recognition, you have
to simply pair your Bluetooth
®wireless
technology enabled mobile phone with the
system.
Pairing is an operation that has to be made
only once.Note
During the mobile phone pairing proce-
dure, Blue&Me™attempts to detect a
phone equipped with Bluetooth
®wire-
less technology within range and then es-
tablishes the connection using a Personal
Identification Number (PIN).
Once your phone is paired, you have the
option to transfer your mobile phone con-
tacts to the hands-free kit, to make a
phone call either by using the contacts list
or directly pronouncing the phone num-
ber, to answer a call and also to answer
another incoming phone call.To interact with Blue&Me
™you can use
either buttons on the steering wheel and
voice commands. With voice recognition,
you can perform system function by
speaking voice commands, also identified
as “keywords”. When the system recog-
nizes a keyword, it will respond with the
appropriate action. Voice recognition is an
easy and convenient way to use
Blue&Me
™.
All the system functions are available with-
in the Blue&Me
™Main Menu. When the
car is not moving, you can surf through the
menu using either buttons on the steering
wheel and voice commands. When you
are travelling, you can interact with
Blue&Me
™using buttons on the steer-
ing wheel or voice commands relevant on-
ly to phone functions (LAST CALLSand
PHONEBOOK) and media player. To
activate settings when travelling you can
only use voice commands.
4
603_97_217 IDEA Blue&Me GB 1ed 1-10-2009 8:40 Pagina 4
Page 7 of 82
❒ To read again the messages received
and stored
❒ To call the SMS text sender using the
buttons on the steering wheel or voice
commands
❒ To delete individual messages or the
entire inbox using the buttons on the
steering wheel or voice commands.
The Blue&Me™system can also recog-
nize and read abbreviations, if any (e.g.
“ILUVU” will be read like “I love you”) and
interpret the most usual emoticons (e.g.
:-) will be read like “Smile”), adopted
nowadays to write SMS texts.MEDIA PLAYER
With the Blue&Me™media player you
can play, via the car sound system, the dig-
ital audio files stored on a USB device by
simply connecting it to the USB port lo-
cated in the car.
In this way, while you are driving you can
play your favourite personal music collec-
tions.
❒iPodplayer - see dedicated paragraph.
The media player enables the following op-
erations:
❒Digital audio playback- you can play
all your digital audio files (.mp3, .wma,
.wav, .aac) or play a customized playlist
(.m3uor .wplformat).
❒Audio file selection by category-
you can play all audio files of a certain
category, e.g.: album, artist or genre.
❒Playback options- while playing tracks
you can select the following options: Play,
Stop, Next track, Previous track, Shuffle and
Loop track.Note
The media player does not support audio
files compressed with other formats and
DRM (Digital Right Management) pro-
tected audio files. Non-supported audio
files that may be present on the USB de-
vice will be ignored.
To use the media player, you have to sim-
ply connect (directly or by an extension
lead) your USB device to the car USB
port. Turning the ignition key to MAR,
Blue&Me™will start building your me-
dia library. At the end of this operation
you can surf the whole library and scroll
its categories as required using the but-
tons on the steering wheel or voice com-
mands. Blue&Me™will then play your
selection via the car sound system.
6
603_97_217 IDEA Blue&Me GB 1ed 1-10-2009 8:40 Pagina 6
Page 10 of 82
9
Button
ß
ESC
‘
+/–
÷/˜
Q/Z
OK
SRC
Notes
❒For many tasks, the steering wheel buttons OKand ßcan be used interchangeably, and you can use the key that is more convenient for you to press. ❒For both operating modes of steering wheel buttons (short or long press), the function chosen will be activated when you release the button.
Short press function
(less than 1 second)
– Launch Blue&Me™Main Menu
– Confirm selected menu option
– Accept an incoming phone call
– Switch between two ongoing phone conversations (call waiting)
– Select displayed SMS message
– Cancel voice recognition
– Cancel a voice announcement
– Interrupt message reading
– Exit Blue&Me™Main Menu
– Exit the sub-menu and return to the previous menu option
– Exit current menu option without storing settings
– Turn the microphone on/off during a phone conversation
– Mute the ring tone of an incoming call
– Activate voice recognition
– Interrupt voice announcement to provide a new voice command
– Adjust the volume of Blue&Me™functions: hands-free kit, message reader
and media player, voice announcements
– Select media player tracks
– Scroll Blue&Me™ menu items
– Scroll inbox messages
– Confirm manually selected menu option
– Switch phone conversation from the hands-free phone to your mobile phone
and vice versa
– Select displayed message
– Select audio sources (Radio, CD, CD Changer, Media Player)Long press function
(more than 1 second)
– Reject an incoming phone
call
– End a phone call (hang up)
–
– Repeat the last utterance
in a voice interaction
–
–
–
–
–
603_97_217 IDEA Blue&Me GB 1ed 1-10-2009 8:40 Pagina 9
Page 14 of 82
MESSAGE READER
QUICK REFERENCE
GUIDE
(with compatible
mobile phones only)
If your mobile phone with Bluetooth®
wireless technology supports the message
reader function, at the arrival of a new
SMS text, Blue&Me™plays a tone and it
will ask if you would like to read it.
❒pronounce “Yes” or press ßor OK
to read the last message received
❒pronounce “No” or press ESC, the
system will store the message so you
can read it later
For further details on the message read-
er SMS, refer to section “MESSAGE
READER FUNCTIONS”.
If you encounter difficulties with any of
the message reader settings, consult sec-
tion “MESSAGE READER – TROU-
BLESHOOTING”To start playing the digital audio files
stored on your USB device, proceed as
follows:
❒Copy tracks to your USB device
(Blue&Me™recognizes .wma, .mp3
.wav and aacformats for audio files and
.wpland .m3uformats for playlists).
❒USB devices without USB wire: just
connect the USB device (directly or by
an extension lead) to the USB port on
the car (see fig. 1).
❒USB devices with USB wire: use the
wire to connect the USB device to the
USB port on the car (see fig. 1).
❒Turn the ignition key to MAR.
Blue&Me™will start automatically to
play your digital tracks selecting them
from the library built at the moment the
USB device is connected.
❒After Blue&Me™has built the library
containing your digital audio files, you can
select and play tracks, albums, artists and
playlists by interacting manually or ver-
bally with Blue&Me™. Building the li-
brary may require a few minutes if your
USB device contains several files.
❒iPod player - see dedicated paragraph.
❒You can also decide whether to play au-
dio files automatically when connecting
the USB device or to play them upon
your command.
For further details on media player, refer
to section MEDIA PLAYER FUNCTIONS.
If you encounter difficulties with any of
the voice recognition operations, consult
section MEDIA PLAYER - TROU-
BLESHOOTING.
MEDIA PLAYER QUICK REFERENCE GUIDE
13
603_97_217 IDEA Blue&Me GB 1ed 1-10-2009 8:40 Pagina 13
Page 15 of 82
HOW TO USE
Blue&Me™
CONTROLS STEERING WHEEL
Buttons on the steering wheel (see fig. 1)
are used to perform functions on the
hands-free kit, activating voice recognition,
using the media player functions or select-
ing a Blue&Me™menu option.
Certain buttons have multiple functions
which depend on the current state of the
system.
The function chosen in response to a key
press is in some cases controlled by the
duration of the key press (short or long).
For further information read chapter
DISPLAY AND BUTTONS ON THE
STEERING WHEEL.
Note
Instructions concerning manual controls
are identified in the text by symbol
?.VOICE COMMANDS
Voice commands can be pronounced by
the driver, which does not need to change
his/her normal driving position to be heard
by the system, since the microphone is
properly located and oriented to this pur-
pose.
Voice commands, which are words rec-
ognized by the system, are identified as
“keywords”.
The hands-free phone system recognizes
and responds to a preset list of voice com-
mands. The list of available voice com-
mands depends on the keyword level that
you are currently on. The current list is al-
ways available by pressing
‘and pro-
nouncing “Help” or, pronouncing “Help”
after whichever question of the system.
Blue&Me™also recognizes personalized
versions of voice commands like the name
of a contact in your phonebook.
There is no voice training required for us-
ing voice commands with this system.To issue a voice command to the system,
press
‘and wait for the tone indicating
that voice recognition is active. Then,
speak the command in your natural voice
at a moderate pace. When the system rec-
ognizes the command, it will acknowledge
your command by speaking a response or
acting on your command.
Voice commands are organized according
to three increasing levels: 1
stlevel, 2ndlev-
el and 3rdlevel.
When a valid* 1
stlevel keyword is pro-
nounced, the system will activate 2ndlev-
el keywords; when a valid 2ndlevel key-
word is pronounced, the system will ac-
tivate 3
rdlevel keywords.
If the user pronounces a valid 1
stlevel key-
word, then the submenu relevant to that
command will remain active until a key-
word leading to another level is given or
the interaction is interrupted; the same
rule applies for the other lower levels (2
nd
and 3rdlevel).
For the list of available keywords, re-
fer to section VOICE COMMANDS
(KEYWORDS) - SUMMARY.
* Validmeans that the keyword pronounced is included in the Blue&Me™“dictionary” and that can therefore be recognized by
the system for the concerned level.
14
603_97_217 IDEA Blue&Me GB 1ed 1-10-2009 8:40 Pagina 14
Page 18 of 82
DISPLAY
The different Blue&Me
™Main Menu op-
tions are displayed on the instrument pan-
el multifunction display (see fig. 1).
The display shows the following informa-
tion:
❒Status information for the Bluetooth®
wireless technology-enabled mobile
phone.
❒;indicates that Blue&Me™is cur-
rently connected with a Bluetooth®
wireless technology-enabled mobile
phone.
❒NO BLUETOOTH- the connection
is disconnected (versions with multi-
function display).
❒Name of your current mobile phone
carrier (“- - - - - - - -” displayed if not
available).
❒Info about message received, message
sender phone number or name
(if stored in the phonebook).
❒Data concerning the track being played
by the media player.
❒CurrentBlue&Me™information or
current menu option.AUDIO
Blue&Me™uses your in-car audio equip-
ment to deliver audio output (hands-free
phone conversation, media player, voice
announcements and tone signals). For this
purpose, the current audio program is
muted for the time needed.
You can always adjust the audio volume
either through the radio or the steering
wheel controls.
When the audio system is used by
Blue&Me™, the radio display will show
dedicated messages.
17
603_97_217 IDEA Blue&Me GB 1ed 1-10-2009 9:57 Pagina 17
Page 19 of 82
Blue&Me™ FUNCTION MENU
Blue&Me™Main Menu displays options
within a structured list. Each option (item)
in the menu can be viewed on the instru-
ment panel multifunction display. Available
options enable to activate the different
functions or to change the settings of your
Blue&Me™system.
The Main Menu includes the following op-
tions:
❒LAST CALLS- this submenu allows
you to view a list of the recent calls
made or received. This list is either
downloaded from your mobile phone
memory, or accumulated via use of the
hands-free phone, or both.
❒PHONEBOOK- this submenu allows
you to view the phone numbers in
your phonebook and to select one to
dial. If there is a large amount of entries
in your phonebook, then the items will
be contained in groups within alpha-
betical submenus indicating the contacts
within that group. The number of con-
tacts within a group depends on the
amount of entries in your phonebook.
❒MESSAGE READER
(with compatible mobile phones
only)- This submenu enables to read
the last message received, to call the
message sender or to delete the last
message received. It is possible to store
up to 20 received messages in the ded-
icated inbox and to play them later, to
call the message sender or to delete the
messages. It is possible to select noti-
fication signals for the arrival of a new
SMS text.
❒MEDIA PLAYER- this submenu al-
lows to scroll the digital audio tracks in
the library by folder, artist, genre, al-
bum or by playlist. This sub-menu is to
be used to select and play tracks.
iPod player- see dedicated paragraph.
❒SETTINGS- this submenu allows you
to perform tasks such as managing your
phonebook entries, creating a pairing
relationship, or setting a connection ID.Launching the Main Menu
To launch the Blue&Me™Main Menu,
press
ß, you can then interact with the sys-
tem through the buttons on the steering
wheel.
Navigating the menu options
To navigate through the items in a menu,
press
QorZ.
When the number of characters in a dis-
play message is too long for the allowable
number of display characters, the text in
the display message will be cut to fit the
display size.
To select the option shown on the display,
press OKor
ß.
To quit the selected option or to exit a
submenu, press
ESC.
18
603_97_217 IDEA Blue&Me GB 1ed 1-10-2009 8:40 Pagina 18
