torque FIAT IDEA 2009 1.G Dualogic Transmission Manual

6
If necessary, (e.g. when overtaking), the
system will shift down a gear or more to
provide the power and torque required
by the vehicle for the acceleration re-
quested by the driver (this all takes place
in automatic mode irrespective of whether
the ECOfunction is activated or not). Automatic operation
(AUTO - ECO)
The ECOfunction can be only activated
only with the automatic logic on.
The ECOfunction is switched on by
pressing button E-fig. 3located on the
trim next to the gear control lever. After
this function has been activated, the re-

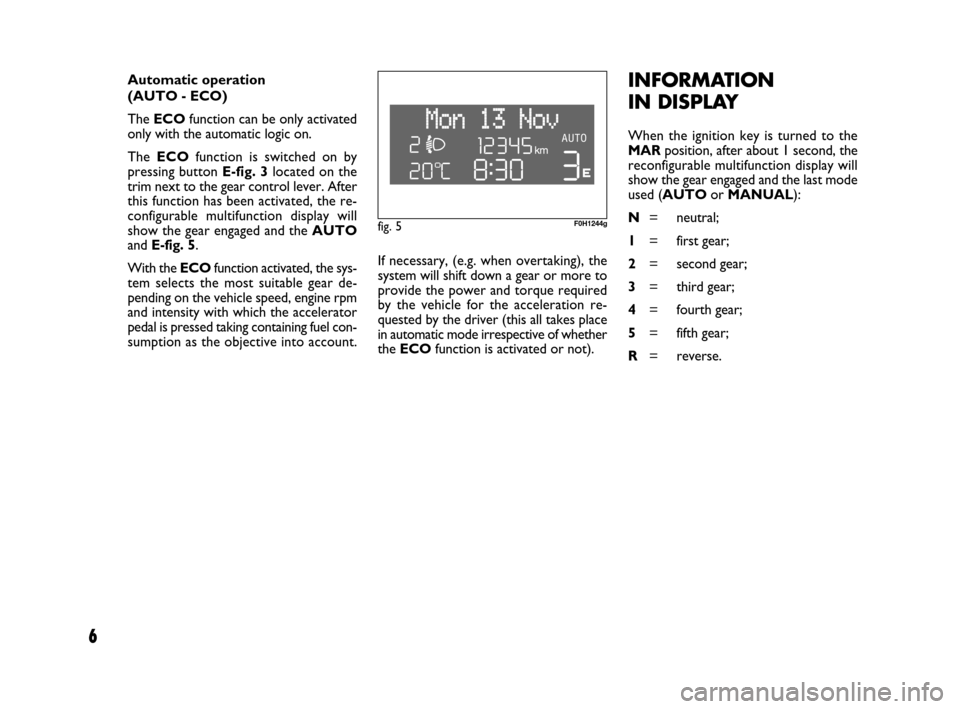

configurable multifunction display will
show the gear engaged and the AUTO
and E-fig. 5.
With the ECOfunction activated, the sys-
tem selects the most suitable gear de-
pending on the vehicle speed, engine rpm
and intensity with which the accelerator
pedal is pressed taking containing fuel con-
sumption as the objective into account.
INFORMATION
IN DISPLAY
When the ignition key is turned to the
MARposition, after about 1 second, the
reconfigurable multifunction display will
show the gear engaged and the last mode
used (AUTOor MANUAL):
N= neutral;
1= first gear;
2= second gear;
3= third gear;
4= fourth gear;
5= fifth gear;
R= reverse.
fig. 5F0H1244g
603_97_015 IDEA DUAL GB 1e 4-02-2009 16:25 Pagina 6

9
PARKING THE CAR
To park safely it is vital to engage 1st gear
or reverse (R), with your foot on the
brake pedal and, if the road is on a gradi-
ent, to operate the handbrake; it is also vi-
tal to wait for the display of the gear en-
gaged to disappear from the reconfig-
urable multifunction display before re-
leasing the brake pedal.
IMPORTANT NEVERleave the car with
the gearbox in neutral (N).GENERAL WARNINGS
❒With the car stationary and a gear en-
gaged, always keep the brake pedal
pressed until you decide to set off, then
release the brake and accelerate gently;
❒during prolonged stops with the engine
running, it is advisable to keep the gear-
box in neutral (N);
❒in order to safeguard the efficiency of
the clutch, do not use the accelerator
to keep the car stationary (e.g. when
stopped on an incline); if the clutch
overheats it could damage it, use the
brake pedal and only use the accelera-
tor pedal when you decide to set off;
❒only use second gear when you need
greater control at take off for ma-
noeuvres on surfaces with poor grip;
❒if, with reverse gear (R) engaged, you
need to engage first gear or vice ver-
sa, only do this when the car is com-
pletely stationary and with the brake
pedal pressed;
❒although it is strongly discouraged, if
you are going downhill and for un-
known reasons you let the car move
forward with the gearbox in neutral
(N), when there is a request to engage
a gear the system will automatically en-
gage the best gear in relation to the
speed of the actual to allow the correct
transmission of the drive torque to the
wheels;
❒when necessary, with the engine
switched off it is possible to engage 1st
gear or reverse (R) with the ignition in
the MARposition and the brake
pressed. In this case, gear shifts must be
made allowing at least 5 minutes to
elapse between one gear shift and the
next to safeguard the operation of the
hydraulic system and the pump in par-
ticular;
❒fully depressing the accelerator pedal
quickly and turning the ASR button in
the dashboard, if present, off, activates
a “lively” departure;
❒for departures on a hill, accelerating
gently but fully straight after having re-
leased the handbrake or the brake ped-
al allows the engine to greatly increase
the number of revs and tackle the
steepest gradients with more torque at
the wheels.
