GENERAL WARNINGS
Lighting of a warning light is associated to
a specific message and/or buzzer when ap-
plicable. These indications are brief and
precautionary and as such must not be
considered as exhaustive and/or alterna-
tive to the information contained in the
Owner’s Handbook, which you are re-
commended to read carefully in all cases.
Refer to the information in this section in
the event of a failure indication.
IMPORTANT Failure indications on the
display fall into one of two categories: se-
riousfailure and less seriousfailure.
A warning cycle will be repeated in case
of severefailures until the case of the
problem is eliminated.
A shorter warning cycle will be run in ca-
se of less severefaults.
Press MODEto stop the warning cycle in
both cases. The warning light on the in-
strument panel will stay on until the cau-
se of the failure is eliminated.LOW BRAKE FLUID
LEVEL (red)
HANDBRAKE ON (red)
When the ignition key is moved to MAR,
the warning light turns on and should go
off after a few seconds.
Low brake fluid level
The warning light comes on when the le-
vel of the brake fluid in the reservoir falls
below the minimum level due to possible
leaks in the circuit.
The display will show the dedicated mes-
sage.
x
Handbrake on
The warning light turns on when the hand-
brake is on.
On certain versions, if the car is moving
the buzzer will also sound.
IMPORTANT If the warning light turns on
when travelling, check that the handbrake
is not engaged.
AIRBAG FAILURE (red)
When the ignition key is mo-
ved to MAR, the warning light
turns on and should go off after
a few seconds.
The warning light stays on steady if there
is a failure in the airbag system.
The display will show the dedicated mes-
sage.¬
If the warning light xturns
on when travelling (with the
message on the display) stop the car
immediately and contact Fiat Dea-
lership.
WARNING

125
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
If when turning the key to
MAR the warning light ¬does not turn on or stays on whilst
driving (together with the message in
the multifunctional display, where
provided), a failure may have occur-
red in the restraint systems. In this ca-
se the air bags or pretensioners may
not be deployed after an impact or,
in a minor number of cases, they may
be deployed accidentally. Contact
Fiat Dealership immediately to have
the system checked before driving off.
WARNING
The failure of the warning li-
ght ¬is indicated by inter-
mittent blinking of the warning light
“that signals front passenger airbag
deactivated. The airbag system will
automatically deactivate the passen-
ger airbag (front and side, where pro-
vided). In this case, the warning light
¬may not indicate a fault in the sy-
stem. Contact the Fiat Dealership im-
mediately to have the system checked
before driving off.
WARNING
HOT ENGINE
COOLANT (red)
When the ignition key is mo-
ved to MAR, the warning light
turns on and should go off after a few se-
conds.
The warning light turns on when the en-
gine is overheated.
If the warning light comes on, proceed as
follows:
❒during normal travel: stop the car,
stop the engine and check that the wa-
ter level in the vessel is not under the
MINline. In this case, wait for a few
minutes for the engine to cool down
when slowly and carefully open the
cap, top-up with coolant and check
that the level is between the MINand
MAXreferences on the vessel itself.
Also check for leaks. Should the war-
ning light turn on again at the next
start-up, contact Fiat Dealership.
u
❒If the vehicle is used under seve-
re conditions(e.g. towing of trailers
uphill or fully loaded vehicle): slow
down and stop the car if the warning
light stays on. Stop for 2 or 3 minu-
tes with the engine running and sligh-
tly accelerated to assist better coolant
circulation. Then switch the engine off.
Check correct fluid level as described
above.
IMPORTANT Under severe use of the
car, keep the engine on and slightly acce-
lerated for few minutes before switching
it off.
The display will show the dedicated mes-
sage.
LOW BATTERY
CHARGE (red)
When the ignition key is mo-
ved to MAR, the warning light
turns on and should go out as soon as the
engine is started (with the engine running
at idle speed a brief delay in going out is
allowed). Go to a Lancia Dealership im-
mediately if the warning light stays on.w

126
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
LOW ENGINE OIL
PRESSURE (red)
EXHAUSTED OIL (red)
(Multijet versions with
DPF)
Low engine oil pressure
When the ignition key is moved to MAR,
the warning light turns on and should go
out as soon as the engine is started.
The display will show the dedicated mes-
sage.
v
Exhausted oil
The warning light turns on and flashes
along with the message on the display
when the system detects that the engine
oil is exhausted.
After the first indication, at each engine
starting the warning light
vwill go on
flashing for about 60 seconds and then
every 2 hours until oil is changed.“DUALDRIVE”
ELECTRIC POWER
STEERING SYSTEM
(red)
This warning light comes on when the igni-
tion key is turned to MAR, but it should
go off after a few seconds.
The electric power steering system will
not work when the warning light is on and
considerably more effort is needed on the
steering wheel. The car can still be stee-
red: Go to a Fiat Dealership.
The display will show the dedicated mes-
sage.
g
DOOR OPEN (red)
On certain versions the war-
ning light turns on when one or
more doors or the tailgate are
not properly closed.
The display will show a dedicated messa-
ge.
A buzzer will sound when doors/tailgate
are open and the car is moving.
´
SEAT BELTS
REMINDER
(red) (where provided)
The warning light on the display
will light up when the car is moving and
the driver’s seat belt is not correctly fa-
stened. The warning light will blink and a
buzzer will sound if the front seat belts are
not correctly fastened. The buzzer of the
S.B.R. (Seat Belt Reminder) system can
only be switched off by a Fiat Dealership.
The system can be reactivated by means
of the setup menu.
<
If the warning light vturns on when travelling
(with the message on the display)
stop the car immediately and contact
Fiat Dealership.
WARNING
If warning light vflashes,
contact Fiat Dealership as
soon as possible to have oil changed
and instrument panel warning light
turned off.
WARNING

127
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
>
EBD FAILURE
(red)
(amber)
Warning lights xand >lit at the sa-
me time with the engine running indicates
an EBD system failure or that the system
is not available. Early locking of the rear
wheels may occur in the event of violent
braking causing the car to swerve. Drive
very carefully to a Fiat Dealership to ha-
ve the system inspected.
The display will show the dedicated mes-
sage.
x
INEFFICIENT
EOBD/INJECTION
SYSTEM (amber)
Under normal conditions, turning
the ignition key to MAR, the warning li-
ght turns on but it should go off after en-
gine starting.
If the warning light stays on or turns on
when travelling, means a fault in the sup-
ply/ignition system which could cause high
emissions at the exhaust, possible lack of
performance, poor handling and high con-
sumption levels.
The display will show a dedicated messa-
ge.
Under these conditions, the vehicle can
continue travelling at moderate speed
without demanding excessive effort from
the engine. Prolonged use of the car with
the warning light on may cause damage.
Go to a Fiat Dealership as soon as possi-
ble.
If warning light will go out after the fault
goes away but it will be stored in the sy-
stem.
U
Petrol engine lubricants
The warning light turns on and flashes to
indicate possible damage to the catalyser.
If the light flashes, release the accelerator
pedal to lower the speed of the engine un-
til the warning light stops flashing; conti-
nue the journey at moderate speed, trying
to avoid driving conditions that may cau-
se further flashing and contact Fiat Dea-
lership as soon as possible.

128
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
FRONT PASSENGER
AIRBAG
DEACTIVATED
(amber)
Warning light “comes on when front
passenger’s airbag is deactivated.
With the front passenger’s airbag on,
when the ignition key is moved to MAR,
the warning light
“comes on steadily for
about 4 seconds; then, it continues to fla-
sh for 4 seconds and finally goes off.
“
ABS SYSTEM FAILURE
(amber)
When the ignition key is mo-
ved to MAR, the warning light
turns on and should go off after a few se-
conds.
The warning light comes on when the sy-
stem is not working properly or is not
available. In the case, the braking system
will work as normal without the extra po-
tentials offered by the ABS system. Drive
carefully and go to a Fiat Dealership as
soon as possible.
The display will show the dedicated mes-
sage.>
FUEL RESERVE
(amber)
When the ignition key is mo-
ved to MAR, the warning light
turns on and should go off after a few se-
conds.
The warning light turns on when about 6/7
litres fuel are left in the tank.
IMPORTANT The warning light will blink
to indicate a system failure. Go to a Fiat
Dealership to have the system checked.
KFailure of the warning light“is indicated by warning li-
ght ¬. The airbag system will auto-
matically deactivate the passenger
airbag (front and side, where provi-
ded). Contact the Fiat Dealership im-
mediately to have the system checked
before driving off.
WARNINGGo to a Fiat Dealership as
soon as possible if warning li-
ght
Ueither does not light up
when the key is turned to
MAR to if while travelling the warning
lights comes on either steady or blinking
(along with a message on the display).
The operation of warning light
Umay
be checked by the traffic police using
specific devices. Follow the laws in for-
ce in the country where you are driving.

129
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
GLOW PLUG
WARMING
(Multijet versions -
amber)
GLOW PLUG WARMING
FAILURE
(Multijet versions - amber)
Glow plugs
The warning light goes on when the key is
turned to MAR. It goes out as soon as the
glow plugs have reached the preset tem-
perature. Start the engine as soon as the
warning light goes out.
IMPORTANT With hot ambient tempe-
rature, warning light stays on for very
short time.
Glow plug warming failure
The warning light will blink in the event of
a failure to the glow plug heating system.
Go to a Fiat Dealership as soon as possi-
ble.
The display will show the dedicated mes-
sage.
m
WATER IN DIESEL
FUEL FILTER (Multijet
versions - amber)
Turning the ignition key to MAR
the warning light turns on, but it should go
off after a few seconds.
The warning light
cturns on when there
is water in the diesel fuel filter.
The display will show the dedicated mes-
sage.
c
FIAT CODE
PROTECTION SYSTEM
FAILURE (amber)
Turning the key to MAR, the
warning light flashes once and then goes
off.
If with the ignition key at MAR, the war-
ning light stays on, this indicates a possi-
ble failure (see “Fiat Code system” in sec-
tion “Dashboard and controls”).
IMPORTANT The turning on at the same
time of the
UandYwarning lights in-
dicates a failure of the Fiat CODE system.
If with the engine running the warning li-
ght
Yflashes, this means that the car is
not protected by the engine inhibitor de-
vice (see “Fiat Code system” in section
“Dashboard and controls”).
Contact Fiat Dealership to have all the key
stored.
Y
REAR FOG LIGHTS
(amber)
The warning light comes on
when the rear fog lights are on.
4
The presence of water in the
feeding circuit may cause se-
vere damage to the injection
system and irregular engine
operation. If warning light
clights up
(on some versions with the message on
the display), go to a Lancia Dealership
as soon as possible to have the system
bled. Water may have been introduced
in the tank if this appears immediately
after refuelling: in this case, stop the
engine immediately and contact a Fiat
Dealership.

130
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
GENERIC INDICATION
(amber)
The warning light turns on in
the following circumstances.
Exterior lights failure
The warning light will come on (some ver-
sions only) when a fault to one of the fol-
lowing lights is detected:
–side/taillights
– brake lights (excluding third brake light)
–rear fog lights
–direction indicators
– number plate lights.
The fault may be caused by: one or more
burnt lamps, a blow protection fuse or in-
terruption of the electrical connection.
The display will show the dedicated mes-
sage.
è
Obstructed particulate trap
(where provided)
The warning light turns on when the die-
sel particulate trap is clogged and the dri-
ving conditions do not enable to activate
automatically the regeneration procedu-
re.
To allow the regeneration procedure,
keep the car running until the warning li-
ght turns off.
The display will show a dedicated messa-
ge.
Engine oil pressure sensor failure
The warning light turns on when failure
is detected in parking sensors. Go to a Fiat
Dealership as soon as possible.Rain/dusk sensor failure
The warning light comes on when a du-
sk/rain sensor failure is detected. Go to
a Fiat Dealership as soon as possible.
The display will show a dedicated messa-
ge.
Fuel cut-off switch tripped
The warning light comes on when the fuel
cut-off switch trips.
The display will show a dedicated messa-
ge.
Speed limit exceeded
The display will show the dedicated mes-
sage when the car exceeds the set speed
limit (see “Multifunctional Display” in sec-
tion “Dashboard and controls”).

131
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
WORN BRAKE PADS
(amber)
The warning light turns on if
the front brake pads are worn; in
this case have them changed as soon as
possible.
The display will show the dedicated mes-
sage.
d
OBSTRUCTED
PARTICULATE TRAP
(1.3 Multijet 90 HP - 1.3
Multijet 95 HP versions)
(amber)
When the ignition key is moved to MAR,
the warning light turns on and should go
off after a few seconds.
The warning light turns on when the die-
sel particulate trap is clogged and the dri-
ving conditions do not enable to activate
automatically the regeneration procedu-
re.
To allow the regeneration procedure,
keep the car running until the warning li-
ght turns off.
The display will show the dedicated mes-
sage.
h
SIDE/TAILLIGHTS AND
LOW BEAMS (green)
FOLLOW ME HOME
(green)
Side/tail lights and low beams
The warning light comes on when side/tail
lights or low beams are turned on.
Follow me home
The warning light will turn when this de-
vice is active (see “Follow me home” in
section “Dashboard and controls”).
The display will show the dedicated mes-
sage.
3
FOG LIGHTS (green)
The warning light comes on
when the fog lights are on.
5
LEFT-HAND
DIRECTION
INDICATOR (green -
blinking)
The warning light turns on when the di-
rection indicator control lever is moved
downwards or, together with the right in-
dicator, when the hazard light button is
pressed.
F
RIGHT-HAND
DIRECTION
INDICATOR (green -
blinking)
The warning light turns on when the di-
rection indicator control lever is moved
upwards or, together with the left indica-
tor, when the hazard light button is pres-
sed.
D

132
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES

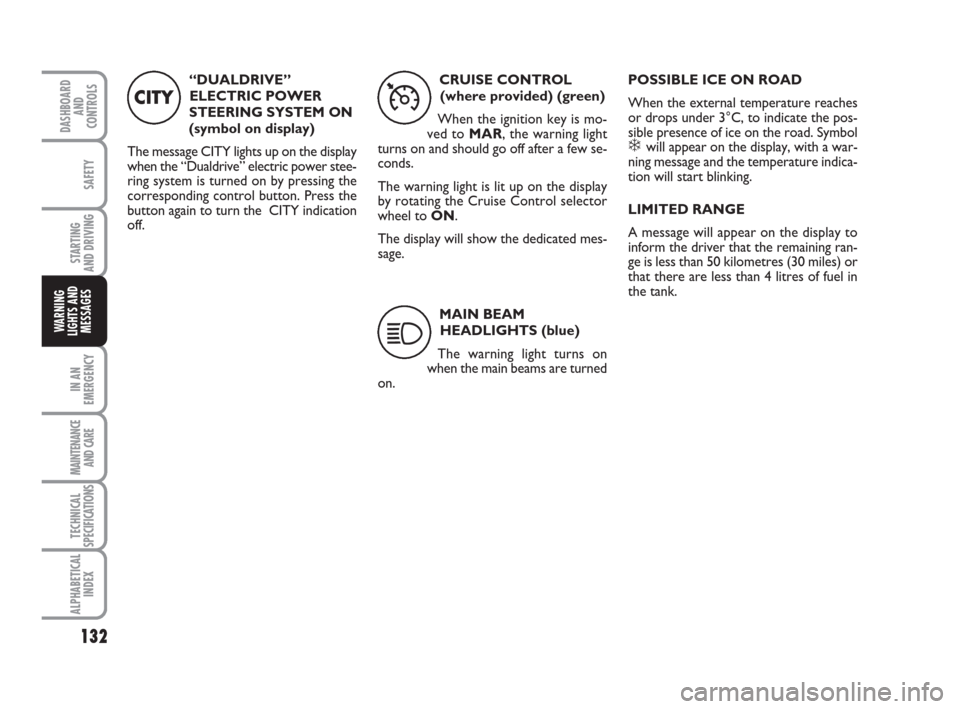

“DUALDRIVE”
ELECTRIC POWER
STEERING SYSTEM ON
(symbol on display)
The message CITY lights up on the display
when the “Dualdrive” electric power stee-
ring system is turned on by pressing the
corresponding control button. Press the
button again to turn the CITY indication
off.
CITY
CRUISE CONTROL
(where provided) (green)
When the ignition key is mo-
ved to MAR, the warning light
turns on and should go off after a few se-
conds.
The warning light is lit up on the display
by rotating the Cruise Control selector
wheel to ON.
The display will show the dedicated mes-
sage.
Ü
MAIN BEAM
HEADLIGHTS (blue)
The warning light turns on
when the main beams are turned
on.
1
POSSIBLE ICE ON ROAD
When the external temperature reaches
or drops under 3°C, to indicate the pos-
sible presence of ice on the road. Symbol
❄ will appear on the display, with a war-
ning message and the temperature indica-
tion will start blinking.
LIMITED RANGE
A message will appear on the display to
inform the driver that the remaining ran-
ge is less than 50 kilometres (30 miles) or
that there are less than 4 litres of fuel in
the tank.

133
STARTING
AND DRIVING
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES

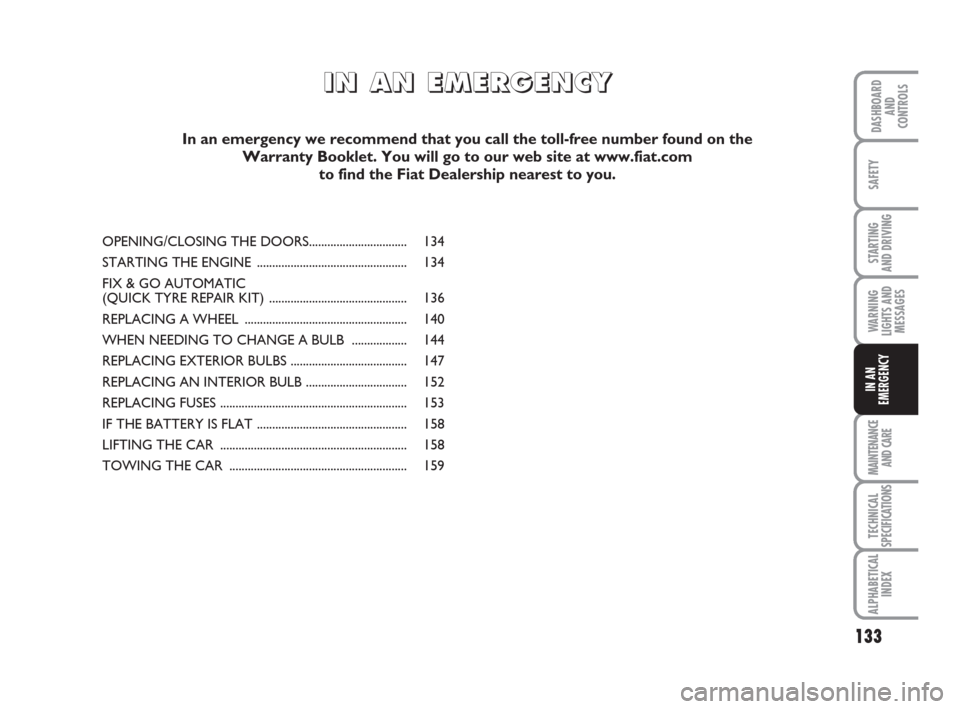

IN AN
EMERGENCY
OPENING/CLOSING THE DOORS................................ 134
STARTING THE ENGINE ................................................. 134
FIX & GO AUTOMATIC
(QUICK TYRE REPAIR KIT) ............................................. 136
REPLACING A WHEEL ..................................................... 140
WHEN NEEDING TO CHANGE A BULB .................. 144
REPLACING EXTERIOR BULBS ...................................... 147
REPLACING AN INTERIOR BULB ................................. 152
REPLACING FUSES ............................................................. 153
IF THE BATTERY IS FLAT ................................................. 158
LIFTING THE CAR ............................................................. 158
TOWING THE CAR .......................................................... 159
I I
N N
A A
N N
E E
M M
E E
R R
G G
E E
N N
C C
Y Y
In an emergency we recommend that you call the toll-free number found on the
Warranty Booklet. You will go to our web site at www.fiat.com
to find the Fiat Dealership nearest to you.
