MAIN KEY WITH REMOTE
CONTROL fig. 12
The metal insert of the key Aretracts in-
to the grip.
The key operates:
❒the ignition switch;
❒the door lock on drive side;
❒operation of the emergency front and
rear door lock release system D-fig.
13from the outside for use the elec-
tric system is not working (e.g. flat bat-
tery);
❒operation of the child lock Eon rear
doors.
fig. 11F0H0700m
fig. 12b (where provided)F0H0767m
fig. 13F0H0246m
❒release button Band then turn the
metal insert Auntil hearing the prop-
er locking click.
Button
Ëis used for unlocking the doors,
the tailgate and the fuel flap.
Button
Áis used for locking the doors,
the tailgate and the fuel flap.
Button
Ris used for remote opening
the tailgate.
fig. 12aF0H0701m
Press button B-fig. 12to open the metal-
lic part A.
To insert the metallic part Ain the grip:
❒hold button B pressed
❒move the metallic part A

12
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND CONTROLS
Unlocking the doors and the
tailgate
Press button
Ëbriefly: this will release the
doors, the tailgate, the fuel flap; the inter-
nal ceiling light will come on and the di-
rection indicators will blink twice.
The doors are automatically unlocked
when the fuel inertia switch trips.
IMPORTANT Powerful radio transmis-
sions not related to the car (e.g. mobile
phones, amateur radios, etc.) may inter-
fere with the frequency of the remote
control. Remote control operation may
be impaired.
Locking the doors and the tailgate
Press button
Ábriefly: this will release the
doors, the tailgate, the fuel flap; the inter-
nal ceiling light will come on and the di-
rection indicators will blink twice.Deterrent LED indications
When locking the doors, the deterrent
LED on the button A-fig. 14lights up for
about 3 seconds and than starts flashing
(deterrence function). Once doors are
locked, if one or more doors or the tail-
gate are not closed correctly, the led and
direction indicators start flashing quickly.
IMPORTANT Powerful radio transmis-
sions not related to the car (e.g. mobile
phones, amateur radios, etc.) may inter-
fere with the frequency of the remote
control. Remote control operation may
be impaired.
fig. 14F0H0703m
IMPORTANT Powerful radio transmis-
sions not related to the car (e.g. mobile
phones, amateur radios, etc.) may inter-
fere with the frequency of the remote
control. Remote control operation may
be impaired.
Only press button B-fig. 12
with the key away from your
body, specifically from your eyes and
from objects which could get dam-
aged (e.g. your clothes). Do not leave
the key unattended, because some-
one, a child especially, may acciden-
tally press the button while handling
the key.
WARNING

13
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND CONTROLS
Opening the tailgate with the
remote control
Hold button
Rpressed to unlock
(open) the tailgate. The direction indica-
tors will blink twice when the tailgate is
opened.
IMPORTANT Powerful radio transmis-
sions not related to the car (e.g. mobile
phones, amateur radios, etc.) may inter-
fere with the frequency of the remote
control. Remote control operation may
be impaired.
Electrical closure from inside
fig. 14
With the doors closed, press button Aon
the central dashboard to lock (LED on) or
unlock (LED off) the doors.
IMPORTANT If the door is not correct-
ly closed or if a fault is present in the sys-
tem, the door locking device from inside
the car will not work.
The device will resume normal operation
after removing the cause of the fault.Only the doors used to get
out of the car will be un-
locked if the door lock button
inside the car is pressed by
mistake. The tailgate will remain
locked. Press the lock/unlock buttons
to realign the system.
fig. 15aF0H0704m
Replacing the battery of the key
with remote control Fig. 15
To replace the battery, proceed as fol-
lows:
❒press button Aand open the metal in-
sert B;
❒turn the screw Cto using a fine bit
screwdriver;
❒take out the battery case Dand re-
place the battery Erespecting its po-
larity;
❒refit the battery case Dinside the key
and lock it by turning the screw C.
fig. 15b (where provided)F0H0768m

14
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND CONTROLS

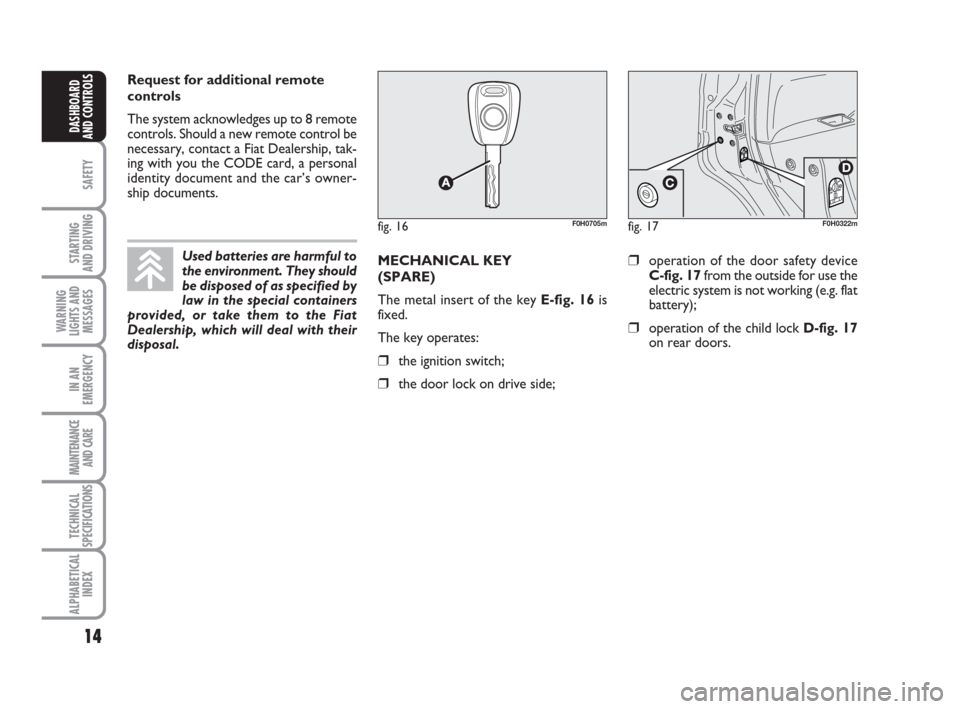

Request for additional remote
controls
The system acknowledges up to 8 remote
controls. Should a new remote control be
necessary, contact a Fiat Dealership, tak-
ing with you the CODE card, a personal
identity document and the car’s owner-
ship documents.
Used batteries are harmful to
the environment. They should
be disposed of as specified by
law in the special containers
provided, or take them to the Fiat
Dealership, which will deal with their
disposal.
fig. 16F0H0705mfig. 17F0H0322m
MECHANICAL KEY
(SPARE)
The metal insert of the key E-fig. 16is
fixed.
The key operates:
❒the ignition switch;
❒the door lock on drive side;
❒operation of the door safety device
C-fig. 17from the outside for use the
electric system is not working (e.g. flat
battery);
❒operation of the child lock D-fig. 17
on rear doors.

15
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND CONTROLS

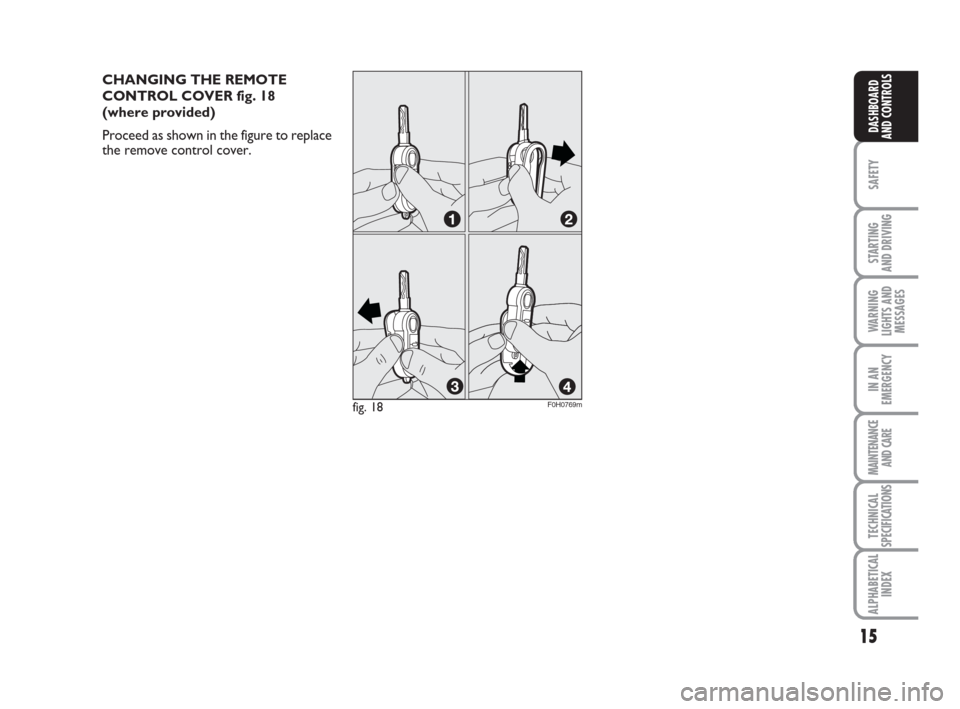

CHANGING THE REMOTE
CONTROL COVER fig. 18
(where provided)
Proceed as shown in the figure to replace
the remove control cover.
fig. 18F0H0769m

16
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND CONTROLS

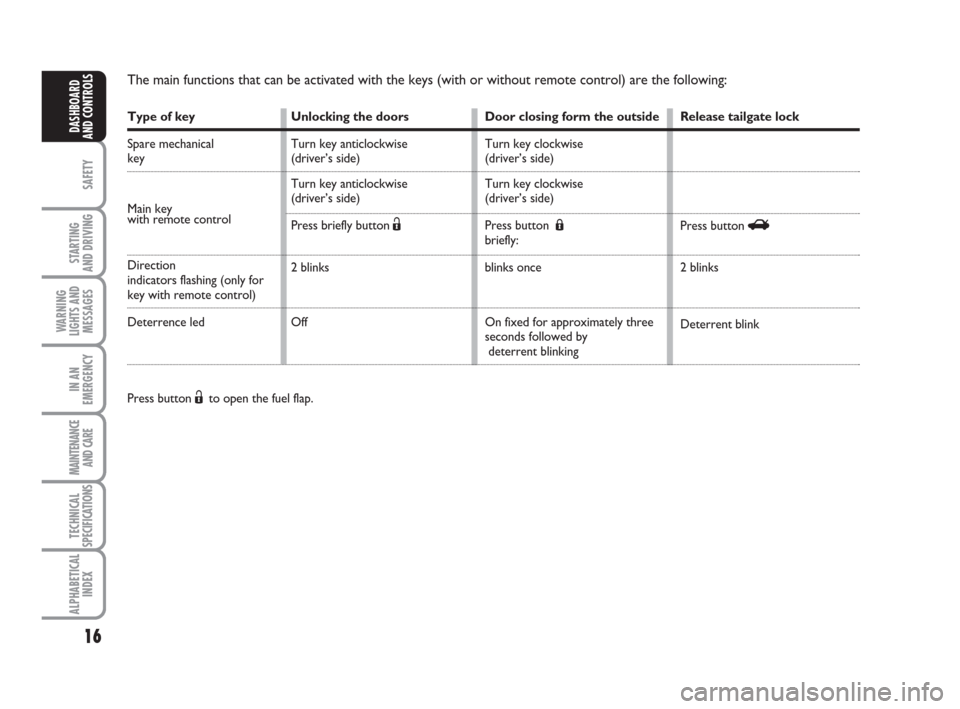

The main functions that can be activated with the keys (with or without remote control) are the following:
Press button Ëto open the fuel flap.
Type of key
Spare mechanical
key
Main key
with remote control
Direction
indicators flashing (only for
key with remote control)
Deterrence led
Release tailgate lock
Press button R
2 blinks
Deterrent blink Unlocking the doors
Turn key anticlockwise
(driver’s side)
Turn key anticlockwise
(driver’s side)
Press briefly button Ë
2 blinks
OffDoor closing form the outside
Turn key clockwise
(driver’s side)
Turn key clockwise
(driver’s side)
Press button Á
briefly:
blinks once
On fixed for approximately three
seconds followed by
deterrent blinking

76
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND CONTROLS
BOOT
The tailgate (when released) may only be
opened from the outside of the vehicle by
means of the electric opening manual
fig. 106 positioned over the number plate.
The tailgate can be opened at any time,
even if the doors are locked.
The “Key” option can be activated in the
instrument panel display setup menu (see
“Reconfigurable multifunctional display” in
this chapter): the tailgate will not be un-
locked with the doors in this case. Press
button
Ron the remote control.
The direction indicators will blink twice
when the tailgate is opened.
CLOSING TAILGATE
Firstly lower the tailgate using handles
fig. 110, then press the tailgate itself un-
til you hear it click.
IMPORTANT If the “Key” option is se-
lected, make sure that you have the igni-
tion key before closing the tailgate because
it will be automatically locked.
fig. 106F0H0742m
Do not fit additional objects
onto the rear window shelf or
tailgate (speakers, spoilers,
etc.) except when contem-
plated by the manufacturer to ensure
the correct operation of the side gas
shock absorbers of the tailgate itself.
Never exceed the maximum
allowed load in the boot (see
“Technical Specifications”). Make
sure that the objects are well
arranged in the boot so that they will
not be projected forwards following
sudden braking.
WARNING
they cause cause injury to
passengers in the event of an
accident or sudden braking.
WARNING
fig. 107F0H0105m

158
STARTING
AND DRIVING
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY

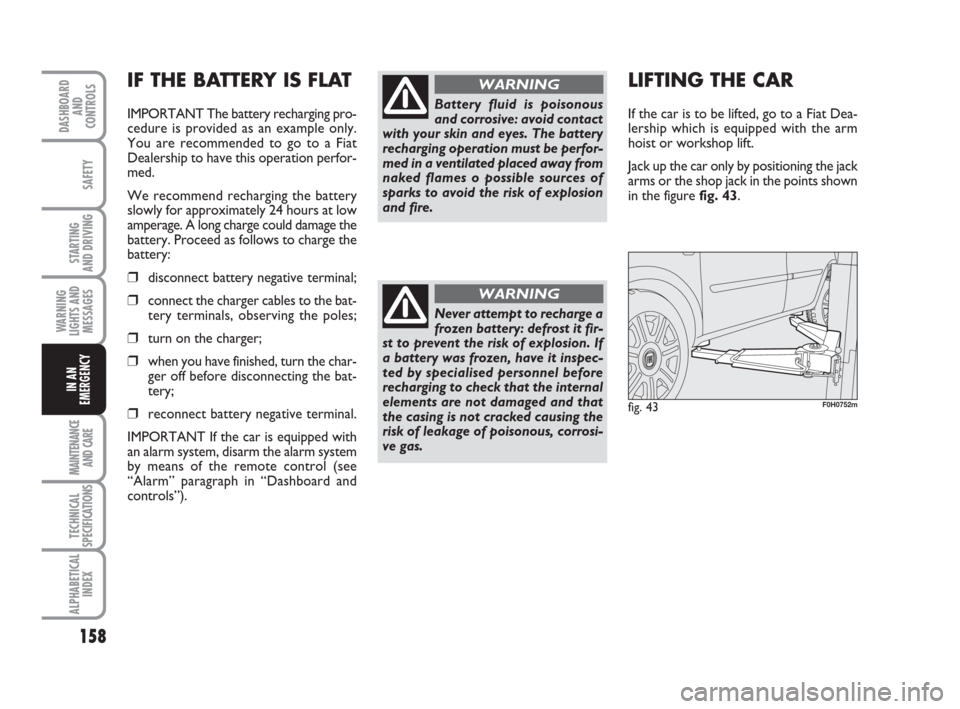

IF THE BATTERY IS FLAT
IMPORTANT The battery recharging pro-
cedure is provided as an example only.
You are recommended to go to a Fiat
Dealership to have this operation perfor-
med.
We recommend recharging the battery
slowly for approximately 24 hours at low
amperage. A long charge could damage the
battery. Proceed as follows to charge the
battery:
❒disconnect battery negative terminal;
❒connect the charger cables to the bat-
tery terminals, observing the poles;
❒turn on the charger;
❒when you have finished, turn the char-
ger off before disconnecting the bat-
tery;
❒reconnect battery negative terminal.
IMPORTANT If the car is equipped with
an alarm system, disarm the alarm system
by means of the remote control (see
“Alarm” paragraph in “Dashboard and
controls”).
LIFTING THE CAR
If the car is to be lifted, go to a Fiat Dea-
lership which is equipped with the arm
hoist or workshop lift.
Jack up the car only by positioning the jack
arms or the shop jack in the points shown
in the figure fig. 43.Battery fluid is poisonous
and corrosive: avoid contact
with your skin and eyes. The battery
recharging operation must be perfor-
med in a ventilated placed away from
naked flames o possible sources of
sparks to avoid the risk of explosion
and fire.
WARNING
Never attempt to recharge a
frozen battery: defrost it fir-
st to prevent the risk of explosion. If
a battery was frozen, have it inspec-
ted by specialised personnel before
recharging to check that the internal
elements are not damaged and that
the casing is not cracked causing the
risk of leakage of poisonous, corrosi-
ve gas.
WARNING
