INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYER
QUICK
GUIDE
❒FM Multipath detector;
❒manual storing of 30 stations: 18 on FM
band (6 on FM1, 6 on FM2, 6 on FMT),
12 on MW band;
❒automatic storing (AUTOSTORE func-
tion) of 6 stations in the dedicated FM
band;
❒SPEED VOLUME function: automatic
volume adjustment depending on the
car speed;
❒automatic Stereo/Mono selection.CD section
❒Direct disc selection;
❒Track selection (forward/backward);
❒Fast forward/rewind through tracks;
❒CD Display function: display of disc
name and time elapsed since start of the
track;
❒Audio CD, CD-R and CD-RW playing. GENERAL INFORMATION
The radio offers the following functions:
Radio section
❒PLL tuning with FM/AM/MW frequen-
cy bands;
❒RDS (Radio Data System) with TA
function (traffic information) - TP (traf-
fic programmes) - EON (Enhanced
Other Network) - REG (regional pro-
grammes);
❒AF: alternative frequency search selec-
tion in RDS mode;
❒emergency alarm presetting;
❒automatic/manual station tuning;
On multimedia CDs, besides
audio tracks, there are data
tracks too. Playing this type
of CD could cause hissing at a volume
that could jeopardise road safety as
well as cause damages to final audios
and speakers.
603_97_538 Radio IDEA SB_08 EN 3-12-2009 11:11 Pagina 10

11
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYER
QUICK
GUIDE

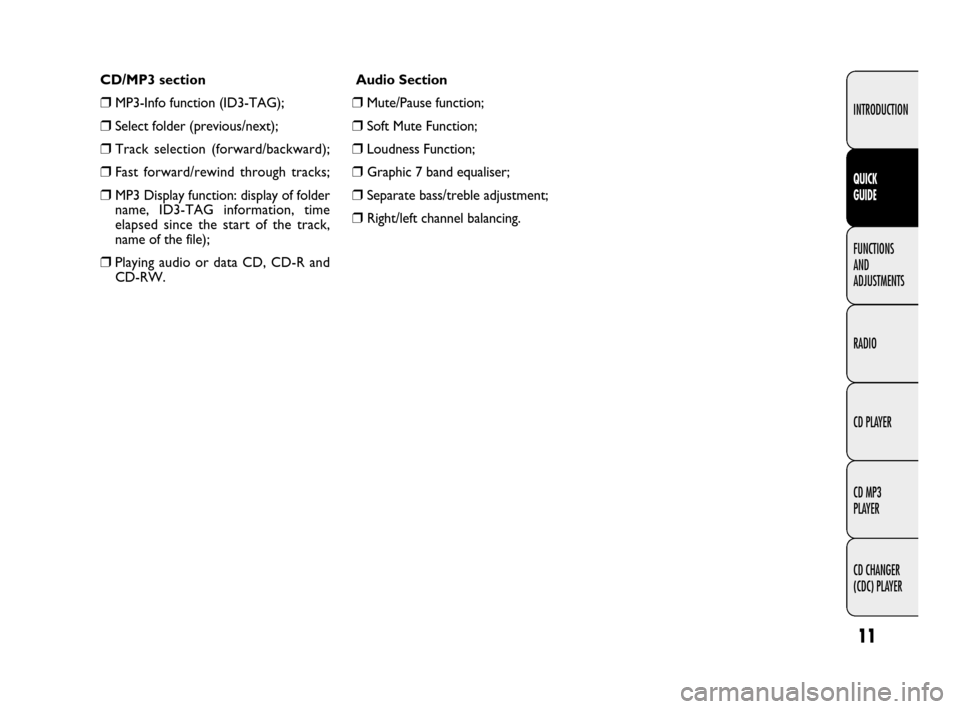

Audio Section
❒Mute/Pause function;
❒Soft Mute Function;
❒Loudness Function;
❒Graphic 7 band equaliser;
❒Separate bass/treble adjustment;
❒Right/left channel balancing. CD/MP3 section
❒MP3-Info function (ID3-TAG);
❒Select folder (previous/next);
❒Track selection (forward/backward);
❒Fast forward/rewind through tracks;
❒MP3 Display function: display of folder
name, ID3-TAG information, time
elapsed since the start of the track,
name of the file);
❒Playing audio or data CD, CD-R and
CD-RW.
603_97_538 Radio IDEA SB_08 EN 3-12-2009 11:11 Pagina 11

13
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYER QUICK
GUIDE
❒LOUDNESS (Loudness function activa-
tion/deactivation);
❒EQUALIZER (activation and selection
of factory equalisation adjustments);
❒USER EQUALISER (customised equal-
isation adjustment).
TONE ADJUSTMENT
(bass/treble)
Proceed as follows:
❒Use the button ▲or ▼to set “Bass”
or “Treble” in the AUDIO menu;
❒press the ˜or ÷button to in-
crease/decrease the bass or treble ad-
justments.
By pressing the buttons briefly, the levels
will change progressively. By pressing
them down longer, the levels will change
quickly.BALANCE ADJUSTMENT
Proceed as follows:
❒Use the button ▲or ▼to set “Bal-
ance” in the AUDIO menu;
❒press the button ˜to increase the
sound coming from the right speakers
or the button ÷to increase the
sound coming from the left speakers.
By pressing the buttons briefly, the levels
will change progressively. By pressing
them down longer, the levels will change
quickly.
Select the value “÷0 ˜” to set the
right and left audio outputs at the same
level. AUDIO ADJUSTMENTS
The functions that can be selected from
the audio menu change depending on the
context: AM/FM/CD/CD CHANGER.
Press the AUDIO button briefly to
change the Audio functions. After the
AUDIO button is first pressed, the dis-
play will show the bass level value for the
source activated at that time (e.g. in FM
mode the display will show the wording
“FM Bass +2“).
Use the buttons ▲or ▼ to scroll through
the menu functions. To change the setting
of the selected function, use the buttons
÷or ˜.
The current status of the selected func-
tion will be shown on the display.
The functions managed by the Menu are:
❒BASS (bass adjustment);
❒TREBLE (treble adjustment);
❒BALANCE (right/left balance adjust-
ment);
❒FADER (front/rear balance adjustment);
603_97_538 Radio IDEA SB_08 EN 3-12-2009 11:11 Pagina 13

15
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYER QUICK
GUIDE
*USER EQ SETTINGS function
(equaliser adjustments only if the
USER setting has been selected)
To set a personalised equaliser adjust-
ment, place button ▲or ▼at USER and
press the button MENU.
On the display appears a 7 bar graph, in
which each bar represents a frequency. Se-
lect the bar to be adjusted using the but-
tons ÷or ˜; the selected bar will
start to flash and it can be adjusted using
buttons ▲or ▼.
To store the setting, press the button
AUDIO again. The display will show the
source activated at that time followed by
the wording “User”. If the mode is “FM”
the display will show the wording “FM
EQ User”.MENU
MENU button functions
Press the button MENU briefly to activate
the Menu function. The display will show
the first menu item that can be adjusted
(AF) (“AF Switching On” on the display).
Use the buttons ▲or ▼to scroll through
the menu functions. To change the setting
of the selected function, use the buttons
÷or ˜.
The current status of the selected func-
tion will be shown on the display.
The functions managed by the Menu are:
❒AF SWITCHING (ON/OFF);
❒TRAFFIC INFORMATION (ON/OFF);
❒REGIONAL MODE regional programs
(ON/OFF);❒MP3 DISPLAY (CD/MP3 / CD CHANGER
display setting);
❒SPEED VOLUME (automatic volume
control depending on the speed);
❒EXTERNAL AUDIO (phone volume
adjustment);
❒RADIO OFF (off mode);
❒RESET SYSTEM.
Press the button MENU again to exit the
Menu function.
IMPORTANT The AF SWITCHING,
TRAFFIC INFORMATION and REGION-
AL MODE adjustments are only possible
on FM.
603_97_538 Radio IDEA SB_08 EN 3-12-2009 11:11 Pagina 15

17
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYER QUICK
GUIDE
The volume at which the traffic news is
transmitted depends on the listening
volume:
❒listening volume below 5: traffic news
volume 5 (fixed value);
❒listening volume above 5: traffic news
volume equal to listening volume +1.
If the volume is changed during the traffic
news, the level will not be shown on the
display; the new level will only be main-
tained during the traffic news in progress.
While traffic information is being received,
“TRAFFIC INFORMATION” will appear
on the display.
The TA function can be interrupted by
pressing any button on the car radio.REGIONAL MODE function
(reception of regional transmissions)
Some national broadcasters transmit re-
gional programmes at certain times of the
day (that vary from region to region). This
function makes it possible to tune into lo-
cal (regional) broadcasters automatically
(see “EON function” paragraph).
If you want the radio to automatically tune
into the regional stations being broadcast
on the selected network, the function
must be activated.
To activate/deactivate the function use the
buttons ÷or ˜.
The current status of the function will ap-
pear on the display:
❒“Regional Mode: On” - function acti-
vated;
❒“Regional Mode: On” - function deac-
tivated.
If the function is deactivated and you have
tuned into a regional station working in a
given area and you enter a different area,
then the regional station received in the
new area will be broadcast.
WARNING If the AF and REG functions
are on at the same time, once a border
between two regions is crossed, the radio
may not switch correctly to a valid alter-
native frequency.MP3 DISPLAY FUNCTION
(MP3 Compact Disc data display)
This function makes it possible to select
the information shown by the display
when listening to a CD containing MP3
tracks.
The function can be selected only if a MP3
CD is loaded: in this case the wording
“MP3 Display” appears on the display.
To activate/deactivate the function use the
buttons ÷or ˜.
The following functions are available:
❒“Title” (track title, if ID3-TAG is avail-
able);
❒“Author” (track author, if ID3-TAG is
available);
❒“Album” (track album, if ID3-TAG is
available);
❒“Folder” name (name assigned to the
folder);
❒“File” name (name assigned to the MP3
file).
603_97_538 Radio IDEA SB_08 EN 3-12-2009 11:11 Pagina 17

20
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYERQUICK
GUIDE

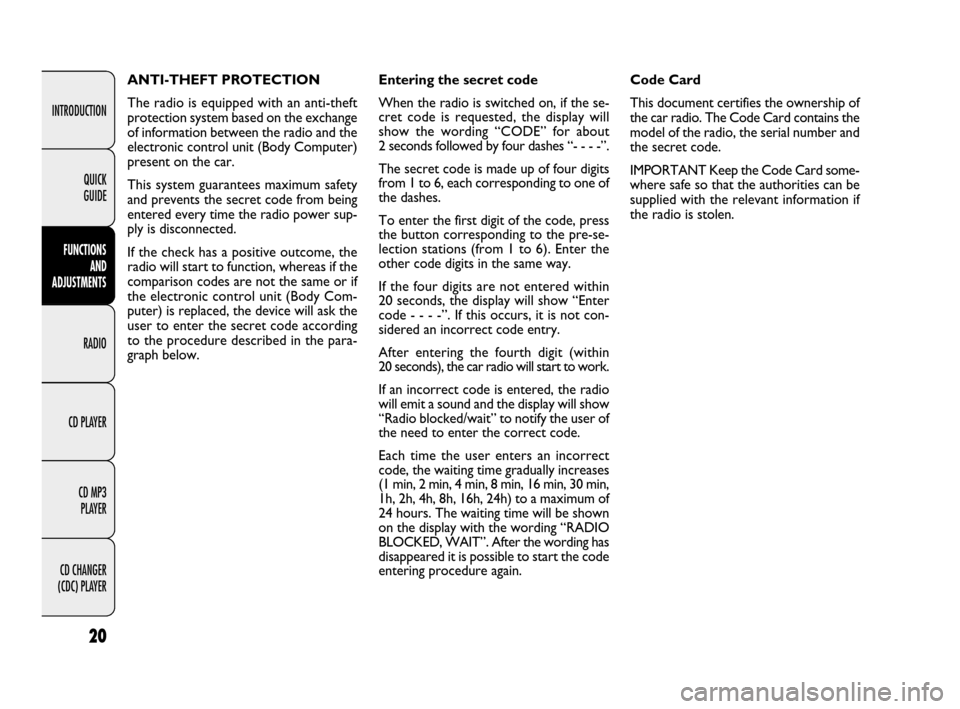

ANTI-THEFT PROTECTION
The radio is equipped with an anti-theft
protection system based on the exchange
of information between the radio and the
electronic control unit (Body Computer)
present on the car.
This system guarantees maximum safety
and prevents the secret code from being
entered every time the radio power sup-
ply is disconnected.
If the check has a positive outcome, the
radio will start to function, whereas if the
comparison codes are not the same or if
the electronic control unit (Body Com-
puter) is replaced, the device will ask the
user to enter the secret code according
to the procedure described in the para-
graph below.Entering the secret code
When the radio is switched on, if the se-
cret code is requested, the display will
show the wording “CODE” for about
2 seconds followed by four dashes “- - - -”.
The secret code is made up of four digits
from 1 to 6, each corresponding to one of
the dashes.
To enter the first digit of the code, press
the button corresponding to the pre-se-
lection stations (from 1 to 6). Enter the
other code digits in the same way.
If the four digits are not entered within
20 seconds, the display will show “Enter
code - - - -”. If this occurs, it is not con-
sidered an incorrect code entry.
After entering the fourth digit (within
20 seconds), the car radio will start to work.
If an incorrect code is entered, the radio
will emit a sound and the display will show
“Radio blocked/wait” to notify the user of
the need to enter the correct code.
Each time the user enters an incorrect
code, the waiting time gradually increases
(1 min, 2 min, 4 min, 8 min, 16 min, 30 min,
1h, 2h, 4h, 8h, 16h, 24h) to a maximum of
24 hours. The waiting time will be shown
on the display with the wording “RADIO
BLOCKED, WAIT”. After the wording has
disappeared it is possible to start the code
entering procedure again.Code Card
This document certifies the ownership of
the car radio. The Code Card contains the
model of the radio, the serial number and
the secret code.
IMPORTANT Keep the Code Card some-
where safe so that the authorities can be
supplied with the relevant information if
the radio is stolen.
603_97_538 Radio IDEA SB_08 EN 3-12-2009 11:11 Pagina 20

21
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYER QUICK
GUIDE
FREQUENCY BAND SELECTION
With the Radio mode active, press the
button FM AS or AM briefly and repeat-
edly to select the desired reception band.
Each time the button is pressed the fol-
lowing bands are selected cyclically:
❒By pressing the button FM AS: “FM1”,
“FM2” or “FMA”;
❒By pressing the button AM: “MW1”,
“MW2”.
Each band is highlighted by the names in
the display. The last station selected on
the respective frequency band will be
tuned into.
The FM band is divided into sections: FM1,
FM2 and “FMA”; the FMA reception band
is reserved to broadcasters stored auto-
matically using the Autostore function.PRESET BUTTONS
The buttons numbered from 1 to 6 are
used to set the following preselections:
❒18 in the FM band: 6 in FM1, 6 in FM2,
6 in FMT or “FMA” (on some versions);
❒12 in the MW band.
To listen to a preset station, select the
desired frequency band and then press
briefly the corresponding preset button
(from 1 to 6).
By pressing the preset button for more
than 2 seconds, the tuned station will be
stored. The storing phase is confirmed by
an acoustic signal. INTRODUCTION
When the car radio is turned on, the last
function that was selected before turning
it off (Radio, CD,CD/MP3) is activated.
To select the Radio function when an-
other audio source is being listened to,
briefly press the buttons FM AS or AM de-
pending on the desired band.
Once the Radio mode has been activated,
the display will show the name (RDS sta-
tions only) or the frequency of the se-
lected radio station, the frequency band
selected (e.g. FM1) and the preselect but-
ton number (e.g. P1).
R R
A A
D D
I I
O O

( (
T T
u u
n n
e e
r r
) )
603_97_538 Radio IDEA SB_08 EN 3-12-2009 11:11 Pagina 21

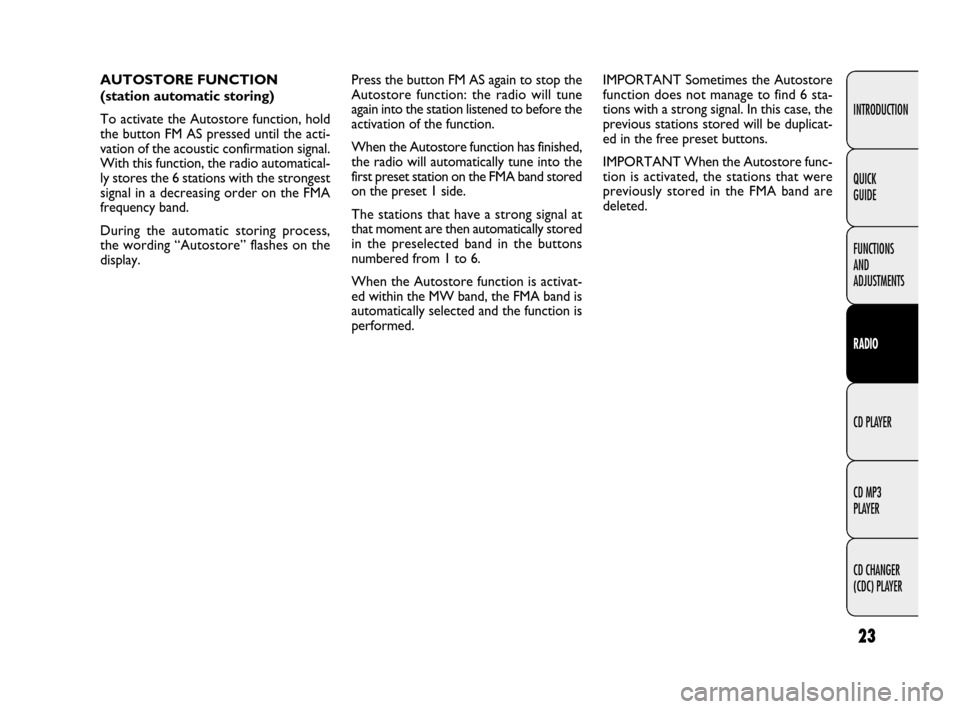

23
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYER QUICK
GUIDE
AUTOSTORE FUNCTION
(station automatic storing)
To activate the Autostore function, hold
the button FM AS pressed until the acti-
vation of the acoustic confirmation signal.
With this function, the radio automatical-
ly stores the 6 stations with the strongest
signal in a decreasing order on the FMA
frequency band.
During the automatic storing process,
the wording “Autostore” flashes on the
display.Press the button FM AS again to stop the
Autostore function: the radio will tune
again into the station listened to before the
activation of the function.
When the Autostore function has finished,
the radio will automatically tune into the
first preset station on the FMA band stored
on the preset 1 side.
The stations that have a strong signal at
that moment are then automatically stored
in the preselected band in the buttons
numbered from 1 to 6.
When the Autostore function is activat-
ed within the MW band, the FMA band is
automatically selected and the function is
performed.IMPORTANT Sometimes the Autostore
function does not manage to find 6 sta-
tions with a strong signal. In this case, the
previous stations stored will be duplicat-
ed in the free preset buttons.
IMPORTANT When the Autostore func-
tion is activated, the stations that were
previously stored in the FMA band are
deleted.
603_97_538 Radio IDEA SB_08 EN 3-12-2009 11:11 Pagina 23

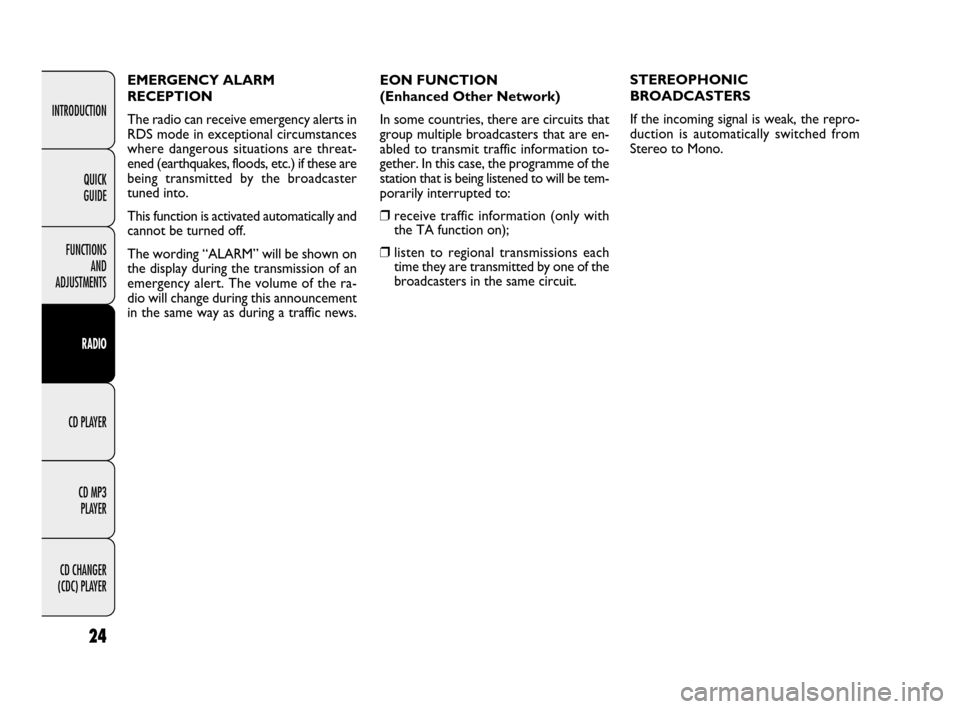

24
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYERQUICK
GUIDE
EON FUNCTION
(Enhanced Other Network)
In some countries, there are circuits that
group multiple broadcasters that are en-
abled to transmit traffic information to-
gether. In this case, the programme of the
station that is being listened to will be tem-
porarily interrupted to:
❒receive traffic information (only with
the TA function on);
❒listen to regional transmissions each
time they are transmitted by one of the
broadcasters in the same circuit. EMERGENCY ALARM
RECEPTION
The radio can receive emergency alerts in
RDS mode in exceptional circumstances
where dangerous situations are threat-
ened (earthquakes, floods, etc.) if these are
being transmitted by the broadcaster
tuned into.
This function is activated automatically and
cannot be turned off.
The wording “ALARM” will be shown on
the display during the transmission of an
emergency alert. The volume of the ra-
dio will change during this announcement
in the same way as during a traffic news.STEREOPHONIC
BROADCASTERS
If the incoming signal is weak, the repro-
duction is automatically switched from
Stereo to Mono.
603_97_538 Radio IDEA SB_08 EN 3-12-2009 11:11 Pagina 24

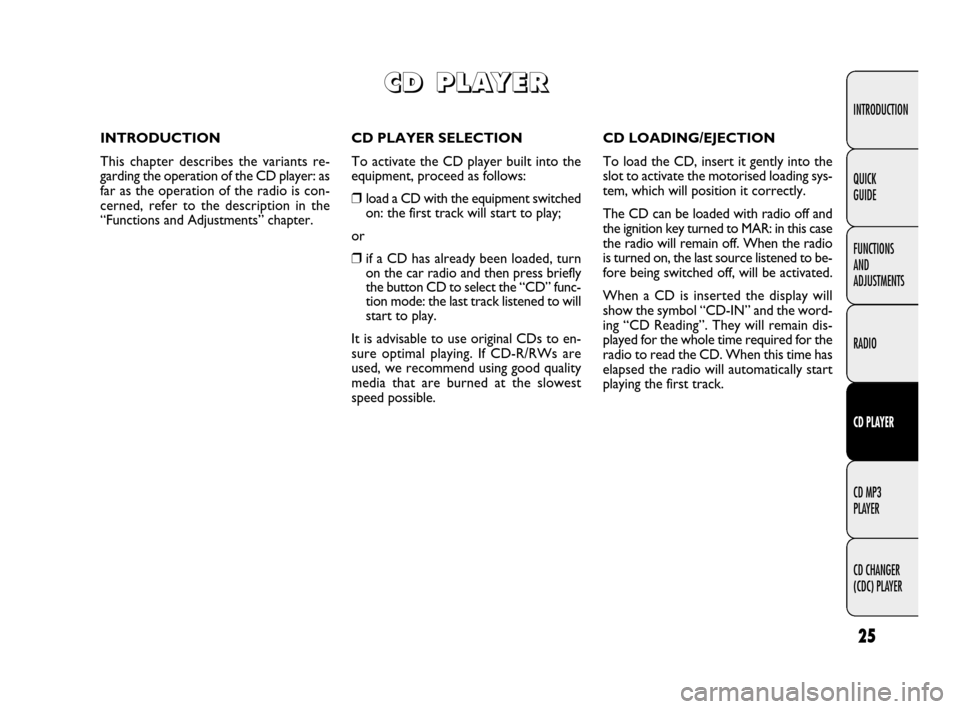

25
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYER QUICK
GUIDE
INTRODUCTION
This chapter describes the variants re-
garding the operation of the CD player: as
far as the operation of the radio is con-
cerned, refer to the description in the
“Functions and Adjustments” chapter.CD PLAYER SELECTION
To activate the CD player built into the
equipment, proceed as follows:
❒load a CD with the equipment switched
on: the first track will start to play;
or
❒if a CD has already been loaded, turn
on the car radio and then press briefly
the button CD to select the “CD” func-
tion mode: the last track listened to will
start to play.
It is advisable to use original CDs to en-
sure optimal playing. If CD-R/RWs are
used, we recommend using good quality
media that are burned at the slowest
speed possible.CD LOADING/EJECTION
To load the CD, insert it gently into the
slot to activate the motorised loading sys-
tem, which will position it correctly.
The CD can be loaded with radio off and
the ignition key turned to MAR: in this case
the radio will remain off. When the radio
is turned on, the last source listened to be-
fore being switched off, will be activated.
When a CD is inserted the display will
show the symbol “CD-IN” and the word-
ing “CD Reading”. They will remain dis-
played for the whole time required for the
radio to read the CD. When this time has
elapsed the radio will automatically start
playing the first track.
C C
D D

P P
L L
A A
Y Y
E E
R R
603_97_538 Radio IDEA SB_08 EN 3-12-2009 11:11 Pagina 25
