radio controls FIAT IDEA 2009 1.G Radio CD MP3 Manual

RADIO (TUNER) .....................................................................21
Introduction ............................................................................. 21
Selecting a frequency band .................................................... 21
Preselection buttons ............................................................... 21
Storing the last station listened to ....................................... 22
Automatic tuning ..................................................................... 22
Manual tuning ........................................................................... 22
Autostore function ................................................................. 23
Emergency alarm reception .................................................. 24
EON function ...........................................................................24
Stereophonic broadcasters ................................................... 24
CD PLAYER ............................................................................. 25
Introduction ............................................................................. 25
CD player selection ................................................................ 25
CD loading/ejection ................................................................ 25
Display readings ....................................................................... 26
Track selection.......................................................................... 27
Fast forward/rewind through tracks ................................... 27
Pause function ..........................................................................27
CD MP3 PLAYER .................................................................... 28
Introduction ............................................................................. 28
MP3 mode .................................................................................28
T T
A A
B B
L L
E E

O O
F F

C C
O O
N N
T T
E E
N N
T T
S S
INTRODUCTION ................................................................... 3
Suggestions ............................................................................... 3
Technical specifications .......................................................... 5
QUICK GUIDE ......................................................................... 6
Steering wheel controls ......................................................... 9
General information ............................................................... 10
FUNCTIONS AND ADJUSTMENTS ................................. 12
Turning the car radio on ....................................................... 12
Turning the car radio off .......................................................12
Selecting the radio functions ................................................. 12
Selecting the CD/CD CHANGER function ........................ 12
Audio source memory function ........................................... 12
Volume adjustment ................................................................. 12
Mute/Pause function ............................................................... 12
Audio adjustments .................................................................. 13
Tone adjustment ..................................................................... 13
Balance adjustment ................................................................. 13
Fader adjustment ..................................................................... 14
Loudness adjustment .............................................................. 14
Menu ........................................................................................... 15
Phone presetting ..................................................................... 19
Anti-theft protection............................................................... 20
603_97_538 Radio IDEA SB_08 EN 3-12-2009 11:11 Pagina 1

9
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYER
QUICK
GUIDE
STEERING WHEEL CONTROLS
(for versions/markets, where provided)
F0H0726m
Button
z
+
–
SRC
˜
÷
FUNCTION
AudioMute switching on/off (Radio mode)
or Pause function (MP3 mode)
Volume increase
Volume decrease
Radio frequency range selection (FM1, FM2, FMT, FMA,
MW) and listening sources (Radio - CD - MP3 - CD
CHANGER)
Radio: pre-selected station (from 1 to 6) recall
CD/CD MP3/CD CHANGER: next track
selection
Radio: pre-selected station (from 6 to 1) recall
CD/CD MP3/CD CHANGER: previous track Mode
Short button press
Button press
Button press
Button press
Button press
Button press
fig. 2
603_97_538 Radio IDEA SB_08 EN 3-12-2009 11:11 Pagina 9

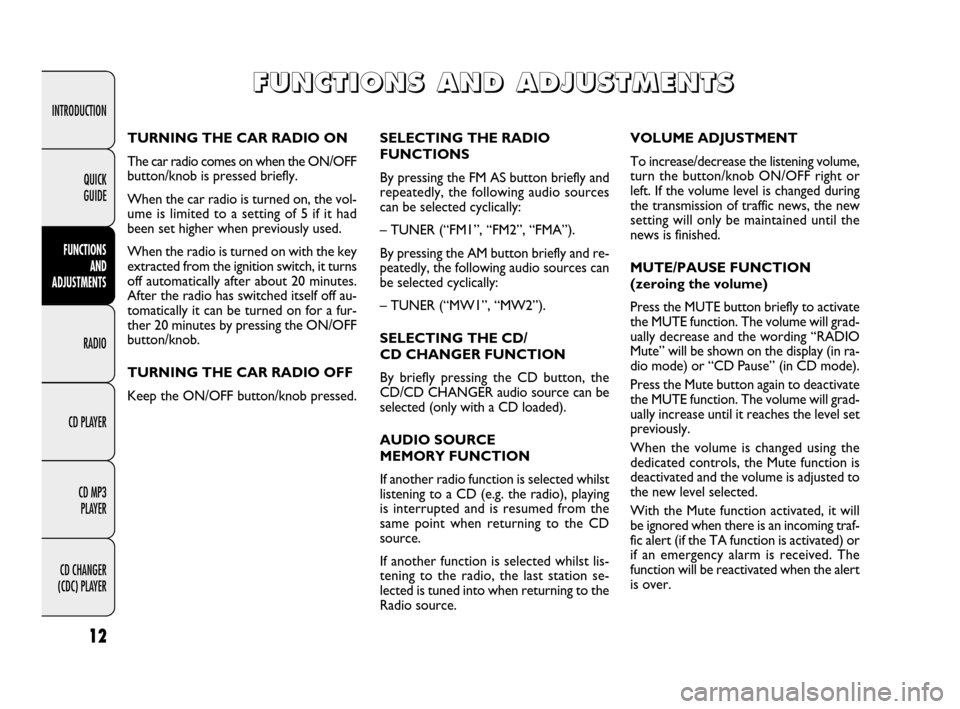

12
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYERQUICK
GUIDE
SELECTING THE RADIO
FUNCTIONS
By pressing the FM AS button briefly and
repeatedly, the following audio sources
can be selected cyclically:
– TUNER (“FM1”, “FM2”, “FMA”).
By pressing the AM button briefly and re-
peatedly, the following audio sources can
be selected cyclically:
– TUNER (“MW1”, “MW2”).
SELECTING THE CD/
CD CHANGER FUNCTION
By briefly pressing the CD button, the
CD/CD CHANGER audio source can be
selected (only with a CD loaded).
AUDIO SOURCE
MEMORY FUNCTION
If another radio function is selected whilst
listening to a CD (e.g. the radio), playing
is interrupted and is resumed from the
same point when returning to the CD
source.
If another function is selected whilst lis-
tening to the radio, the last station se-
lected is tuned into when returning to the
Radio source.VOLUME ADJUSTMENT
To increase/decrease the listening volume,
turn the button/knob ON/OFF right or
left. If the volume level is changed during
the transmission of traffic news, the new
setting will only be maintained until the
news is finished.
MUTE/PAUSE FUNCTION
(zeroing the volume)
Press the MUTE button briefly to activate
the MUTE function. The volume will grad-
ually decrease and the wording “RADIO
Mute” will be shown on the display (in ra-
dio mode) or “CD Pause” (in CD mode).
Press the Mute button again to deactivate
the MUTE function. The volume will grad-
ually increase until it reaches the level set
previously.
When the volume is changed using the
dedicated controls, the Mute function is
deactivated and the volume is adjusted to
the new level selected.
With the Mute function activated, it will
be ignored when there is an incoming traf-
fic alert (if the TA function is activated) or
if an emergency alarm is received. The
function will be reactivated when the alert
is over. TURNING THE CAR RADIO ON
The car radio comes on when the ON/OFF
button/knob is pressed briefly.
When the car radio is turned on, the vol-
ume is limited to a setting of 5 if it had
been set higher when previously used.
When the radio is turned on with the key
extracted from the ignition switch, it turns
off automatically after about 20 minutes.
After the radio has switched itself off au-
tomatically it can be turned on for a fur-
ther 20 minutes by pressing the ON/OFF
button/knob.
TURNING THE CAR RADIO OFF
Keep the ON/OFF button/knob pressed.
F F
U U
N N
C C
T T
I I
O O
N N
S S

A A
N N
D D

A A
D D
J J
U U
S S
T T
M M
E E
N N
T T
S S
603_97_538 Radio IDEA SB_08 EN 3-12-2009 11:11 Pagina 12
