diagram FIAT IDEA 2010 1.G Owners Manual

94
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
SEAT BELTS
USING THE FRONT
AND SIDE REAR
SEAT BELTS
The belt should be worn keeping the chest
straight and rested against the seat back.
To fasten the seat belts, take hold the
tongue A-fig. 1and insert it into the buck-
le B, until hearing the locking click.
At removal, if it jams, let it rewind for a
short stretch, then pull it out again with-
out jerking.
Press button C-fig. 1to release the belt.
Accompany the belt while it is being re-
wound to prevent twisting.
Through the reel, the belt automatically
adapts to the body of the passenger wear-
ing it, allowing freedom of movement.
The reel may lock when the car is parked
on a steep slope: this is perfectly normal.
Furthermore, the reel mechanism locks
the belt if it is pulled and in the event of
sudden braking, collisions and on high
speed bends.The rear seat is fitted with inertial seat
belts with three anchor points and reel.
Rear seat belts must be worn as shown
in diagram D-fig. 2(five seat versions) or
as shown in diagram E-fig. 3(four seat
versions).
fig. 1F0H0126mfig. 2F0H0309m
fig. 3F0H0348m
Never press button C-fig. 1
when travelling.
WARNING
S.B.R. system
The car is fitted with a Seat Belt Reminder
system (S.B.R.), consisting of a buzzer and
a flashing warning light
ment panel which warns the driver that
the seat belt must be fastened.
093-110 LUM IDEA GB 2 ed.qxd 14-01-2010 12:16 Pagina 94

115
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
STARTING
AND DRIVING

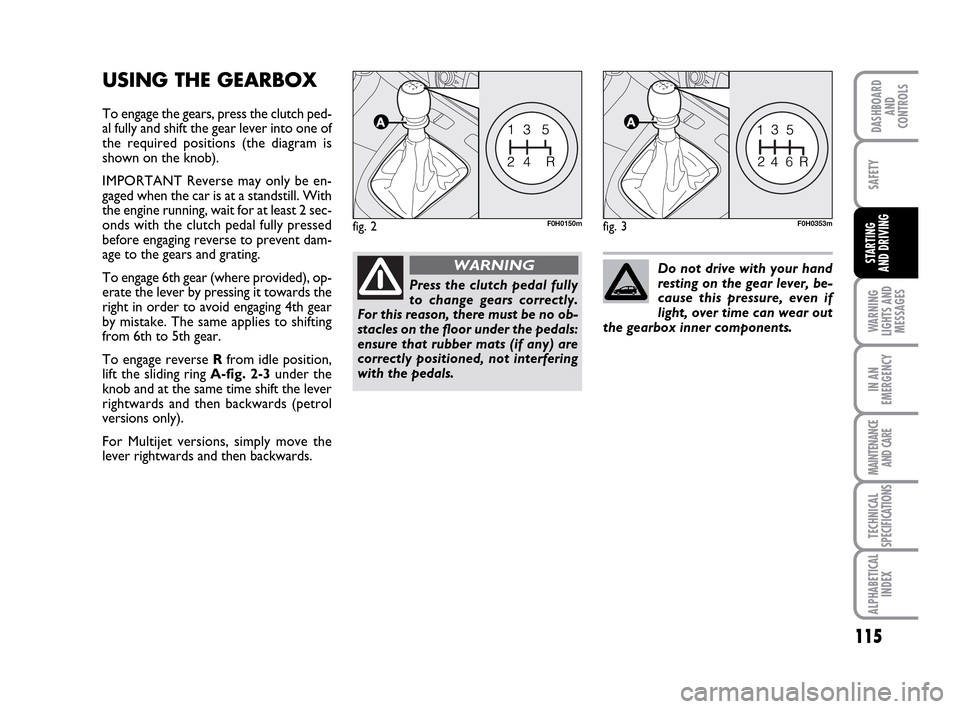

USING THE GEARBOX
To engage the gears, press the clutch ped-
al fully and shift the gear lever into one of
the required positions (the diagram is
shown on the knob).
IMPORTANT Reverse may only be en-
gaged when the car is at a standstill. With
the engine running, wait for at least 2 sec-
onds with the clutch pedal fully pressed
before engaging reverse to prevent dam-
age to the gears and grating.
To engage 6th gear (where provided), op-
erate the lever by pressing it towards the
right in order to avoid engaging 4th gear
by mistake. The same applies to shifting
from 6th to 5th gear.
To engage reverse Rfrom idle position,
lift the sliding ring A-fig. 2-3under the
knob and at the same time shift the lever
rightwards and then backwards (petrol
versions only).
For Multijet versions, simply move the
lever rightwards and then backwards.
fig. 2F0H0150mfig. 3F0H0353m
Press the clutch pedal fully
to change gears correctly.
For this reason, there must be no ob-
stacles on the floor under the pedals:
ensure that rubber mats (if any) are
correctly positioned, not interfering
with the pedals.
WARNINGDo not drive with your hand
resting on the gear lever, be-
cause this pressure, even if
light, over time can wear out
the gearbox inner components.
111-122 LUM IDEA GB 2 ed.qxd 14-01-2010 12:32 Pagina 115

119
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND
CONTROLS
SAFETY
STARTING
AND DRIVING
F0H0151m

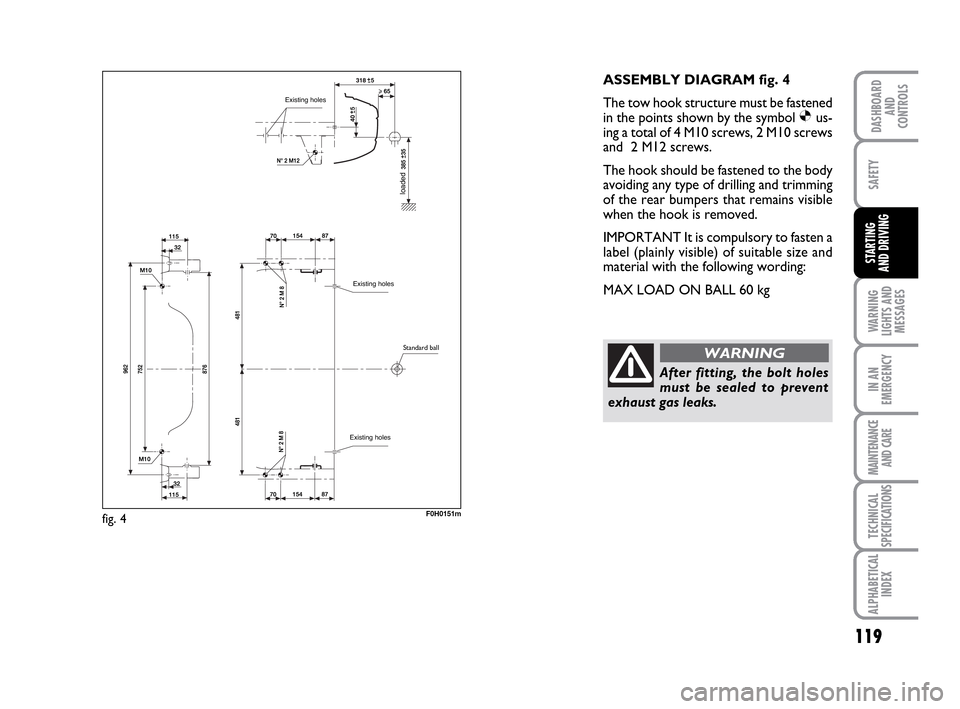

ASSEMBLY DIAGRAM fig. 4
The tow hook structure must be fastened
in the points shown by the symbol
Øus-
ing a total of 4 M10 screws, 2 M10 screws
and 2 M12 screws.
The hook should be fastened to the body
avoiding any type of drilling and trimming
of the rear bumpers that remains visible
when the hook is removed.
IMPORTANT It is compulsory to fasten a
label (plainly visible) of suitable size and
material with the following wording:
MAX LOAD ON BALL 60 kg
After fitting, the bolt holes
must be sealed to prevent
exhaust gas leaks.
WARNING
fig. 4
Existing holes
Standard ball
Existing holes
loaded
Existing holes
111-122 LUM IDEA GB 2 ed.qxd 14-01-2010 12:32 Pagina 119
