FIAT IDEA 2012 1.G Owners Manual

100
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROL
SAFETY
DEVICES

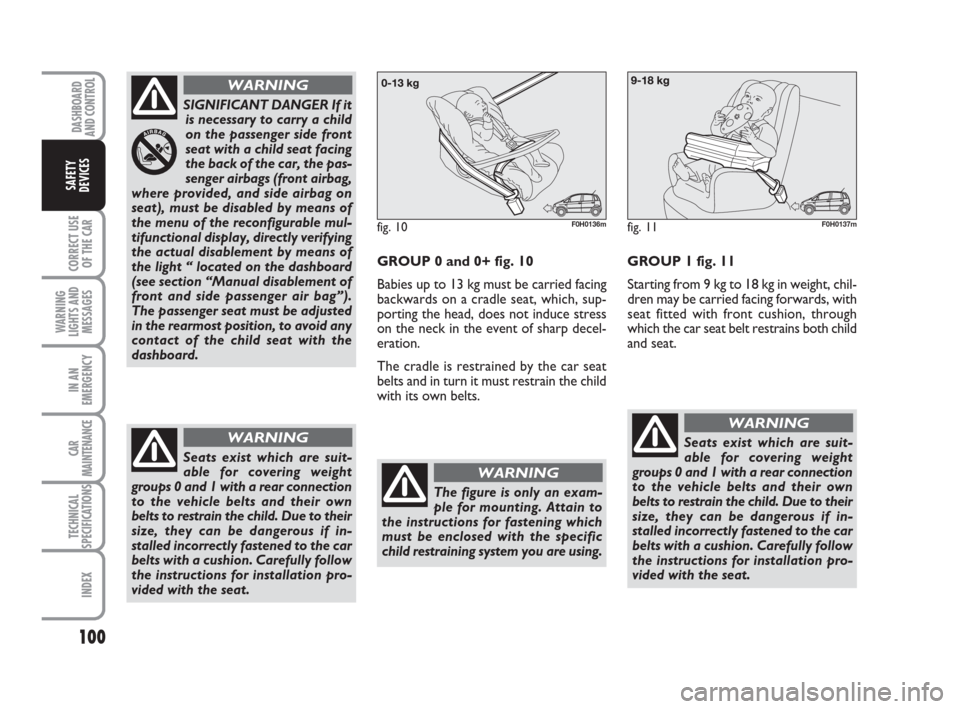

SIGNIFICANT DANGER If it
is necessary to carry a child
on the passenger side front
seat with a child seat facing
the back of the car, the pas-
senger airbags (front airbag,
where provided, and side airbag on
seat), must be disabled by means of
the menu of the reconfigurable mul-
tifunctional display, directly verifying
the actual disablement by means of
the light “ located on the dashboard
(see section “Manual disablement of
front and side passenger air bag”).
The passenger seat must be adjusted
in the rearmost position, to avoid any
contact of the child seat with the
dashboard.
WARNING
GROUP 0 and 0+ fig. 10
Babies up to 13 kg must be carried facing
backwards on a cradle seat, which, sup-
porting the head, does not induce stress
on the neck in the event of sharp decel-
eration.
The cradle is restrained by the car seat
belts and in turn it must restrain the child
with its own belts.
fig. 10F0H0136m
The figure is only an exam-
ple for mounting. Attain to
the instructions for fastening which
must be enclosed with the specific
child restraining system you are using.
WARNING
Seats exist which are suit-
able for covering weight
groups 0 and 1 with a rear connection
to the vehicle belts and their own
belts to restrain the child. Due to their
size, they can be dangerous if in-
stalled incorrectly fastened to the car
belts with a cushion. Carefully follow
the instructions for installation pro-
vided with the seat.
WARNING
fig. 11F0H0137m
GROUP 1 fig. 11
Starting from 9 kg to 18 kg in weight, chil-
dren may be carried facing forwards, with
seat fitted with front cushion, through
which the car seat belt restrains both child
and seat.
Seats exist which are suit-
able for covering weight
groups 0 and 1 with a rear connection
to the vehicle belts and their own
belts to restrain the child. Due to their
size, they can be dangerous if in-
stalled incorrectly fastened to the car
belts with a cushion. Carefully follow
the instructions for installation pro-
vided with the seat.
WARNING
093-110 idea GB 1 ed 10-07-2008 8:28 Pagina 100

101
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
fig. 12F0H0138m

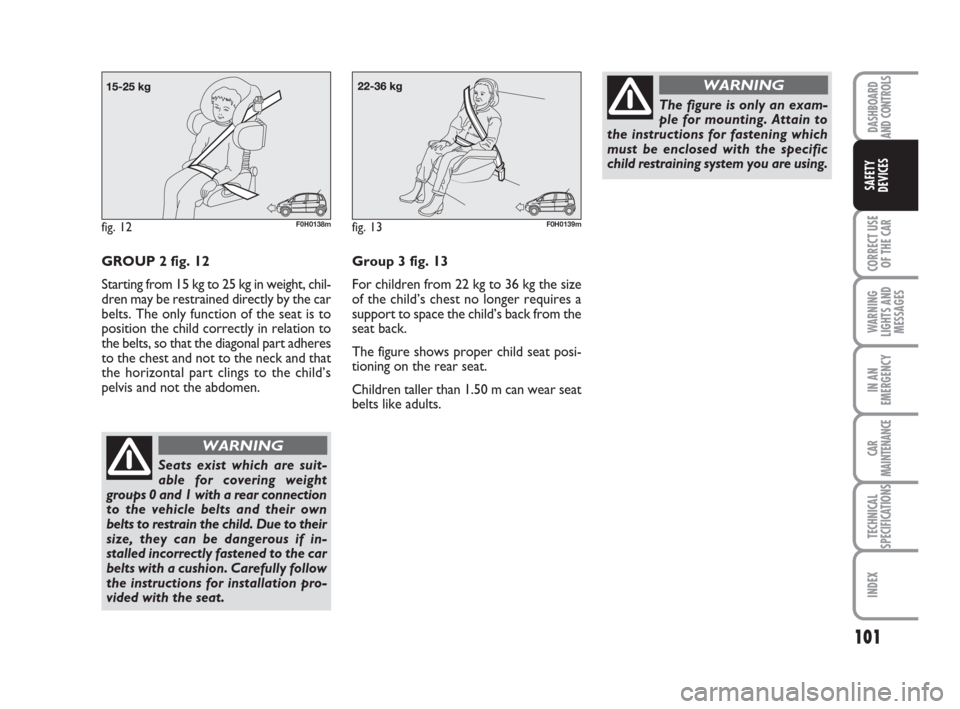

GROUP 2 fig. 12
Starting from 15 kg to 25 kg in weight, chil-
dren may be restrained directly by the car
belts. The only function of the seat is to
position the child correctly in relation to
the belts, so that the diagonal part adheres
to the chest and not to the neck and that
the horizontal part clings to the child’s
pelvis and not the abdomen.
Seats exist which are suit-
able for covering weight
groups 0 and 1 with a rear connection
to the vehicle belts and their own
belts to restrain the child. Due to their
size, they can be dangerous if in-
stalled incorrectly fastened to the car
belts with a cushion. Carefully follow
the instructions for installation pro-
vided with the seat.
WARNING
fig. 13F0H0139m
The figure is only an exam-
ple for mounting. Attain to
the instructions for fastening which
must be enclosed with the specific
child restraining system you are using.
WARNING
Group 3 fig. 13
For children from 22 kg to 36 kg the size
of the child’s chest no longer requires a
support to space the child’s back from the
seat back.
The figure shows proper child seat posi-
tioning on the rear seat.
Children taller than 1.50 m can wear seat
belts like adults.
093-110 idea GB 1 ed 10-07-2008 8:28 Pagina 101

102
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROL
SAFETY
DEVICES

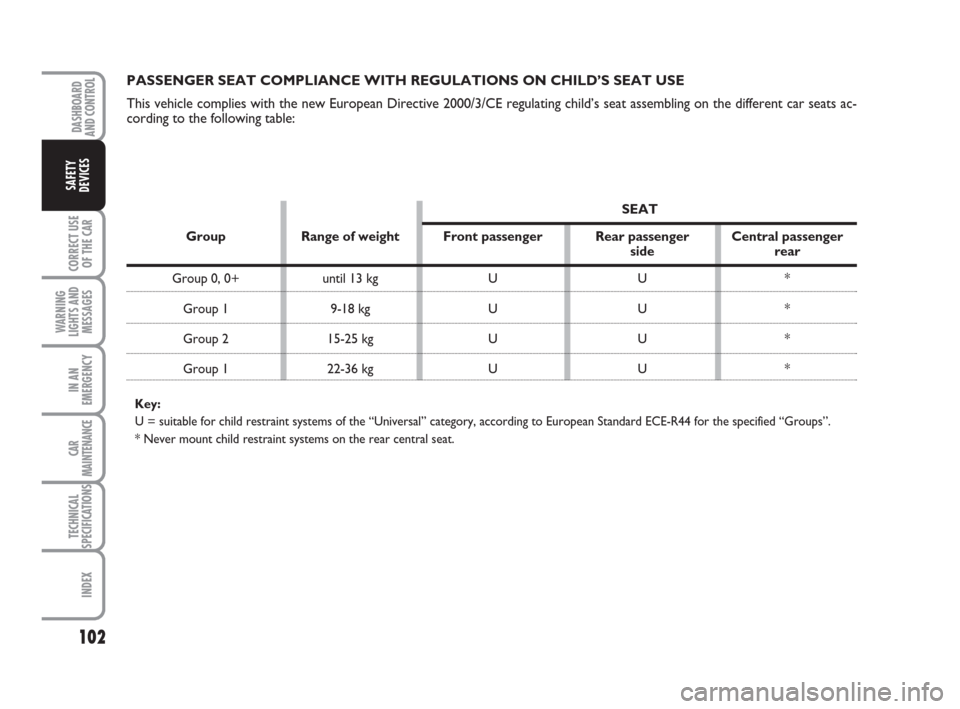

PASSENGER SEAT COMPLIANCE WITH REGULATIONS ON CHILD’S SEAT USE
This vehicle complies with the new European Directive 2000/3/CE regulating child’s seat assembling on the different car seats ac-
cording to the following table:
SEAT
Group Range of weight Front passenger Rear passenger Central passenger
side rear
Group 0, 0+ until 13 kg U U *
Group 1 9-18 kg U U *
Group 2 15-25 kg U U *
Group 1 22-36 kg U U *
Key:
U = suitable for child restraint systems of the “Universal” category, according to European Standard ECE-R44 for the specified “Groups”.
* Never mount child restraint systems on the rear central seat.
093-110 idea GB 1 ed 10-07-2008 8:28 Pagina 102

103
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES

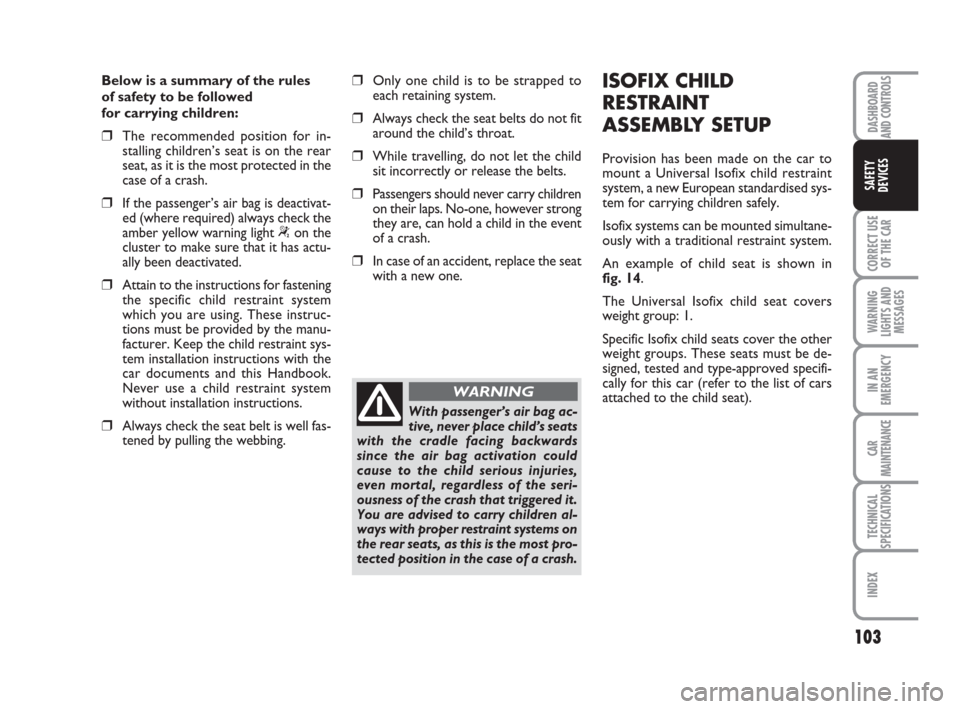

Below is a summary of the rules
of safety to be followed
for carrying children:
❒The recommended position for in-
stalling children’s seat is on the rear
seat, as it is the most protected in the
case of a crash.
❒If the passenger’s air bag is deactivat-
ed (where required) always check the
amber yellow warning light “on the
cluster to make sure that it has actu-
ally been deactivated.
❒Attain to the instructions for fastening
the specific child restraint system
which you are using. These instruc-
tions must be provided by the manu-
facturer. Keep the child restraint sys-
tem installation instructions with the
car documents and this Handbook.
Never use a child restraint system
without installation instructions.
❒Always check the seat belt is well fas-
tened by pulling the webbing.
❒Only one child is to be strapped to
each retaining system.
❒Always check the seat belts do not fit
around the child’s throat.
❒While travelling, do not let the child
sit incorrectly or release the belts.
❒Passengers should never carry children
on their laps. No-one, however strong
they are, can hold a child in the event
of a crash.
❒In case of an accident, replace the seat
with a new one.
With passenger’s air bag ac-
tive, never place child’s seats
with the cradle facing backwards
since the air bag activation could
cause to the child serious injuries,
even mortal, regardless of the seri-
ousness of the crash that triggered it.
You are advised to carry children al-
ways with proper restraint systems on
the rear seats, as this is the most pro-
tected position in the case of a crash.
WARNING
ISOFIX CHILD
RESTRAINT
ASSEMBLY SETUP
Provision has been made on the car to
mount a Universal Isofix child restraint
system, a new European standardised sys-
tem for carrying children safely.
Isofix systems can be mounted simultane-
ously with a traditional restraint system.
An example of child seat is shown in
fig. 14.
The Universal Isofix child seat covers
weight group: 1.
Specific Isofix child seats cover the other
weight groups. These seats must be de-
signed, tested and type-approved specifi-
cally for this car (refer to the list of cars
attached to the child seat).
093-110 idea GB 1 ed 10-07-2008 8:28 Pagina 103

104
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROL
SAFETY
DEVICES
fig. 15F0H0140m
Fit the child seat when the
car is stationary. The child
seat is correctly anchored to the
brackets when you hear the click. Fol-
low the instructions for assembly, dis-
assembly and positioning that the
manufacturer must supply with the
child seat.
WARNING
fig. 14F0H0019m

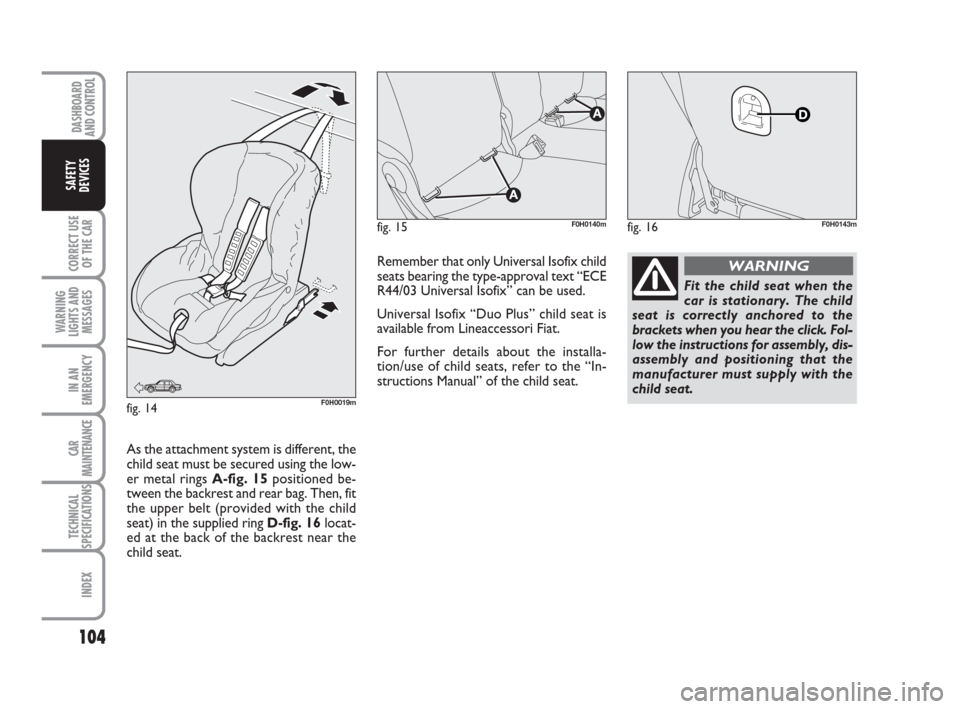

As the attachment system is different, the
child seat must be secured using the low-
er metal rings A-fig. 15positioned be-
tween the backrest and rear bag. Then, fit
the upper belt (provided with the child
seat) in the supplied ring D-fig. 16locat-
ed at the back of the backrest near the
child seat.
fig. 16F0H0143m
Remember that only Universal Isofix child
seats bearing the type-approval text “ECE
R44/03 Universal Isofix” can be used.
Universal Isofix “Duo Plus” child seat is
available from Lineaccessori Fiat.
For further details about the installa-
tion/use of child seats, refer to the “In-
structions Manual” of the child seat.
093-110 idea GB 1 ed 10-07-2008 8:28 Pagina 104

105
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES

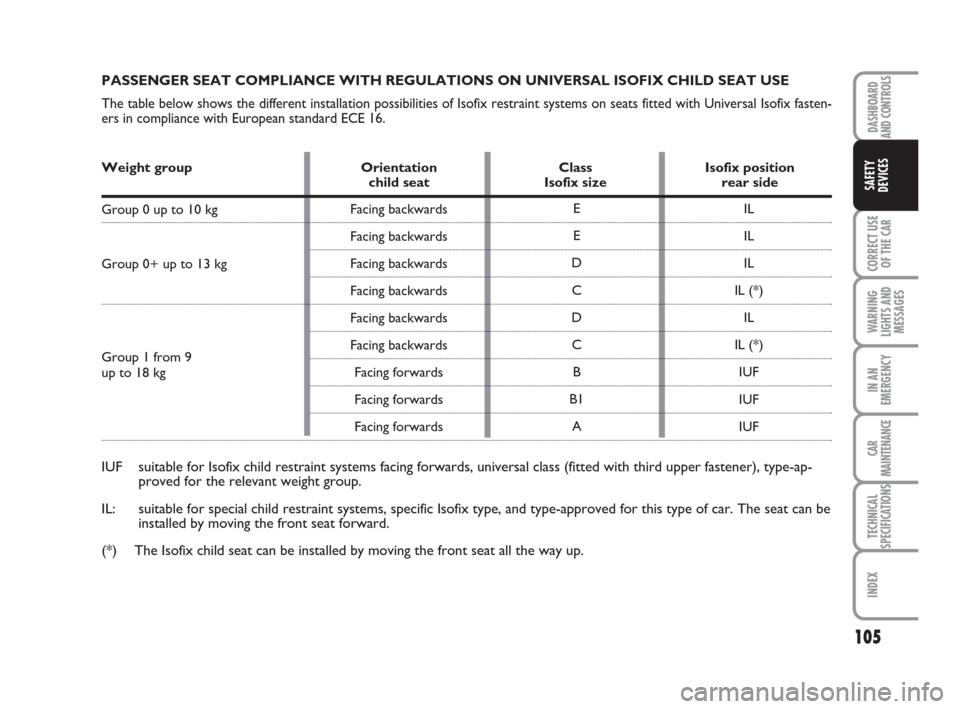

PASSENGER SEAT COMPLIANCE WITH REGULATIONS ON UNIVERSAL ISOFIX CHILD SEAT USE
The table below shows the different installation possibilities of Isofix restraint systems on seats fitted with Universal Isofix fasten-
ers in compliance with European standard ECE 16.
Weight group Orientation Class Isofix positionchild seat Isofix size rear side
Group 0 up to 10 kg
Group 0+ up to 13 kg
Group 1 from 9
up to 18 kg
Facing backwards
Facing backwards
Facing backwards
Facing backwards
Facing backwards
Facing backwards
Facing forwards
Facing forwards
Facing forwards E
E
D
C
D
C
B
B1
AIL
IL
IL
IL (*)
IL
IL (*)
IUF
IUF
IUF
IUF suitable for Isofix child restraint systems facing forwards, universal class (fitted with third upper fastener), type-ap-
proved for the relevant weight group.
IL: suitable for special child restraint systems, specific Isofix type, and type-approved for this type of car. The seat can be
installed by moving the front seat forward.
(*) The Isofix child seat can be installed by moving the front seat all the way up.
093-110 idea GB 1 ed 10-07-2008 8:28 Pagina 105

106
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROL
SAFETY
DEVICES

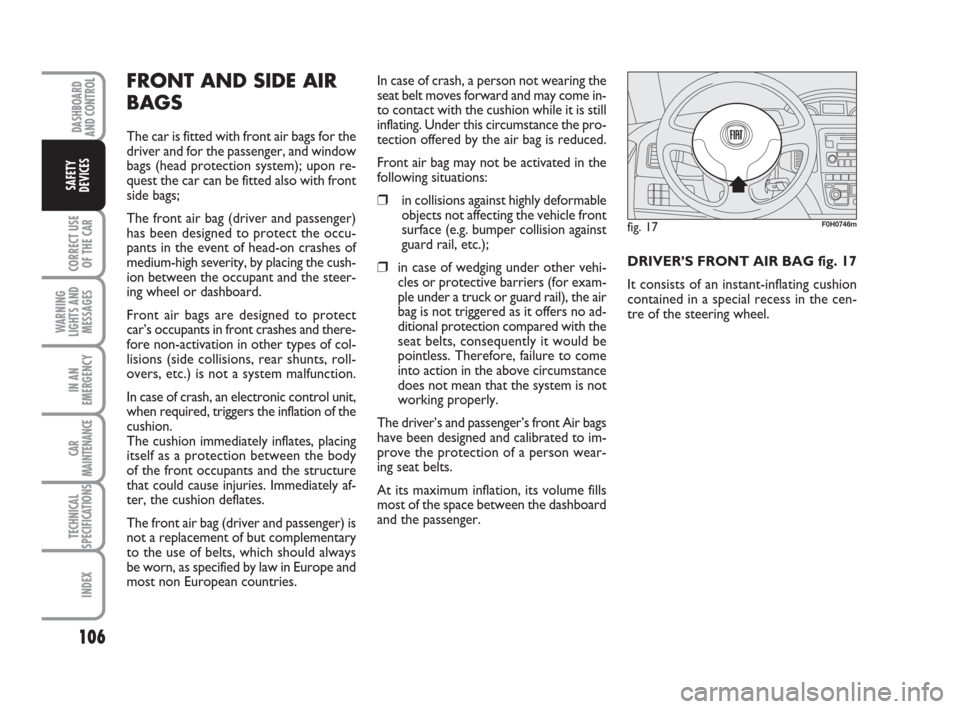

FRONT AND SIDE AIR
BAGS
The car is fitted with front air bags for the
driver and for the passenger, and window
bags (head protection system); upon re-
quest the car can be fitted also with front
side bags;
The front air bag (driver and passenger)
has been designed to protect the occu-
pants in the event of head-on crashes of
medium-high severity, by placing the cush-
ion between the occupant and the steer-
ing wheel or dashboard.
Front air bags are designed to protect
car’s occupants in front crashes and there-
fore non-activation in other types of col-
lisions (side collisions, rear shunts, roll-
overs, etc.) is not a system malfunction.
In case of crash, an electronic control unit,
when required, triggers the inflation of the
cushion.
The cushion immediately inflates, placing
itself as a protection between the body
of the front occupants and the structure
that could cause injuries. Immediately af-
ter, the cushion deflates.
The front air bag (driver and passenger) is
not a replacement of but complementary
to the use of belts, which should always
be worn, as specified by law in Europe and
most non European countries.In case of crash, a person not wearing the
seat belt moves forward and may come in-
to contact with the cushion while it is still
inflating. Under this circumstance the pro-
tection offered by the air bag is reduced.
Front air bag may not be activated in the
following situations:
❒in collisions against highly deformable
objects not affecting the vehicle front
surface (e.g. bumper collision against
guard rail, etc.);
❒in case of wedging under other vehi-
cles or protective barriers (for exam-
ple under a truck or guard rail), the air
bag is not triggered as it offers no ad-
ditional protection compared with the
seat belts, consequently it would be
pointless. Therefore, failure to come
into action in the above circumstance
does not mean that the system is not
working properly.
The driver’s and passenger’s front Air bags
have been designed and calibrated to im-
prove the protection of a person wear-
ing seat belts.
At its maximum inflation, its volume fills
most of the space between the dashboard
and the passenger.DRIVER’S FRONT AIR BAG fig. 17
It consists of an instant-inflating cushion
contained in a special recess in the cen-
tre of the steering wheel.
fig. 17F0H0746m
093-110 idea GB 1 ed 10-07-2008 8:28 Pagina 106

107
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
fig. 18F0H0145m

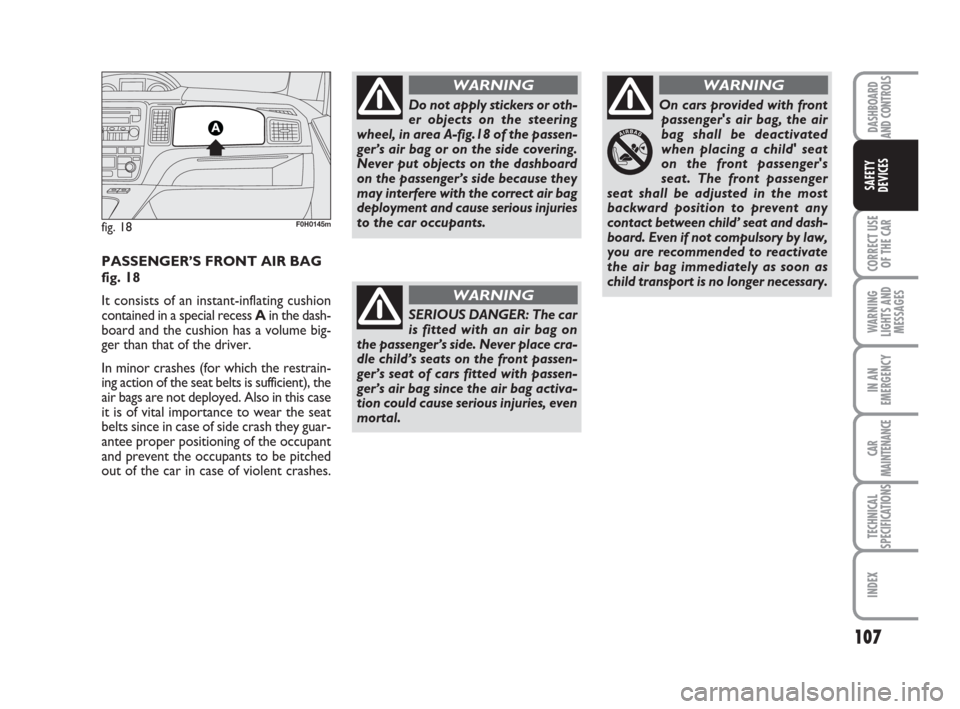

PASSENGER’S FRONT AIR BAG
fig. 18
It consists of an instant-inflating cushion
contained in a special recess Ain the dash-
board and the cushion has a volume big-
ger than that of the driver.
In minor crashes (for which the restrain-
ing action of the seat belts is sufficient), the
air bags are not deployed. Also in this case
it is of vital importance to wear the seat
belts since in case of side crash they guar-
antee proper positioning of the occupant
and prevent the occupants to be pitched
out of the car in case of violent crashes.
Do not apply stickers or oth-
er objects on the steering
wheel, in area A-fig.18 of the passen-
ger’s air bag or on the side covering.
Never put objects on the dashboard
on the passenger’s side because they
may interfere with the correct air bag
deployment and cause serious injuries
to the car occupants.
WARNING
SERIOUS DANGER: The car
is fitted with an air bag on
the passenger’s side. Never place cra-
dle child’s seats on the front passen-
ger’s seat of cars fitted with passen-
ger’s air bag since the air bag activa-
tion could cause serious injuries, even
mortal.
WARNING
On cars provided with front
passenger's air bag, the air
bag shall be deactivated
when placing a child' seat
on the front passenger's
seat. The front passenger
seat shall be adjusted in the most
backward position to prevent any
contact between child’ seat and dash-
board. Even if not compulsory by law,
you are recommended to reactivate
the air bag immediately as soon as
child transport is no longer necessary.
WARNING
093-110 idea GB 1 ed 10-07-2008 8:28 Pagina 107

108
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROL
SAFETY
DEVICES
To manually deactivate the
passenger’s front airbag and
the Side Bag (where provided), refer
to paragraph “Multifunctional re-
configurable display” in section
“Dashboard and controls”.
WARNING

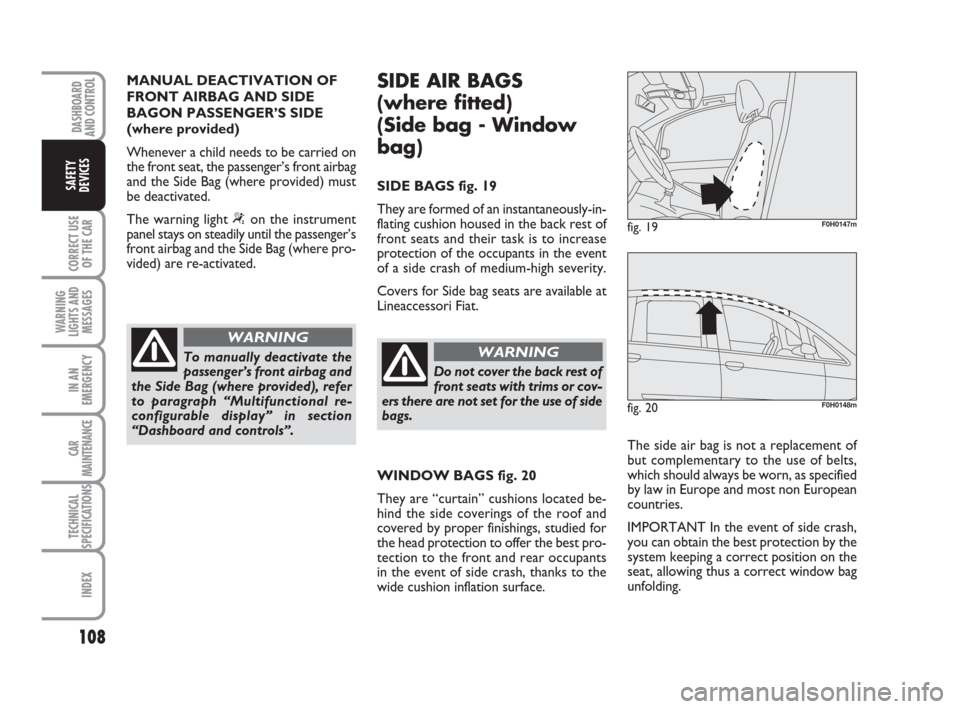

MANUAL DEACTIVATION OF
FRONT AIRBAG AND SIDE
BAGON PASSENGER’S SIDE
(where provided)
Whenever a child needs to be carried on
the front seat, the passenger’s front airbag
and the Side Bag (where provided) must
be deactivated.
The warning light
“on the instrument
panel stays on steadily until the passenger’s
front airbag and the Side Bag (where pro-
vided) are re-activated.
SIDE AIR BAGS
(where fitted)
(Side bag - Window
bag)
SIDE BAGS fig. 19
They are formed of an instantaneously-in-
flating cushion housed in the back rest of
front seats and their task is to increase
protection of the occupants in the event
of a side crash of medium-high severity.
Covers for Side bag seats are available at
Lineaccessori Fiat.
The side air bag is not a replacement of
but complementary to the use of belts,
which should always be worn, as specified
by law in Europe and most non European
countries.
IMPORTANT In the event of side crash,
you can obtain the best protection by the
system keeping a correct position on the
seat, allowing thus a correct window bag
unfolding.
Do not cover the back rest of
front seats with trims or cov-
ers there are not set for the use of side
bags.
WARNING
WINDOW BAGS fig. 20
They are “curtain” cushions located be-
hind the side coverings of the roof and
covered by proper finishings, studied for
the head protection to offer the best pro-
tection to the front and rear occupants
in the event of side crash, thanks to the
wide cushion inflation surface.
fig. 19F0H0147m
fig. 20F0H0148m
093-110 idea GB 1 ed 10-07-2008 8:28 Pagina 108

109
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES

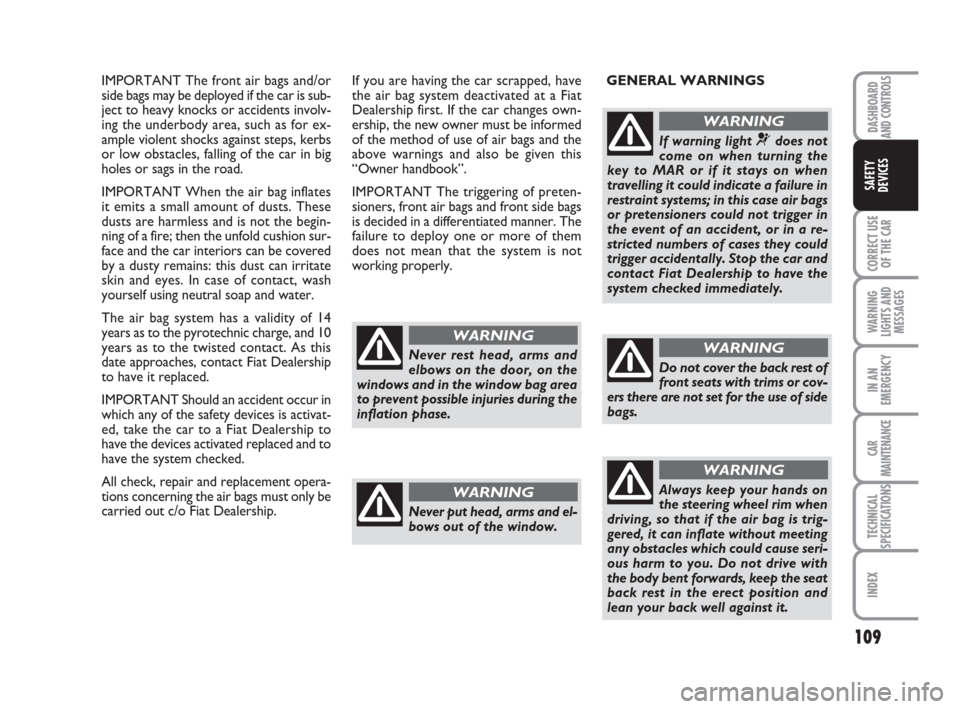

IMPORTANT The front air bags and/or
side bags may be deployed if the car is sub-
ject to heavy knocks or accidents involv-
ing the underbody area, such as for ex-
ample violent shocks against steps, kerbs
or low obstacles, falling of the car in big
holes or sags in the road.
IMPORTANT When the air bag inflates
it emits a small amount of dusts. These
dusts are harmless and is not the begin-
ning of a fire; then the unfold cushion sur-
face and the car interiors can be covered
by a dusty remains: this dust can irritate
skin and eyes. In case of contact, wash
yourself using neutral soap and water.
The air bag system has a validity of 14
years as to the pyrotechnic charge, and 10
years as to the twisted contact. As this
date approaches, contact Fiat Dealership
to have it replaced.
IMPORTANT Should an accident occur in
which any of the safety devices is activat-
ed, take the car to a Fiat Dealership to
have the devices activated replaced and to
have the system checked.
All check, repair and replacement opera-
tions concerning the air bags must only be
carried out c/o Fiat Dealership.If you are having the car scrapped, have
the air bag system deactivated at a Fiat
Dealership first. If the car changes own-
ership, the new owner must be informed
of the method of use of air bags and the
above warnings and also be given this
“Owner handbook”.
IMPORTANT The triggering of preten-
sioners, front air bags and front side bags
is decided in a differentiated manner. The
failure to deploy one or more of them
does not mean that the system is not
working properly.
Never rest head, arms and
elbows on the door, on the
windows and in the window bag area
to prevent possible injuries during the
inflation phase.
WARNING
Never put head, arms and el-
bows out of the window.
WARNING
If warning light ¬does not
come on when turning the
key to MAR or if it stays on when
travelling it could indicate a failure in
restraint systems; in this case air bags
or pretensioners could not trigger in
the event of an accident, or in a re-
stricted numbers of cases they could
trigger accidentally. Stop the car and
contact Fiat Dealership to have the
system checked immediately.
WARNING
GENERAL WARNINGS
Do not cover the back rest of
front seats with trims or cov-
ers there are not set for the use of side
bags.
WARNING
Always keep your hands on
the steering wheel rim when
driving, so that if the air bag is trig-
gered, it can inflate without meeting
any obstacles which could cause seri-
ous harm to you. Do not drive with
the body bent forwards, keep the seat
back rest in the erect position and
lean your back well against it.
WARNING
093-110 idea GB 1 ed 10-07-2008 8:28 Pagina 109
