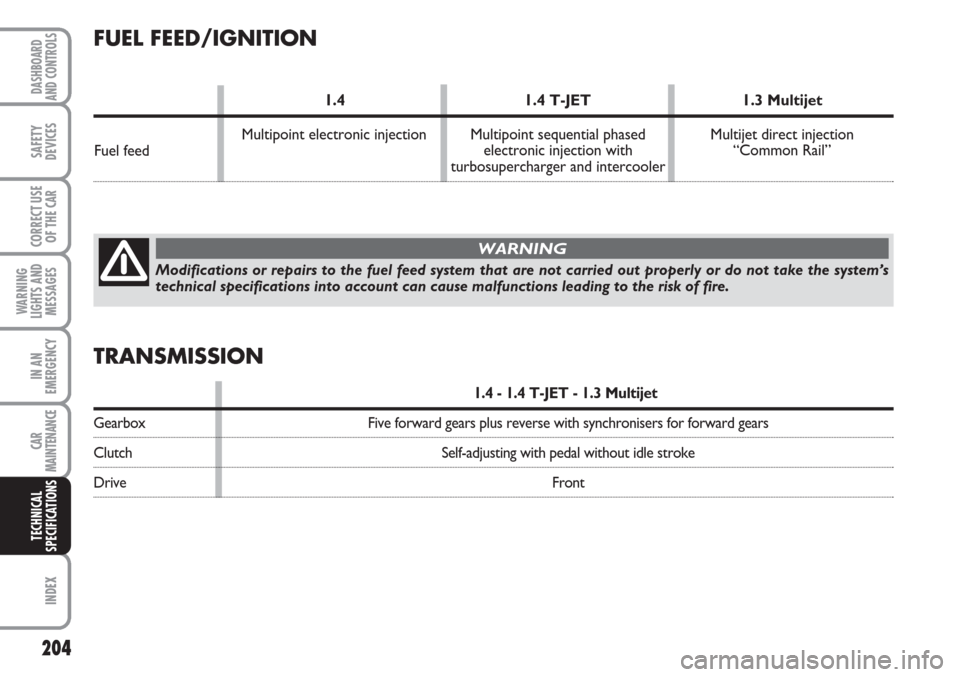

Modifications or repairs to the fuel feed system that are not carried out properly or do not take the system’s
technical specifications into account can cause malfunctions leading to the risk of fire.
WARNING
TRANSMISSION
1.4 - 1.4 T-JET-1.3 Multijet
Gearbox Five forward gears plus reverse with synchronisers for forward gears
Clutch Self-adjusting with pedal without idle stroke
Drive Front
Fuel feedMultipoint electronic injection Multipoint sequential phased
electronic injection with
turbosupercharger and intercoolerMultijet direct injection
“Common Rail”
FUEL FEED/IGNITION
1.4 1.4 T-JET 1.3 Multijet

205
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
SUSPENSIONS
1.4 - 1.4 T-JET - 1.3 Multijet
Front
Rear

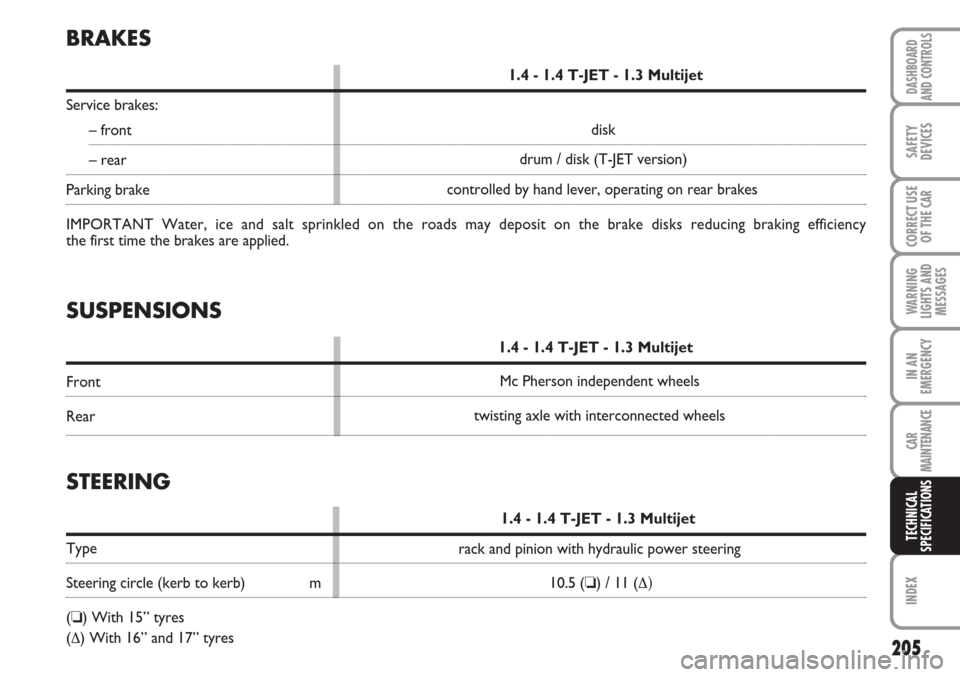

BRAKES
1.4 - 1.4 T-JET - 1.3 Multijet
Service brakes:
– front
– rear
Parking brake
IMPORTANT Water, ice and salt sprinkled on the roads may deposit on the brake disks reducing braking efficiency
the first time the brakes are applied.
Mc Pherson independent wheels
twisting axle with interconnected wheels controlled by hand lever, operating on rear brakesdrum / disk (T-JET version) disk
STEERING
1.4 - 1.4 T-JET - 1.3 Multijet
Type
Steering circle (kerb to kerb) m 10.5 (❏) / 11 (6)
(❏) With 15” tyres
(6) With 16” and 17” tyresrack and pinion with hydraulic power steering

206
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS

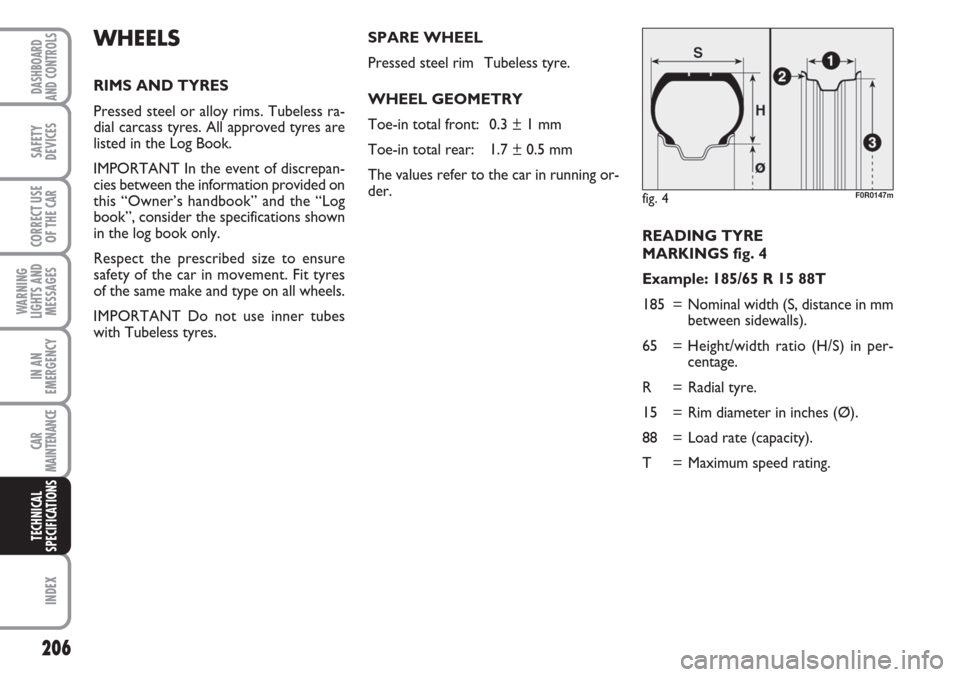

READING TYRE
MARKINGS fig. 4
Example: 185/65 R 15 88T
185 = Nominal width (S, distance in mm
between sidewalls).
65 = Height/width ratio (H/S) in per-
centage.
R = Radial tyre.
15 = Rim diameter in inches (Ø).
88 = Load rate (capacity).
T = Maximum speed rating.
WHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Tubeless ra-
dial carcass tyres. All approved tyres are
listed in the Log Book.
IMPORTANT In the event of discrepan-
cies between the information provided on
this “Owner’s handbook” and the “Log
book”, consider the specifications shown
in the log book only.
Respect the prescribed size to ensure
safety of the car in movement. Fit tyres
of the same make and type on all wheels.
IMPORTANT Do not use inner tubes
with Tubeless tyres.
fig. 4F0R0147m
SPARE WHEEL
Pressed steel rim Tubeless tyre.
WHEEL GEOMETRY
Toe-in total front: 0.3 ± 1 mm
Toe-in total rear: 1.7 ± 0.5 mm
The values refer to the car in running or-
der.

207
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS

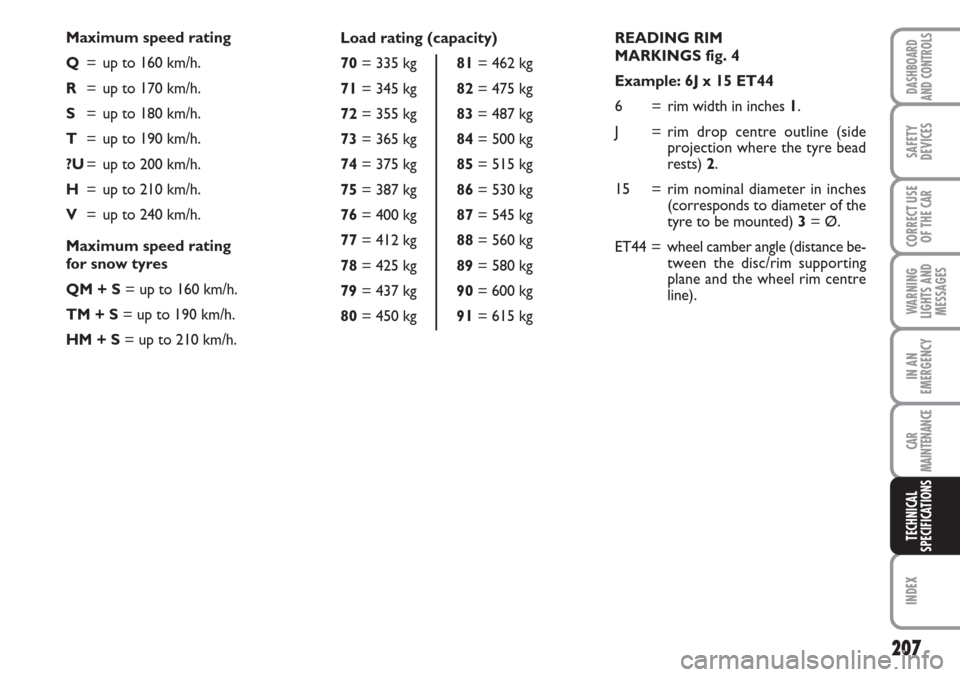

READING RIM
MARKINGS fig. 4
Example: 6J x 15 ET44
6 = rim width in inches 1.
J = rim drop centre outline (side
projection where the tyre bead
rests) 2.
15 = rim nominal diameter in inches
(corresponds to diameter of the
tyre to be mounted) 3= Ø.
ET44 = wheel camber angle (distance be-
tween the disc/rim supporting
plane and the wheel rim centre
line). Load rating (capacity)
70= 335 kg 81= 462 kg
71= 345 kg 82= 475 kg
72= 355 kg 83= 487 kg
73= 365 kg 84= 500 kg
74= 375 kg 85= 515 kg
75= 387 kg 86= 530 kg
76= 400 kg 87= 545 kg
77= 412 kg 88= 560 kg
78= 425 kg 89= 580 kg
79= 437 kg 90= 600 kg
80= 450 kg 91= 615 kg Maximum speed rating
Q= up to 160 km/h.
R= up to 170 km/h.
S= up to 180 km/h.
T= up to 190 km/h.
?U= up to 200 km/h.
H= up to 210 km/h.
V= up to 240 km/h.
Maximum speed rating
for snow tyres
QM + S= up to 160 km/h.
TM + S= up to 190 km/h.
HM + S= up to 210 km/h.

208
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS

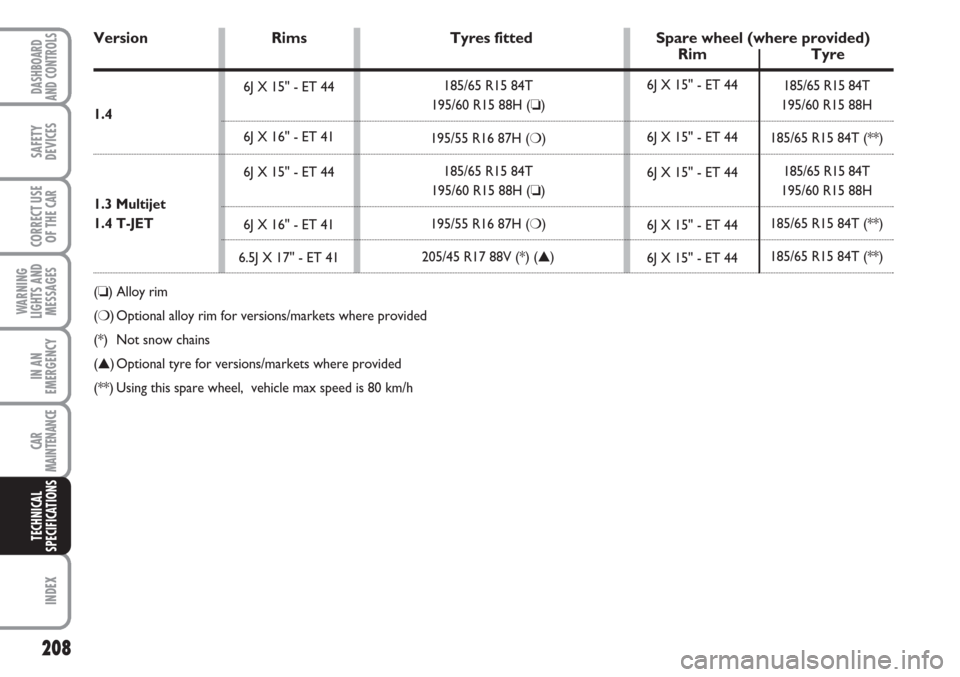

6J X 15'' - ET 44
6J X 15'' - ET 44
6J X 15'' - ET 44
6J X 15'' - ET 44
6J X 15'' - ET 44185/65 R15 84T
195/60 R15 88H
185/65 R15 84T (**)
185/65 R15 84T
195/60 R15 88H
185/65 R15 84T (**)
185/65 R15 84T (**) 185/65 R15 84T
195/60 R15 88H (❏)
195/55 R16 87H (❍)
185/65 R15 84T
195/60 R15 88H (❏)
195/55 R16 87H (❍)
205/45 R17 88V (*) (▲) 6J X 15'' - ET 44
6J X 16'' - ET 41
6J X 15'' - ET 44
6J X 16'' - ET 41
6.5J X 17'' - ET 41
Version Rims Tyres fitted Spare wheel (where provided)Rim Tyre
(❏) Alloy rim
(❍) Optional alloy rim for versions/markets where provided
(*) Not snow chains
(▲) Optional tyre for versions/markets where provided
(**) Using this spare wheel, vehicle max speed is 80 km/h 1.3 Multijet
1.4 T-JET 1.4

209
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS

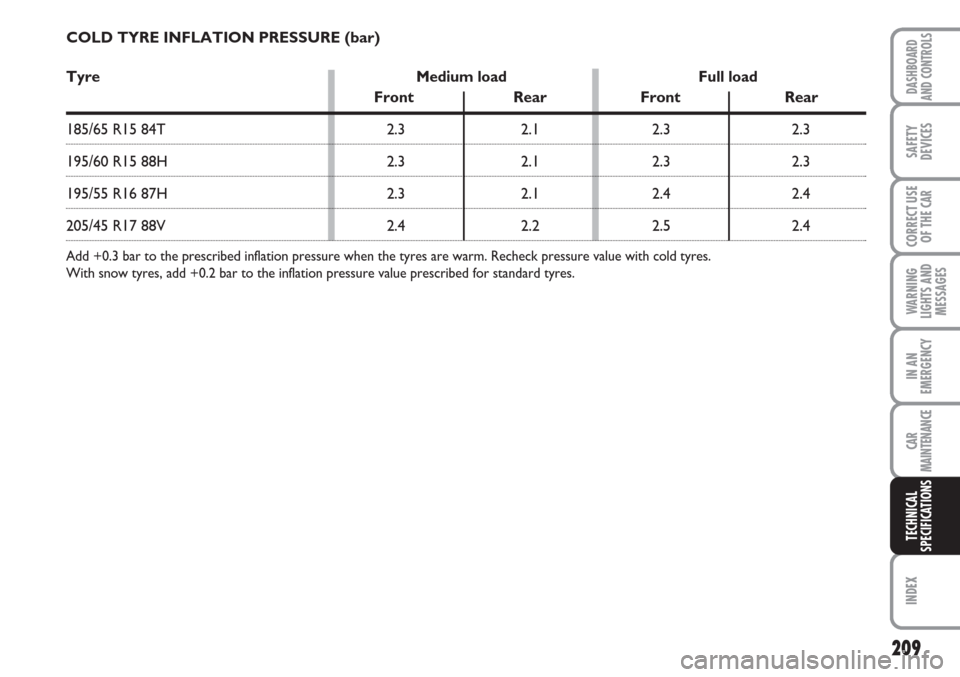

COLD TYRE INFLATION PRESSURE (bar)
Tyre
Medium load Full load
Front Rear Front Rear
185/65 R15 84T 2.3 2.1 2.3 2.3
195/60 R15 88H 2.3 2.1 2.3 2.3
195/55 R16 87H 2.3 2.1 2.4 2.4
205/45 R17 88V 2.4 2.2 2.5 2.4
Add +0.3 bar to the prescribed inflation pressure when the tyres are warm. Recheck pressure value with cold tyres.
With snow tyres, add +0.2 bar to the inflation pressure value prescribed for standard tyres.

210
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS

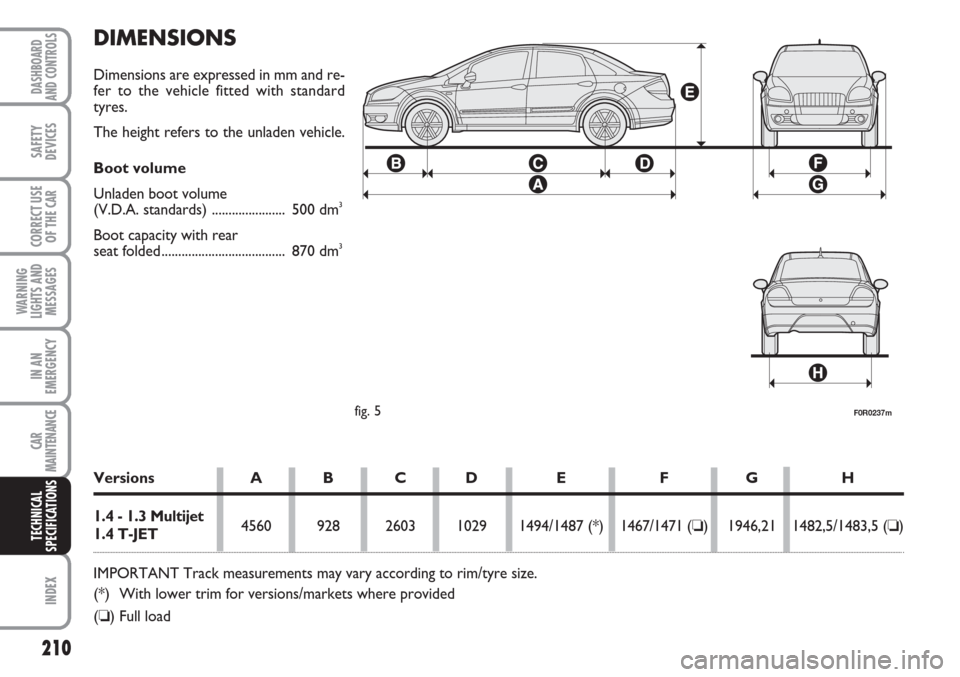

DIMENSIONS
Dimensions are expressed in mm and re-
fer to the vehicle fitted with standard
tyres.
The height refers to the unladen vehicle.
Boot volume
Unladen boot volume
(V.D.A. standards) ...................... 500 dm
3
Boot capacity with rear
seat folded..................................... 870 dm3
fig. 5
Versions A B C D E F G H
1.4 - 1.3 Multijet
4560 928 2603 1029 1494/1487 (*) 1467/1471 (❏) 1946,21 1482,5/1483,5 (❏)
1.4 T-JET
IMPORTANT Track measurements may vary according to rim/tyre size.
(*) With lower trim for versions/markets where provided
(❏) Full load
F0R0237m

211
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS

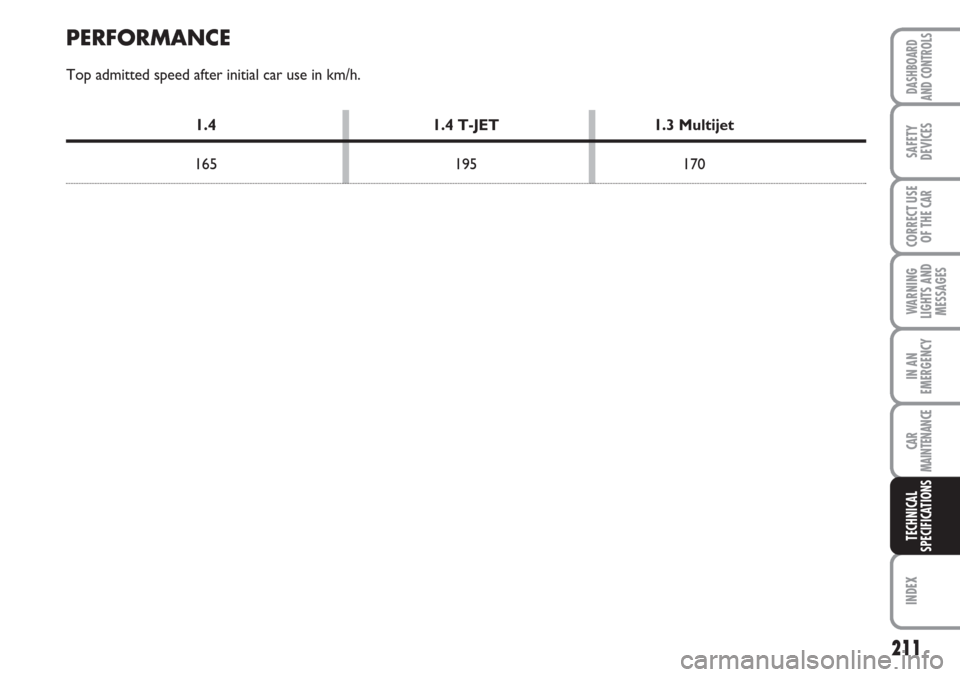

PERFORMANCE
Top admitted speed after initial car use in km/h.
1.4 1.4 T-JET 1.3 Multijet
165 195 170

212
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
1160
500
1000
900
1660
1200
500
75
701185
500
1000
900
1685
1200
500
75
70 1200
500
1000
900
1670
1200
500
75
70

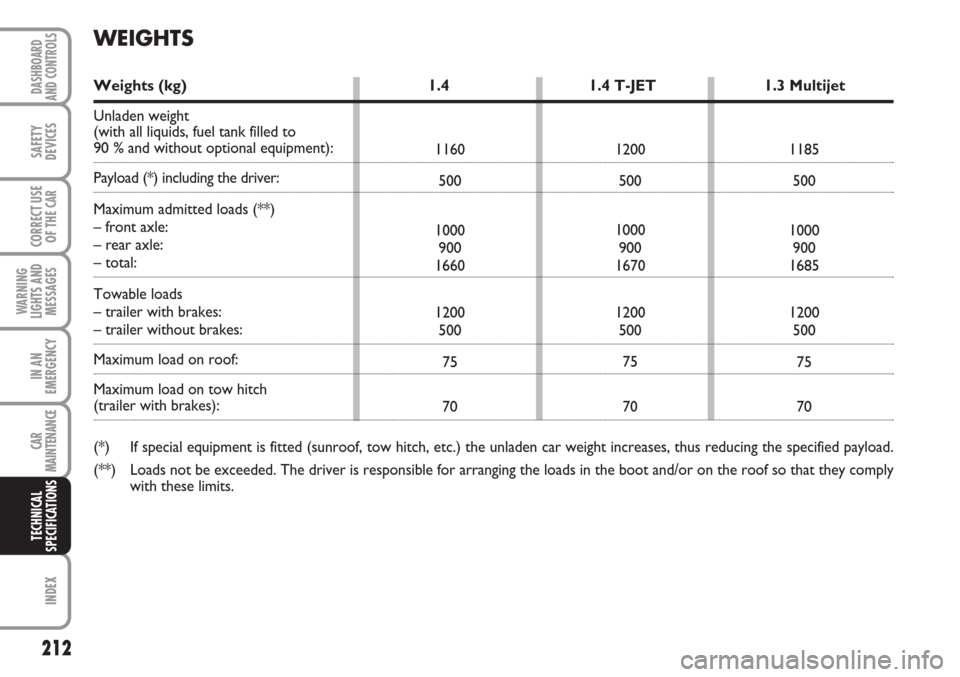

WEIGHTS
Weights (kg) 1.4 1.4 T-JET 1.3 Multijet
Unladen weight
(with all liquids, fuel tank filled to
90 % and without optional equipment):
Payload (*) including the driver:
Maximum admitted loads (**)
– front axle:
– rear axle:
– total:
Towable loads
– trailer with brakes:
– trailer without brakes:
Maximum load on roof:
Maximum load on tow hitch
(trailer with brakes):
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload.
(**) Loads not be exceeded. The driver is responsible for arranging the loads in the boot and/or on the roof so that they comply
with these limits.

Specified fuels and
genuine lubricants
Unleaded petrol with no less than
95 R.O.N.
(EN 228 Specification)
Diesel fuel for motor vehicles
(EN590 Specification)
Mixture of 50% demineralised
water and 50% PARAFLU UP
(❒)
SELENIA K P.E.
SELENIA WR
TUTELA CAR TECHNYX
TUTELA GI/A
TUTELA TOP 4
Mixture of water and
TUTELA PROFESSIONAL
SC 35
213
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
1.3 Multijet
–
–
45
5 ÷ 7
7.1
–
–
3.0
3.2
1.7
0.9
0.4 / 0.5 (*)
3.01.4
45
5 ÷ 7
–
–
5.8
2.4
2.6
–
–
1.5
0.9
0.4 / 0.5 (*)
3.01.4 T-JET
45
5 ÷ 7
–
–
6
2.4
2.6
–
–
1.7
0.9
0.46 / 0.56 (*)
3

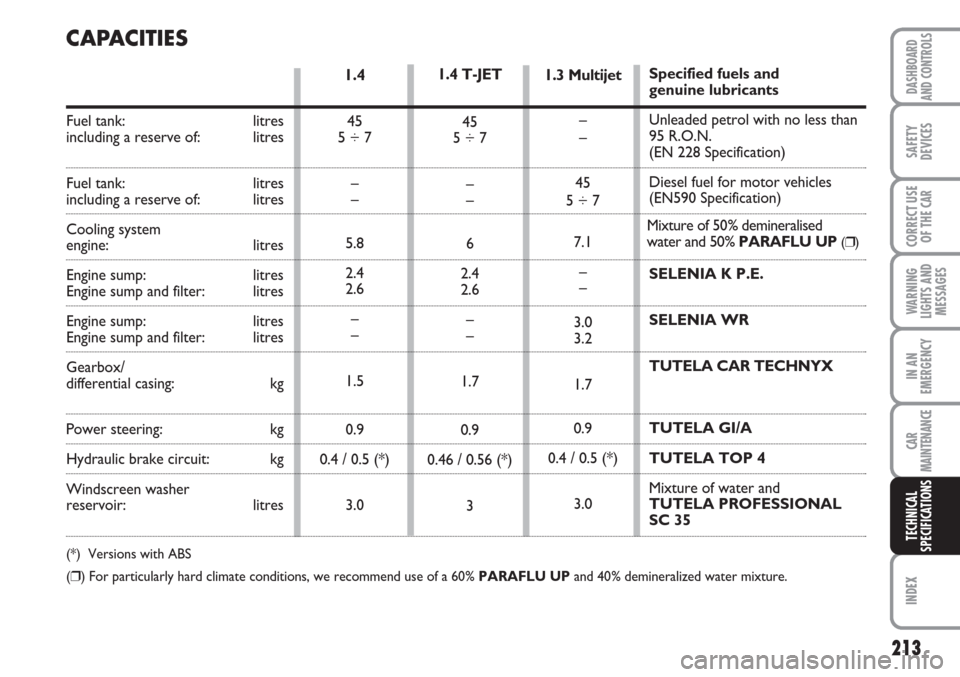

CAPACITIES
Fuel tank: litres
including a reserve of: litres
Fuel tank: litresincluding a reserve of: litres
Cooling system
engine: litres
Engine sump: litres
Engine sump and filter: litres
Engine sump: litres
Engine sump and filter: litres
Gearbox/
differential casing: kg
Power steering: kg
Hydraulic brake circuit: kg
Windscreen washer
reservoir: litres
(*) Versions with ABS
(❒) For particularly hard climate conditions, we recommend use of a 60% PARAFLU UPand 40% demineralized water mixture.
