Marea-Marea Weekend
2000 range Q
DESCRIPTION OF WIRING AND CONNECTORS
CONNECTOR A
N.
No.
Wiring
colour Circuit involved
1 R Supply (+30) from fuse box
2 BR Supply (+30) from fuse box
CONNECTOR c
N. No.
Wiring colour Circuit involved
1 RN Car interior fan power supply (with
air conditioner), air conditioner
control unit
2 MB Fuel pump control, inertia switch
3 AN Car interior fan power supply (only heater), air conditioner control unit
4 H Right dipped beam headlamp
5 HN Left dipped beam, headllamp en­
ablement
6 VN Left main beam
7 V Right main beam
CONNECTOR E
N.
No.
Wiring colour Circuit involved
1 RN Right brake light
2 GR Rear view mirror control light
3 RG Left brake light
4 MN Rear window power supply
5 MB Fuel pump, inertia switch
6 -N.C.
7 AN Left rear turn signal
8 -N.C.
9 GR Right rear side light (without check
panel)
10 HL Left number plate light (without
check panel)
11 -N.C.
12 RG N.C.
13 RN N.C.
14 R Supplementary brake light
Electrical system
Junction unit
55.
CONNECTOR B
N. No.
Wiring
colour Circuit involved
1 R Power supply to electric windows, door lock, service control unit, main beam relay, fog lamp, sun-roof, heated seats, cigar lighter
CONNECTOR D
N.
No.
Wiring colour Circuit involved
1 G Left headlamp alignment
2 G Right headlamp alignment
3 G Headlamp alignment control
4 AN Front and left side turn signal
5 AR Alarm control unit power supply
6 HB Right headlamp alignment power
supply
7 H Left headlamp alignment power
supply
8 H Headlamp alignment control
9 B Reversing light control
10 Z Horns.
11 Z Horns.
12 -N.C.
13 GV Right front side light
14 AR Brake light power supply
15 A Front and right side turn signal
16 GL Left front side light
17S -N.C.
18 RN Brake light control
CONNECTOR F
N.
No.
Wiring colour Circuit involved
1 HR Dipped beam control
2 -N.C.
3 LR Main beam control
4 -N.C.
5 G Side light power supply from ignition
Copyright by Fiat Auto 5

Electrical system
Junction unit
Marea- Marea Weekend
2000 range ©
55. 55.
DESCRIPTION OF WIRING AND CONNECTORS (cont)
CONNECTOR G
N.
No.
Wiring
colour Circuit involved
1 HB Right number plate light (without check panel)
2 -N.C.
3 AR Rear view mirror power supply
4 -N.C.
5 A Right rear turn signal
6 BN Left reversing light (only Marea)
7 B Right reversing light
8 GN Left rear side light (without check panel)
9 RG Rear courtesy light power supply (left for Marea Weekend)
10 RN Remote control receiver power sup­ply
11 RN Front courtesy light power supply
12 RN Right rear courtesy light power sup­ply (Marea Weekend)
CONNECTOR 1
N. No. Wiring
colour Circuit involved
1 AN Hazard warning light power supply
2 CB + 15 power supply from ignition
3 -N.C.
4 CB Stalk unit power supply
5 C Power supply, windscreen wiper
6 N Earth
7 LN Horn signal
8 AG + 15 power supply from ignition (start-up excluded)
9 AB Hazard warning light power supply
10 AB Hazard warning lights and instru­ment panel power supply (from January 2001)
11 AB Hazard warning light power supply
12 AR Turn signal power supply
13 R Instrument panel power supply
14 -N.C.
CONNECTOR H
N.
No.
Wiring
colour Circuit involved
1 AN Right turn signal warning light
2 C Power supply, door lock, radio
3 AN Right turn signal control
4 RN Right brake light (versions with Check Panel)
5 A Left turn signal control
6 A Left turn signal control
7 A Left turn signal warning light
8 AN Right turn signal control
9 RV Brake light control (versions with
Check Panel)
10 MN Mirror demister control
CONNECTOR J
N.
No.
Wiring colour Circuit involved
1 RG Left brake light (versions with check
panel)
2 AG Alarm and instrument panel power
supply (to December 2000)
3 GN Side light warning light, switch panel lighting, automatic transmis­sion control lighting
4 BC Rear window control
5 R Power supply, radio
6 LB Main beam warning light
7 RV Radio phone power supply
8 -N.C.
9 R Radio power supply
10 GN Radio lighting
11 GN Instrument lighting dimmer
12 GN Cigar lighter lighting
6 Publication no. 506. 763/24

Marea- Marea Weekend
2000 range ©
Electrical equipment
Wiring diagrams
55.

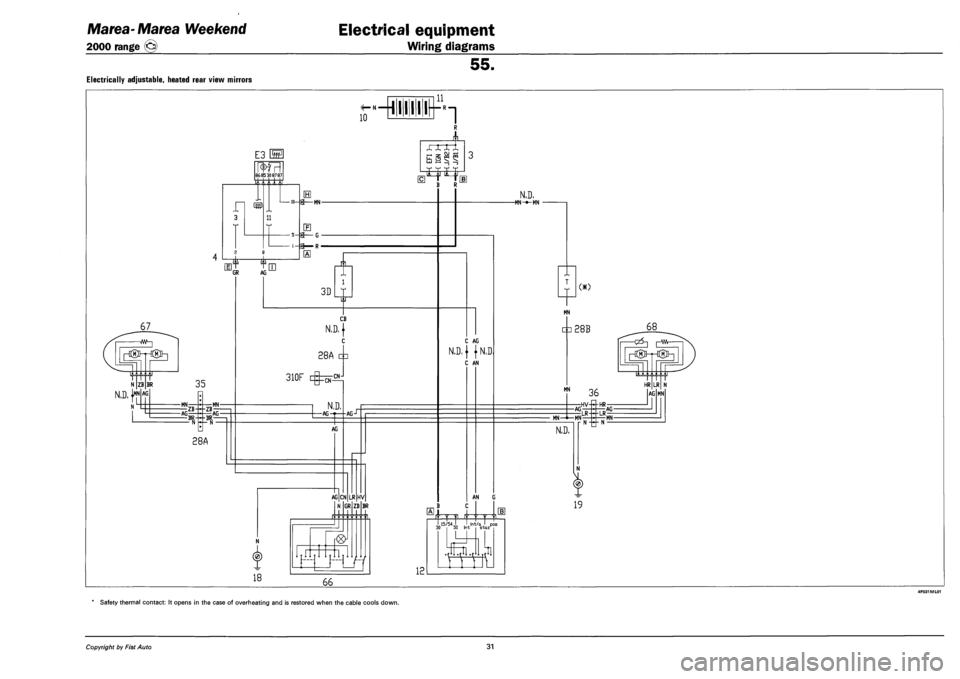

ELECTRICALLY ADJUSTABLE, HEATED REAR VIEW MIRRORS
HIIIIIH-
10
E3
fFI 8685308787
3
m
3—MN-
$ ^
GR AG
LU
-5-f3— G •
LU
67
N ZB I
N.D. }M.N A.G
BR 35
-MN;
-AG-ZB---ZB
28A
-MN-
-AG-
3D
ir
CB
N.D,)
c
28A
310F L^CN-
N,D,
-AG-
AG
AGJ
18
AG CN LR HV
GR ZB
i
66
11
1
m_
xxxi _. W
it ^ it 'jj
B R 11
C AG
N.D. { j N.D
C AN
AN G
B C
12
N.D.
-MN-»-MN
m
71
MN
• •28B
MN
MN-
36
-AG HV-
-MN-
N.D.
LR — LR
N -*- N
HR--AG-
-MN-
19
68
-gz5-| r-m-
HR LR
AG MN
Safety thermal contact: It opens in the case of overheating and is restored when the cable cools down.
Copyright by Fiat Auto 31

Electrical equipment
Component location
Marea-Marea Weekend
2000 range ©

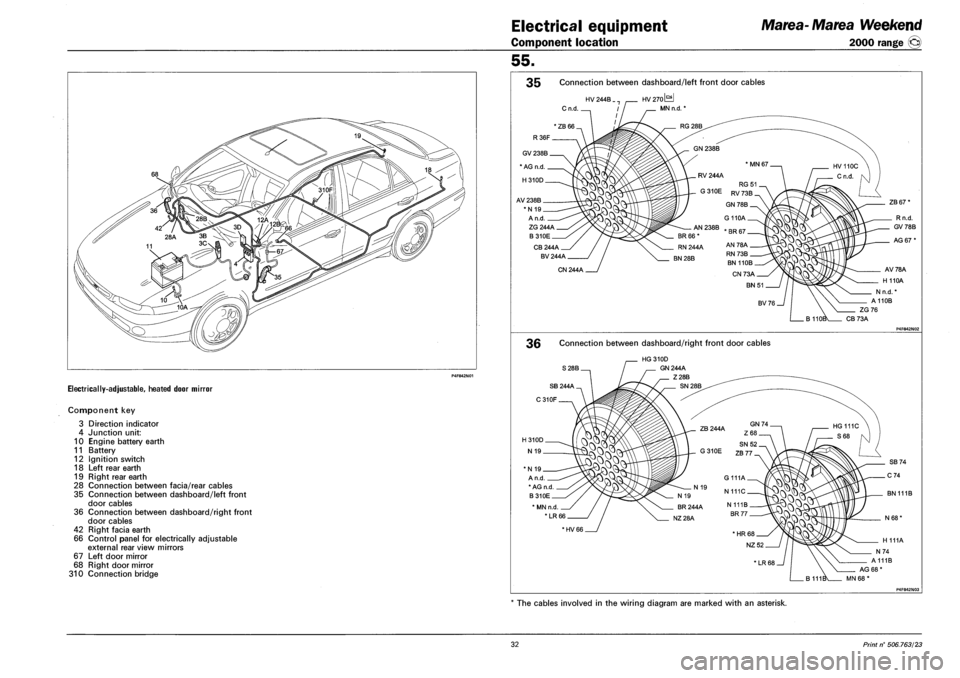

ELECTRICALLY-ADJUSTABLE, HEATED DOOR MIRROR
Component key
3 Direction indicator
4 Junction unit:
10 Engine battery earth
11 Battery
12 Ignition switch
18 Left rear earth
19 Right rear earth
28 Connection between facia/rear cables
35 Connection between dashboard/left front
door cables
36 Connection between dashboard/right front
door cables
42 Right facia earth
66 Control panel for electrically adjustable
external rear view mirrors
67 Left door mirror
68 Right door mirror
310 Connection bridge
55.
35 Connection between dashboard/left front door cables
HV 244B ..
Cn.d. .
HV270L^J
MN n.d. *
ZG 244A
B310E
CB244A
BV 244A
CN 244A
ZB 67'
Rn.d.
GV 78 B
AG 67*
AV78A
H 110A
Nn.d.'
A110B
ZG76
CB73A
36 Connection between dashboard/right front door cables
S28B.
HG 310D
GN 244A
Z28B
*N 19
A n.d
* AG n.d
B310E
* MN n.d
*LR66
BN 111B
*HV 66
The cables involved in the wiring diagram are marked with an asterisk.
32 Print n° 506.763/23
