reversing FIAT MAREA 2000 1.G Workshop Manual

Marea-Marea Weekend H nD Engine
2000 range (Q) Fuel feed system
10.
1. Grip the outer casing of the regulator, partly
extract it and, at the same time, rotate it so
that the fins (1) which contain the open­
ings for the fixing bolts are positioned hori­
zontally.
NOTA Do not grip the pressure regulator by
the electrical connector.
Insert the blades of two screwdrivers by the
fins (1) and very carefully extract the pressure
regulator.
NOTE Do not use a screwdriver or other
tools in the seal areas between the
regulator and the pressure pump.
2. Pressure regulator
1. High pressure seal (black or green)
2. Anti-extrusion seal (white)
3. Low pressure seal (black)
NOTE // the high pressure seal accidentally
remains inside the pump casing, turn
the ignition key to the ON position
(engine switched off); this will op­
erate the pump shaft and a small
amount of fuel and the seal will come
out.
NOTE Do not, under any circumstances, use any tools for extracting the high pressure seal and this
could damage the inner surface of the pump.
Refitting
- Suction off any impurities present inside the pump casing.
- Check the condition of the three seals and make sure they are correctly positioned before fitting.
- Slightly lubricate the outer surface of the three seals using vaseline. Do not, under any circumstances,
lubricate the other surfaces of the pressure regulator.
- Insert the pressure regulator in its housing on the pump, pressing gently and, at the same time, rotating
the regulator until it is is contact with the surface of the pump.
NOTE Do not, under any circumstances, use a hammer or other tools when fitting the pressure regula­
tor.
- Fit the two bolts fixing the pressure regulator to the pump acsing. and tighten them to a torque of
0.9±0.1 daNm.
- Reconnect the electrical connector and complete the refitting of the remaining components reversing the
order of the operations carried out for the removal.
Copyright by Fiat Auto |& yt-01 - Update 37

Marea-Marea Weekend
2000 range Q
DESCRIPTION OF WIRING AND CONNECTORS
CONNECTOR A
N.
No.
Wiring
colour Circuit involved
1 R Supply (+30) from fuse box
2 BR Supply (+30) from fuse box
CONNECTOR c
N. No.
Wiring colour Circuit involved
1 RN Car interior fan power supply (with
air conditioner), air conditioner
control unit
2 MB Fuel pump control, inertia switch
3 AN Car interior fan power supply (only heater), air conditioner control unit
4 H Right dipped beam headlamp
5 HN Left dipped beam, headllamp en­
ablement
6 VN Left main beam
7 V Right main beam
CONNECTOR E
N.
No.
Wiring colour Circuit involved
1 RN Right brake light
2 GR Rear view mirror control light
3 RG Left brake light
4 MN Rear window power supply
5 MB Fuel pump, inertia switch
6 -N.C.
7 AN Left rear turn signal
8 -N.C.
9 GR Right rear side light (without check
panel)
10 HL Left number plate light (without
check panel)
11 -N.C.
12 RG N.C.
13 RN N.C.
14 R Supplementary brake light
Electrical system
Junction unit
55.
CONNECTOR B
N. No.
Wiring
colour Circuit involved
1 R Power supply to electric windows, door lock, service control unit, main beam relay, fog lamp, sun-roof, heated seats, cigar lighter
CONNECTOR D
N.
No.
Wiring colour Circuit involved
1 G Left headlamp alignment
2 G Right headlamp alignment
3 G Headlamp alignment control
4 AN Front and left side turn signal
5 AR Alarm control unit power supply
6 HB Right headlamp alignment power
supply
7 H Left headlamp alignment power
supply
8 H Headlamp alignment control
9 B Reversing light control
10 Z Horns.
11 Z Horns.
12 -N.C.
13 GV Right front side light
14 AR Brake light power supply
15 A Front and right side turn signal
16 GL Left front side light
17S -N.C.
18 RN Brake light control
CONNECTOR F
N.
No.
Wiring colour Circuit involved
1 HR Dipped beam control
2 -N.C.
3 LR Main beam control
4 -N.C.
5 G Side light power supply from ignition
Copyright by Fiat Auto 5

Electrical system
Junction unit
Marea- Marea Weekend
2000 range ©
55. 55.
DESCRIPTION OF WIRING AND CONNECTORS (cont)
CONNECTOR G
N.
No.
Wiring
colour Circuit involved
1 HB Right number plate light (without check panel)
2 -N.C.
3 AR Rear view mirror power supply
4 -N.C.
5 A Right rear turn signal
6 BN Left reversing light (only Marea)
7 B Right reversing light
8 GN Left rear side light (without check panel)
9 RG Rear courtesy light power supply (left for Marea Weekend)
10 RN Remote control receiver power sup­ply
11 RN Front courtesy light power supply
12 RN Right rear courtesy light power sup­ply (Marea Weekend)
CONNECTOR 1
N. No. Wiring
colour Circuit involved
1 AN Hazard warning light power supply
2 CB + 15 power supply from ignition
3 -N.C.
4 CB Stalk unit power supply
5 C Power supply, windscreen wiper
6 N Earth
7 LN Horn signal
8 AG + 15 power supply from ignition (start-up excluded)
9 AB Hazard warning light power supply
10 AB Hazard warning lights and instru­ment panel power supply (from January 2001)
11 AB Hazard warning light power supply
12 AR Turn signal power supply
13 R Instrument panel power supply
14 -N.C.
CONNECTOR H
N.
No.
Wiring
colour Circuit involved
1 AN Right turn signal warning light
2 C Power supply, door lock, radio
3 AN Right turn signal control
4 RN Right brake light (versions with Check Panel)
5 A Left turn signal control
6 A Left turn signal control
7 A Left turn signal warning light
8 AN Right turn signal control
9 RV Brake light control (versions with
Check Panel)
10 MN Mirror demister control
CONNECTOR J
N.
No.
Wiring colour Circuit involved
1 RG Left brake light (versions with check
panel)
2 AG Alarm and instrument panel power
supply (to December 2000)
3 GN Side light warning light, switch panel lighting, automatic transmis­sion control lighting
4 BC Rear window control
5 R Power supply, radio
6 LB Main beam warning light
7 RV Radio phone power supply
8 -N.C.
9 R Radio power supply
10 GN Radio lighting
11 GN Instrument lighting dimmer
12 GN Cigar lighter lighting
6 Publication no. 506. 763/24

Marea-Marea Weekend Electrical system
2000 range ©> Wiring diagrams
55.
DESCRIPTION
Marea-Marea Weekend
DESCRIPTION JTD
SIDE LIGHTS AND WARNING LIGHT - DIPPED HEADLAMPS - MAIN BEAM HEADLAMPS AND WARNING LIGHT - NUMBER PLATE LIGHTS (POLYELLIPTIC HEADLAMPS) 5 5 5 5
SIDE LIGHTS AND WARNING LIGHT - DIPPED HEADLAMPS - MAIN BEAM HEADLAMPS AND WARNING LIGHT - NUMBER PLATE LIGHTS (PARABOLA HEADLAMPS) 7 7 7 7
FOG LIGHTS - REAR FOG LIGHTS 9 9 9 9
DIRECTION INDICATORS AND WARNING LIGHT (WITH ALARM) - HAZARD WARNING LIGHTS - BRAKE LIGHTS (WITH CHECK) - REVERSING LIGHTS 11 11 11 11
DIRECTION INDICATORS AND WARNING LIGHT (WITHOUT ALARM) - HAZARD WARNING LIGHTS - BRAKE LIGHTS (WITHOUT CHECK) - REVERSING LIGHTS 13 13 13 13
FIAT MAREA
CAR INTERIOR LIGHTING - SYMBOL LIGHTING 15 15 15 15
FIAT MAREA WEEKEND
CAR INTERIOR LIGHTING - SYMBOL LIGHTING 17 17 17 17
RADIO SYSTEM - CIGAR LIGHTER 19 19 19 19
FRONT ELECTRIC WINDOWS 21 21 21 21
REAR ELECTRIC WINDOWS 23 23 23 23
FIAT CODE DEVICE AND WARNING LIGHT 25 25 25 25
ALARM/DOOR CHECK 27 27 27 27
CENTRAL LOCKING 29 29 29 29
HEATED, ELECTRICALLY ADJUSTABLE DOOR MIRRORS 31 31 31 31
Copyright by Fiat Auto '' XI Supersedes previous verster*.

Marea-Marea Weekend
2000 range ©
Electrical system
Wiring diagrams
55.
DIRECTION INDICATORS AND WARNING LIGHT (WITH ALARM) - HAZARD WARNING LIGHTS - BRAKE LIGHTS (WITH CHECK) - REVERSING
LIGHTS
20
N -
-AN-
16
-3—AN-
•i-RG-
•-BN-
1 11
N
§D ;OQ:- ID
AN N.D.
'<^AN—
AN
B R
N —H>
10 ID 3>»? |D A
159 AN
-AR-(•)
AR
t AR I AR
3A
n
AR
N.D. -AR—•—AR
40
N.D,
-AR--RN-f=3b
13 N.D. 1 A-A-Q-A A_|
HI AN A RN
9 1415 18
1
7 1 3 14 5 6 7 2 11 1 91213
*VU gj4vK ffH+P JAN RNIRGI r)
-AN-IRN RG
C —•—CB-
N.D, ^ B C C „
13 A i „ j M
AVAR
AVJAB
AN
2 1
100
A -i
-AB—•—AB-
LB
12
H^T 'j' T T V-115/54 J„ , Jrrt/aJ pos
0 N
.31
Hffl
-NZ
236
(*)
LR
AN
RV-
RV
AN RG RV RN
Si3
N N
22
1K««) U LJ
NZ-»-NZ-
NZ
NZ N
J5_
il8 41
—i
i N
N-g
A
21
LR A AR LB
AN
23
17 <*>
Variant for Marea Weekend Variant for AT. • Automatic transmission: see specific wiring diagram
Copyright by Fiat Auto XIJ-00 - Supersedes prev$>Os verjsfon 11

Electrical system
Component location
Marea- Marea Weekend
2000 range ©
DIRECTION INDICATORS AND WARNING LIGHT (WITH ALARM)
LIGHTS
Component key
1 Left front light cluster
2 Right front light cluster
3 Power fusebox
4 Junction unit
6 Instrument panel
7 Stalk unit
8 Left front earth
9 Right front earth
10 Battery earth on engine
11 Battery
12 Ignition switch
13 Connection between right/left front cables
16 Left tail light cluster
17 Right tail light cluster
18 Left rear earth
19 Right rear earth
HAZARD WARNING LIGHTS - BRAKE LIGHTS (WITH CHECK) - REVERSING
20 Left front side direction indicator
21 Right front side direction indicator
22 Left facia earth
23 Hazard warning light control switch unit
28 Connection between dashborad/rear ca­
bles
40 Brake lights control switch
41 Additional brake light
55 Connection between front/engine cables
100 Alarm electronic control unit
107 Door lock remote control receiver
159 Reversing lights control switch
236 Connection between rear cable and tail-gate
310 Connection shunt
55.
Left front light cluster
VN4C
AV4D
B
* AN n.d.
HN4C N8
1 3 Connection between right/left front cables
H2A
23A Hazard warning lights switch unit
'LB 7D
*AB4I
'AR4I
23B Hazard warning lights switch unit
*A4H .
' LR 7C AN 4H'
236 Connection between rear cable and tail-gate
CB28B
CB 26
HL 4E
RG4G
Marea Weekend
"The cables concerned are marked in the wiring diagram with an asterisk
12 XII 00 &jiii!-»cdes OMtfiuii.-. vtrsiun Publication no. 506.763/24

Electrical system
Component location
Marea- Marea Weekend
2000 range ©
DIRECTION INDICATORS AND WARNING LIGHT (WITHOUT ALARM) - HAZARD WARNING
ING LIGHT
Component key
IGHTS - BRAKE LIGHTS (WITHOUT CHECK) - REVERS-
1 Left front light cluster
2 Right front light cluster
3 Power fusebox
4 Junction unit
6 Instrument panel
7 Stalk unit
8 Left front earth
9 Right front earth
10 Engine battery earth
11 Battery
12 Ignition switch
13 Connection between right/left front cables
16 Left tail light cluster
17 Right tail light cluster
18 Left rear earth
19 Right rear earth
20 Left front side direction indicator
21 Right front side direction indicator
22 Left facia earth
23 Hazard warning lights switch unit
28 Connection between dashboard/rear ca­
bles
40 Brake light control switch
41 Additional brake light
55 Connection between front/engine cables
70 Connection between dashboard/front ca­
bles
107 Door lock remote control receiver
159 Reversing lights control switch
236 Connection between rear cable and tail-gate
328 Hazard warning lights relay
55.
Left front light cluster
VN4C
AV4D
B
HN 4C
1 3 Connection between right/left front cables
H2A
70 Connection between dashborad/front cables
A1 RN4C B1 M29 A2 VG 127 B2 V328* A3 VB 195A B3 AG 6A A4 HL26A B4 G n.d. * B5 AV4D B6 AB4D B7 LR4C B7 AN4C
EL GL n.d.
EL GV13
5§^LT]
El GV
1L AN 120 EL GV J B8 C8
236 Connection between rear cable and tail-gate
CB28B
CB26
HL4E
RG4G 4F014ML05
"The cables concerned are marked in the wiring diagram with an asterisk
14 XII-98 - Supersedes previous version Publication no. 506.763/24

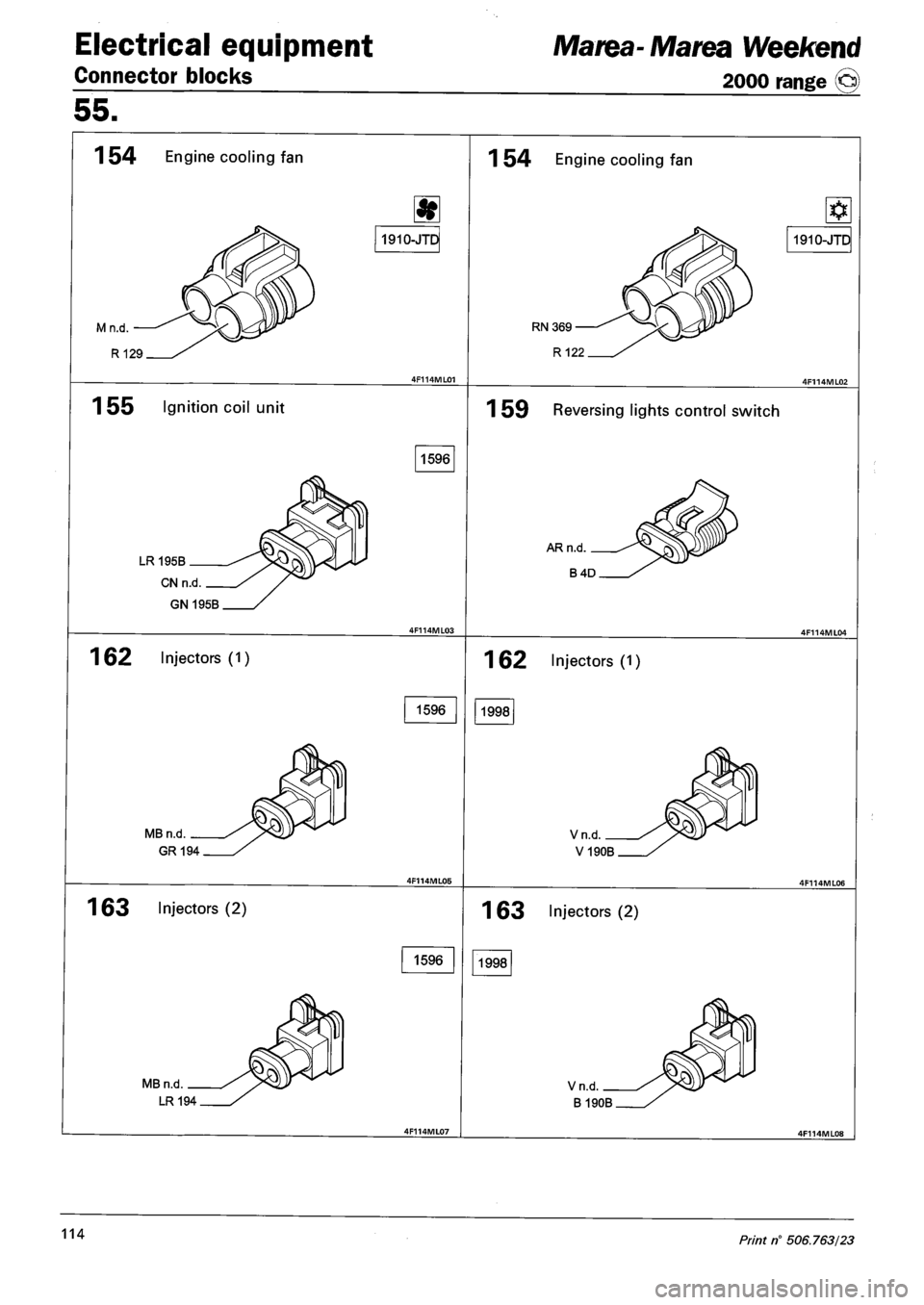

Electrical equipment
Connector blocks
Marea- Marea Weekend
2000 range ©
55.
1 54 Engine cooling fan
1910-JTD
1 54 Engine cooling fan
1910-JTD
1 55 Ignition coil unit
LR 195B
CN n.d
GN 195B
1 62 Injectors (1)
MB n.d.
GR194
1 59 Reversing lights control switch
1596
1 62 Injectors (1)
1596 1998
Vn.d.
V190B
1 63 Injectors (2)
MB n.d.
LR 194
1 63 Injectors (2)
1596 1998
Vn.d
B 190B
114 Print n° 506.763/23

A
21
128 Connection between front/radiator cables
129 Engine cooling fan protection power fuse
129A Power fuse protecting engine cooling fan
no.2
131 Fiat-CODE electronic control unit
132 Petrol vapours cut-out solenoid valve
134 Connection between rear/heated driver's
seat cables
135 Connection between rear/heated passenger
seat cables
136 Detonation sensor
136A 2nd Detonation sensor
137 Vehicle speed sensor
138 Idle adjustment actuator
139 Tester socket for injection system
141A Heated Lambda sensor (upstream of cat.)
141B Heated Lambda sensor (downstream of
cat.)
142 Switch signalling insufficient engine oil
pressure
143 Alternator
144 Rev and TDC sensor
145 Starter motor
146 Throttle valve potentiometer
147 Compressor for air conditioning
148 Earth for electronic injection
150 Injection system relay feed
151 Relay feed for Lambda sensor, electric fuel
pump, injectors
152 Fuse protecting injection system
152A Fuse protecting injection system
152B Fuse protecting injection system
154 Engine cooling fan
155 Ignition coil unit
156 Spark plugs
159 Reversing lights control switch
162 Injector (1)
163 Injector (2)
164 Injector (3)
165 Injector (4)
165A Injector (5) (1998)
166 Idle adjustment actuator
167 Air flow meter
168 Timing sensor
170 Resistance for engine cooling fan
174 Power earth for A.B.S.
177 Sensor on left front wheel for A.B.S.
178 Sensor on left rear wheel for A.B.S.
179 Sensor on right front wheel for A.B.S.
180 Sensor on right rear wheel for A.B.S.
181 A.B.S. hydraulic control unit
182A Right brake pad wear sensor cable connec­
tion
183 Ignition coil (1°)
184 Ignition coil (2°)
185 Ignition coil (3°)
186 Ignition coil (4°)
187 Ignition coil (5°) (1998)
189 Variable valve timing
190 Injection/ignition electronic control unit
(1998)
193 Earth for electronic injection
194 Injection/injector braid lead connection
195 Injection/ignition electronic control unit
(1596)
199 FIAT CODE aerial
201 Heaer plugs control unit
202 Heater/air conditioning unit symbol lighting
bulbs
206 Car interior climate control fan
209 Intake air flap control actuator
211 Frost sensor
222 Climate control system earth
223 RPM sensor
228 Heater plugs (TD)
231 Clock spring connector
236 Connection betwen rear lead and tail-gate
238 Rear electric windows control unit
239 Connection between Air Bag/left preten­
sioner cables
240 Connection between Air Bag/right preten­
sioner cables
241 Left pretensioner
242 Right pretensioner
243 Luggage compartment light button
244 Integrated services control system
245 Rear courtesy light
248 Radio controls on steering wheel
252 Connection between automatic transmis­
sion/engine cables
253 Air conditioner control unit
254 Climate control system controls with pas­
senger compartment temperature sensor
255 Electronic speed governor for climate con­
trol fan
256 Air mixture control actuator
257 Fuel pump relay feed
258 Treated air temperature sensor
259 Required temperature adjustment switch
260 MAX-DEF microswitch
261 Tailgate locking/unlocking actuator
262 Seat belts warning light switch
264 Left rear vehicle interior courtesy light
265 Right rear vehicle interior courtesy light
267 Automatic transmission control unit
268 Connection between automatic transmis­
sion/front cables
269 Connection between automatic transmis­
sion/dashboard cables
270 Connection between automatic transmis­
sion/rear cables
271 Kick-down switch
272 Ignition switch solenoid
273 Automatic transmission system protective
fuse
Co
