Marea- Marea Weekend
2000 range ©

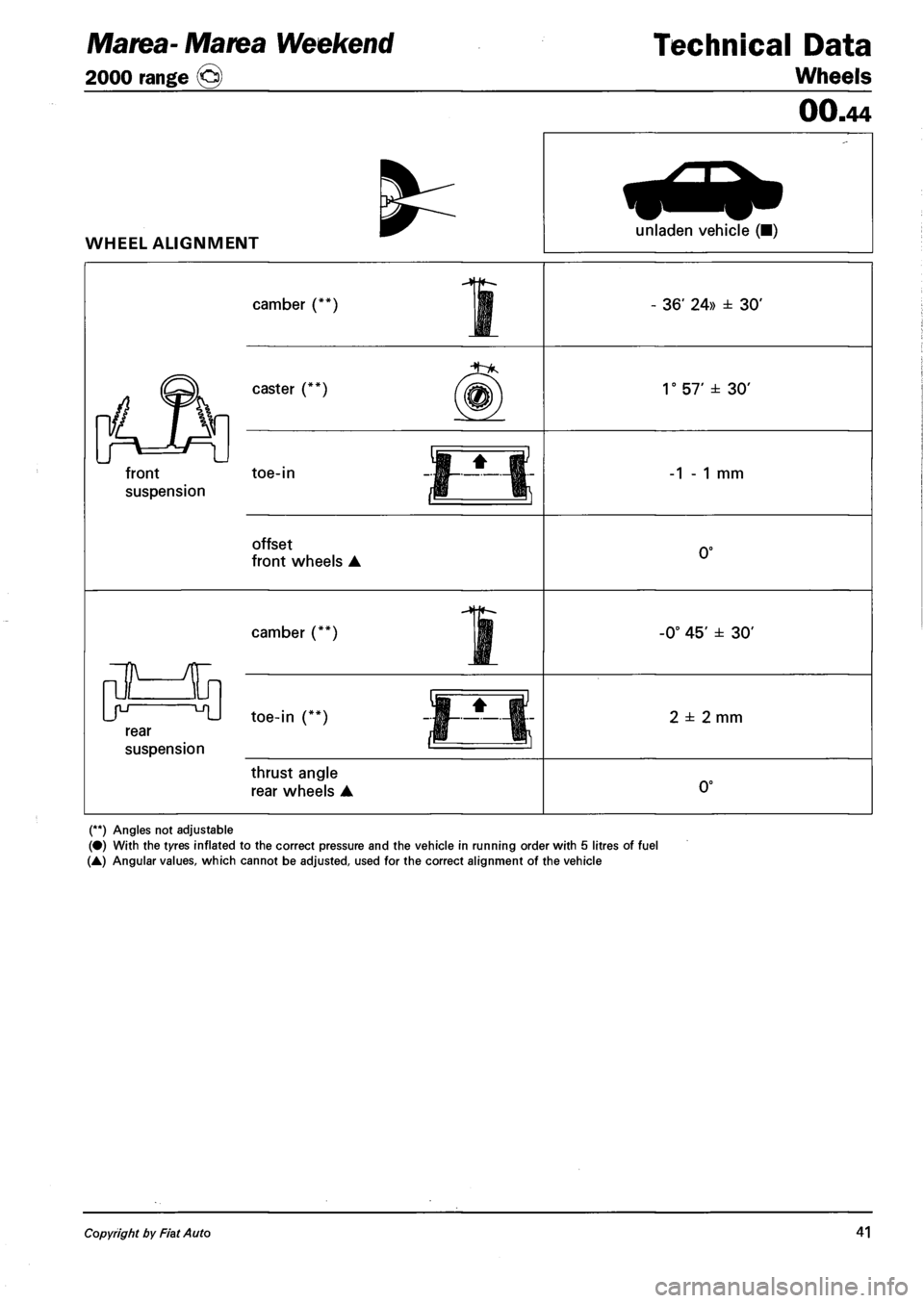

Technical Data
Wheels
WHEEL ALIGNMENT
00.44
unladen vehicle (•)
camber (**)
caster (**)
front
suspension
toe-in
offset
front wheels
±3*
36' 24» ± 30'
10 57' ± 30'
-1 - 1 mm
camber (**)
U1
rear
suspension
toe-in (**)
thrust angle
rear wheels i
-0° 45' ± 30'
2 ± 2 mm
(**) Angles not adjustable
(•) With the tyres inflated to the correct pressure and the vehicle in running order with 5 litres of fuel (•) Angular values, which cannot be adjusted, used for the correct alignment of the vehicle
