lights FIAT MAREA 2001 1.G Workshop Manual

Marea-Marea Weekend 9 -™ Engine
2000 range (j§) Fuel feed system
10.
I I TEST
4F017XJ01

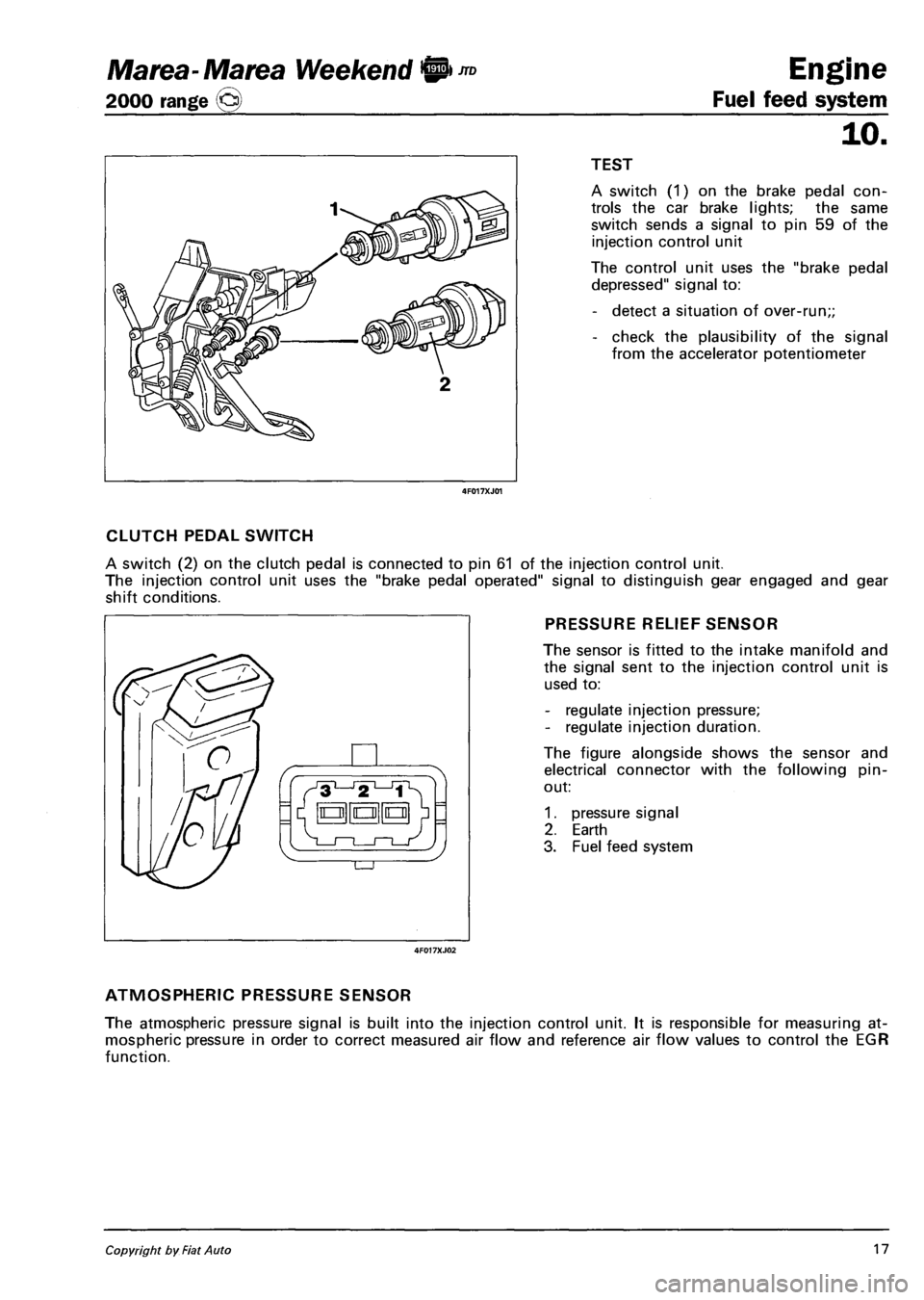

A switch (1) on the brake pedal con­
trols the car brake lights; the same
switch sends a signal to pin 59 of the
injection control unit
The control unit uses the "brake pedal
depressed" signal to:
- detect a situation of over-run;;
- check the plausibility of the signal
from the accelerator potentiometer
CLUTCH PEDAL SWITCH
A switch (2) on the clutch pedal is connected to pin 61 of the injection control unit.
The injection control unit uses the "brake pedal operated" signal to distinguish gear engaged and gear
shift conditions.
PRESSURE RELIEF SENSOR
The sensor is fitted to the intake manifold and
the signal sent to the injection control unit is
used to:
- regulate injection pressure;
- regulate injection duration.
The figure alongside shows the sensor and
electrical connector with the following pin-
out:
1. pressure signal
2. Earth
3. Fuel feed system
ATMOSPHERIC PRESSURE SENSOR
The atmospheric pressure signal is built into the injection control unit. It is responsible for measuring at­
mospheric pressure in order to correct measured air flow and reference air flow values to control the EGR
function.
Copyright by Fiat Auto 17

Electrical system
Junction unit
Marea- Marea Weekend
2000 range ©
55. 55.
DESCRIPTION OF WIRING AND CONNECTORS (cont)
CONNECTOR G
N.
No.
Wiring
colour Circuit involved
1 HB Right number plate light (without check panel)
2 -N.C.
3 AR Rear view mirror power supply
4 -N.C.
5 A Right rear turn signal
6 BN Left reversing light (only Marea)
7 B Right reversing light
8 GN Left rear side light (without check panel)
9 RG Rear courtesy light power supply (left for Marea Weekend)
10 RN Remote control receiver power sup­ply
11 RN Front courtesy light power supply
12 RN Right rear courtesy light power sup­ply (Marea Weekend)
CONNECTOR 1
N. No. Wiring
colour Circuit involved
1 AN Hazard warning light power supply
2 CB + 15 power supply from ignition
3 -N.C.
4 CB Stalk unit power supply
5 C Power supply, windscreen wiper
6 N Earth
7 LN Horn signal
8 AG + 15 power supply from ignition (start-up excluded)
9 AB Hazard warning light power supply
10 AB Hazard warning lights and instru­ment panel power supply (from January 2001)
11 AB Hazard warning light power supply
12 AR Turn signal power supply
13 R Instrument panel power supply
14 -N.C.
CONNECTOR H
N.
No.
Wiring
colour Circuit involved
1 AN Right turn signal warning light
2 C Power supply, door lock, radio
3 AN Right turn signal control
4 RN Right brake light (versions with Check Panel)
5 A Left turn signal control
6 A Left turn signal control
7 A Left turn signal warning light
8 AN Right turn signal control
9 RV Brake light control (versions with
Check Panel)
10 MN Mirror demister control
CONNECTOR J
N.
No.
Wiring colour Circuit involved
1 RG Left brake light (versions with check
panel)
2 AG Alarm and instrument panel power
supply (to December 2000)
3 GN Side light warning light, switch panel lighting, automatic transmis­sion control lighting
4 BC Rear window control
5 R Power supply, radio
6 LB Main beam warning light
7 RV Radio phone power supply
8 -N.C.
9 R Radio power supply
10 GN Radio lighting
11 GN Instrument lighting dimmer
12 GN Cigar lighter lighting
6 Publication no. 506. 763/24

Marea-Marea Weekend Electrical system
2000 range @ Junction unit
55.
LIST OF FUSES AND MAJOR PROTECTED CIRCUITS
Fuse
No. Amp Symbol Protected circuit Fuse
No. Amp Symbol Protected circuit
1 ion SERVIZI SERVICES
Brake light - Supple­
mentary brake light -
Turn signal - Instrument
power supply
6 10 ID Right main beam
headlamp
7 10 ID
Left main beam
headiamp - main beam
headlamp warning light
Right front side light -
Left rear side light
Right number plate light
- Radio light - Instru­
8 20 0*
Radio - Door lock -
Boot light
2 10 3> ment dimmer lighting -
Side light warning light -
Cigarette lighter light -
Switch panel light -
9 10 A
Hazard warning lamps -
Instrument power supply
(from January 2001)
Automatic transmission
control light - Carphone
light - heater/air condi­
tioner control lighting 10 10 SERVIZI SERVICES
Internal lights (front and
back) - Instrument sup­
ply (to December 2000)
- remote control receiver
and alarm control unit
supply - Car phone
power supply - Tester
output power supply
3 10 -;o oi-
left front side light
Right rear side light -Left
11 30 Heated rear windscreen
- Mirror demisting
3 10 -;o oi-number plate light
Mirror control light -12 30 8
Car interior climate con­
trol fan motor (air con­
ditioned).
lO Right dipped beam
headlamp
13 20 Air conditioner control
unit - horns
4 10 lO Right dipped beam
headlamp
14 20
Windscreen wiper - Rear
windscreen wiper
Windscreen / Rear wind­
screen wiper - Headlamp
washer intermittence
5 10 %o
Left dipped beam
headlamp - Headlamp
alignment corrector
Headlamp washers inter-
mittence
15 20 La
Air conditioner control
unit - Car interior cli­
mate control fan motor
(heated).
(*) Replaced with 15A if tow-hook installed.
Copyright by Fiat Auto XII 00 - Supersedes previous version 7

Marea-Marea Weekend Electrical equipment
2000 range (§) Location of components on the car
55.

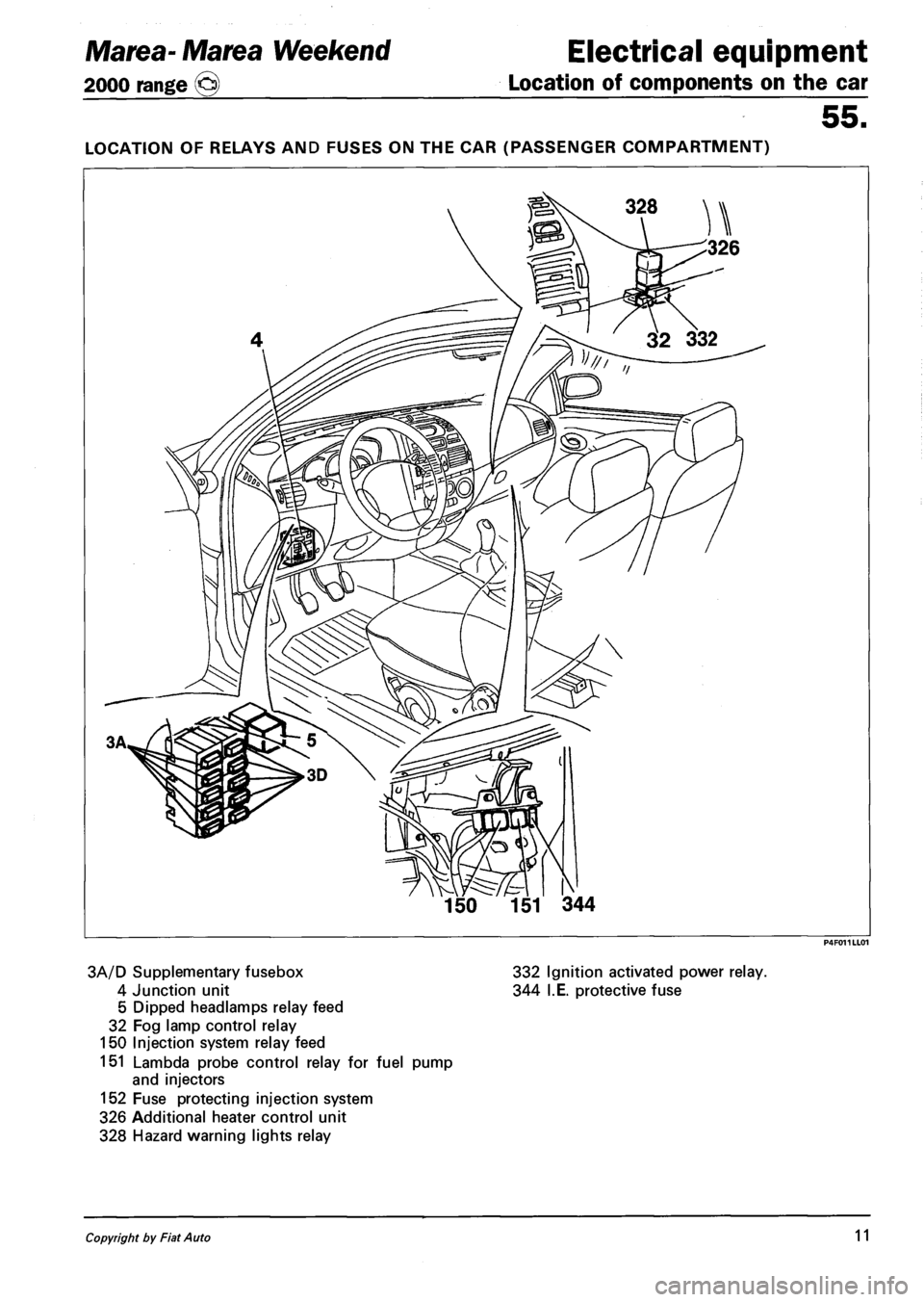

LOCATION OF RELAYS AND FUSES ON THE CAR (PASSENGER COMPARTMENT)
3A/D Supplementary fusebox 332 Ignition activated power relay.
4 Junction unit 344 I.E. protective fuse
5 Dipped headlamps relay feed
32 Fog lamp control relay
150 Injection system relay feed
151 Lambda probe control relay for fuel pump
and injectors
152 Fuse protecting injection system
326 Additional heater control unit
328 Hazard warning lights relay
Copyright by Fiat Auto 11

Electrical equipment
Instrument panel
Marea-Marea Weekend
2000 range ©
55.

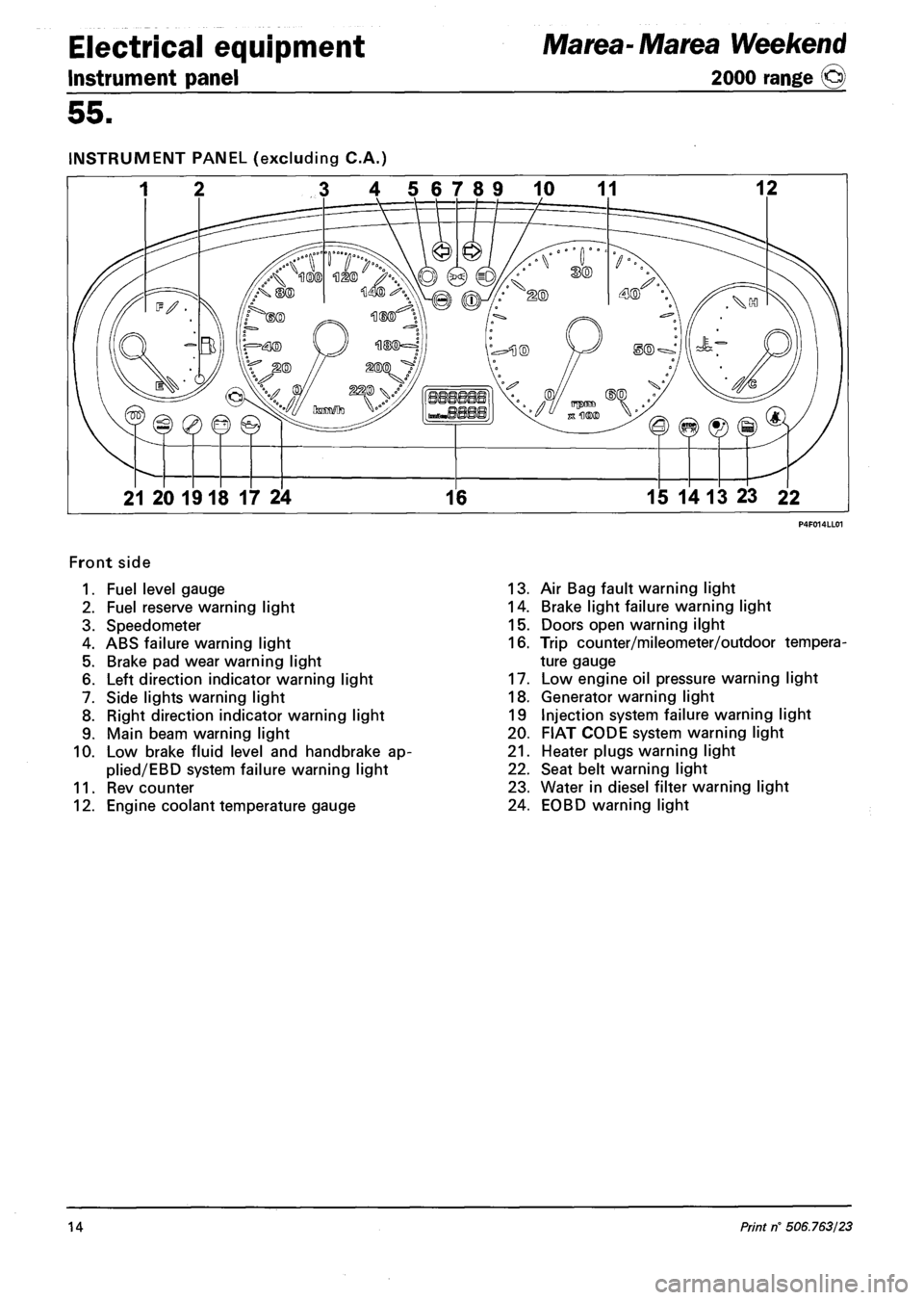

INSTRUMENT PANEL (excluding C.A.)
3 4 56789 10 11 12
21 20 1918 17 24 16 15 14 13 23 22
Front side
1. Fuel level gauge
2. Fuel reserve warning light
3. Speedometer
4. ABS failure warning light
5. Brake pad wear warning light
6. Left direction indicator warning light
7. Side lights warning light
8. Right direction indicator warning light
9. Main beam warning light
10. Low brake fluid level and handbrake ap-
plied/EBD system failure warning light
11. Rev counter
12. Engine coolant temperature gauge
13. Air Bag fault warning light
14. Brake light failure warning light
15. Doors open warning ilght
16. Trip counter/mileometer/outdoor tempera­
ture gauge
17. Low engine oil pressure warning light
18. Generator warning light
19 Injection system failure warning light
20. FIAT CODE system warning light
21. Heater plugs warning light
22. Seat belt warning light
23. Water in diesel filter warning light
24. EOBD warning light
14 Print rf 506.763/23

Marea- Marea Weekend
2000 range ©
Electrical equipment
Control module
55.

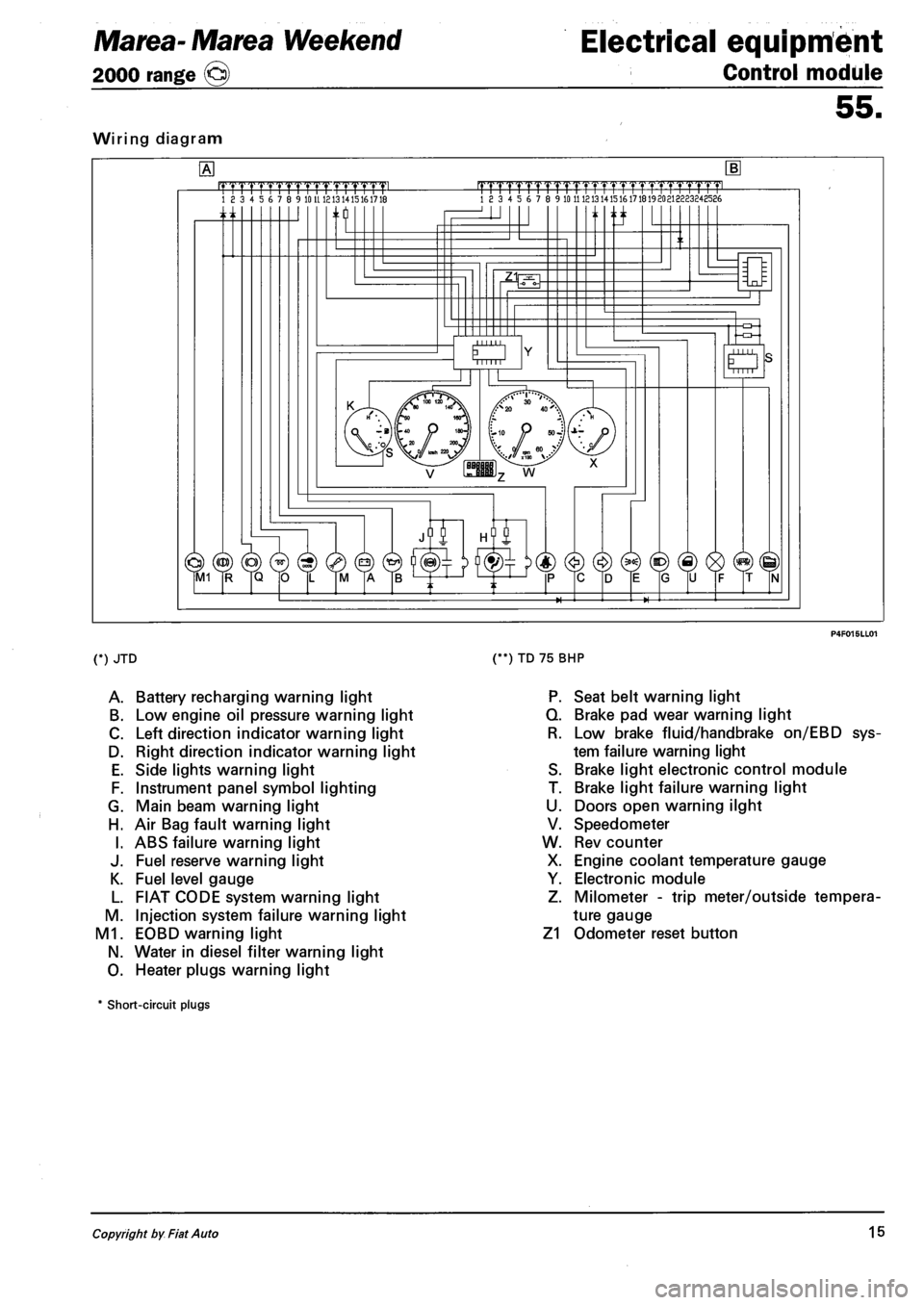

Wiring diagram
.mrmmmL 18 3 4 5 6 7 8 9 10 U 1213 1415161718 |TTTTrTrrrrTTTTT1.TTTTT1pmL 18 3 4 5 6 7 8 9 10 11 121314151617181920213223248586
n ti
O Mill
(*) JTD
A. Battery recharging warning light
B. Low engine oil pressure warning light
C. Left direction indicator warning light
D. Right direction indicator warning light
E. Side lights warning light
F. Instrument panel symbol lighting
G. Main beam warning light
H. Air Bag fault warning light
I. ABS failure warning light
J. Fuel reserve warning light
K. Fuel level gauge
L. FIAT CODE system warning light
M. Injection system failure warning light
M1. EOBD warning light
N. Water in diesel filter warning light
O. Heater plugs warning light
(**) TD 75 BHP
P. Seat belt warning light
Q. Brake pad wear warning light
R. Low brake fluid/handbrake on/EBD sys­
tem failure warning light
S. Brake light electronic control module
T. Brake light failure warning light
U. Doors open warning ilght
V. Speedometer
W. Rev counter
X. Engine coolant temperature gauge
Y. Electronic module
Z. Milometer - trip meter/outside tempera­
ture gauge
Z1 Odometer reset button
* Short-circuit plugs
Copyright by Fiat Auto 15

Electrical equipment
Instrument panel
Marea- Marea Weekend
2000 range ©
55.
Rear side (the connector sockets are shown)
Connector A (on front lead) Connector B (on facia lead)
Pin no. Cable colour Circuit involved
1 BV EBD system failure
2 BN Brake fluid level
3 BR Brake pad wear
4 CL Heater plugs (JTD)
5 MN FIAT CODE
6 LN Injection system failure (JTD)
7 HN Battery recharging
8 HG Engine oil minimum pressure
9 LN EOBD (petrol only)
10 RV ABS fault
11 GN Reserve signal (petrol only)
12 VB Speedometer signal
13 AG +30 battery
14 CN Speedometer generator power sup­ply
15 HB engine coolant temperature
16 HL Outdoor temperature signal
17S HM Speedometer signal
18 L Rev counter signal
(*) not connected in this version
Pin no. Cable colour Circuit involved
1 RG Left brake light failure
2 RV Brake light switch
3 RV Brake light switch
4 C Air Bag system fault
5 GV Water in diesel filter (JTD)
6 M Seat belt
7 -N.C.
8 A Left turn signal
9 AN Right turn signal
10 -N.C.
11 GN Side lights
12 LB Main beam headlamps
13 BN Handbrake on
14 RN Right brake light failure
15 H Doors open
16 CN Boot open
17S -N.C.
18 GR Instrument panel light
19 N Lighting earth
20 HG Fuel level
21 GL Outdoor temperature display
22 R +15 from ignition
23 N electronic earth
24 -speedometer signal (*)
25 VN Speedometer signal
26 -speedometer signal (*)
16 Print n° 506.763/23

Electrical equipment
Control module
Marea- Marea Weekend
2000 range ©
55.
Rear side (the connector sockets are shown)
Connector A Connector B
N° Cable
colour Circuit involved
1 HN Generator (G)
2 BN Brake fluid level (J)
3 -Injection system failure (*)
4 AG +30
5 LN EOBD (E)
6 -Not connected
7 -Turbocharging (N)
8 BR Brake pad wear (K)
9 MN Fiat Code (L)
10 -Heater plugs (*)
11 -Not connected
12 HG Minimum oil pressure (H)
13 HM Speedometer signal
14 HL Outside temperature signal
15 CN Speedometer module supply
16 L Rev counter signal
17 HB Coolant temperature gauge
18 -Not connected
19 RV ABS failure (M)
20 -Trailer lights (*)
N° Cable
colour Circuit involved
1 LB Main beam headlamps (D)
2 GR Instrument panel light
3 GN Side lights (C)
4 -Not connected
5 BN Handbrake (J)
6 M Seat belt (I)
7 N Earth
8 -Speedometer signal (*)
9 VB Speedometer signal
10 A Left turn signal
11 AN Right turn signal
12 -Not connected
13 CA Automatic transmission (A)
14 N Earth (electronic)
15 GL Outside temperature switch
16 HG Fuel level
17 R + 15
18 C Air Bag failure (B)
19 GN Fuel reserve
20 -Speedometer signal
(*) not used
18 Print n° 506.763/23

Marea-Marea Weekend Electrical system
2000 range ©> Wiring diagrams
55.

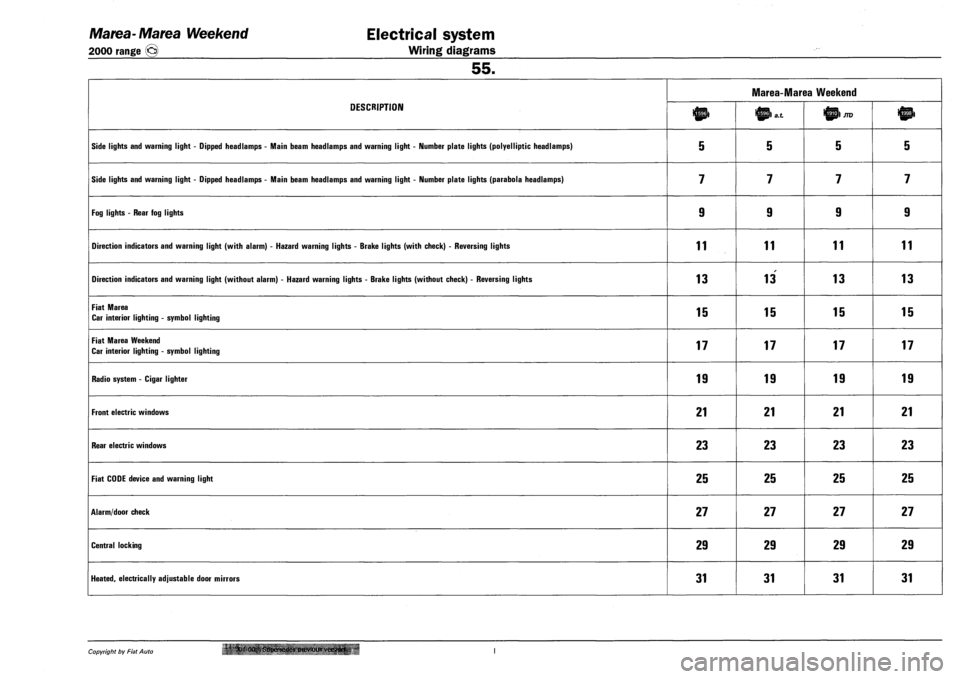

DESCRIPTION
Marea-Marea Weekend
DESCRIPTION JTD
SIDE LIGHTS AND WARNING LIGHT - DIPPED HEADLAMPS - MAIN BEAM HEADLAMPS AND WARNING LIGHT - NUMBER PLATE LIGHTS (POLYELLIPTIC HEADLAMPS) 5 5 5 5
SIDE LIGHTS AND WARNING LIGHT - DIPPED HEADLAMPS - MAIN BEAM HEADLAMPS AND WARNING LIGHT - NUMBER PLATE LIGHTS (PARABOLA HEADLAMPS) 7 7 7 7
FOG LIGHTS - REAR FOG LIGHTS 9 9 9 9
DIRECTION INDICATORS AND WARNING LIGHT (WITH ALARM) - HAZARD WARNING LIGHTS - BRAKE LIGHTS (WITH CHECK) - REVERSING LIGHTS 11 11 11 11
DIRECTION INDICATORS AND WARNING LIGHT (WITHOUT ALARM) - HAZARD WARNING LIGHTS - BRAKE LIGHTS (WITHOUT CHECK) - REVERSING LIGHTS 13 13 13 13
FIAT MAREA
CAR INTERIOR LIGHTING - SYMBOL LIGHTING 15 15 15 15
FIAT MAREA WEEKEND
CAR INTERIOR LIGHTING - SYMBOL LIGHTING 17 17 17 17
RADIO SYSTEM - CIGAR LIGHTER 19 19 19 19
FRONT ELECTRIC WINDOWS 21 21 21 21
REAR ELECTRIC WINDOWS 23 23 23 23
FIAT CODE DEVICE AND WARNING LIGHT 25 25 25 25
ALARM/DOOR CHECK 27 27 27 27
CENTRAL LOCKING 29 29 29 29
HEATED, ELECTRICALLY ADJUSTABLE DOOR MIRRORS 31 31 31 31
Copyright by Fiat Auto '' XI Supersedes previous verster*.

Marea- Marea Weekend
2000 range ©
Electrical equipment
Wiring diagrams

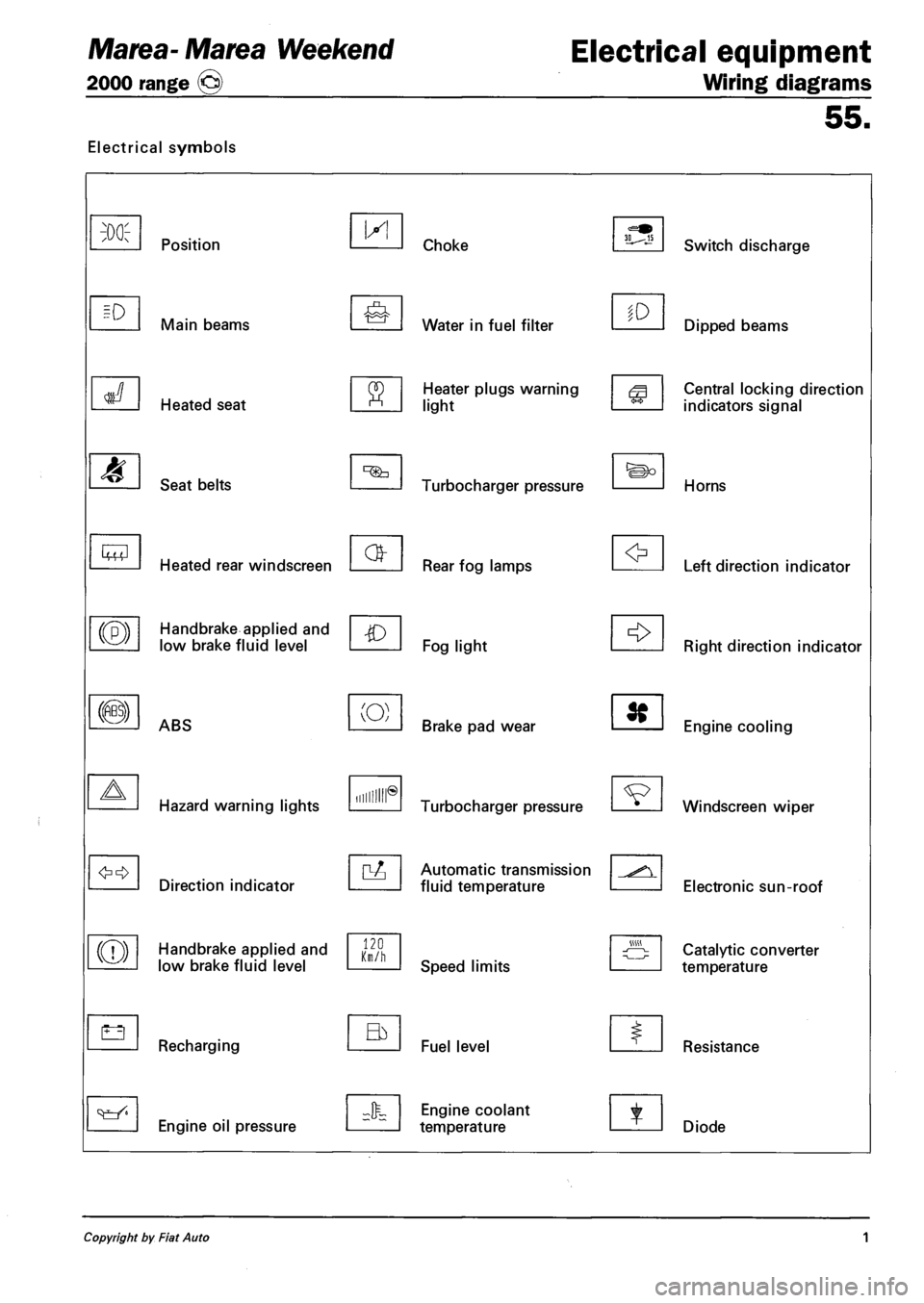

55.
Electrical symbols
M
Lt3
Position
Main beams
Heated seat
Seat belts
Heated rear windscreen
Handbrake applied and
low brake fluid level
ABS
Hazard warning lights
Direction indicator
Handbrake applied and
low brake fluid level
Recharging
Engine oil pressure
IX!
(O)
Hum®
120 Km/h
Choke
Water in fuel filter
Heater plugs warning
light
Turbocharger pressure
Rear fog lamps
Fog light
Brake pad wear
Turbocharger pressure
Automatic transmission
fluid temperature
Speed limits
Fuel level
Engine coolant
temperature
to
Switch discharge
Dipped beams
Central locking direction
indicators signal
Horns
Left direction indicator
Right direction indicator
Engine cooling
Windscreen wiper
Electronic sun-roof
Catalytic converter
temperature
Resistance
Diode
Copyright by Fiat Auto 1
