Marea-Marea Weekend Technical Data
2000 range (§) Steering
00.41
ENGINE TYPE
n^p| 16 v
IESi JTD
Make
Rack and pinion power assisted
Wh
: -<
eel
' o ©
steering wheel
3 2.9
Wh
: -<
eel
%
rack and pinion
travel
142±1.5 mm 137±1.5 mm
/
/
1. *-

^ Minimum turning circle m 10.7 11
# |
Steering angle
r
outer ^
wheel 31° ± 30'
# |
Steering angle
inner ^
wheel 38° ± 30'
Steering column
with two universal joints
Copyright by Fiat Auto 39

Electrical equipment
Component location
Marea-Marea Weekend
2000 range ©
HEADLAMP ALIGNMENT CORRECTOR
Component key
3 Direction indicator
4 Junction unit
5 Dipped headlamps relay
7 Stalk unit
8 Left front earth
10 Engine battery earth
11 Battery
12 Ignition switch
13 Connection between right/left front cables
42 Right facia earth
43 Electric actuator for left headlamp align­
ment corrector
44 Electric actuator for right headlamp align­
ment corrector
45 Headlamp alignment control unit
310 Connection bridge
P4F848N01
55.
Dipped headlamps relay feed
* HR4F
*Rn.d.
HL310C
*N42
7B Steering column switch unit
LR 4F
* AN n.d
GV310B
1 3 Connection between right/left front cables
*G44
H2A
44 Electric actuator for right headlamp alignment corrector
45 Headlamp alignment control unit
The cables involved in the wiring diagram are marked with an asterisk.
38 Print n° 506.763/23

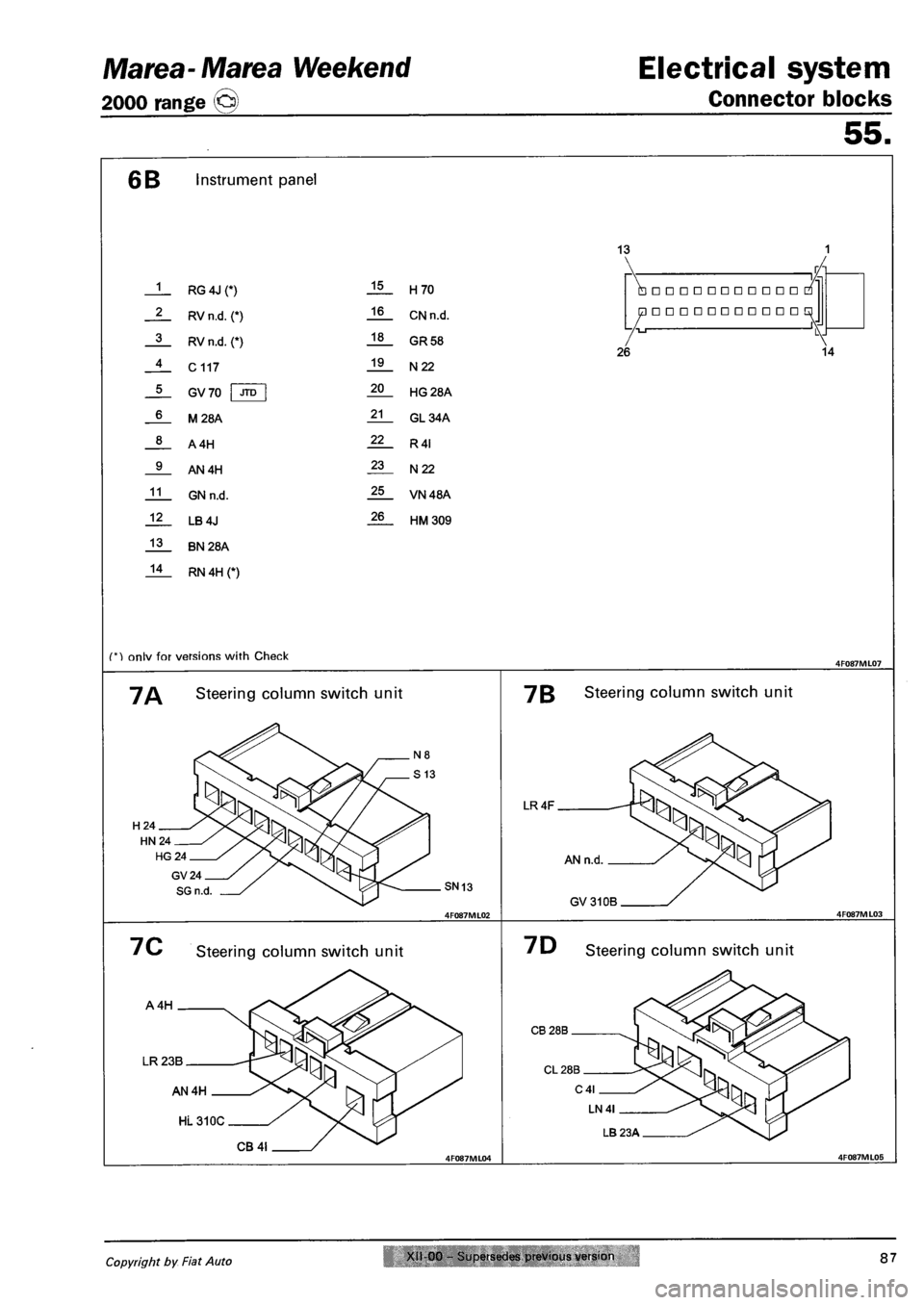

Marea-Marea Weekend Electrical system
2000 range (Q) Connector blocks
55.
6B Instrument panel
13
1
2
3
4
5
6
8
9
11
12
13
14
RG 4J (*)
RV n.d. (*)
RV n.d. (*)
C117
GV70 I JTD
M28A
A4H
AN4H
GN n.d.
LB4J
BN 28A
RN 4H O
15 H70
16 CN n.d. T 18 18 GR58 / 26 19 N22
20 HG28A
21 GL34A
22 R4I
23 N22
25 VN 48A
26 HM309
•••••••••••
•••••••••••
14
(") onlv for versions with Check 4F087ML07
"7^ Steering column switch unit
4F087ML02
7B Steering column switch unit
4F087ML03
7C Steering column switch unit
AN4H / * j£J
HI amn X ^s/^ '^T
CR 41 / 4F087ML04
7D Steering column switch unit
I R PSA ^^X^
4F087ML05
Copyright by fiat Auto XII 00 Supersedes previous version 87

nent
Key
55.
Component key
1 Left front light cluster
2 Right front light cluster
3 Power fusebox
4 Junction unit
5 Dipped headlamps relay feed
6 Instrument panel
7 Steering column switch unit
8 Left front earth
9 Right front earth
10 Engine battery earth
10A Bodyshell battery earth
11 Battery
12 Ignition switch
13 Connection between right/left front cables
14 Left number plate light bulb
15 Right number plate light bulb
16 Left rear light cluster
17S Right rear light cluster
18 Left rear earth
19 Right rear earth
20 Left front side direction indicator
21 Right front side direction indicator
22 Left facia earth
23 Hazard warning lights switch unit
24 Windscreen wiper motor
25 Electric windscreen/rearscreen washer pump
26 Windscreen wiper motor
28 Connection between dashboard/rear cables
29 Connection between front/fog light cables
30 Left fog light
31 Right fog light
32 Fog lamp control relay
34 Switch control panel
35 Connection between dashboard/left front
door cables
36 Connection between dashboard/right front
door cables
39 Heated rear windscreen
40 Brake lights control switch
41 Additional brake light
42 Right dashborad earth
43 Left headlamp alignment corrector actuator
44 Right headlamp alignment corrector actuaor
45 Headlamp alignment control unit
46 Left low tone horn
47 Right high tone horn
48 Radio receiver with clock
49 Left front tweeter speaker
50 Right front tweeter speaker
52 Speaker in right front door
53 Left rear speaker
54 Right rear speaker
55 Front/engine lead connection
56 Fuel gauge unit
57 Inertia switch
58 Control panel light dimmer
64 Glove compartment light bulb with built in
switch
65 Luggage compartment light
66 Electrically-adjustable door mirror contro
buttons
67 Left door mirror
68 Right door mirror
69 Cigar lighter
70 Connection between dashborad/front ca­
bles
73 Pushbutton unit for front electric windows
on left arm-rest
74 Pushbutton unit for right front electric win­
dows on right arm-rest
76 Left front electric window motor
77 Right front electric window motor
78 Pushbutton unit for rear electric windows
on left front door
80 Rear electric window inhibition switch
82 Pushbutton unit for left rear electric win
dows on left front door
83 Pushbutton unit for right rear electric win­
dows on right rear door
84 Left rear electric window motor
85 Right rear electric window motor
86 Connection between rear/left rear door ca
bles
87 Connection between rear/right rear doo
cables
88 Insufficient brake fluid level sensor
89A Left brake pad wear sensor cable connec
tion
90 Switch signalling handbrake applied
92A Electric sun-roof lead connection
93A Electric sun roof control unit
95 Connection between front/anti-lock brake;
A.B.S. cables
96 Power fuse for anti-lock brakes A.B.S.
97 Electric headlamp washer pump
98 Headlamp washer intermittence
100 Alarm electronic control unit
105 Alarm deactivation switch
106 Alarm switch on engine bonnet
107A Door remote control receiver
107B Vehicle interior front courtesy light
108 Left rear central locking
109 Right rear central locking
110 Left front central locking
111 Right front central locking
114 Air bag electronic contol unit
115 Passenger Air Bag
116 Driver's Air Bag
117 Air Bag/facia cables connection
120 Connection for air conditioning unit cables
121 Three stage pressure switch
122 Engine cooling fan low speed relay
122 Engine cooling fan low speed relay
123 Engine cooling fan high speed relay feed
124 Air condiitoning compressor control relay
127 Connection between front left cable/cabli
on relay holder bracket
