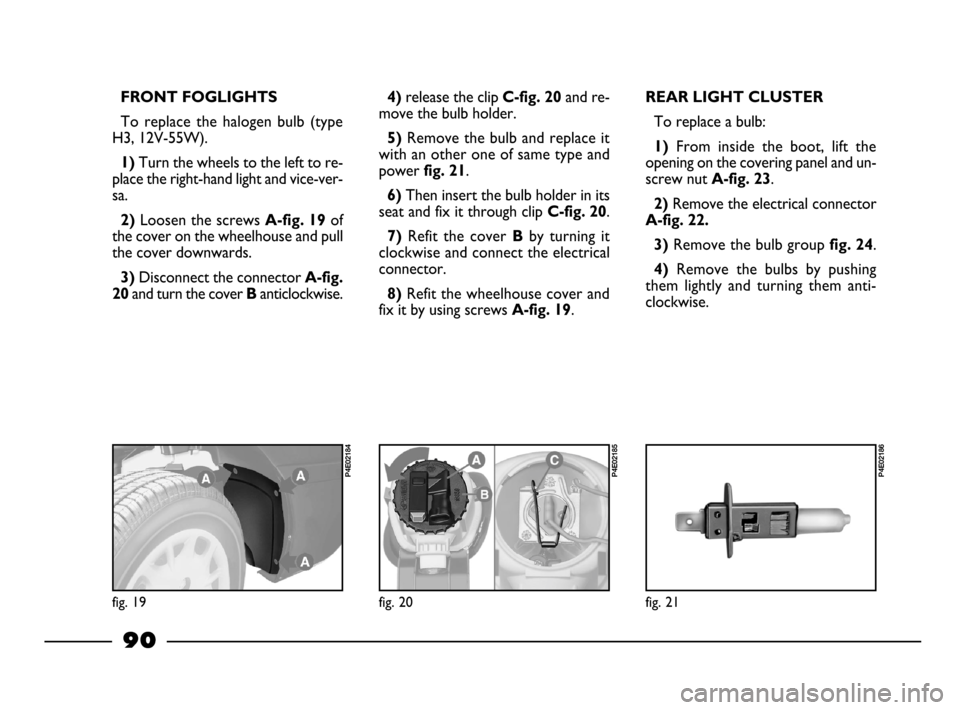

FRONT FOGLIGHTS
To replace the halogen bulb (type
H3, 12V-55W).
1) Turn the wheels to the left to re-
place the right-hand light and vice-ver-
sa.
2) Loosen the screws A-fig. 19of
the cover on the wheelhouse and pull
the cover downwards.
3) Disconnect the connectorA-fig.
20
and turn the cover B anticlockwise.
4)release the clip C-fig. 20and re-
move the bulb holder.
5)Remove the bulb and replace it
with an other one of same type and
power
fig. 21.
6)Then insert the bulb holder in its
seat and fix it through clip
C-fig. 20.
7)Refit the cover Bby turning it
clockwise and connect the electrical
connector.
8)Refit the wheelhouse cover and
fix it by using screws
A-fig. 19.
REAR LIGHT CLUSTER
To replace a bulb:
1) From inside the boot, lift the
opening on the covering panel and un-
screw nut
A-fig. 23.
2) Remove the electrical connector
A-fig. 22.
3)
Remove the bulb group fig. 24.
4)Remove the bulbs by pushing
them lightly and turning them anti-
clockwise.
fig. 20
P4E02185
fig. 21
P4E02186
fig. 19
P4E02184
80-103 03/03/2003 06:49 PM Page 90

91

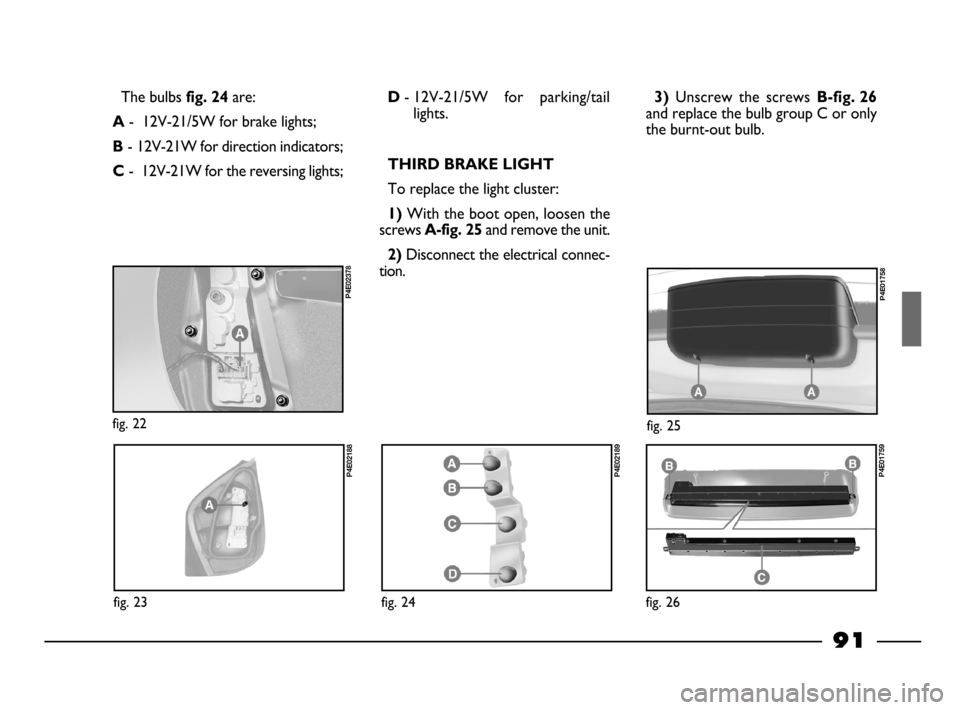

The bulbs fig. 24are:
A- 12V-21/5W for brake lights;
B- 12V-21W for direction indicators;
C- 12V-21W for the reversing lights;
3)Unscrew the screws B-fig. 26
and replace the bulb group C or only
the burnt-out bulb.
D- 12V-21/5W for parking/tail
lights.
THIRD BRAKE LIGHT
To replace the light cluster:
1) With the boot open, loosen the
screws
A-fig. 25 and remove the unit.
2) Disconnect the electrical connec-
tion.
fig. 25
P4E01758
fig. 22
P4E02378
fig. 23
P4E02188
fig. 24
P4E02189
fig. 26
P4E01759
