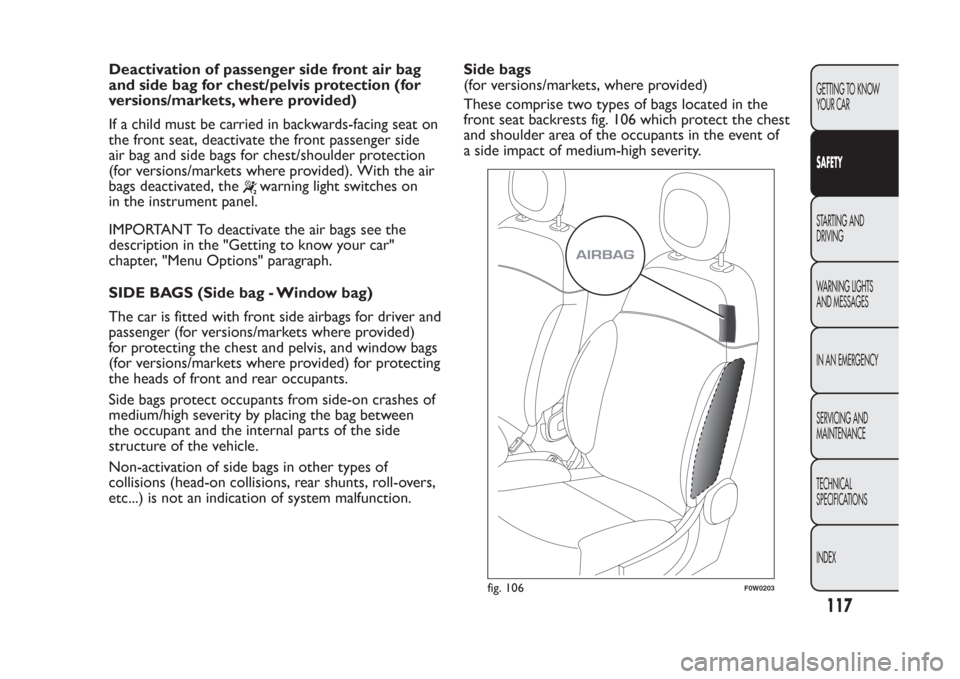

Deactivation of passenger side front air bag
and side bag for chest/pelvis protection (for
versions/markets, where provided)
If a child must be carried in backwards-facing seat on
the front seat, deactivate the front passenger side
air bag and side bags for chest/shoulder protection
(for versions/markets where provided). With the air
bags deactivated, the
warning light switches on
in the instrument panel.
IMPORTANT To deactivate the air bags see the
description in the "Getting to know your car"
chapter, "Menu Options" paragraph.
SIDE BAGS (Side bag - Window bag)
The car is fitted with front side airbags for driver and
passenger (for versions/markets where provided)
for protecting the chest and pelvis, and window bags
(for versions/markets where provided) for protecting
the heads of front and rear occupants.
Side bags protect occupants from side-on crashes of
medium/high severity by placing the bag between
the occupant and the internal parts of the side
structure of the vehicle.
Non-activation of side bags in other types of
collisions (head-on collisions, rear shunts, roll-overs,
etc...) is not an indication of system malfunction.Side bags
(for versions/markets, where provided)
These comprise two types of bags located in the
front seat backrests fig. 106 which protect the chest
and shoulder area of the occupants in the event of
a side impact of medium-high severity.
fig. 106
F0W0203
117GETTING TO KNOW
YOUR CARSAFETYSTARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 122 of 284

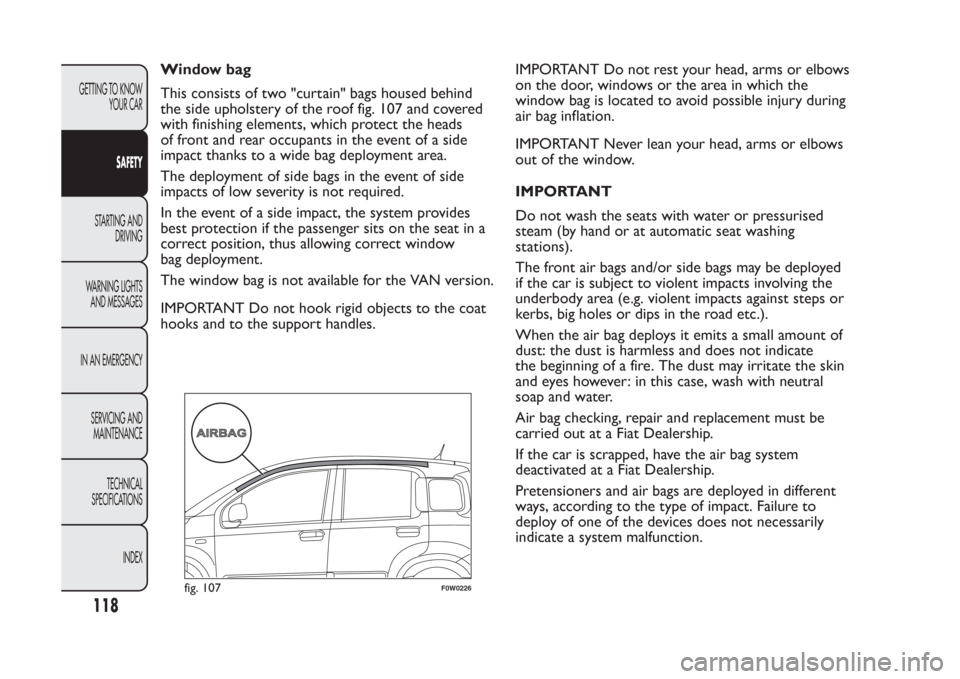

Window bag
This consists of two "curtain" bags housed behind
the side upholstery of the roof fig. 107 and covered
with finishing elements, which protect the heads
of front and rear occupants in the event of a side
impact thanks to a wide bag deployment area.
The deployment of side bags in the event of side
impacts of low severity is not required.
In the event of a side impact, the system provides
best protection if the passenger sits on the seat in a
correct position, thus allowing correct window
bag deployment.
The window bag is not available for the VAN version.
IMPORTANT Do not hook rigid objects to the coat
hooks and to the support handles.IMPORTANT Do not rest your head, arms or elbows
on the door, windows or the area in which the
window bag is located to avoid possible injury during
air bag inflation.
IMPORTANT Never lean your head, arms or elbows
out of the window.
IMPORTANT
Do not wash the seats with water or pressurised
steam (by hand or at automatic seat washing
stations).
The front air bags and/or side bags may be deployed
if the car is subject to violent impacts involving the
underbody area (e.g. violent impacts against steps or
kerbs, big holes or dips in the road etc.).
When the air bag deploys it emits a small amount of
dust: the dust is harmless and does not indicate
the beginning of a fire. The dust may irritate the skin
and eyes however: in this case, wash with neutral
soap and water.
Air bag checking, repair and replacement must be
carried out at a Fiat Dealership.
If the car is scrapped, have the air bag system
deactivated at a Fiat Dealership.
Pretensioners and air bags are deployed in different
ways, according to the type of impact. Failure to
deploy of one of the devices does not necessarily
indicate a system malfunction.
fig. 107
F0W0226
118
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 123 of 284

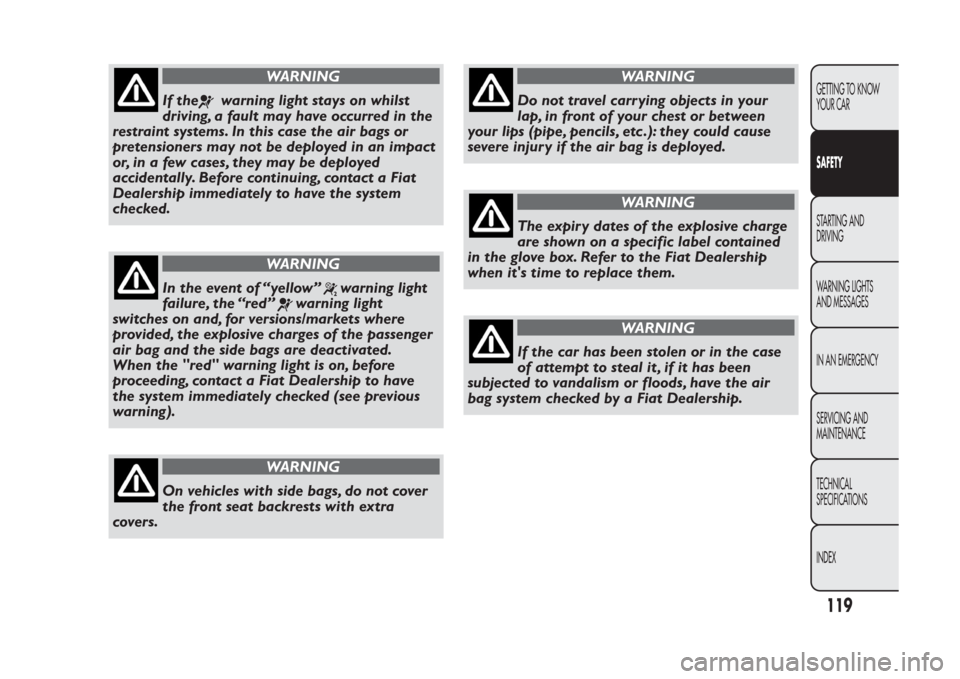

WARNING
If the
warning light stays on whilst
driving, a fault may have occurred in the
restraint systems. In this case the air bags or
pretensioners may not be deployed in an impact
or, in a few cases, they may be deployed
accidentally. Before continuing, contact a Fiat
Dealership immediately to have the system
checked.
WARNING
In the event of “yellow”
warning light
failure, the “red”
warning light
switches on and, for versions/markets where
provided, the explosive charges of the passenger
air bag and the side bags are deactivated.
When the "red" warning light is on, before
proceeding, contact a Fiat Dealership to have
the system immediately checked (see previous
warning).
WARNING
On vehicles with side bags, do not cover
the front seat backrests with extra
covers.
WARNING
Do not travel carrying objects in your
lap, in front of your chest or between
your lips (pipe, pencils, etc .): they could cause
severe injur y if the air bag is deployed.
WARNING
The expiry dates of the explosive charge
are shown on a specific label contained
in the glove box. Refer to the Fiat Dealership
when it's time to replace them.
WARNING
If the car has been stolen or in the case
of attempt to steal it , if it has been
subjected to vandalism or floods, have the air
bag system checked by a Fiat Dealership.
119GETTING TO KNOW
YOUR CARSAFETYSTARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 124 of 284
WARNING
If the key is inser ted and turned to MAR
when no faults are indicated by the
warning lights, air bags may be deployed if
another vehicle crashes into the vehicle even if
the engine is not running and the vehicle is
stationary. For this reason, children must never
occupy the front seat , even if the car is not
moving. On the other hand, if the key is inser ted
in STOP position, none of the safety devices
(air bags or pretensioners) will be deployed in
the event of impact . Non-deployment of these
devices does not indicate a system malfunction.
WARNING
For versions/markets where provided,
when the ignition key is turned to MAR,
the “yellow”
warning light switches on for a
few seconds. If the passenger air bag/side bag is
active, the “yellow” warning light switches off
after a few seconds. If the passenger air bag/side
bag is NOT active, the “yellow” warning light
stays on.
WARNING
The air bag deployment threshold is
higher than that of the pretensioners.
For collisions in the range between the two
thresholds, it is normal for only the
pretensioners to be activated.
WARNING
The air bag does not replace seat belts
but increases their effectiveness.
Because front air bags are not deployed for
low-speed crashes, side collisions, rear-end
shunts or rollovers, occupants are protected, in
addition to any side bags, only by their seat
belts, which must therefore always be fastened.
WARNING
If the “red”
warning light does not
switch on for a few seconds when the
key is turned to MAR, there may be a fault with
the “red” warning light . In this case, the
“yellow” warning light star ts to flash after a few
seconds and, for versions/markets where
provided, the explosive charges of the passenger
air bag and the side bag are deactivated. Before
continuing, contact a Fiat Dealership
immediately to have the system checked.
120
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 125 of 284

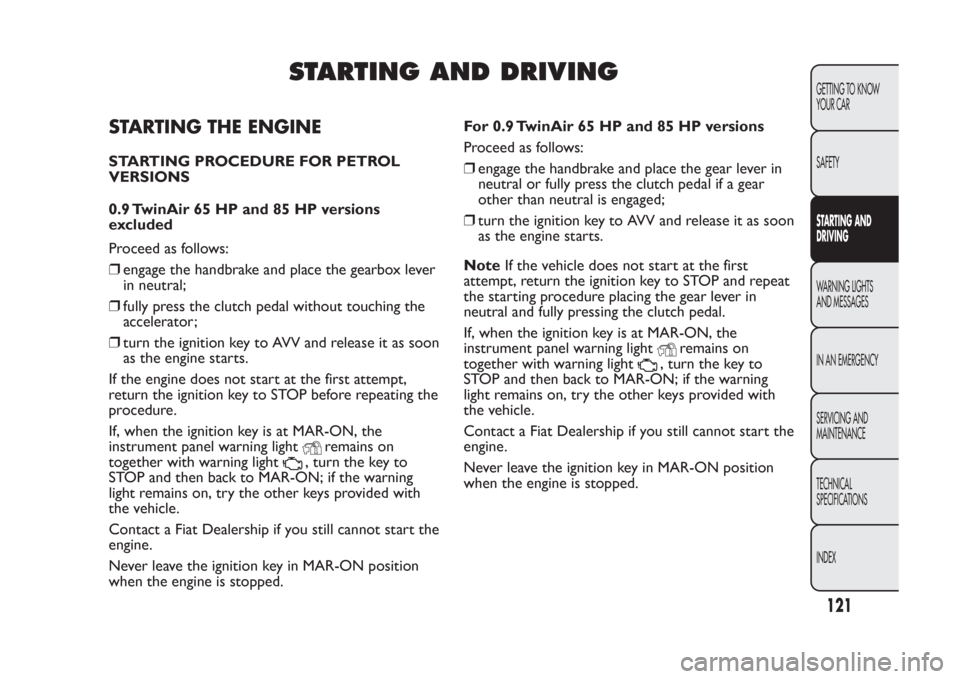

STARTING AND DRIVING
STARTING THE ENGINESTARTING PROCEDURE FOR PETROL
VERSIONS
0.9 TwinAir 65 HP and 85 HP versions
excluded
Proceed as follows:
❒engage the handbrake and place the gearbox lever
in neutral;
❒fully press the clutch pedal without touching the
accelerator;
❒turn the ignition key to AVV and release it as soon
as the engine starts.
If the engine does not start at the first attempt,
return the ignition key to STOP before repeating the
procedure.
If, when the ignition key is at MAR-ON, the
instrument panel warning light
remains on
together with warning light
, turn the key to
STOP and then back to MAR-ON; if the warning
light remains on, try the other keys provided with
the vehicle.
Contact a Fiat Dealership if you still cannot start the
engine.
Never leave the ignition key in MAR-ON position
when the engine is stopped.For 0.9 TwinAir 65 HP and 85 HP versions
Proceed as follows:
❒engage the handbrake and place the gear lever in
neutral or fully press the clutch pedal if a gear
other than neutral is engaged;
❒turn the ignition key to AVV and release it as soon
as the engine starts.
NoteIf the vehicle does not start at the first
attempt, return the ignition key to STOP and repeat
the starting procedure placing the gear lever in
neutral and fully pressing the clutch pedal.
If, when the ignition key is at MAR-ON, the
instrument panel warning light
remains on
together with warning light
, turn the key to
STOP and then back to MAR-ON; if the warning
light remains on, try the other keys provided with
the vehicle.
Contact a Fiat Dealership if you still cannot start the
engine.
Never leave the ignition key in MAR-ON position
when the engine is stopped.
121GETTING TO KNOW
YOUR CAR
SAFETYSTARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 126 of 284
STARTING PROCEDURE FOR DIESEL
VERSIONS
Proceed as follows:
❒engage the handbrake and place the gearbox lever
in neutral;
❒turn the ignition key to MAR-ON: the warning
lights
and
on the instrument panel will
turn on;
❒wait for the warning lights
and
to switch
off;
❒fully press the clutch pedal without touching the
accelerator;
❒turn the ignition key to AVV as soon as warning
light
switches off. Waiting too long will waste
the heating work carried out by the plugs. Release
the key as soon as the engine starts.
IMPORTANT With cold engine, the accelerator must
be entirely released when turning the ignition key
to position AVV.
If the engine does not start at the first attempt,
return the ignition key to STOP before repeating the
procedure.
If, when the ignition key is at MAR-ON the
warning light remains lit, turn the key to STOP
and then back to MAR-ON; if the warning light
remains lit, try with the other keys provided with the
car.
Contact the Fiat Dealership if the engine still will not
start.
Warning light
will flash for 60 seconds
after starting or during prolonged
cranking to indicate a fault with the glow
plug heating system.You can use the car as usual
if the engine starts but you should contact a
Fiat Dealership as soon as possible.
WARNING
It is dangerous to run the engine in
enclosed areas.The engine takes
in oxygen and releases carbon dioxide, carbon
monoxide and other toxic gases.
WARNING
Remember that the brake servo and
power steering are not operational until
the engine has been started, therefore much
effort than usual is required on the brake pedal
and steering wheel.We recommend that during the initial
period you do not demand to full
performance from the car (e.g. excessive
acceleration, long journeys at top speed, sharp
braking etc .).
122
GETTING TO KNOW
YOUR CAR
SAFETYSTARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 127 of 284
When the engine is switched off never
leave the key turned to MAR-ON to
prevent useless current absorption from
draining the battery.Never jump start the engine by pushing,
towing or coasting downhill.This could
cause fuel to flow into the catalytic
conver ter and damage it beyond repair.
WARMING UP THE ENGINE JUST AFTER IT
HAS STARTED
Proceed as follows:
❒drive off slowly, letting the engine turn at medium
revs. Do not accelerate abruptly;
❒do not demand full performance at first. Wait until
the second bar on the engine coolant temperature
gauge switches on.STOPPING THE ENGINE
Turn the ignition key to STOP while the engine is
idling.
IMPORTANT After a demanding drive, before
turning the engine off you should allow it to idle to
allow the temperature in the engine compartment to
decrease.
A quick burst on the accelerator before
turning off the engine serves absolutely no
practical purpose, it wastes fuel and is
especially damaging to turbocharged engines.
123GETTING TO KNOW
YOUR CAR
SAFETYSTARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 128 of 284
PARKINGStop the engine and engage the handbrake. Engage a
gear (1
st
gear if parked uphill or reverse if facing
downhill) and leave the wheels turned. If the car is
parked on a steep slope block the wheels with a
wedge or stone. Always remove the ignition key
when leaving the car.
WARNING
Never leave children unattended in the
car. Always remove the key from the
ignition when leaving the car and take it with
you.HANDBRAKE
To engage the handbrake pull lever A fig. 108
upwards until the car is secured. To release the
handbrake, raise lever A slightly, hold down button B
and lower the lever.
If the car is parked on a steep slope, it is also
advisable to block the wheels with a wedge or stone.
Never leave children in the unattended car. Always
remove the ignition key when leaving the car and
take it out with you.
WARNING
The car should be braked after a few
clicks of the lever, if it is not , contact a
Fiat Dealership to have it adjusted.
fig. 108
F0W0074
124
GETTING TO KNOW
YOUR CAR
SAFETYSTARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 129 of 284
USING THE GEARBOXTo engage the gears, fully depress the clutch pedal
and put the gear lever into the required position (the
diagram is shown on the knob fig. 109).
For 0.9 TwinAir 65 HP, 85 HP and 1.2 8V 69 HP
versions, to engage reverse R from neutral, lift the
ring A fig. 109 and shift the lever to the right and
back.
For 1.3 16V MultiJet version: to engage reverse R
from neutral position, shift the lever to the right and
then back.
WARNING
The clutch pedal should be used only for
gear changes. Do not drive with your
foot resting on the clutch pedal, however lightly.
For versions/markets where provided, the
electronic clutch control could cut in,
interpreting the incorrect driving style as a
fault .
IMPORTANT Reverse can only be engaged when the
car is completely stationary. With the engine
running, wait for at least 2 seconds with the clutch
pedal fully pressed before engaging reverse to
prevent damage to the gears and grating.
WARNING
Press the clutch pedal fully to change
gears correctly. It is therefore essential
that there is nothing under the pedals: make
sure the mats are lying flat and do not get
in the way of the pedals.Do not drive with your hand resting on
the gear lever as the force exerted, even if
slight , could lead over time to premature
wear of the gearbox internal components.
fig. 109
F0W0058
125GETTING TO KNOW
YOUR CAR
SAFETYSTARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 130 of 284
SAVING FUELHere are some suggestions which can help you to
save fuel and lower harmful emissions.
GENERAL CONSIDERATIONS
Car maintenance
Have checks and adjustments carried out in
accordance with the “Scheduled Servicing Plan”.
Ty r e s
Check the tyre pressures at least once every 4
weeks: if the pressure is too low, consumption levels
increase as resistance to rolling is higher.
Unnecessary loads
Do not travel with an overloaded boot. The weight
of the car and its arrangement greatly affect fuel
consumption and stability.
Roof rack/ski rack
Remove the roof rack or the ski rack from the roof
after use. These accessories lower aerodynamic
penetration and adversely affect consumption levels.
When transporting particularly large objects, use a
trailer if possible.Electrical devices
Only use electrical devices for the amount of time
needed. The heated rear window, additional
headlights, windscreen wipers and heater fan need a
considerable amount of energy, therefore increasing
fuel consumption (by up to 25% in the urban cycle).
Climate control system
The use of the climate control system leads to higher
fuel consumption. If the temperature outside
permits, try to use ventilation only.
Devices for aerodynamic control
The use of non-certified devices for aerodynamic
control may adversely affect air drag and fuel
consumption.
DRIVING STYLE
Starting
Do not warm the engine with the car at a standstill
or at idle or high speed: under these conditions
the engine warms up much more slowly, increasing
consumption and emissions. It is therefore advisable
to move off immediately, slowly, avoiding high speeds:
in this way the engine will warm up more quickly.
126
GETTING TO KNOW
YOUR CAR
SAFETYSTARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
