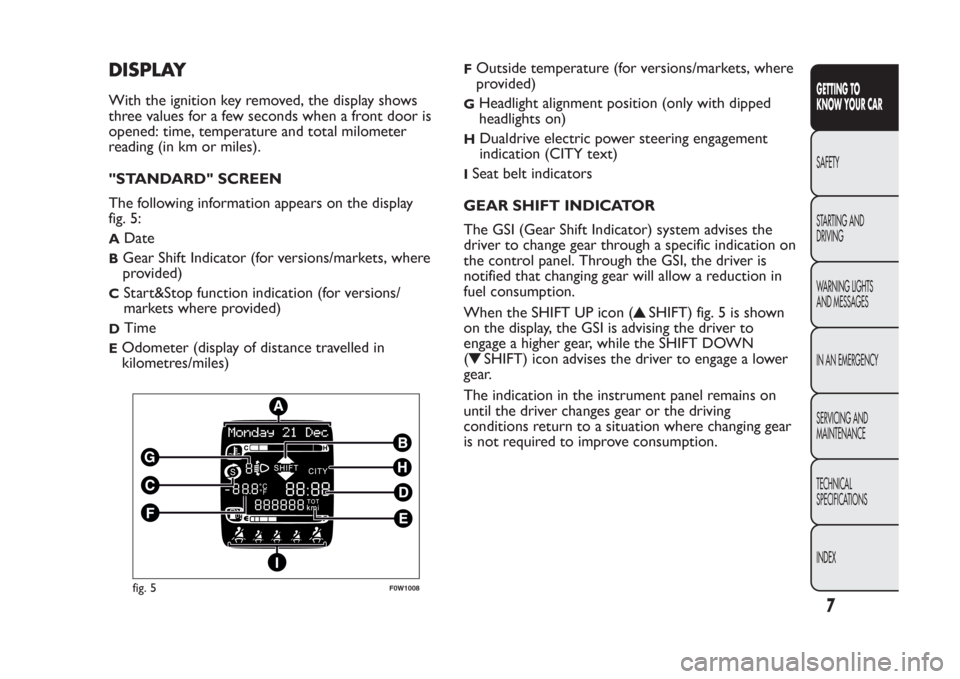

DISPLAYWith the ignition key removed, the display shows
three values for a few seconds when a front door is
opened: time, temperature and total milometer
reading (in km or miles).
"STANDARD" SCREEN
The following information appears on the display
fig. 5:A
Date
B
Gear Shift Indicator (for versions/markets, where
provided)
C
Start&Stop function indication (for versions/
markets where provided)
D
Time
E
Odometer (display of distance travelled in
kilometres/miles)
F
Outside temperature (for versions/markets, where
provided)
G
Headlight alignment position (only with dipped
headlights on)
H
Dualdrive electric power steering engagement
indication (CITY text)
ISeat belt indicators
GEAR SHIFT INDICATOR
The GSI (Gear Shift Indicator) system advises the
driver to change gear through a specific indication on
the control panel. Through the GSI, the driver is
notified that changing gear will allow a reduction in
fuel consumption.
When the SHIFT UP icon (
SHIFT) fig. 5 is shown
on the display, the GSI is advising the driver to
engage a higher gear, while the SHIFT DOWN
(
SHIFT) icon advises the driver to engage a lower
gear.
The indication in the instrument panel remains on
until the driver changes gear or the driving
conditions return to a situation where changing gear
is not required to improve consumption.
fig. 5
F0W1008
7GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

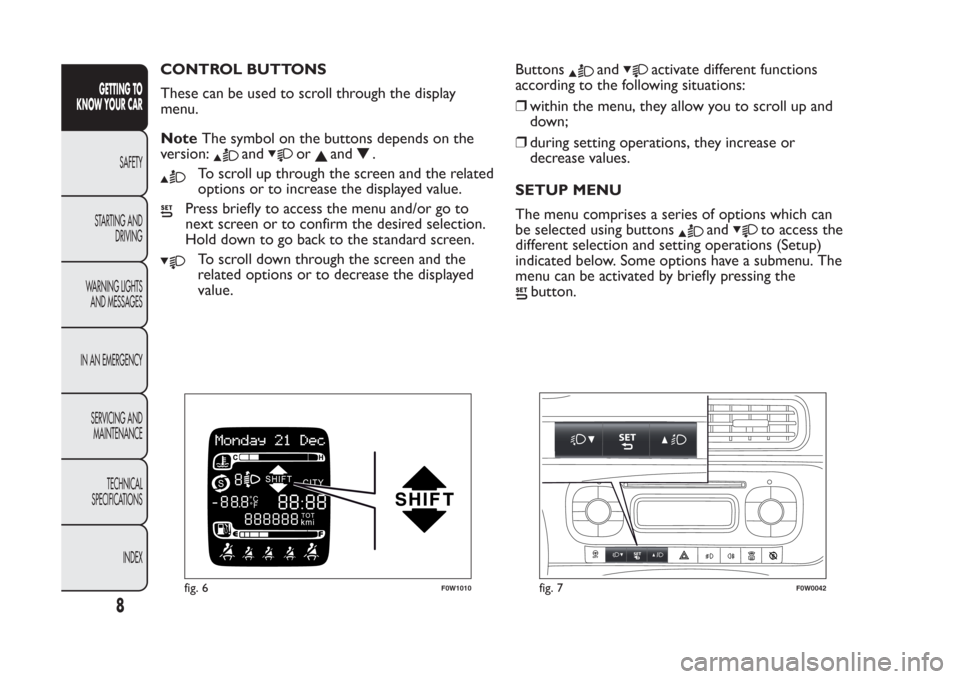

CONTROL BUTTONS
These can be used to scroll through the display
menu.
NoteThe symbol on the buttons depends on the
version:
and
or
and
.
To scroll up through the screen and the related
options or to increase the displayed value.
Press briefly to access the menu and/or go to
next screen or to confirm the desired selection.
Hold down to go back to the standard screen.
To scroll down through the screen and the
related options or to decrease the displayed
value.Buttons
and
activate different functions
according to the following situations:
❒within the menu, they allow you to scroll up and
down;
❒during setting operations, they increase or
decrease values.
SETUP MENU
The menu comprises a series of options which can
be selected using buttons
and
to access the
different selection and setting operations (Setup)
indicated below. Some options have a submenu. The
menu can be activated by briefly pressing the
button.
fig. 6
F0W1010
fig. 7
F0W0042
8
GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

The menu includes the following items:
❒MENU
❒LIGHTING
❒SPEED BEEP
❒TRIP B ACTIVATION/DATA
❒SET TIME
❒SET DATE
❒SEE RADIO
❒AUTOCLOSE
❒MEASUREMENT UNIT
❒LANGUAGE
❒WARNING VOLUME
❒SEAT BELT BUZZER (for versions/markets, where
provided)
❒SERVICE
❒AIRBAG/PASSENGER BAG (for versions/markets,
where provided)
❒CITY BRAKE C./COLLISION MITIGATION (for
versions/markets, where provided)
❒EXIT MENU
Selecting an option from the main menu without a
submenu:
❒briefly press the
button to select the main menu
option to be set;❒press buttons
or
(with single presses) to
select the new setting;
❒briefly press the
button to store the new setting
and to go back to the same main menu option
selected previously.
Selecting an option from the main menu with a
submenu:
❒a short press on the
button will display the first
submenu option;
❒press buttons
or
(with single presses) to
scroll through all the submenu options;
❒briefly press the
button to select the displayed
submenu option and to open the relevant set-up
menu;
❒press buttonsor
(with single presses) to
select the new setting for this submenu option;
❒Briefly press button
to store the new setting
and at the same time go back to the previously
selected menu option.
9GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

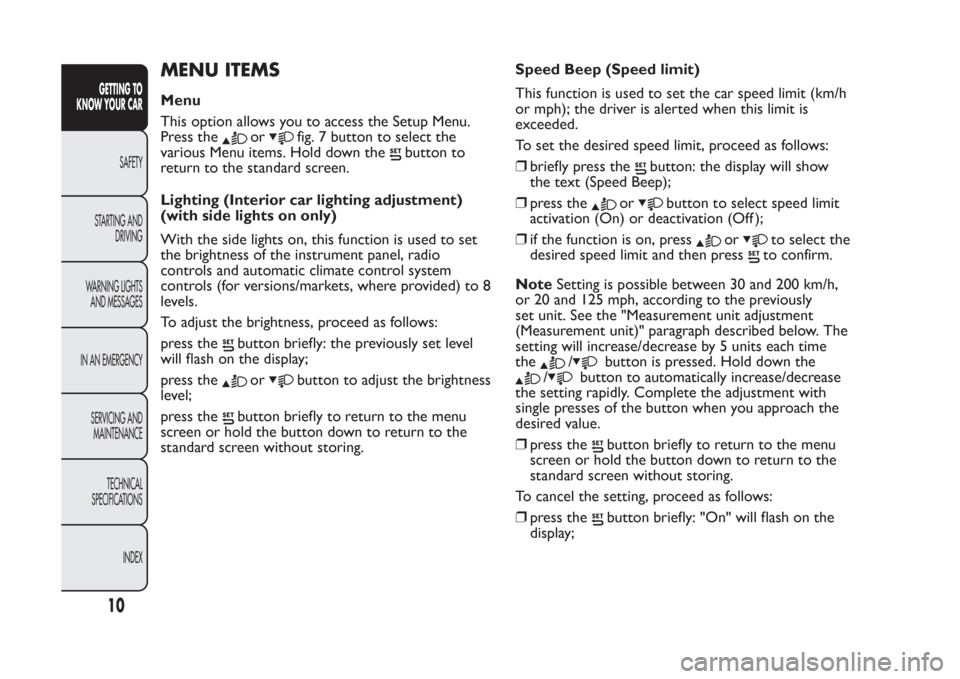

MENU ITEMSMenu
This option allows you to access the Setup Menu.
Press the
or
fig. 7 button to select the
various Menu items. Hold down the
button to
return to the standard screen.
Lighting (Interior car lighting adjustment)
(with side lights on only)
With the side lights on, this function is used to set
the brightness of the instrument panel, radio
controls and automatic climate control system
controls (for versions/markets, where provided) to 8
levels.
To adjust the brightness, proceed as follows:
press the
button briefly: the previously set level
will flash on the display;
press the
or
button to adjust the brightness
level;
press the
button briefly to return to the menu
screen or hold the button down to return to the
standard screen without storing.Speed Beep (Speed limit)
This function is used to set the car speed limit (km/h
or mph); the driver is alerted when this limit is
exceeded.
To set the desired speed limit, proceed as follows:
❒briefly press the
button: the display will show
the text (Speed Beep);
❒press the
or
button to select speed limit
activation (On) or deactivation (Off );
❒if the function is on, press
or
to select the
desired speed limit and then pressto confirm.
NoteSetting is possible between 30 and 200 km/h,
or 20 and 125 mph, according to the previously
set unit. See the "Measurement unit adjustment
(Measurement unit)" paragraph described below. The
setting will increase/decrease by 5 units each time
the
/
button is pressed. Hold down the
/
button to automatically increase/decrease
the setting rapidly. Complete the adjustment with
single presses of the button when you approach the
desired value.
❒press the
button briefly to return to the menu
screen or hold the button down to return to the
standard screen without storing.
To cancel the setting, proceed as follows:
❒press thebutton briefly: "On" will flash on the
display;
10GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

❒press the
button: "Off" will flash on the
display;
❒press the
button briefly to return to the menu
screen or hold the button down to return to the
standard screen without storing.
Activation/Trip B data (Activating Trip B)
With this function it is possible to activate ("On") or
deactivate ("Off") the Trip B display (partial trip).
For more information see the "Trip computer"
paragraph.
For activation/deactivation, proceed as follows:
❒press thebutton briefly to make the display flash
"On" or "Off" according to the previous setting;
❒press the
or
button to make the
adjustment;
❒press the
button briefly to return to the menu
screen or hold the button down to return to the
standard screen without storing.
Time adjustment (Clock adjustment)
This function allows the clock to be set through two
submenus: "Time" and "Format".
To carry out the adjustment, proceed as follows:
❒press thebutton briefly: the display will show
the two submenus "Time" and "Format";
❒press the
or
button to switch between
the two submenus;❒once you have selected the submenu to be
changed, press the
button briefly;
❒when you select "Time", pressing
briefly makes
the "hours" flash on the display. press the
or
button to make the adjustment;
❒press the
button briefly: the "minutes" flash on
the display. Press the
or
button to make
the adjustment;
❒if you select the "Format" submenu, pressing the
button briefly makes the display mode flash on
the display. Press the
or
button to select
"12h" or "24h" mode. When you have carried
out the desired adjustment, press the
button
briefly to return to the submenu screen or hold
the button down to return to the main menu
screen without storing.
Hold down the
button again to return to the
standard screen or to the main menu according to
where you are in the menu.
IMPORTANT The setting will increase or decrease
by one unit each time the
or
button is
pressed. Holding the button down causes an
automatic rapid increase/decrease. Complete the
adjustment with single presses of the button when
you approach the desired value.
11GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Set date (Setting the date)
This function can be used to set the date (year -
month - day).
To carry out the adjustment, proceed as follows:
❒briefly press the
button: the "year" will flash on
the display;
❒press the
or
button to make the
adjustment;
❒press the
button briefly: the "month" will flash
on the display;
❒press the
or
button to make the
adjustment;
❒briefly press the
button: the "day" will flash on
the display;
❒press the
or
button to make the
adjustment;
❒press the
button briefly to return to the menu
screen or hold the button down to return to the
standard screen without storing.
IMPORTANT The setting will increase or decrease
by one unit each time the
or
button is
pressed. Holding the button down causes an
automatic rapid increase/decrease. Complete the
adjustment with single presses of the button when
you approach the desired value.
See radio (audio information display)
With this function the display shows information
about the sound system.❒Radio: selected radio station frequency or RDS
message, automatic tuning activation or
AutoSTore;
❒Audio CD, MP3 CDs: track number;
❒CD Changer: CD number and track number.
To show the sound system information on the
display (On) or clear it (Off ), proceed as follows:
❒briefly press
button, ON or OFF flashes on the
display according to the previous setting;
❒press theor
button to select;
❒press the
button briefly to return to the menu
screen or hold the button down to return to the
standard screen without storing.
Autoclose (Automatic central locking with car
in motion)
When activated (On), this function locks the doors
automatically when the vehicle speed exceeds 20
km/h.
To activate or deactivate this function, proceed as
follows:
❒press thebutton briefly to make the display flash
"On" or "Off" according to the previous setting;
❒press the
or
button to select;
12GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

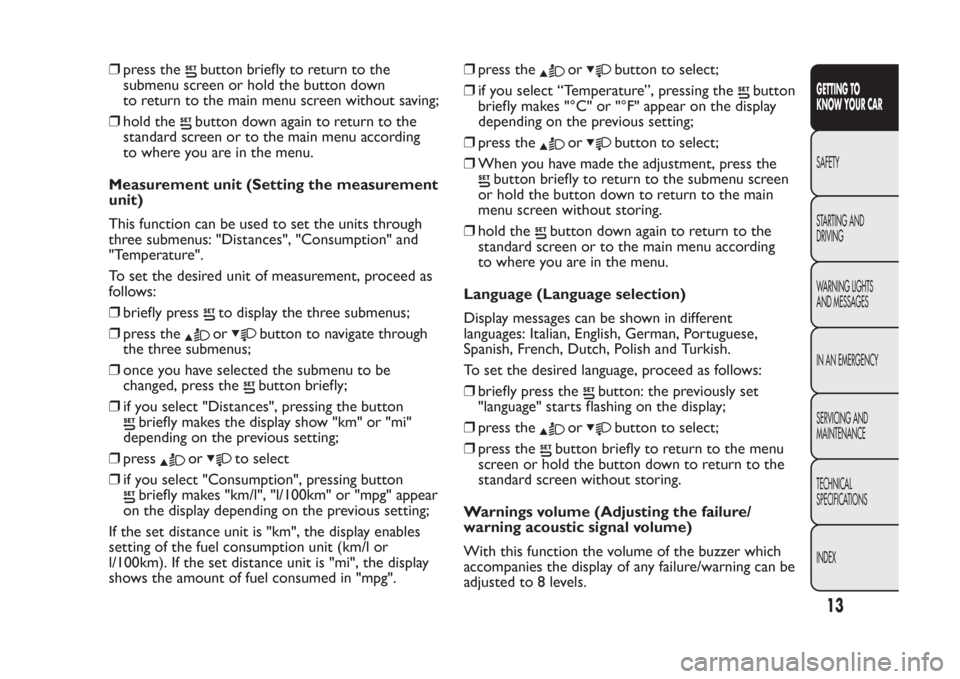

❒press the
button briefly to return to the
submenu screen or hold the button down
to return to the main menu screen without saving;
❒hold thebutton down again to return to the
standard screen or to the main menu according
to where you are in the menu.
Measurement unit (Setting the measurement
unit)
This function can be used to set the units through
three submenus: "Distances", "Consumption" and
"Temperature".
To set the desired unit of measurement, proceed as
follows:
❒briefly press
to display the three submenus;
❒press theor
button to navigate through
the three submenus;
❒once you have selected the submenu to be
changed, press thebutton briefly;
❒if you select "Distances", pressing the button
briefly makes the display show "km" or "mi"
depending on the previous setting;
❒press
or
to select
❒if you select "Consumption", pressing button
briefly makes "km/l", "l/100km" or "mpg" appear
on the display depending on the previous setting;
If the set distance unit is "km", the display enables
setting of the fuel consumption unit (km/l or
l/100km). If the set distance unit is "mi", the display
shows the amount of fuel consumed in "mpg".❒press the
or
button to select;
❒if you select “Temperature”, pressing the
button
briefly makes "°C" or "°F" appear on the display
depending on the previous setting;
❒press the
or
button to select;
❒When you have made the adjustment, press the
button briefly to return to the submenu screen
or hold the button down to return to the main
menu screen without storing.
❒hold the
button down again to return to the
standard screen or to the main menu according
to where you are in the menu.
Language (Language selection)
Display messages can be shown in different
languages: Italian, English, German, Portuguese,
Spanish, French, Dutch, Polish and Turkish.
To set the desired language, proceed as follows:
❒briefly press the
button: the previously set
"language" starts flashing on the display;
❒press the
or
button to select;
❒press the
button briefly to return to the menu
screen or hold the button down to return to the
standard screen without storing.
Warnings volume (Adjusting the failure/
warning acoustic signal volume)
With this function the volume of the buzzer which
accompanies the display of any failure/warning can be
adjusted to 8 levels.
13GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

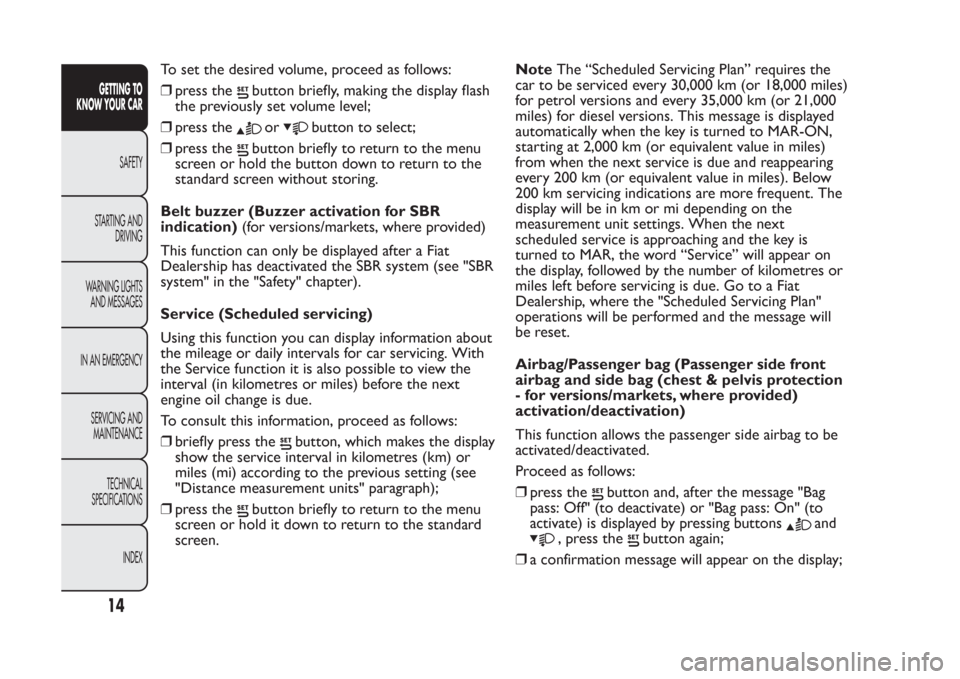

To set the desired volume, proceed as follows:
❒press the
button briefly, making the display flash
the previously set volume level;
❒press the
or
button to select;
❒press the
button briefly to return to the menu
screen or hold the button down to return to the
standard screen without storing.
Belt buzzer (Buzzer activation for SBR
indication)(for versions/markets, where provided)
This function can only be displayed after a Fiat
Dealership has deactivated the SBR system (see "SBR
system" in the "Safety" chapter).
Service (Scheduled servicing)
Using this function you can display information about
the mileage or daily intervals for car servicing. With
the Service function it is also possible to view the
interval (in kilometres or miles) before the next
engine oil change is due.
To consult this information, proceed as follows:
❒briefly press the
button, which makes the display
show the service interval in kilometres (km) or
miles (mi) according to the previous setting (see
"Distance measurement units" paragraph);
❒press the
button briefly to return to the menu
screen or hold it down to return to the standard
screen.NoteThe “Scheduled Servicing Plan” requires the
car to be serviced every 30,000 km (or 18,000 miles)
for petrol versions and every 35,000 km (or 21,000
miles) for diesel versions. This message is displayed
automatically when the key is turned to MAR-ON,
starting at 2,000 km (or equivalent value in miles)
from when the next service is due and reappearing
every 200 km (or equivalent value in miles). Below
200 km servicing indications are more frequent. The
display will be in km or mi depending on the
measurement unit settings. When the next
scheduled service is approaching and the key is
turned to MAR, the word “Service” will appear on
the display, followed by the number of kilometres or
miles left before servicing is due. Go to a Fiat
Dealership, where the "Scheduled Servicing Plan"
operations will be performed and the message will
be reset.
Airbag/Passenger bag (Passenger side front
airbag and side bag (chest & pelvis protection
- for versions/markets, where provided)
activation/deactivation)
This function allows the passenger side airbag to be
activated/deactivated.
Proceed as follows:
❒press the
button and, after the message "Bag
pass: Off" (to deactivate) or "Bag pass: On" (to
activate) is displayed by pressing buttons
and
, press the
button again;
❒a confirmation message will appear on the display;
14GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

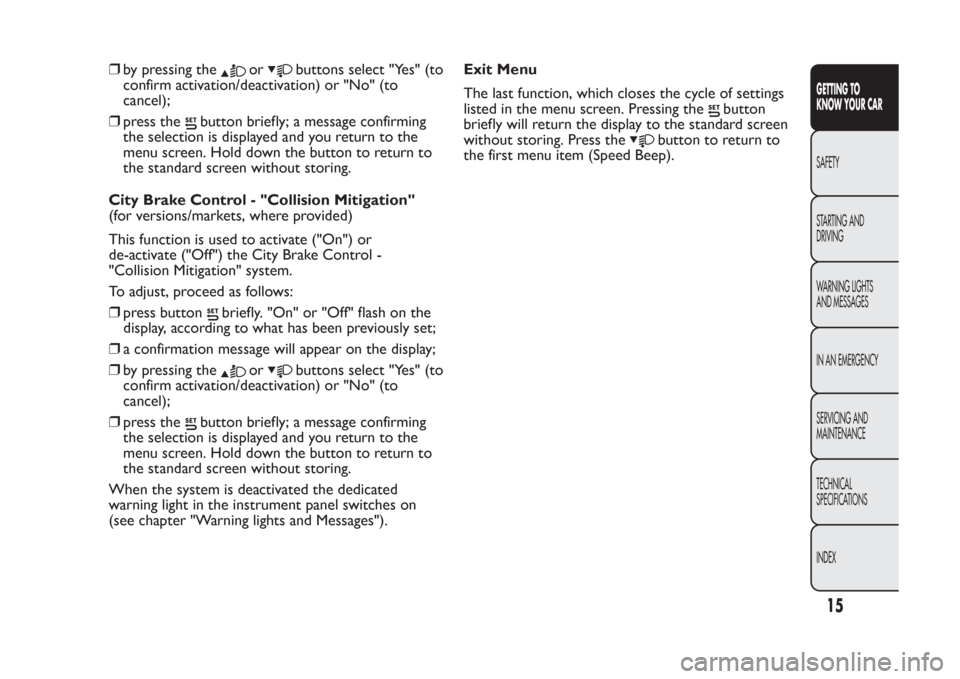

❒by pressing the
or
buttons select "Yes" (to
confirm activation/deactivation) or "No" (to
cancel);
❒press the
button briefly; a message confirming
the selection is displayed and you return to the
menu screen. Hold down the button to return to
the standard screen without storing.
City Brake Control - "Collision Mitigation"
(for versions/markets, where provided)
This function is used to activate ("On") or
de-activate ("Off") the City Brake Control -
"Collision Mitigation" system.
To adjust, proceed as follows:
❒press button
briefly. "On" or "Off" flash on the
display, according to what has been previously set;
❒a confirmation message will appear on the display;
❒by pressing the
or
buttons select "Yes" (to
confirm activation/deactivation) or "No" (to
cancel);
❒press the
button briefly; a message confirming
the selection is displayed and you return to the
menu screen. Hold down the button to return to
the standard screen without storing.
When the system is deactivated the dedicated
warning light in the instrument panel switches on
(see chapter "Warning lights and Messages").Exit Menu
The last function, which closes the cycle of settings
listed in the menu screen. Pressing the
button
briefly will return the display to the standard screen
without storing. Press the
button to return to
the first menu item (Speed Beep).
15GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

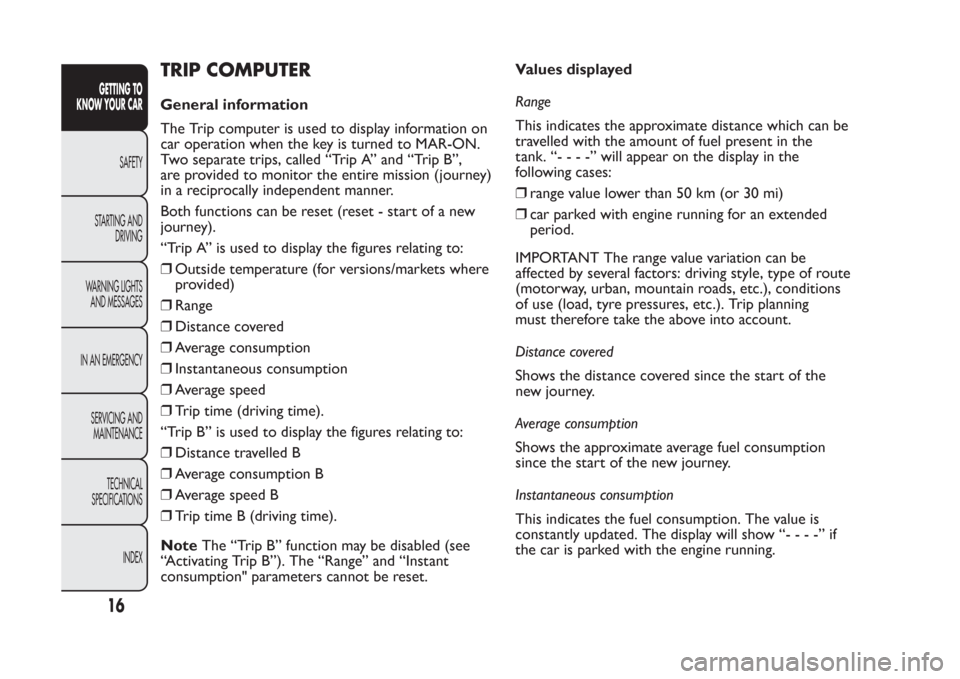

TRIP COMPUTERGeneral information
The Trip computer is used to display information on
car operation when the key is turned to MAR-ON.
Two separate trips, called “Trip A” and “Trip B”,
are provided to monitor the entire mission (journey)
in a reciprocally independent manner.
Both functions can be reset (reset - start of a new
journey).
“Trip A” is used to display the figures relating to:
❒Outside temperature (for versions/markets where
provided)
❒Range
❒Distance covered
❒Average consumption
❒Instantaneous consumption
❒Average speed
❒Trip time (driving time).
“Trip B” is used to display the figures relating to:
❒Distance travelled B
❒Average consumption B
❒Average speed B
❒Trip time B (driving time).
NoteThe “Trip B” function may be disabled (see
“Activating Trip B”). The “Range” and “Instant
consumption" parameters cannot be reset.Values displayed
Range
This indicates the approximate distance which can be
travelled with the amount of fuel present in the
tank.“----”will appear on the display in the
following cases:
❒range value lower than 50 km (or 30 mi)
❒car parked with engine running for an extended
period.
IMPORTANT The range value variation can be
affected by several factors: driving style, type of route
(motorway, urban, mountain roads, etc.), conditions
of use (load, tyre pressures, etc.). Trip planning
must therefore take the above into account.
Distance covered
Shows the distance covered since the start of the
new journey.
Average consumption
Shows the approximate average fuel consumption
since the start of the new journey.
Instantaneous consumption
This indicates the fuel consumption. The value is
constantly updated. The display will show “----”if
the car is parked with the engine running.
16GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
