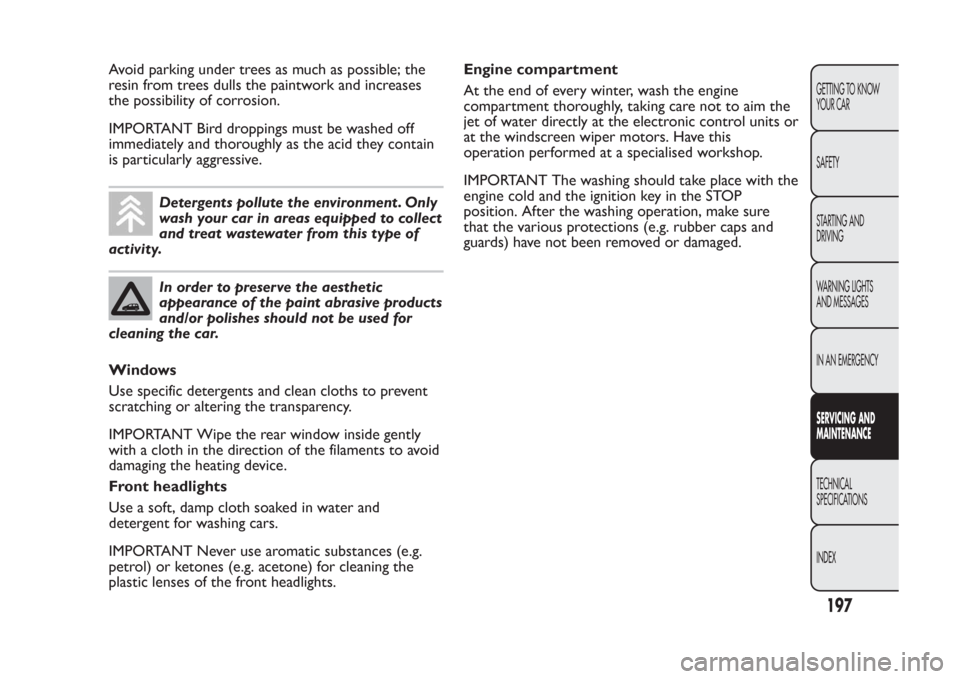

Avoid parking under trees as much as possible; the
resin from trees dulls the paintwork and increases
the possibility of corrosion.
IMPORTANT Bird droppings must be washed off
immediately and thoroughly as the acid they contain
is particularly aggressive.
Detergents pollute the environment . Only
wash your car in areas equipped to collect
and treat wastewater from this type of
activity.In order to preserve the aesthetic
appearance of the paint abrasive products
and/or polishes should not be used for
cleaning the car.
Windows
Use specific detergents and clean cloths to prevent
scratching or altering the transparency.
IMPORTANT Wipe the rear window inside gently
with a cloth in the direction of the filaments to avoid
damaging the heating device.
Front headlights
Use a soft, damp cloth soaked in water and
detergent for washing cars.
IMPORTANT Never use aromatic substances (e.g.
petrol) or ketones (e.g. acetone) for cleaning the
plastic lenses of the front headlights.Engine compartment
At the end of every winter, wash the engine
compartment thoroughly, taking care not to aim the
jet of water directly at the electronic control units or
at the windscreen wiper motors. Have this
operation performed at a specialised workshop.
IMPORTANT The washing should take place with the
engine cold and the ignition key in the STOP
position. After the washing operation, make sure
that the various protections (e.g. rubber caps and
guards) have not been removed or damaged.
197GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCYSERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONS
INDEX

INTERIORSPeriodically check for water puddles under the mats
that could cause the panels to rust.
WARNING
Never use flammable products, such as
petrol ether or rectified petrol to clean
the inside of the car.The electrostatic charges
which are generated by rubbing during the
cleaning operation may cause a fire.
WARNING
Do not keep aerosol cans in the car:
they might explode. Aerosol cans must
not be exposed to a temperature exceeding
50°C .When the car is exposed to sunlight ,
internal temperature can greatly exceed this
value.SEATS AND FABRIC PARTS
Remove dust with a soft brush or a vacuum cleaner.
Rub the seats with a sponge and a solution of water
and mild soap.
PLASTIC AND COATED PARTS
Clean interior plastic parts with a damp cloth (if
possible made from microfibre), and a solution
of water and neutral, non-abrasive detergent. To
clean oily or persistent stains, use specific products
free from solvents and designed to maintain the
original appearance and colour of the components.
Remove any dust using a microfibre cloth, if
necessary moistened with water. The use of paper
tissues is not recommended as these may leave
residues.
IMPORTANT Never use alcohol, petrols and
derivatives to clean the instrument panel lens.
198
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

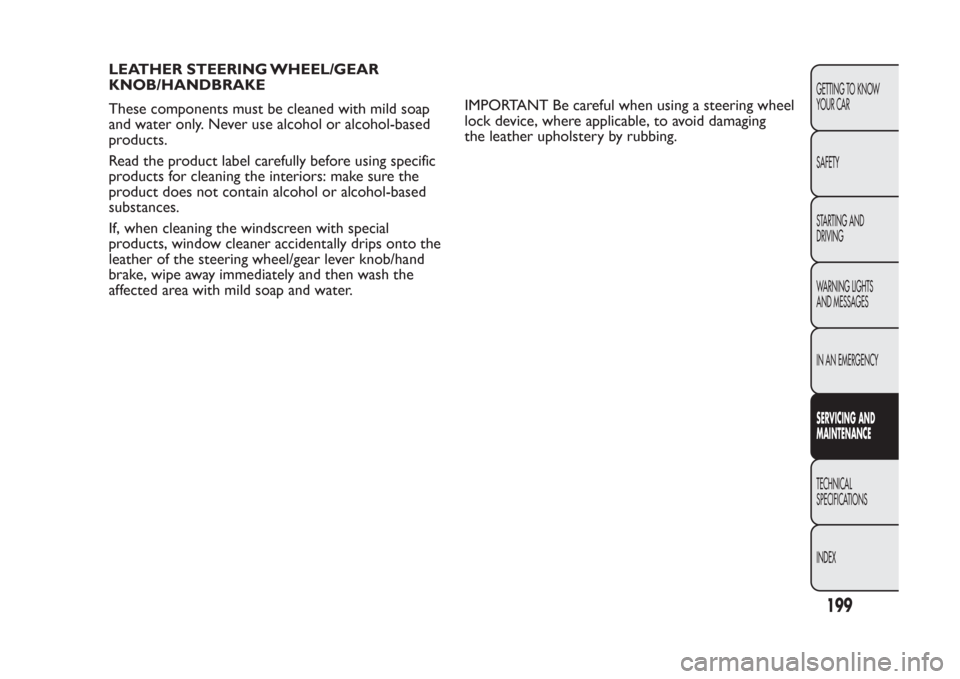

LEATHER STEERING WHEEL/GEAR
KNOB/HANDBRAKE
These components must be cleaned with mild soap
and water only. Never use alcohol or alcohol-based
products.
Read the product label carefully before using specific
products for cleaning the interiors: make sure the
product does not contain alcohol or alcohol-based
substances.
If, when cleaning the windscreen with special
products, window cleaner accidentally drips onto the
leather of the steering wheel/gear lever knob/hand
brake, wipe away immediately and then wash the
affected area with mild soap and water.IMPORTANT Be careful when using a steering wheel
lock device, where applicable, to avoid damaging
the leather upholstery by rubbing.
199GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCYSERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONS
INDEX

TECHNICAL SPECIFICATIONS
IDENTIFICATION DATAWe recommend taking note of the identification
codes. The following identification codes are printed
and shown on the plates:
❒VIN plate.
❒Chassis marking.
❒Bodywork paint identification plate.
❒Engine marking.V.I.N. PLATE
This is applied on the left side of the luggage
compartment fig. 159 (lift the mat for access) and
bears the following data:
B
Type-approval number.
C
Vehicle type identification code
D
Chassis serial number.
E
Maximum authorised weight of vehicle fully laden
F
Maximum authorised weight of vehicle fully laden
plus trailer.
G
Maximum permitted weight on first (front) axle
H
Maximum permitted weight on second (rear) axle
IEngine type.L
Bodywork version code.
M
Spares number.
N
Correct value of smoke coefficient (for diesel
engines).
fig. 159
F0W0029
200
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

BODYWORK PAINT IDENTIFICATION
PLATE
This is applied inside the bonnet (left side) and bears
the following data fig. 160:
APaint manufacturer.
BColour name.
CFiat colour code.
DRespray and touch up code.
CHASSIS MARKING
This is located on the right side of the luggage
compartment floor and gives the following
identification data:
❒type of vehicle;
❒chassis serial number.ENGINE MARKING
This is stamped on the cylinder block and gives the
model and the chassis serial number.
fig. 160
F0W0030
201GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

ENGINE CODE - BODYWORK VERSIONSVersions Engine code Bodywork versions
0.9 TwinAir 65 HP312A4000312PXH1A P4 (4-SEATER)
312PXH1A P4C (4-SEATER)
(**)
312PXH1A P4B (5-SEATER)
312PXH1A P4D (5-SEATER)
(**)
0.9 TwinAir Turbo 85 HP312A2000312PXG1A P1 (4-SEATER)
312PXG1A P1L (4-SEATER)
(**)
312PXG1A P1B (5-SEATER)
312PXG1A P1M (5-SEATER)
(**)
312PXG1A P1G (4-SEATER)
(*)
312PXG1A P1H (5-SEATER)
(*)
1.2 8V 69 HP169A4000312PXA1A P0 (4-SEATER)
312PXA1A P0C (4-SEATER)
(**)
312PXA1A P0B (5-SEATER)
312PXA1A P0D (4-SEATER)
(***)
312PXA1A P0E (5-SEATER)
(***)
(**) For versions/markets, where provided.
(*) For Trekking versions.
(***) For L.G.R. (Long Gear Ratio) versions.
202
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Versions Engine code Bodywork versions
1.3 16V MultiJet199A9000312PXL1A P3 (4-SEATER)
312PXL1A P3C (4-SEATER)
(**)
312PXL1A P3B (5-SEATER)
312PXL1A P3D (4-SEATER)
(*)
312PXL1A P3E (5-SEATER)
(*)
(**) For versions/markets, where provided.
(*) For Trekking versions.
203GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

ENGINEVersions0.9 TwinAir 65
HP0.9 TwinAir
Turbo 85 HP1.2 8V 69 HP 1.3 16V MultiJet
Type code 312A4000 312A2000 169A4000 199A9000
Cycle Otto Otto Otto Diesel
Number and arrangement of
cylinders2 in line 2 in line 4 in line 4 in line
Piston diameter and travel (mm) 83.5 x 88 80.5 x 86.0 70.8 x 78.86 69.6 x 82
Total displacement (cm3) 964 875 1242 1248
Compression ratio 11,1 10 11,1 16,8
Maximum power (EC) (kW) 48
62,5 / 57
(*)
51 55
Maximum power (EC) (HP) 65
85 / 77,5
(*)
69 75
corresponding engine speed (rpm) 6250 5500 5500 4000
Maximum torque (EC) (Nm) 88
145 / 100
(*)
102 190
Maximum torque (EC) (kgm) 8,9
14,8 / 10,2
(*)
10,4 19,4
corresponding engine speed (rpm) 3500
1900 / 2000
(*)
3000 1500
Spark plugs NGK LKR7DI-12 NGK LKR9EI-8NGK ZKR7A-10
or CHAMPION
RA8MCX4-
FuelUnleaded petrol
95 RON
(Specification EN
228)Unleaded petrol
95 RON
(Specification EN
228)Unleaded petrol
95 RON
(Specification EN
228)Diesel for motor
vehicles
(Specification EN
590)
(*) With ECO button pressed
204
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

FUEL SUPPLYVersions Fuel supply
0.9 TwinAir 65 HP
Timed sequential Multipoint electronic injection, with knock control and intake valve
variable actuation
0.9 TwinAir Turbo 85 HP
1.2 8V 69 HPMultipoint sequential timed electronic injection, returnless system
1.3 16V MultiJetElectronically controlled Common Rail MultiJet direct injection with turbo and
intercooler
WARNING
Modifications or repairs to the fuel supply system that are not carried out correctly or do not
take the system's technical specifications into account can cause malfunctions leading to
the risk of fire.
205GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

TRANSMISSIONVersions Gearbox Clutch Drive
0.9 TwinAir 65 HP
Five forward gears and reverse
with synchronizers for forward
gear engagementSelf-adjusting pedal without
idle strokeFront 0.9 TwinAir Turbo 85 HP
1.2 8V 69 HP
1.3 16V MultiJetBRAKESVersions Front service brakes Rear service brakes Parking brake
0.9 TwinAir 65 HPDisc
Drum, self-centring shoes
with control cylinder for
each wheelControlled by hand lever,
acting on the rear brakes 0.9 TwinAir Turbo 85 HPSelf-ventilated disc
1.2 8V 69 HPDisc
Self-ventilated disc
1.3 16V MultiJetIMPORTANT Water, ice and salt spread on the roads may deposit on the brake disks reducing braking
efficiency the first time the brakes are applied.
