ESSENTIAL INFORMATION!REFUELLING
Petrol engines: only refuel with unleaded petrol
with octane rating (RON) not less than 95 in
compliance with the European specification
EN228.
The use of petrol that does not conform to the
above-mentioned specification will cause the
EOBD warning light to switch on and the
irregular operation of the engine.
Diesel engines: only refuel with diesel for
motor vehicles in compliance with the European
specification EN590. The use of other products
or mixtures may damage the engine beyond
repair and consequently invalidate the warranty.
STARTING THE ENGINEMake sure that the handbrake is engaged; place
the gear lever in neutral. Fully depress the clutch
pedal, without pressing the accelerator, then
turn the ignition key to MAR-ON and wait for
the
warning light to switch off (and
warning light for diesel versions); turn the
ignition key to AVV and release it as soon as
the engine starts.
PARKING ON FLAMMABLE MATERIAL
The catalytic converter develops high
temperatures during operation. Do not park the
car on grass, dry leaves, pine needles or other
flammable material: fire hazard.RESPECTING THE ENVIRONMENT
The car is fitted with a system that allows
continuous diagnosis of the components related
to emissions to ensure increased respect for
the environment.
ELECTRICAL ACCESSORIESIf, after buying the car, you decide to add
electrical accessories (with the risk of gradually
draining the battery), contact a Fiat Dealership.
They will calculate the overall electrical
requirement and check that the car’s electrical
system can support the required load.
SCHEDULED SERVICINGCorrect maintenance of the car is essential for
ensuring that it maintains its performance and its
safety features, its environmental friendliness
and low running costs for a long time to come.
THE OWNER MANUAL CONTAINS…… important information, advice and warnings
for correct use, driving safety and maintenance of
your car over time. Special attention must be
paid to the symbols provided
(personal safety)
(environmental protection)
(car integrity).

IGNITION DEVICEThe key can be turned to 3 different positionsfig. 12:
❒STOP: engine off, key can be removed, steering
column locked. Some electrical devices (e.g. sound
system, central door locking system, etc.) can
operate;
❒MAR-ON: driving position. All electrical devices
are enabled;
❒AVV: engine start-up.
The ignition switch is fitted with a safety system that
requires the ignition key to be turned back to STOP
if the engine does not start, before the starting
operation can be repeated.
WARNING
If the ignition device has been tampered
with (e.g. an attempted theft), have it
checked over by a Fiat Dealership before driving
again.
WARNING
Always remove the key when you leave
your car to prevent someone from
accidentally operating the controls. Remember
to engage the handbrake. Engage 1
st
gear if
the car is parked uphill or reverse if the car is
parked downhill. Never leave children
unattended in the car.
STEERING LOCK
Engagement:when the key is in position STOP,
remove the key and turn the steering wheel until it is
locked.
Disengagement:move the steering wheel slightly
as you turn the ignition key to MAR-ON.
1
02
fig. 12
F0W0102
22GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

DUALDRIVE ELECTRIC POWER STEERING
(for versions/markets, where provided)
Press the CITY button fig. 37 to activate the function
(see paragraph "Dualdrive electric power steering"
in this section). When this function is active, the
word CITY on the instrument panel will light up. To
deactivate the function press the button again.
ECO FUNCTION
(for versions/markets, where provided)
Press the ECO button fig. 38 to activate the function.
When the ECO function is active, the car is set for
driving characterised by reduced fuel consumption.
When the function is active, the corresponding LED
on the button switches on.
This function stays in the memory and, when the
vehicle is started again, the system keeps the setting
it had before the engine was stopped. Press theECO button again to deactivate the function and
restore the normal driving setting.
FUEL CUT-OFF SYSTEM
This intervenes in the case of an impact causing:
❒the interruption of the fuel supply with the engine
consequently cutting out;
❒the automatic unlocking of the doors;
❒the automatic switching on of the interior lights
❒the switching on of the hazard warning lights.
On some versions, the intervention of the system is
indicated by a message shown on the display.
IMPORTANT Carefully check the car for fuel leaks,
for instance in the engine compartment, under
the car or near the tank area. After an impact, turn
the ignition key to STOP to prevent the battery from
running down.
fig. 37
F0W0082
fig. 38
F0W0039
52GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

CLOSING

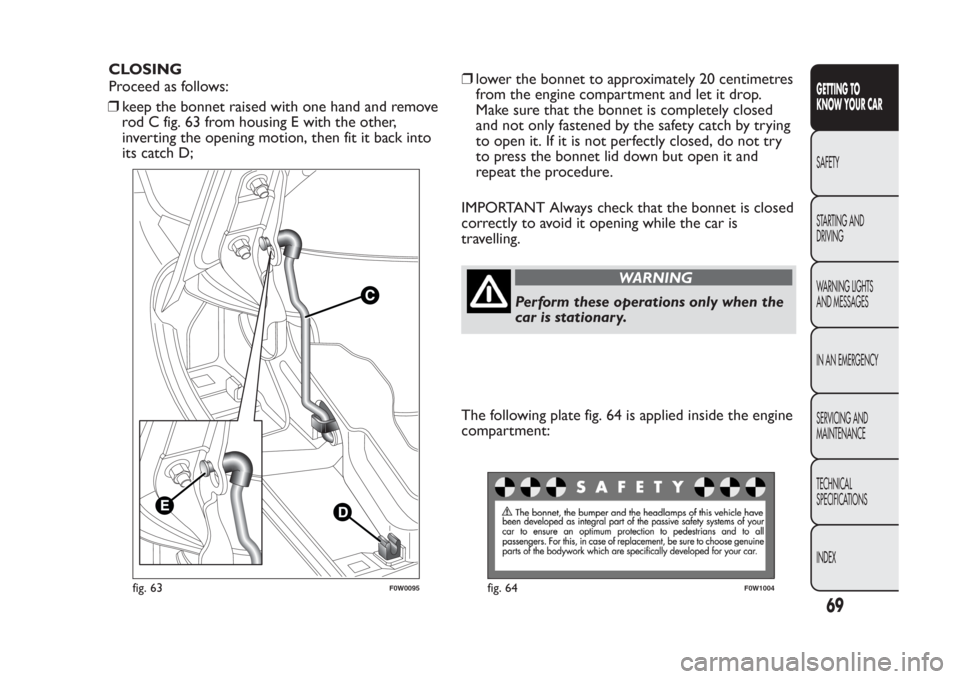

Proceed as follows:
❒keep the bonnet raised with one hand and remove
rod C fig. 63 from housing E with the other,
inverting the opening motion, then fit it back into
its catch D;❒lower the bonnet to approximately 20 centimetres
from the engine compartment and let it drop.
Make sure that the bonnet is completely closed
and not only fastened by the safety catch by trying
to open it. If it is not perfectly closed, do not try
to press the bonnet lid down but open it and
repeat the procedure.
IMPORTANT Always check that the bonnet is closed
correctly to avoid it opening while the car is
travelling.
WARNING
Perform these operations only when the
car is stationary.
The following plate fig. 64 is applied inside the engine
compartment:
fig. 63
F0W0095
fig. 64
F0W1004
69GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

WARNING
The system intervenes on vehicles
travelling in the same lane. Small sized
vehicles (e.g. bicycles or motorbikes) or people,
animals and things (e.g. pushchairs) and more in
general all those obstacles with a low reflection
of the light emitted by the laser (e.g. vehicles
soiled with mud) are not taken into
consideration.If a trailer or a car is towed the system
must be deactivated with the display
Setup Menu (see paragraph "Menu
items" in this chapter).
WARNING
If the car must be placed on a roller
bench (at a speed within 5 and 30 km/h)
for maintenance interventions or if it is washed
in an automatic roller washing tunnel with an
obstacle in the front part (e.g. another car, a
wall or another obstacle), the system may
detect its presence and activate. In this case the
system must be deactivated with the display
setup menu (see paragraph “Menu items”
in this chapter).
EOBD SYSTEMThe EOBD system (European On Board Diagnosis)
carries out a continuous diagnosis of the
components of the car related to emissions. It also
alerts the driver about component deterioration
by switching on the warning light on the instrument
panel and the displaying of a relevant message (for
versions/markets, where provided) (see the chapter
“Warning lights and messages”).
The aim of the EOBD system (European On Board
Diagnosis) is to:
❒monitor the system efficiency;
❒indicate an increase in emissions;
❒indicate the need to replace damaged components.
The system also has a diagnosis connector that can
be interfaced to suitable instruments, to read the
error codes stored in the control unit together with
a series of specific parameters for engine operation
and diagnosis.
IMPORTANT After eliminating the failure, to check
the system completely, Fiat Dealerships run a bench
test and, if necessary, road tests which may also
call for a long journey.
87GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

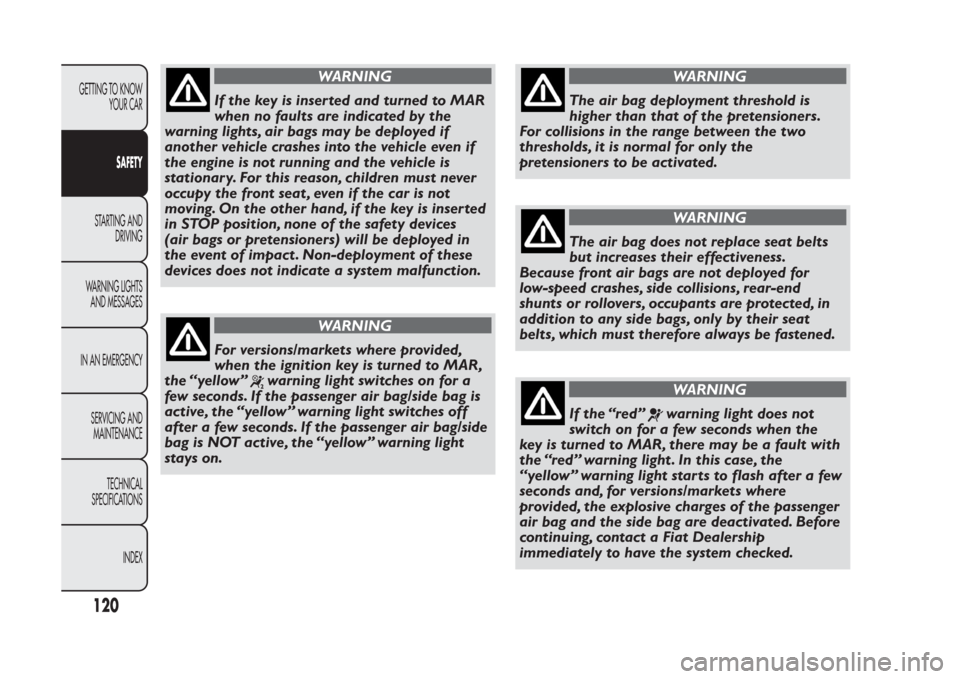

WARNING
If the key is inser ted and turned to MAR
when no faults are indicated by the
warning lights, air bags may be deployed if
another vehicle crashes into the vehicle even if
the engine is not running and the vehicle is
stationary. For this reason, children must never
occupy the front seat , even if the car is not
moving. On the other hand, if the key is inser ted
in STOP position, none of the safety devices
(air bags or pretensioners) will be deployed in
the event of impact . Non-deployment of these
devices does not indicate a system malfunction.
WARNING
For versions/markets where provided,
when the ignition key is turned to MAR,
the “yellow”
warning light switches on for a
few seconds. If the passenger air bag/side bag is
active, the “yellow” warning light switches off
after a few seconds. If the passenger air bag/side
bag is NOT active, the “yellow” warning light
stays on.
WARNING
The air bag deployment threshold is
higher than that of the pretensioners.
For collisions in the range between the two
thresholds, it is normal for only the
pretensioners to be activated.
WARNING
The air bag does not replace seat belts
but increases their effectiveness.
Because front air bags are not deployed for
low-speed crashes, side collisions, rear-end
shunts or rollovers, occupants are protected, in
addition to any side bags, only by their seat
belts, which must therefore always be fastened.
WARNING
If the “red”
warning light does not
switch on for a few seconds when the
key is turned to MAR, there may be a fault with
the “red” warning light . In this case, the
“yellow” warning light star ts to flash after a few
seconds and, for versions/markets where
provided, the explosive charges of the passenger
air bag and the side bag are deactivated. Before
continuing, contact a Fiat Dealership
immediately to have the system checked.
120
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

SAVING FUELHere are some suggestions which can help you to
save fuel and lower harmful emissions.
GENERAL CONSIDERATIONS
Car maintenance
Have checks and adjustments carried out in
accordance with the “Scheduled Servicing Plan”.
Ty r e s
Check the tyre pressures at least once every 4
weeks: if the pressure is too low, consumption levels
increase as resistance to rolling is higher.
Unnecessary loads
Do not travel with an overloaded boot. The weight
of the car and its arrangement greatly affect fuel
consumption and stability.
Roof rack/ski rack
Remove the roof rack or the ski rack from the roof
after use. These accessories lower aerodynamic
penetration and adversely affect consumption levels.
When transporting particularly large objects, use a
trailer if possible.Electrical devices
Only use electrical devices for the amount of time
needed. The heated rear window, additional
headlights, windscreen wipers and heater fan need a
considerable amount of energy, therefore increasing
fuel consumption (by up to 25% in the urban cycle).
Climate control system
The use of the climate control system leads to higher
fuel consumption. If the temperature outside
permits, try to use ventilation only.
Devices for aerodynamic control
The use of non-certified devices for aerodynamic
control may adversely affect air drag and fuel
consumption.
DRIVING STYLE
Starting
Do not warm the engine with the car at a standstill
or at idle or high speed: under these conditions
the engine warms up much more slowly, increasing
consumption and emissions. It is therefore advisable
to move off immediately, slowly, avoiding high speeds:
in this way the engine will warm up more quickly.
126
GETTING TO KNOW
YOUR CAR
SAFETYSTARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

STORING THE CARIf the car is to be left inactive for longer than a
month, the following precautions should be taken:
❒park the car in covered, dry and if possible
well-ventilated premises and slightly open
the windows;
❒engage a gear and check that the handbrake is not
engaged;
❒disconnect the negative battery terminal (for
versions with Start&Stop system refer to the
paragraph "Start&Stop system" in the chapter
"Knowing your car"); If the battery is not
disconnected from the electrical system, check its
charge every thirty days;
❒clean and protect the painted parts using
protective wax;
❒clean and protect the shiny metal parts using
special compounds available commercially;❒sprinkle talcum powder on the windscreen and
rear window wiper rubber blades and lift them
off the glass;
❒cover the car with a cloth or perforated plastic
sheet. Do not use sheets of non-perforated plastic
as they do not allow moisture on the car body
to evaporate;
❒inflate tyres to +0.5 bar above the standard
specified pressure and check it at intervals;
❒do not drain the engine cooling system.
131GETTING TO KNOW
YOUR CAR
SAFETYSTARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

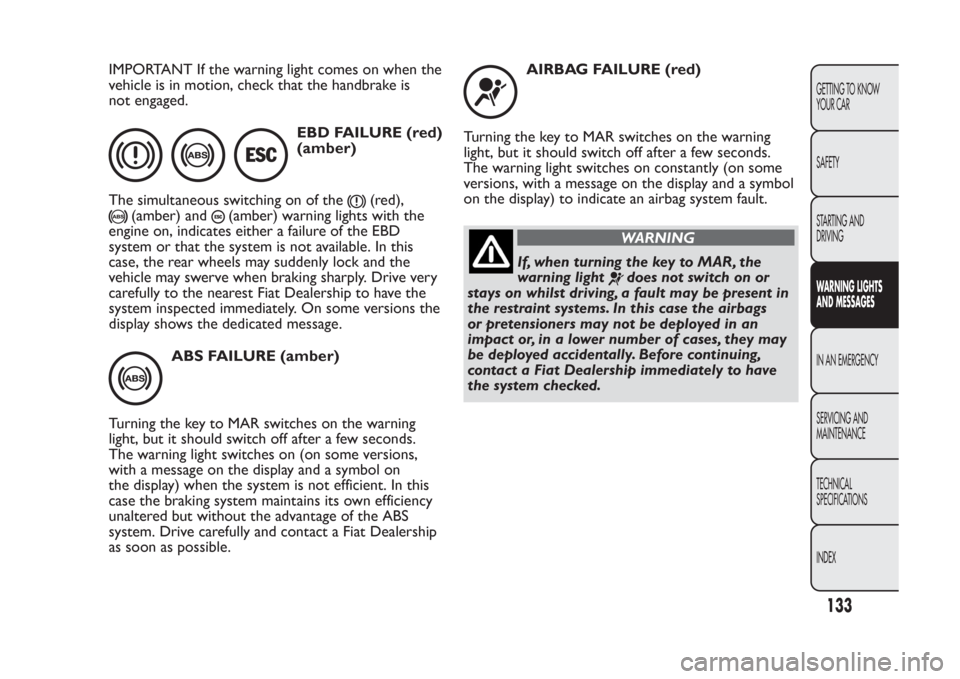

IMPORTANT If the warning light comes on when the
vehicle is in motion, check that the handbrake is
not engaged.
EBD FAILURE (red)
(amber)
The simultaneous switching on of the
(red),
(amber) and
(amber) warning lights with the
engine on, indicates either a failure of the EBD
system or that the system is not available. In this
case, the rear wheels may suddenly lock and the
vehicle may swerve when braking sharply. Drive very
carefully to the nearest Fiat Dealership to have the
system inspected immediately. On some versions the
display shows the dedicated message.
ABS FAILURE (amber)
Turning the key to MAR switches on the warning
light, but it should switch off after a few seconds.
The warning light switches on (on some versions,
with a message on the display and a symbol on
the display) when the system is not efficient. In this
case the braking system maintains its own efficiency
unaltered but without the advantage of the ABS
system. Drive carefully and contact a Fiat Dealership
as soon as possible.
AIRBAG FAILURE (red)
Turning the key to MAR switches on the warning
light, but it should switch off after a few seconds.
The warning light switches on constantly (on some
versions, with a message on the display and a symbol
on the display) to indicate an airbag system fault.
WARNING
If, when turning the key to MAR, the
warning light
does not switch on or
stays on whilst driving, a fault may be present in
the restraint systems. In this case the airbags
or pretensioners may not be deployed in an
impact or, in a lower number of cases, they may
be deployed accidentally. Before continuing,
contact a Fiat Dealership immediately to have
the system checked.
133GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGESIN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

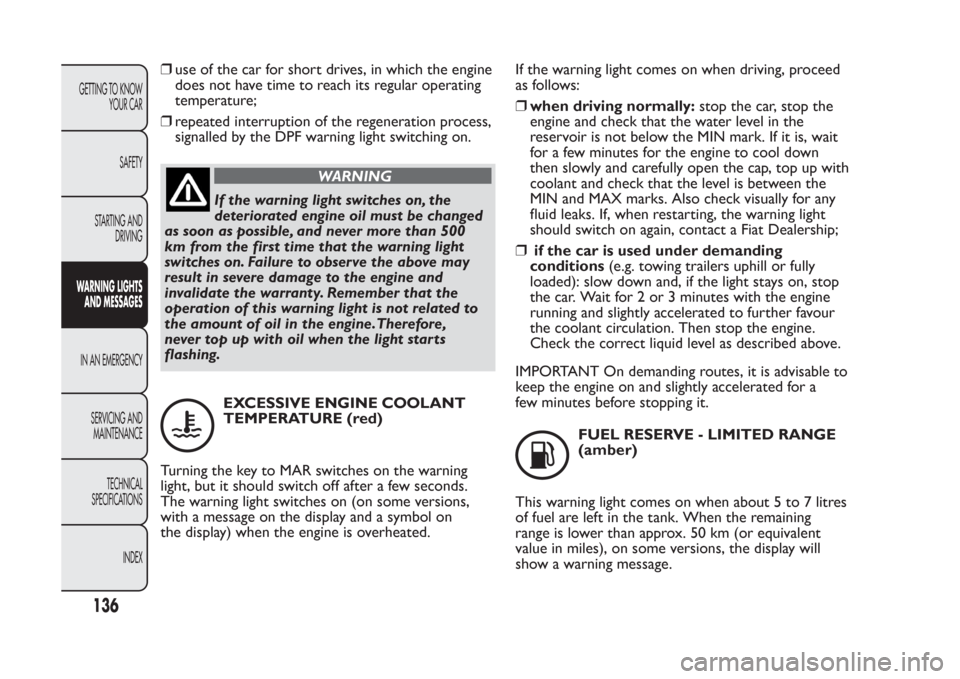

❒use of the car for short drives, in which the engine
does not have time to reach its regular operating
temperature;
❒repeated interruption of the regeneration process,
signalled by the DPF warning light switching on.
WARNING
If the warning light switches on, the
deteriorated engine oil must be changed
as soon as possible, and never more than 500
km from the first time that the warning light
switches on. Failure to observe the above may
result in severe damage to the engine and
invalidate the warranty. Remember that the
operation of this warning light is not related to
the amount of oil in the engine.Therefore,
never top up with oil when the light starts
flashing.EXCESSIVE ENGINE COOLANT
TEMPERATURE (red)
Turning the key to MAR switches on the warning
light, but it should switch off after a few seconds.
The warning light switches on (on some versions,
with a message on the display and a symbol on
the display) when the engine is overheated.If the warning light comes on when driving, proceed
as follows:
❒when driving normally:stop the car, stop the
engine and check that the water level in the
reservoir is not below the MIN mark. If it is, wait
for a few minutes for the engine to cool down
then slowly and carefully open the cap, top up with
coolant and check that the level is between the
MIN and MAX marks. Also check visually for any
fluid leaks. If, when restarting, the warning light
should switch on again, contact a Fiat Dealership;
❒if the car is used under demanding
conditions(e.g. towing trailers uphill or fully
loaded): slow down and, if the light stays on, stop
the car. Wait for 2 or 3 minutes with the engine
running and slightly accelerated to further favour
the coolant circulation. Then stop the engine.
Check the correct liquid level as described above.
IMPORTANT On demanding routes, it is advisable to
keep the engine on and slightly accelerated for a
few minutes before stopping it.
FUEL RESERVE - LIMITED RANGE
(amber)
This warning light comes on when about 5 to 7 litres
of fuel are left in the tank. When the remaining
range is lower than approx. 50 km (or equivalent
value in miles), on some versions, the display will
show a warning message.
136
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGESIN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
