fog light bulb FIAT PANDA 2015 319 / 3.G Owners Manual

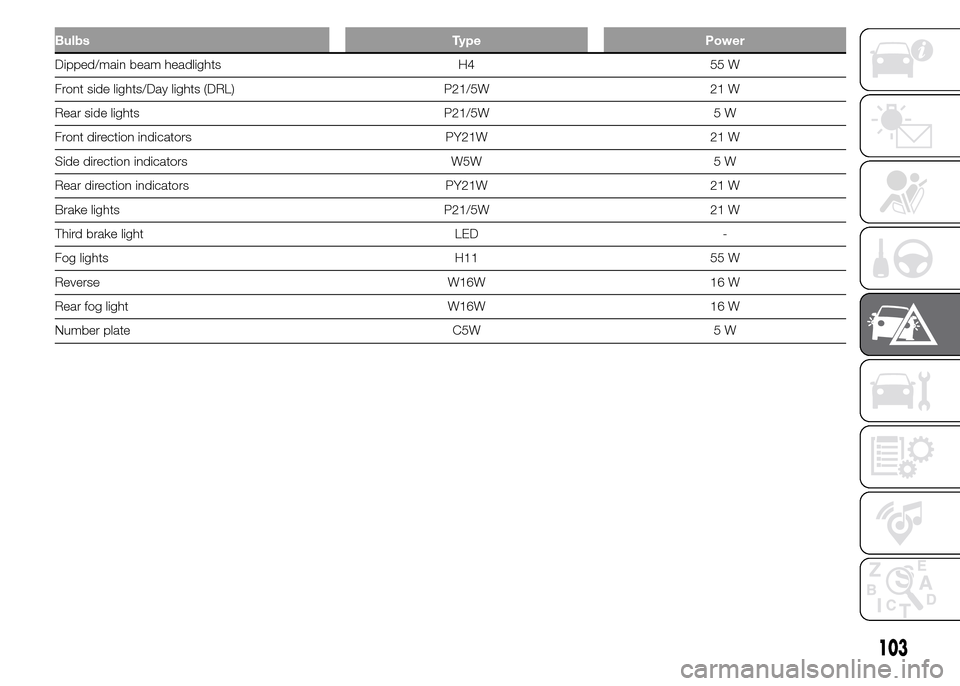

Bulbs Type Power
Dipped/main beam headlights H4 55 W
Front side lights/Day lights (DRL) P21/5W 21 W
Rear side lights P21/5W 5 W
Front direction indicators PY21W 21 W
Side direction indicators W5W 5 W
Rear direction indicators PY21W 21 W
Brake lights P21/5W 21 W
Third brake light LED -
Fog lights H11 55 W
Reverse W16W 16 W
Rear fog light W16W 16 W
Number plate C5W 5 W
103

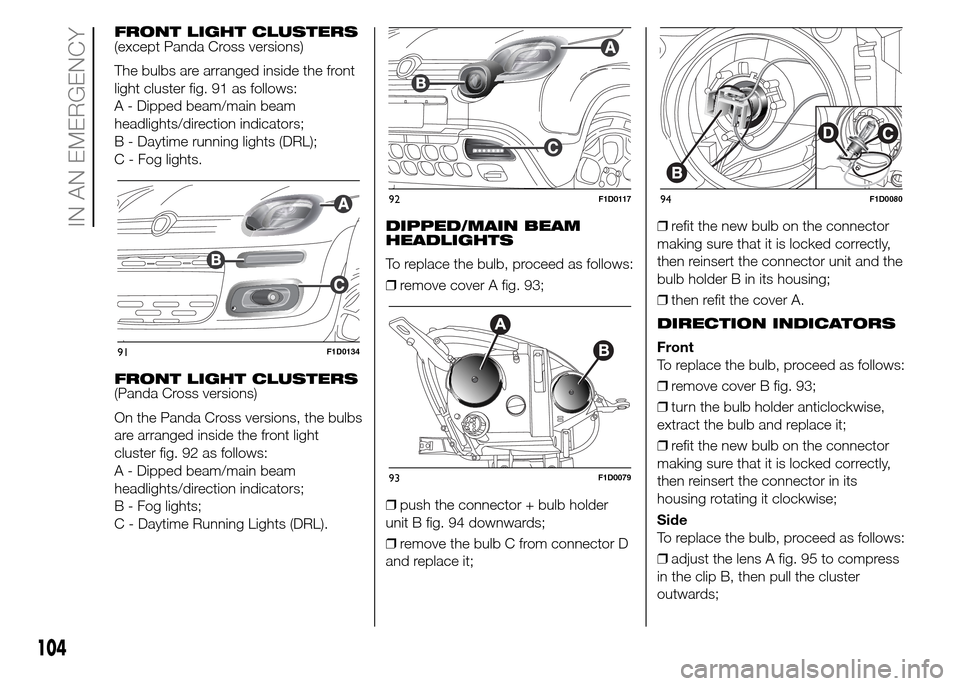

FRONT LIGHT CLUSTERS
(except Panda Cross versions)
The bulbs are arranged inside the front
light cluster fig. 91 as follows:
A - Dipped beam/main beam
headlights/direction indicators;
B - Daytime running lights (DRL);
C - Fog lights.
FRONT LIGHT CLUSTERS
(Panda Cross versions)
On the Panda Cross versions, the bulbs
are arranged inside the front light
cluster fig. 92 as follows:
A - Dipped beam/main beam
headlights/direction indicators;
B - Fog lights;
C - Daytime Running Lights (DRL).DIPPED/MAIN BEAM
HEADLIGHTS
To replace the bulb, proceed as follows:
❒remove cover A fig. 93;
❒push the connector + bulb holder
unit B fig. 94 downwards;
❒remove the bulb C from connector D
and replace it;❒refit the new bulb on the connector
making sure that it is locked correctly,
then reinsert the connector unit and the
bulb holder B in its housing;
❒then refit the cover A.
DIRECTION INDICATORS
Front
To replace the bulb, proceed as follows:
❒remove cover B fig. 93;
❒turn the bulb holder anticlockwise,
extract the bulb and replace it;
❒refit the new bulb on the connector
making sure that it is locked correctly,
then reinsert the connector in its
housing rotating it clockwise;
Side
To replace the bulb, proceed as follows:
❒adjust the lens A fig. 95 to compress
in the clip B, then pull the cluster
outwards;
91F1D0134
92F1D0117
93F1D0079
94F1D0080
104
IN AN EMERGENCY

❒turn the bulb holder C anticlockwise,
extract the bulb and replace it;
❒refit the bulb holder C in the lens and
turn it clockwise;
❒refit the unit making sure that the
internal clip B clicks into position.
FOG LIGHTS
(for versions/markets, where provided -
except Panda Cross versions)
To replace the bulb, proceed as follows:
❒steer the wheel completely inwards,
adjust the screws A fig. 96 and remove
the flap B;
❒adjust the clip C fig. 97 and
disconnect the electrical connector D;
❒rotate and remove the bulb holder
E, release and replace the bulb;
❒refit the new lamp and carry out the
procedure described previously in
reverse.FOG LIGHTS
(Panda Cross versions)
To change the fog light bulb, proceed
as follows:
❒steer both the wheels completely,
loosen the screws A fig. 98 and remove
the guard flap B;
❒locate the fog light unit, rotate it
anticlockwise by a quarter of a turn and
remove it;❒lift the lever A fig. 99 and disconnect
the connector B from the bulb-bulb
holder assembly C;
❒replace the bulb-bulb holder
assembly C;
❒reconnect the assembly to connector
B, reposition assembly C in its housing
by rotating it clockwise by a quarter of a
turn, until it clicks into the correct
position;
95F1D0081
96F1D0082
97F1D0083
98F1D0118
99F1D0119
105

❒reposition the guard door B fig. 98,
taking care that the tabs are positioned
in their housings and tighten the fixing
screws A.
SIDE LIGHTS/DAYTIME
RUNNING LIGHTS (DRL)
(for versions/markets, where provided -
except Panda Cross versions)
To replace the bulb, proceed as follows:
❒steer the wheel completely, adjust
the screws A fig. 96 and remove the
flap B;
❒adjust the clip C fig. 100 and
disconnect the electrical connector D;
❒rotate and remove the bulb holder
E, release and replace the bulb;
❒refit the new lamp and carry out the
procedure described previously in
reverse.DAYTIME RUNNING
LIGHTS (DRL)
(Panda Cross versions)
IMPORTANT To change LED DRLs
contact a Fiat Dealership.
REAR LIGHT CLUSTERS
These contain the bulbs for the side
lights, brake lights and direction
indicators.
To replace the bulb proceed as follows:
❒undo the two screws A fig. 101
from their seats, pull gently outwards
until releasing the whole headlight from
the two clips (press-fitted D fig. 102 )
and release the connector;
❒undo the five screws B from their
seats and remove the bulb holder C;
❒remove the bulbs, pushing them
slightly and turning them anti-
clockwise;❒refit the new lamp and carry out the
procedure described previously in
reverse.
REVERSING LIGHT/REAR
FOG LIGHT
136)
The reversing lights and rear fog lights
are located in the rear bumper.
To replace the bulb, proceed as follows:
❒adjust the tabs A and remove the
flap B fig. 103
100F1D0084
102F1D0086
101F1D0085
106
IN AN EMERGENCY

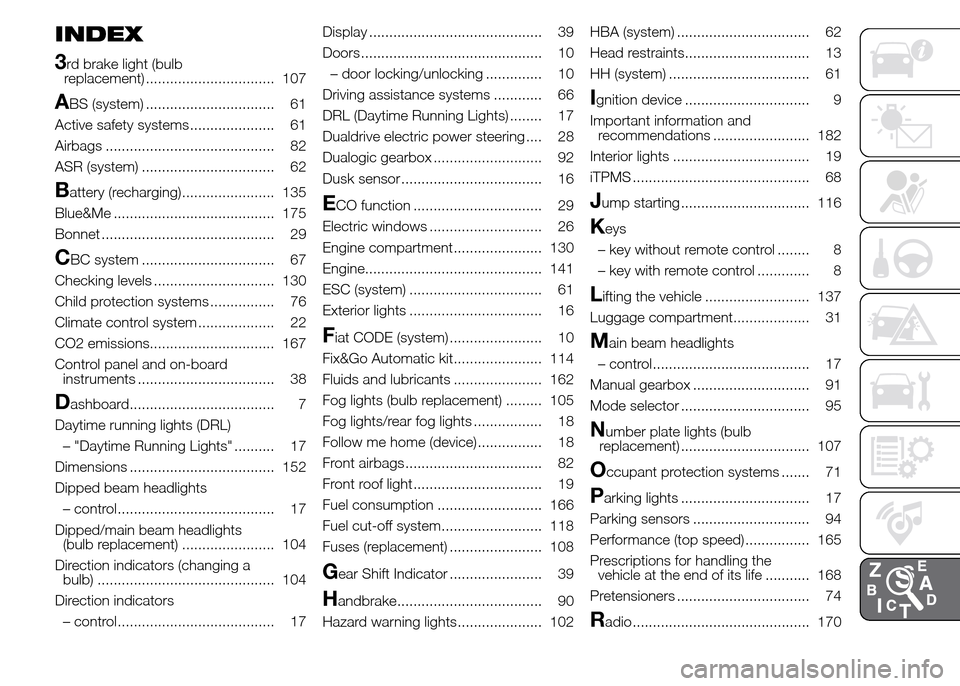

INDEX
3
rd brake light (bulb
replacement) ................................ 107
ABS (system) ................................ 61
Active safety systems ..................... 61
Airbags .......................................... 82
ASR (system) ................................. 62
Battery (recharging)....................... 135
Blue&Me ........................................ 175
Bonnet ........................................... 29
CBC system ................................. 67
Checking levels .............................. 130
Child protection systems ................ 76
Climate control system ................... 22
CO2 emissions............................... 167
Control panel and on-board
instruments .................................. 38
Dashboard.................................... 7
Daytime running lights (DRL)
– "Daytime Running Lights" .......... 17
Dimensions .................................... 152
Dipped beam headlights
– control....................................... 17
Dipped/main beam headlights
(bulb replacement) ....................... 104
Direction indicators (changing a
bulb) ............................................ 104
Direction indicators
– control....................................... 17Display ........................................... 39
Doors ............................................. 10
– door locking/unlocking .............. 10
Driving assistance systems ............ 66
DRL (Daytime Running Lights) ........ 17
Dualdrive electric power steering .... 28
Dualogic gearbox ........................... 92
Dusk sensor ................................... 16
ECO function ................................ 29
Electric windows ............................ 26
Engine compartment...................... 130
Engine............................................ 141
ESC (system) ................................. 61
Exterior lights ................................. 16
Fiat CODE (system) ....................... 10
Fix&Go Automatic kit...................... 114
Fluids and lubricants ...................... 162
Fog lights (bulb replacement) ......... 105
Fog lights/rear fog lights ................. 18
Follow me home (device) ................ 18
Front airbags .................................. 82
Front roof light ................................ 19
Fuel consumption .......................... 166
Fuel cut-off system......................... 118
Fuses (replacement) ....................... 108
Gear Shift Indicator ....................... 39
Handbrake.................................... 90
Hazard warning lights..................... 102HBA (system) ................................. 62
Head restraints............................... 13
HH (system) ................................... 61
Ignition device ............................... 9
Important information and
recommendations ........................ 182
Interior lights .................................. 19
iTPMS ............................................ 68
Jump starting ................................ 116
Keys
– key without remote control ........ 8
– key with remote control ............. 8
Lifting the vehicle .......................... 137
Luggage compartment................... 31
Main beam headlights
– control....................................... 17
Manual gearbox ............................. 91
Mode selector ................................ 95
Number plate lights (bulb
replacement) ................................ 107
Occupant protection systems ....... 71
Parking lights ................................ 17
Parking sensors ............................. 94
Performance (top speed) ................ 165
Prescriptions for handling the
vehicle at the end of its life ........... 168
Pretensioners ................................. 74
Radio ............................................ 170

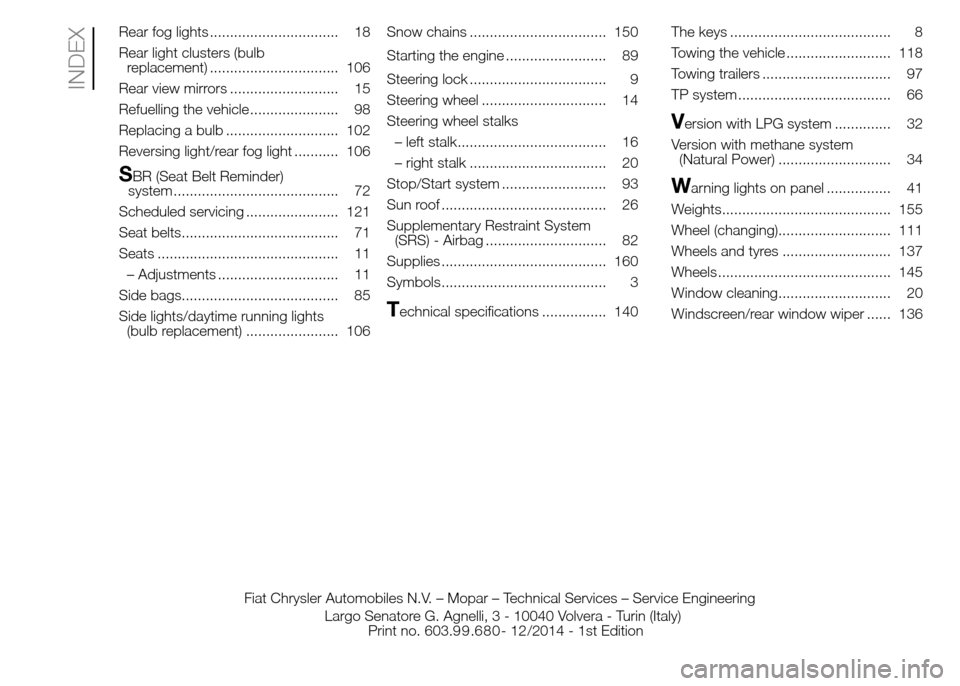

Rear fog lights ................................ 18
