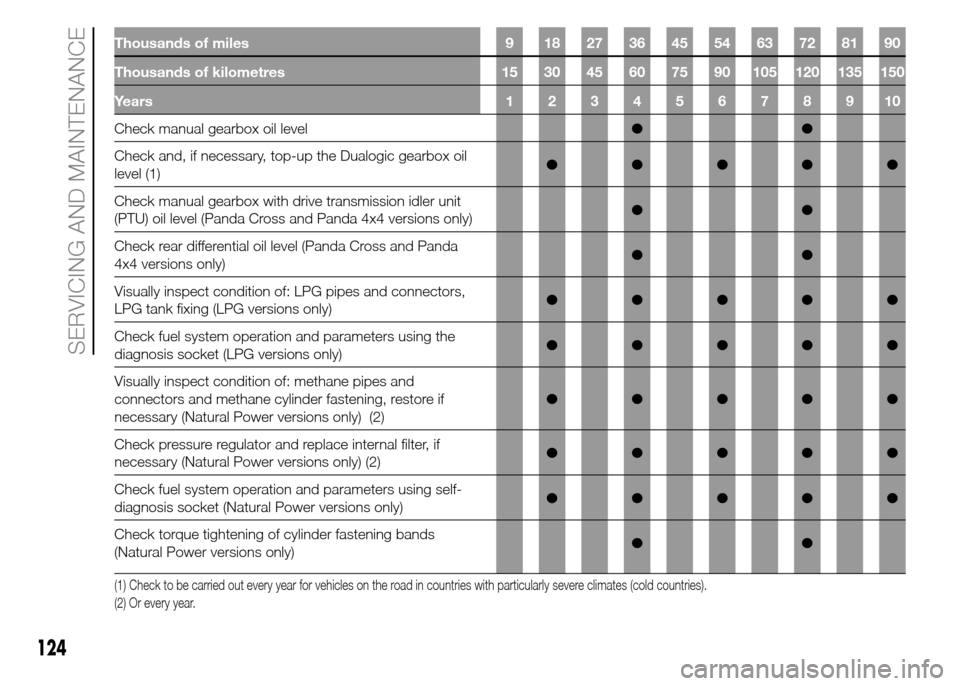

Thousands of miles 9 18 27 36 45 54 63 72 81 90
Thousands of kilometres 15 30 45 60 75 90 105 120 135 150
Years12345678910
Check manual gearbox oil level●●
Check and, if necessary, top-up the Dualogic gearbox oil
level (1)●●●●●
Check manual gearbox with drive transmission idler unit
(PTU) oil level (Panda Cross and Panda 4x4 versions only)●●
Check rear differential oil level (Panda Cross and Panda
4x4 versions only)●●
Visually inspect condition of: LPG pipes and connectors,
LPG tank fixing (LPG versions only)●●●●●
Check fuel system operation and parameters using the
diagnosis socket (LPG versions only)●●●●●
Visually inspect condition of: methane pipes and
connectors and methane cylinder fastening, restore if
necessary (Natural Power versions only) (2)●●●●●
Check pressure regulator and replace internal filter, if
necessary (Natural Power versions only) (2)●●●●●
Check fuel system operation and parameters using self-
diagnosis socket (Natural Power versions only)●●●●●
Check torque tightening of cylinder fastening bands
(Natural Power versions only)●●
(1) Check to be carried out every year for vehicles on the road in countries with particularly severe climates (cold countries).
(2) Or every year.
124
SERVICING AND MAINTENANCE

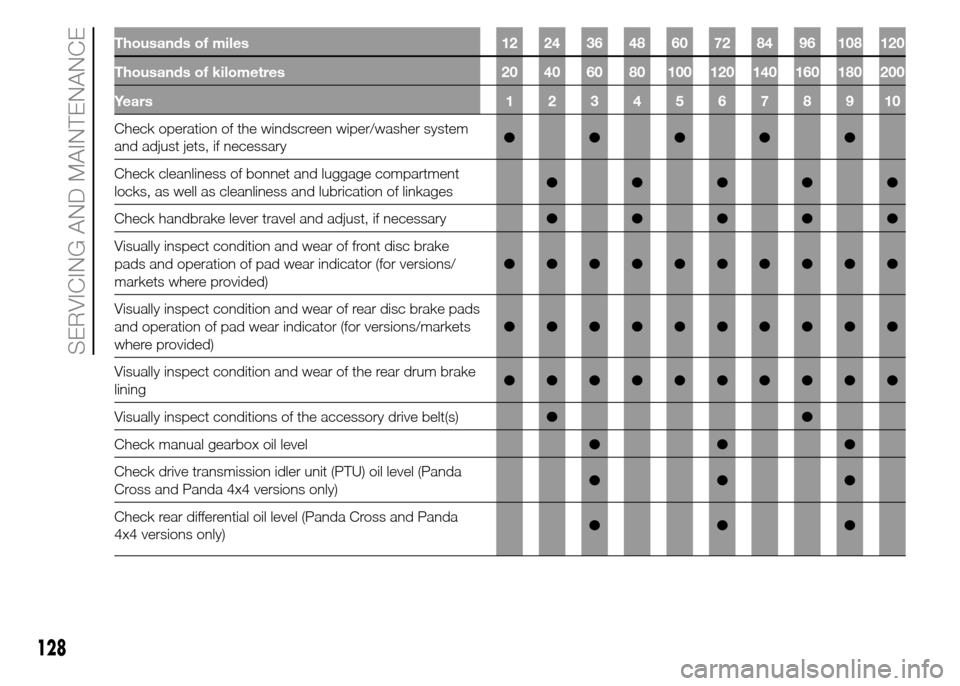

Thousands of miles 12 24 36 48 60 72 84 96 108 120
Thousands of kilometres 20 40 60 80 100 120 140 160 180 200
Years12345678910
Check operation of the windscreen wiper/washer system
and adjust jets, if necessary●●●●●
Check cleanliness of bonnet and luggage compartment
locks, as well as cleanliness and lubrication of linkages●●●●●
Check handbrake lever travel and adjust, if necessary●●●●●
Visually inspect condition and wear of front disc brake
pads and operation of pad wear indicator (for versions/
markets where provided)●●●●●●●●●●
Visually inspect condition and wear of rear disc brake pads
and operation of pad wear indicator (for versions/markets
where provided)●●●●●●●●●●
Visually inspect condition and wear of the rear drum brake
lining●●●●●●●●●●
Visually inspect conditions of the accessory drive belt(s)●●
Check manual gearbox oil level●●●
Check drive transmission idler unit (PTU) oil level (Panda
Cross and Panda 4x4 versions only)●●●
Check rear differential oil level (Panda Cross and Panda
4x4 versions only)●●●
128
SERVICING AND MAINTENANCE

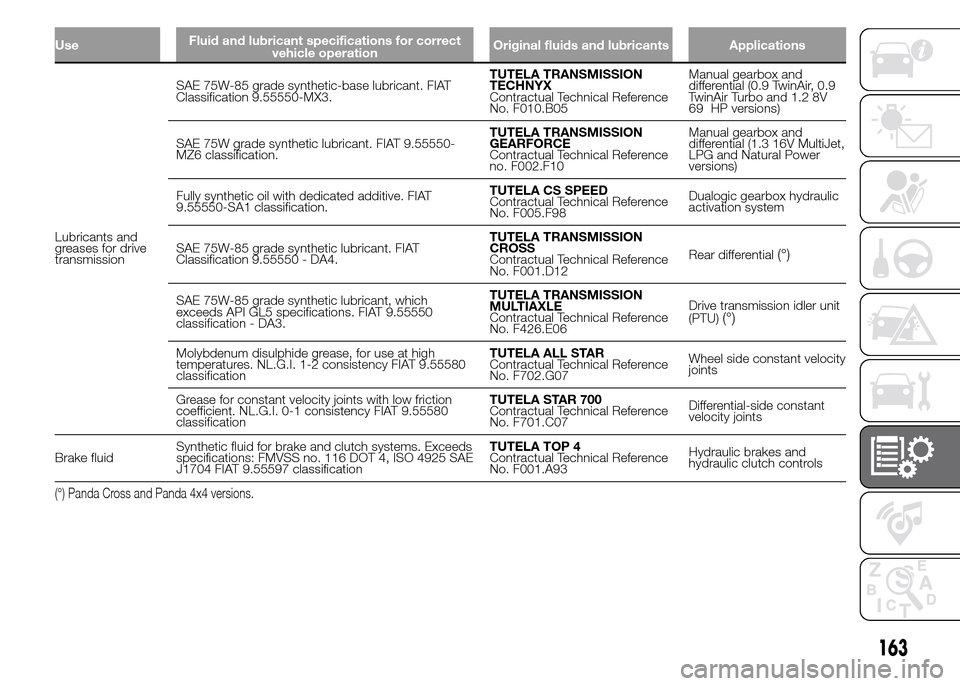

UseFluid and lubricant specifications for correct
