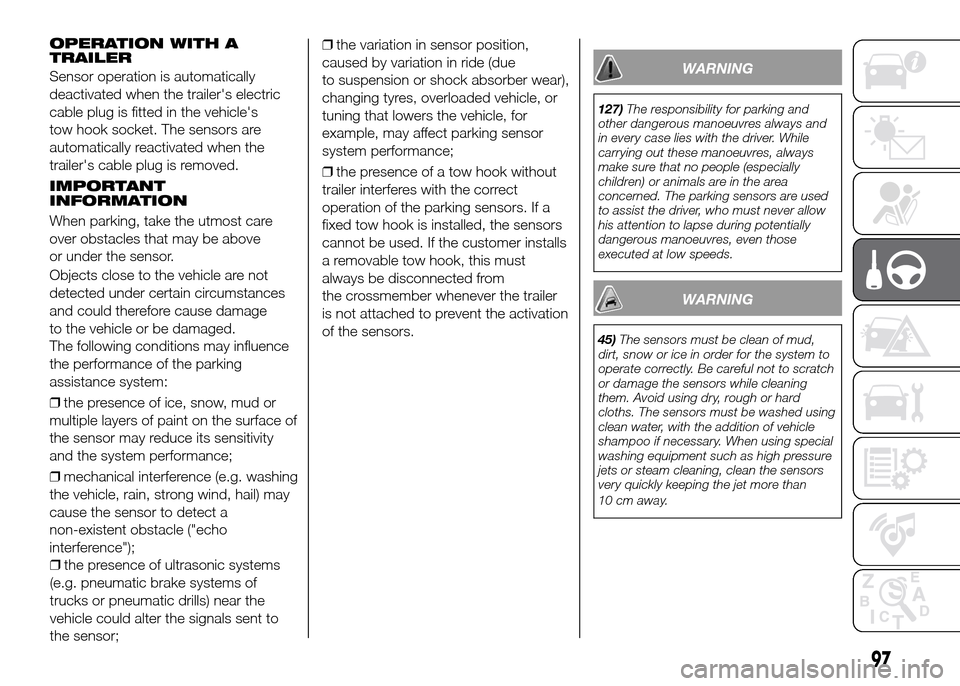

OPERATION WITH A
TRAILER
Sensor operation is automatically
deactivated when the trailer's electric
cable plug is fitted in the vehicle's
tow hook socket. The sensors are
automatically reactivated when the
trailer's cable plug is removed.
IMPORTANT
INFORMATION
When parking, take the utmost care
over obstacles that may be above
or under the sensor.
Objects close to the vehicle are not
detected under certain circumstances
and could therefore cause damage
to the vehicle or be damaged.
The following conditions may influence
the performance of the parking
assistance system:
❒the presence of ice, snow, mud or
multiple layers of paint on the surface of
the sensor may reduce its sensitivity
and the system performance;
❒mechanical interference (e.g. washing
the vehicle, rain, strong wind, hail) may
cause the sensor to detect a
non-existent obstacle ("echo
interference");
97
❒the presence of ultrasonic systems
(e.g. pneumatic brake systems of
trucks or pneumatic drills) near the
vehicle could alter the signals sent to
the sensor;
❒the variation in sensor position,
caused by variation in ride (due
to suspension or shock absorber wear),
changing tyres, overloaded vehicle, or
tuning that lowers the vehicle, for
example, may affect parking sensor
system performance;
❒the presence of a tow hook without
trailer interferes with the correct
operation of the parking sensors. If a
fixed tow hook is installed, the sensors
cannot be used. If the customer installs
a removable tow hook, this must
always be disconnected from
the crossmember whenever the trailer
is not attached to prevent the activation
of the sensors.
WARNING
127)The responsibility for parking and
other dangerous manoeuvres always and
in every case lies with the driver. While
carrying out these manoeuvres, always
make sure that no people (especially
children) or animals are in the area
concerned. The parking sensors are used
to assist the driver, who must never allow
his attention to lapse during potentially
dangerous manoeuvres, even those
executed at low speeds.
WARNING
45)The sensors must be clean of mud,
dirt, snow or ice in order for the system to
operate correctly. Be careful not to scratch
or damage the sensors while cleaning
them. Avoid using dry, rough or hard
cloths. The sensors must be washed using
clean water, with the addition of vehicle
shampoo if necessary. When using special
washing equipment such as high pressure
jets or steam cleaning, clean the sensors
very quickly keeping the jet more than
10 cm away.

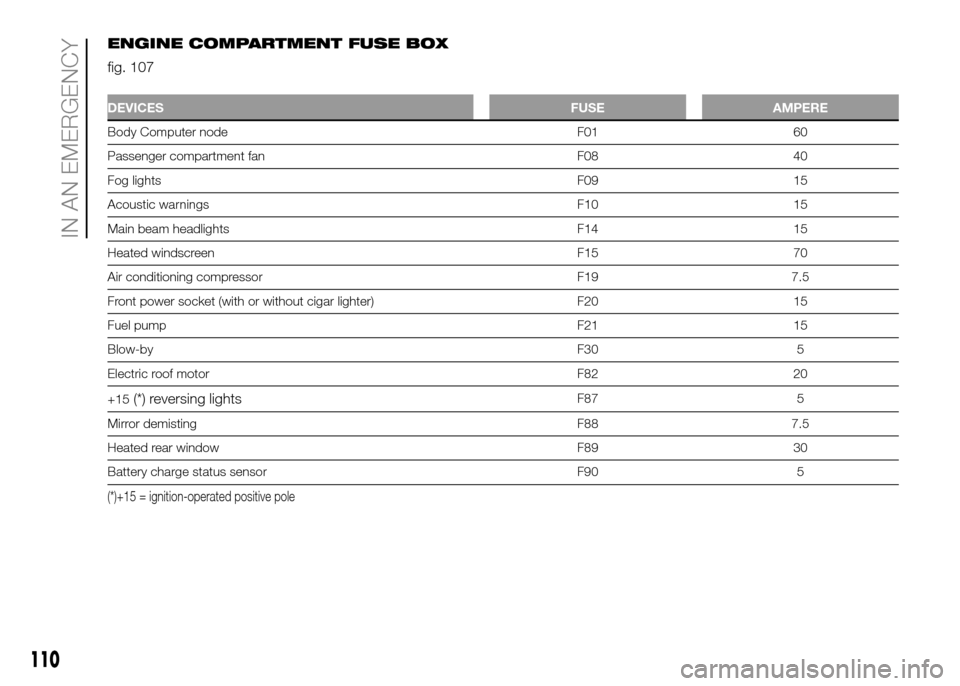

ENGINE COMPARTMENT FUSE BOX
fig. 107
DEVICES FUSE AMPERE
Body Computer node F01 60
Passenger compartment fan F08 40
Fog lightsF09 15
Acoustic warnings F10 15
Main beam headlights F14 15
Heated windscreen F15 70
Air conditioning compressor F19 7.5
Front power socket (with or without cigar lighter) F20 15
Fuel pump F21 15
Blow-byF30 5
Electric roof motor F82 20
+15
(*) reversing lightsF87 5
Mirror demisting F88 7.5
Heated rear window F89 30
Battery charge status sensor F90 5
(*)+15 = ignition-operated positive pole
110
IN AN EMERGENCY

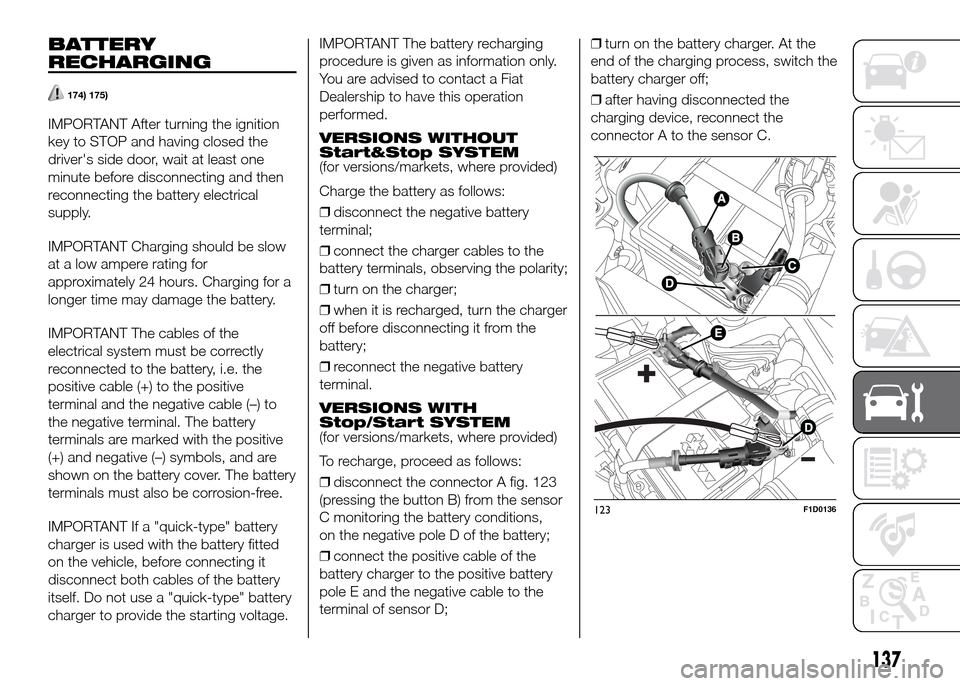

BATTERY
RECHARGING
174) 175)
IMPORTANT After turning the ignition
key to STOP and having closed the
driver's side door, wait at least one
minute before disconnecting and then
reconnecting the battery electrical
supply.
IMPORTANT Charging should be slow
at a low ampere rating for
approximately 24 hours. Charging for a
longer time may damage the battery.
IMPORTANT The cables of the
electrical system must be correctly
reconnected to the battery, i.e. the
positive cable (+) to the positive
terminal and the negative cable (–) to
the negative terminal. The battery
terminals are marked with the positive
(+) and negative (–) symbols, and are
shown on the battery cover. The battery
terminals must also be corrosion-free.
IMPORTANT If a "quick-type" battery
charger is used with the battery fitted
on the vehicle, before connecting it
disconnect both cables of the battery
itself. Do not use a "quick-type" battery
charger to provide the starting voltage.IMPORTANT The battery recharging
procedure is given as information only.
You are advised to contact a Fiat
Dealership to have this operation
performed.
VERSIONS WITHOUT
Start&Stop SYSTEM
(for versions/markets, where provided)
Charge the battery as follows:
❒disconnect the negative battery
terminal;
❒connect the charger cables to the
battery terminals, observing the polarity;
❒turn on the charger;
❒when it is recharged, turn the charger
off before disconnecting it from the
battery;
❒reconnect the negative battery
terminal.
VERSIONS WITH
Stop/Start SYSTEM
(for versions/markets, where provided)
To recharge, proceed as follows:
❒disconnect the connector A fig. 123
(pressing the button B) from the sensor
C monitoring the battery conditions,
on the negative pole D of the battery;
❒connect the positive cable of the
battery charger to the positive battery
pole E and the negative cable to the
terminal of sensor D;❒turn on the battery charger. At the
end of the charging process, switch the
battery charger off;
❒after having disconnected the
charging device, reconnect the
connector A to the sensor C.
123F1D0136
137

INDEX
3
rd brake light (bulb
replacement) ................................ 108
ABS (system) ................................ 61
Active safety systems ..................... 61
Airbags .......................................... 85
ASR (system) ................................. 62
Battery (recharging)....................... 137
Blue&Me ........................................ 182
Bonnet ........................................... 29
CBC system ................................. 67
Checking levels .............................. 131
Child protection systems ................ 76
Climate control system ................... 22
CO2 emissions............................... 174
Control panel and on-board
instruments .................................. 38
Dashboard.................................... 7
Daytime running lights (DRL)
– "Daytime Running Lights" .......... 17
Dimensions .................................... 155
Dipped beam headlights
– control....................................... 17
Dipped/main beam headlights
(bulb replacement) ....................... 105
Direction indicators (changing a
bulb) ............................................ 105
Direction indicators
– control....................................... 17Display ........................................... 39
Doors ............................................. 10
– door locking/unlocking .............. 10
Driving assistance systems ............ 66
DRL (Daytime Running Lights) ........ 17
Dualdrive electric power steering .... 28
Dualogic gearbox ........................... 94
Dusk sensor ................................... 16
ECO function ................................ 29
Electric windows ............................ 26
Engine compartment...................... 131
Engine............................................ 143
ESC (system) ................................. 61
Exterior lights ................................. 16
Fiat CODE (system) ....................... 10
Fix&Go Automatic kit...................... 115
Fluids and lubricants ...................... 1
Fog lights (bulb replacement) ......... 106
Fog lights/rear fog lights ................. 18
Follow me home (device) ................ 18
Front airbags .................................. 85
Front roof light ................................ 19
Fuel consumption .......................... 172
Fuel cut-off system......................... 119
Fuses (replacement) ....................... 109
Gear Shift Indicator ....................... 39
Handbrake.................................... 93
Hazard warning lights..................... 103HBA (system) ................................. 62
Head restraints............................... 13
HH (system) ................................... 61
Ignition device ............................... 9
Important information and
recommendations ........................ 19
Interior lights .................................. 19
iTPMS ............................................ 68
Jump starting ................................ 117
Keys
– key without remote control ........ 8
– key with remote control ............. 8
Lifting the vehicle .......................... 139
Luggage compartment................... 31
Main beam headlights
– control....................................... 17
Manual gearbox ............................. 94
Mode selector ................................ 98
Number plate lights (bulb
replacement) ................................ 108
Occupant protection systems ....... 71
Parking lights ................................ 17
Parking sensors ............................. 96
Performance (top speed) ................ 17
Prescriptions for handling the
vehicle at the end of its life ........... 17 5
Pretensioners ................................. 74
Radio ............................................ 1
682
