sensor FIAT PUNTO 2014 Owner handbook (in English)

82SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICES

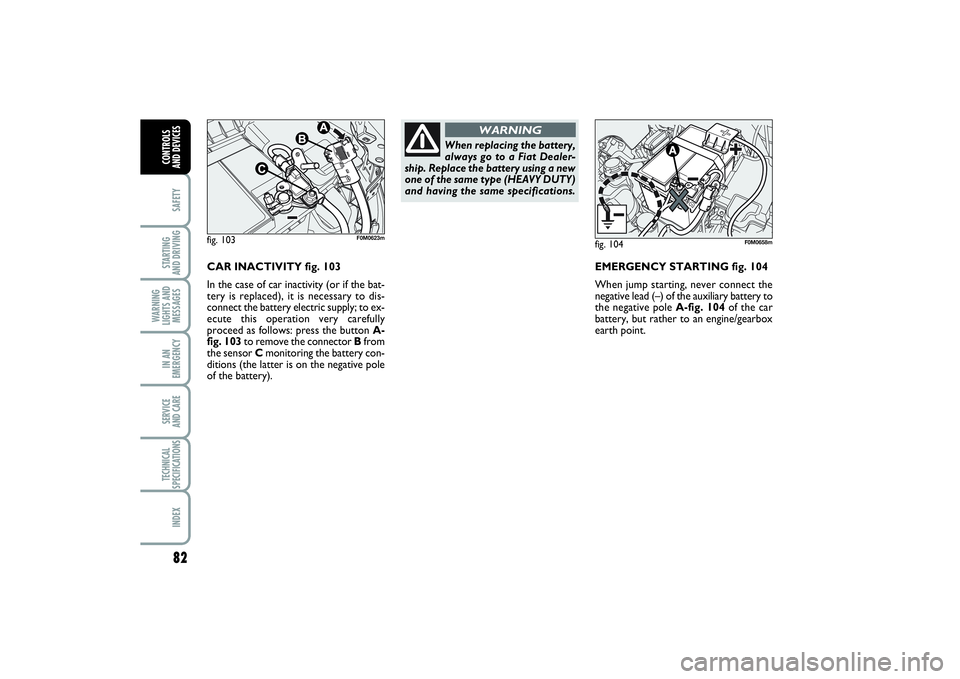

CAR INACTIVITY fig. 103
In the case of car inactivity (or if the bat-
tery is replaced), it is necessary to dis-
connect the battery electric supply; to ex-
ecute this operation very carefully
proceed as follows: press the button A-
fig. 103to remove the connector Bfrom
the sensor Cmonitoring the battery con-
ditions (the latter is on the negative pole
of the battery).EMERGENCY STARTING fig. 104
When jump starting, never connect the
negative lead (–) of the auxiliary battery to
the negative pole A-fig. 104of the car
battery, but rather to an engine/gearbox
earth point.
When replacing the battery,
always go to a Fiat Dealer-
ship. Replace the battery using a new
one of the same type (HEAVY DUTY)
and having the same specifications.
WARNING
fig. 103
F0M0623m
fig. 104
F0M0658m
070-090 PUNTO POP 1ed EN 24/09/13 14.23 Pagina 82

89
SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICES

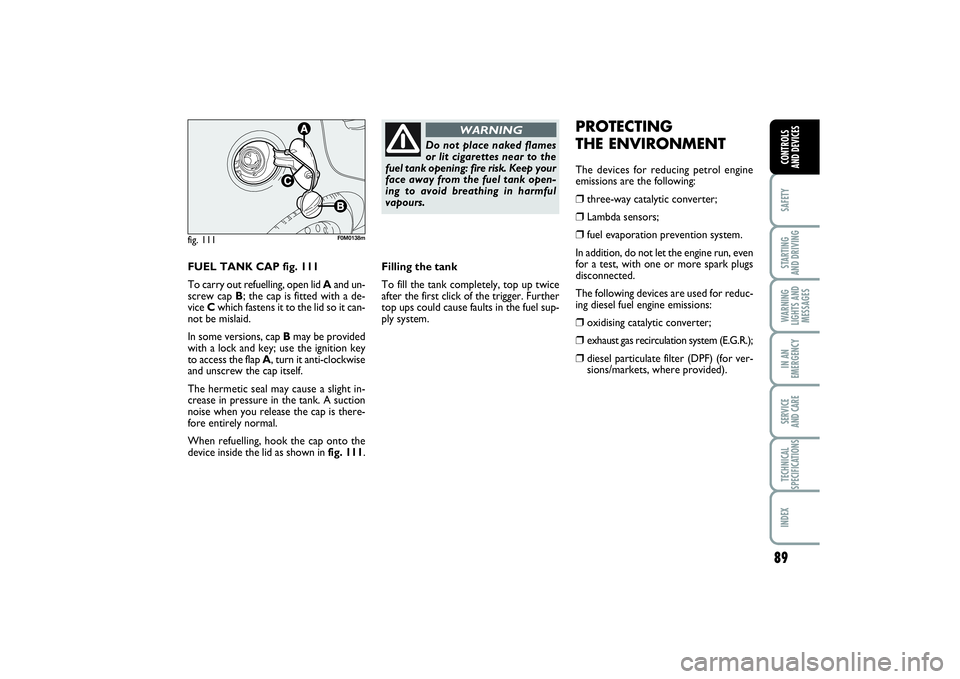

FUEL TANK CAP fig. 111
To carry out refuelling, open lid Aand un-
screw cap B; the cap is fitted with a de-
vice Cwhich fastens it to the lid so it can-
not be mislaid.
In some versions, cap Bmay be provided
with a lock and key; use the ignition key
to access the flap A, turn it anti-clockwise
and unscrew the cap itself.
The hermetic seal may cause a slight in-
crease in pressure in the tank. A suction
noise when you release the cap is there-
fore entirely normal.
When refuelling, hook the cap onto the
device inside the lid as shown in fig. 111.fig. 111
F0M0138m
Do not place naked flames
or lit cigarettes near to the
fuel tank opening: fire risk. Keep your
face away from the fuel tank open-
ing to avoid breathing in harmful
vapours.
WARNING
Filling the tank
To fill the tank completely, top up twice
after the first click of the trigger. Further
top ups could cause faults in the fuel sup-
ply system.
PROTECTING
THE ENVIRONMENTThe devices for reducing petrol engine
emissions are the following:❒
three-way catalytic converter;
❒
Lambda sensors;
❒
fuel evaporation prevention system.
In addition, do not let the engine run, even
for a test, with one or more spark plugs
disconnected.
The following devices are used for reduc-
ing diesel fuel engine emissions:
❒
oxidising catalytic converter;
❒
exhaust gas recirculation system (E.G.R.);
❒
diesel particulate filter (DPF) (for ver-
sions/markets, where provided).
070-090 PUNTO POP 1ed EN 24/09/13 14.23 Pagina 89

129
SAFETYSTARTING
AND DRIVINGIN AN
EMERGENCYSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICESWARNING
LIGHTS AND
MESSAGES

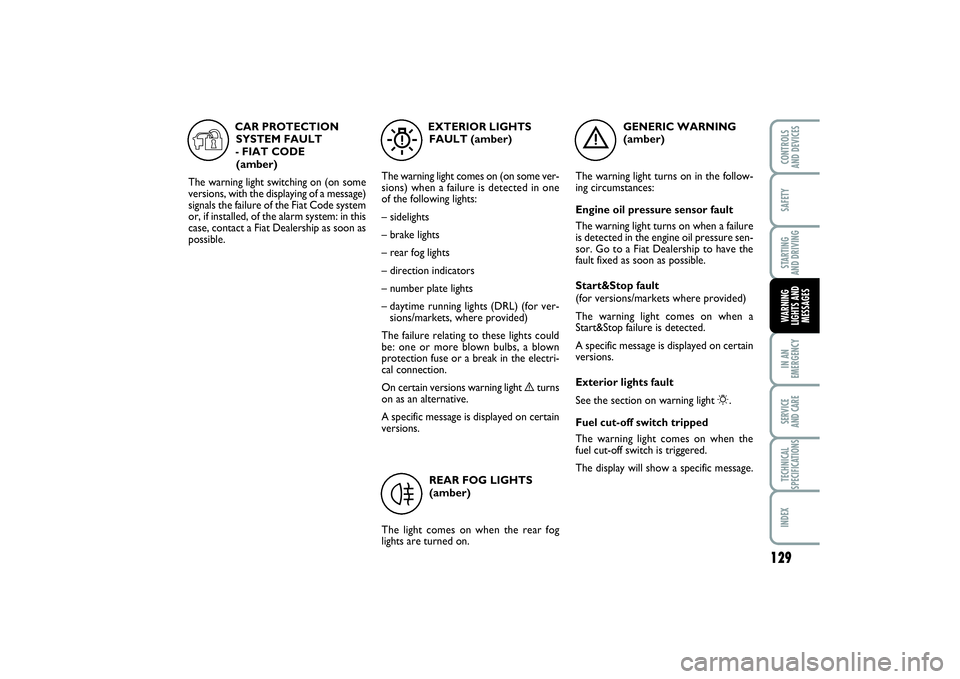

GENERIC WARNING
(amber)
The warning light turns on in the follow-
ing circumstances:
Engine oil pressure sensor fault
The warning light turns on when a failure
is detected in the engine oil pressure sen-
sor. Go to a Fiat Dealership to have the
fault fixed as soon as possible.
Start&Stop fault
(for versions/markets where provided)
The warning light comes on when a
Start&Stop failure is detected.
A specific message is displayed on certain
versions.
Exterior lights fault
See the section on warning light
6
.
Fuel cut-off switch tripped
The warning light comes on when the
fuel cut-off switch is triggered.
The display will show a specific message.
è
EXTERIOR LIGHTS
FAULT (amber)
The warning light comes on (on some ver-
sions) when a failure is detected in one
of the following lights:
– sidelights
– brake lights
– rear fog lights
– direction indicators
– number plate lights
– daytime running lights (DRL) (for ver-
sions/markets, where provided)
The failure relating to these lights could
be: one or more blown bulbs, a blown
protection fuse or a break in the electri-
cal connection.
On certain versions warning light èturns
on as an alternative.
A specific message is displayed on certain
versions.
W
REAR FOG LIGHTS
(amber)
The light comes on when the rear fog
lights are turned on.
4
CAR PROTECTION
SYSTEM FAULT
- FIAT CODE
(amber)
The warning light switching on (on some
versions, with the displaying of a message)
signals the failure of the Fiat Code system
or, if installed, of the alarm system: in this
case, contact a Fiat Dealership as soon as
possible.
Y
121-132 PUNTO POP 1ed EN 29/08/13 15.03 Pagina 129

157
SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICESIN AN
EMERGENCY
1 (*)
8 (*)
8
13
2 (*)
5
11
4
6
14
7
12
3
107,5
7,5
5
5
5
10
5
20
20
20
20
5
5

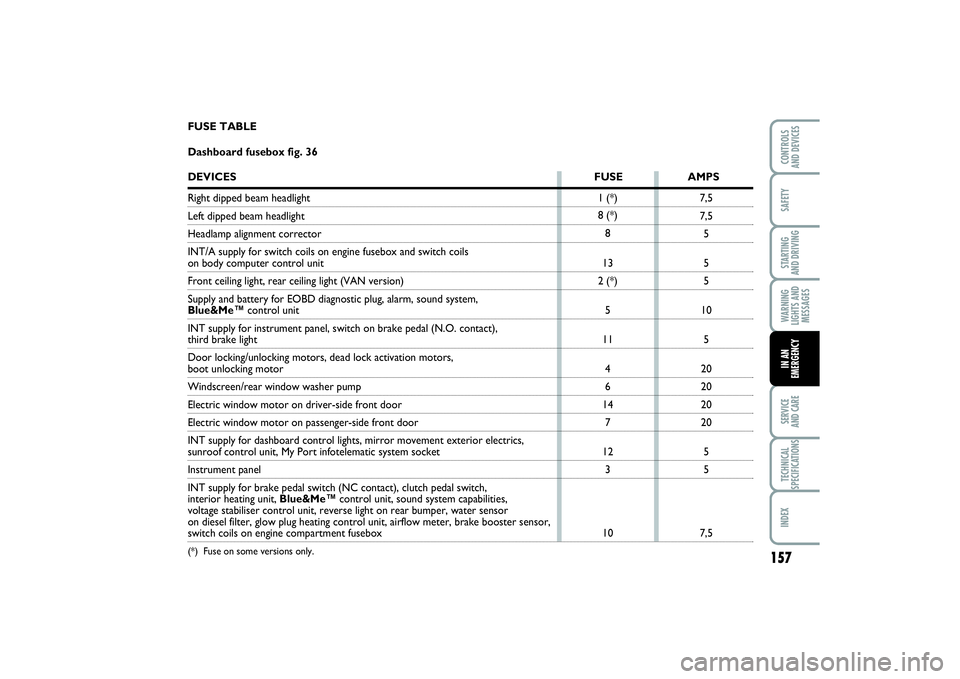

7,5 FUSE TABLE
Dashboard fusebox fig. 36
DEVICESFUSE AMPSRight dipped beam headlightLeft dipped beam headlightHeadlamp alignment corrector
INT/A supply for switch coils on engine fusebox and switch coils on body computer control unitFront ceiling light, rear ceiling light (VAN version)
Supply and battery for EOBD diagnostic plug, alarm, sound system, Blue&Me™control unit
INT supply for instrument panel, switch on brake pedal (N.O. contact), third brake light
Door locking/unlocking motors, dead lock activation motors, boot unlocking motorWindscreen/rear window washer pumpElectric window motor on driver-side front doorElectric window motor on passenger-side front door
INT supply for dashboard control lights, mirror movement exterior electrics, sunroof control unit, My Port infotelematic system socketInstrument panel
INT supply for brake pedal switch (NC contact), clutch pedal switch,
interior heating unit, Blue&Me™control unit, sound system capabilities,
voltage stabiliser control unit, reverse light on rear bumper, water sensor
on diesel filter, glow plug heating control unit, airflow meter, brake booster sensor, switch coils on engine compartment fusebox(*) Fuse on some versions only.
133-164 PUNTO POP 1ed EN 29/08/13 15.08 Pagina 157

159
SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICESIN AN
EMERGENCY
15
7,5
–
15
5
7,5 30
84
85
86
87
88

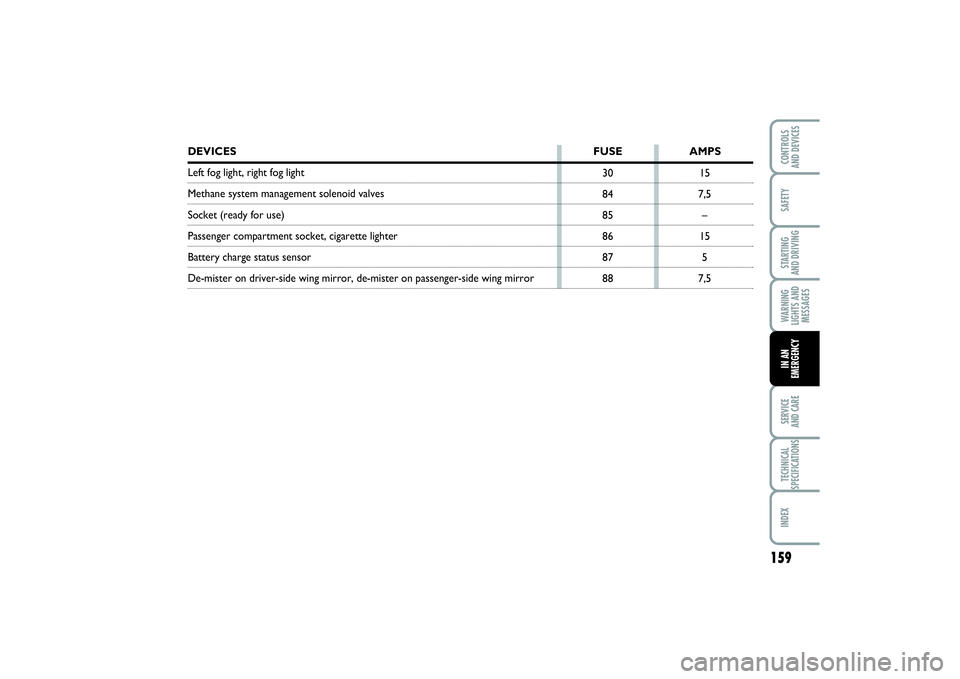

DEVICESFUSE AMPSLeft fog light, right fog lightMethane system management solenoid valves Socket (ready for use)Passenger compartment socket, cigarette lighterBattery charge status sensorDe-mister on driver-side wing mirror, de-mister on passenger-side wing mirror
133-164 PUNTO POP 1ed EN 29/08/13 15.08 Pagina 159

162SAFETYSTARTING
AND DRIVINGWARNING
LIGHTS AND
MESSAGESSERVICE
AND CARETECHNICAL
SPECIFICATIONSINDEXCONTROLS
AND DEVICESIN AN
EMERGENCY
Do not try to recharge
a frozen
battery; defrost it first to pre-
vent the risk of explosion. If the bat-
tery was frozen, have it inspected by
specialised personnel before recharg-
ing to check that the internal ele-
ments are not damaged and that the
casing is not cracked, which could
cause poisonous, corrosive gas to leak.
WARNING
Battery fluid is poisonous
and corrosive: avoid contact
with your skin and eyes. The battery
must be recharged in a ventilated
place away from naked flames or
possible sources of sparks to avoid the
risk of explosion and fire.
WARNING

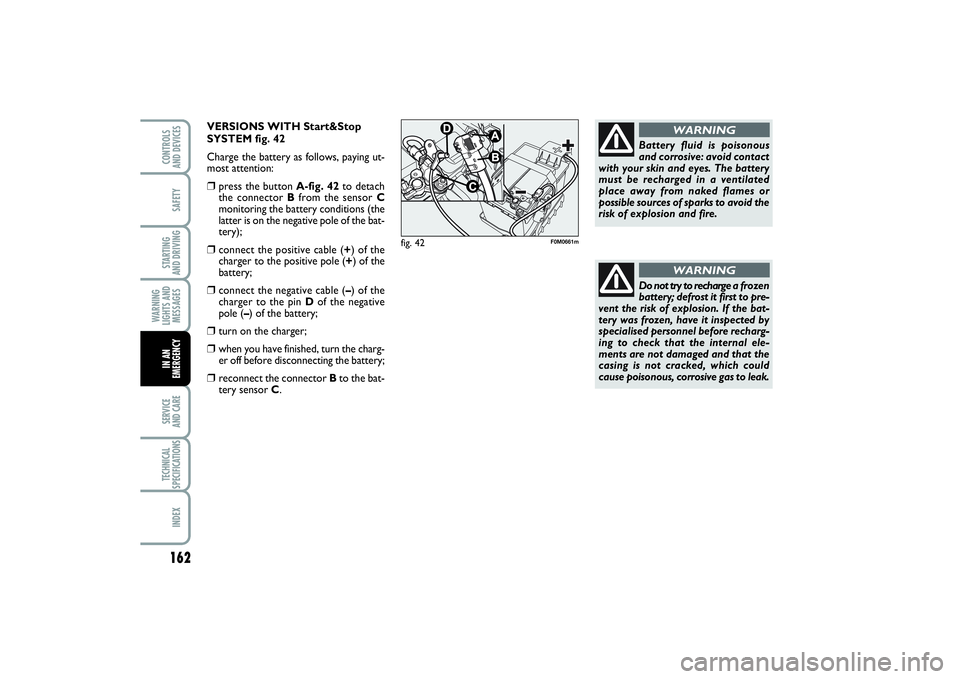

VERSIONS WITH Start&Stop
SYSTEM fig. 42
Charge the battery as follows, paying ut-
most attention: ❒
press the button A-fig. 42to detach
the connector Bfrom the sensor C
monitoring the battery conditions (the
latter is on the negative pole of the bat-
tery);
❒
connect the positive cable (+) of the
charger to the positive pole (+) of the
battery;
❒
connect the negative cable (–) of the
charger to the pin Dof the negative
pole (–) of the battery;
❒
turn on the charger;
❒
when you have finished, turn the charg-
er off before disconnecting the battery;
❒
reconnect the connector Bto the bat-
tery sensor C.
fig. 42
F0M0661m
133-164 PUNTO POP 1ed EN 29/08/13 15.08 Pagina 162
