CHANGING A BULB
GENERAL INSTRUCTIONS
❒When a light is not working, check that the corresponding fuse is intact before
changing the bulb. For the location of
fuses, refer to the “Changing a fuse”
paragraph in this section;
❒before changing a bulb check the con- tacts for rusting;
❒burnt bulbs must be replaced by othersof the same type and wattage;
❒for safety reasons, always check the di-rection of the headlight beam after
changing a bulb.
IMPORTANT The internal surface of the
light may appear slightly misty: this does
not indicate a fault, and is actually caused
by low temperature and the degree of hu-
midity in the air. Misting will rapidly dis-
appear when the headlights are switched
on. The presence of drops inside the head-
lights indicates infiltration of water. Go to
a Fiat Dealership.
TYPES OF BULBS
Various types of bulbs are fitted to your
car:
AGlass bulbs: clipped into position. Pull
to remove. B
Bayonet-type bulbs: to remove from
its holder, press the bulb in and turn
it anti-clockwise.
C Tubular bulbs: release them from
their contacts to remove.
D-E Halogen bulbs: to remove the bulb,
release the clip holding the bulb in
place.
Halogen bulbs must be han-
dled holding the metallic part
only. Touching the transpar-
ent part of the bulb with your
fingers may reduce the intensity of the
light emitted and even compromise the
longevity of the bulb itself. In the event
of accidental contact, wipe the bulb
with an alcohol-soaked cloth and leave
to dry.
Modifications or repairs to
the electrical system (ECUs)
that are not carried out properly or
do not take the system’s technical
specifications into account can cause
malfunctions leading to the risk of fire.
WARNING
Halogen bulbs contain pres-
surised gas which may cause
small fragments of glass to be pro-
jected outwards if the bulb is broken.
WARNING
fig. 15F0M0207m
133-164 PUNTO POP 1ed EN 24/03/14 13:05 Pagina 145

146
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY
Bulbs Figure ref. TypePower
Main beams/Dipped beams
Daylight lights
Front sidelights
Front fog lights (for versions/markets, where provided)
Front direction indicators
Side direction indicators
Rear direction indicators
Tailights
Brake lights
Third brake light
Reverse lights
Rear fog lights
Number plate lights
Front ceiling light with movable lens
Front ceiling light with spot lights
H4
W21W W5W H11
PY21W
WY5W PY21W LED
P21W
W2,3W W16W
W16W W5W
C10W
C10W
D
A
A –
B
A B–
B
B –
–
A
C
C 55 W/60 W
21W5W
55W
21W 5W
21W –
21W
2,3W 16W
16W 5W
10W
10W
133-164 PUNTO POP 1ed EN 24/03/14 13:05 Pagina 146

147
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY

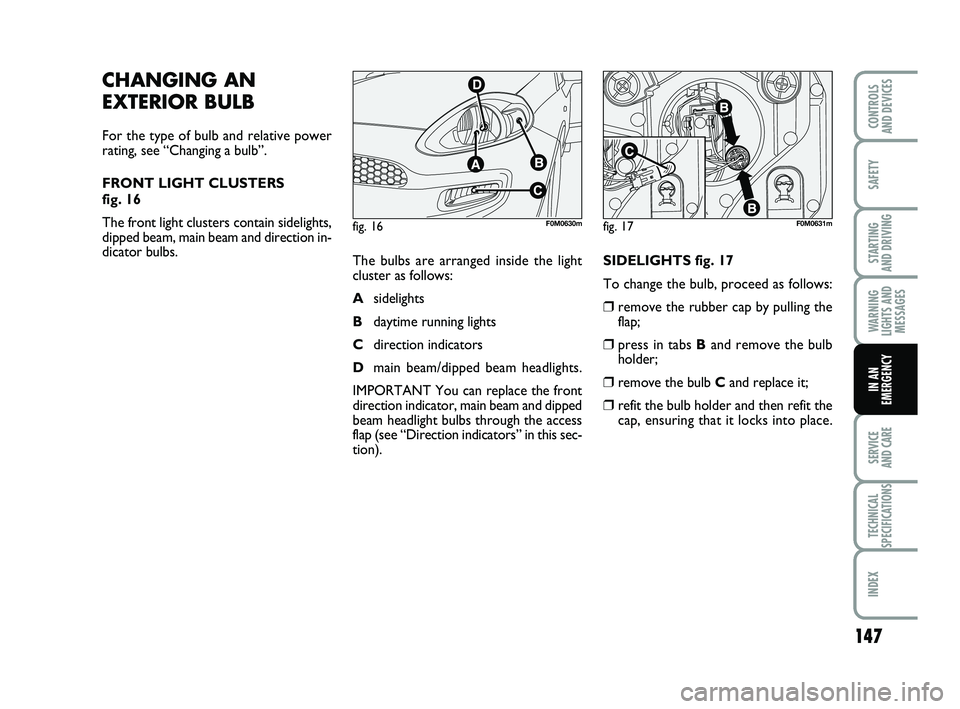

CHANGING AN
EXTERIOR BULB
For the type of bulb and relative power
rating, see “Changing a bulb”.
FRONT LIGHT CLUSTERS
fig. 16
The front light clusters contain sidelights,
dipped beam, main beam and direction in-
dicator bulbs. The bulbs are arranged inside the light
cluster as follows:
Asidelights
B daytime running lights
C direction indicators
D main beam/dipped beam headlights.
IMPORTANT You can replace the front
direction indicator, main beam and dipped
beam headlight bulbs through the access
flap (see “Direction indicators” in this sec-
tion). SIDELIGHTS fig. 17
To change the bulb, proceed as follows:
❒remove the rubber cap by pulling the
flap;
❒press in tabs B
and remove the bulb
holder;
❒remove the bulb C and replace it;
❒refit the bulb holder and then refit the
cap, ensuring that it locks into place.
fig. 16F0M0630mfig. 17F0M0631m
133-164 PUNTO POP 1ed EN 24/03/14 13:05 Pagina 147

148
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY

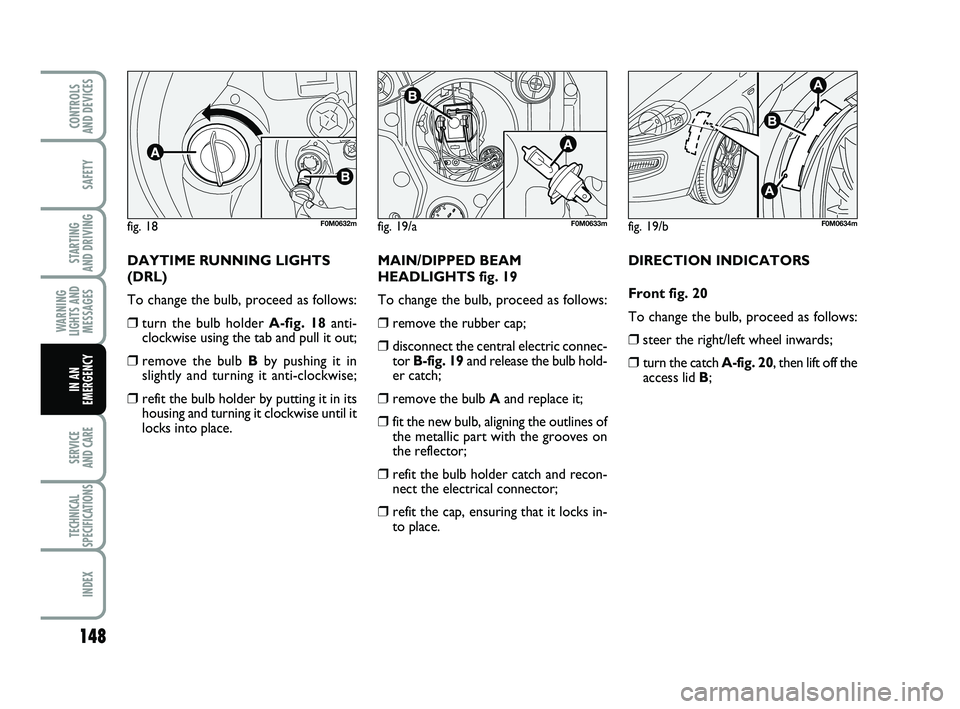

DAYTIME RUNNING LIGHTS
(DRL)
To change the bulb, proceed as follows:
❒turn the bulb holder A-fig. 18 anti-
clockwise using the tab and pull it out;
❒remove the bulb B by pushing it in
slightly and turning it anti-clockwise;
❒refit the bulb holder by putting it in its
housing and turning it clockwise until it
locks into place. MAIN/DIPPED BEAM
HEADLIGHTS fig. 19
To change the bulb, proceed as follows:
❒remove the rubber cap;
❒disconnect the central electric connec-
tor
B-fig. 19 and release the bulb hold-
er catch;
❒remove the bulb Aand replace it;
❒fit the new bulb, aligning the outlines of
the metallic part with the grooves on
the reflector;
❒refit the bulb holder catch and recon-
nect the electrical connector;
❒refit the cap, ensuring that it locks in-
to place. DIRECTION INDICATORS
Front fig. 20
To change the bulb, proceed as follows:
❒steer the right/left wheel inwards;
❒turn the catch A-fig. 20, then lift off the
access lid B
;
fig. 18F0M0632mfig. 19/bF0M0634mfig. 19/aF0M0633m
133-164 PUNTO POP 1ed EN 24/03/14 13:05 Pagina 148

149
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY
❒remove the bulb holder cover C-
fig. 21 by turning it anti-clockwise;
❒remove the bulb D-fig. 22 by pushing
it in gently and turning anti-clockwise
(“bayonet” clamping), then replace it;
❒refit the bulb holder cover C-fig. 21 by
turning it clockwise and locking it prop-
erly;
❒close the lid B-fig. 20 then tighten the
catch A. Side fig. 23
To change the bulb, proceed as follows:
❒slide the lens A
towards the front of
the car to press in the internal catch B,
then pull the unit outwards;
❒turn the bulb holder C anti-clockwise,
extract bulb D and replace it;
❒refit the bulb holder C into the lens by
turning it clockwise;
❒refit the unit making sure the internal
catch Bclicks into place. FRONT FOG LIGHTS
(for versions/markets where provided)
To replace the bulb:
❒loosen the screw A-fig. 24
and re-
move the protection template B;
❒loosen the fixing screws Cand re-
move the headlamp;
fig. 20F0M0635mfig. 21F0M0636m
fig. 24F0M0638m
fig. 23F0M0637m
133-164 PUNTO POP 1ed EN 24/03/14 13:05 Pagina 149

150
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY
❒remove the bulb A-fig. 25 by ro-
tating it counter-clockwise and dis-
connect the electrical connector.

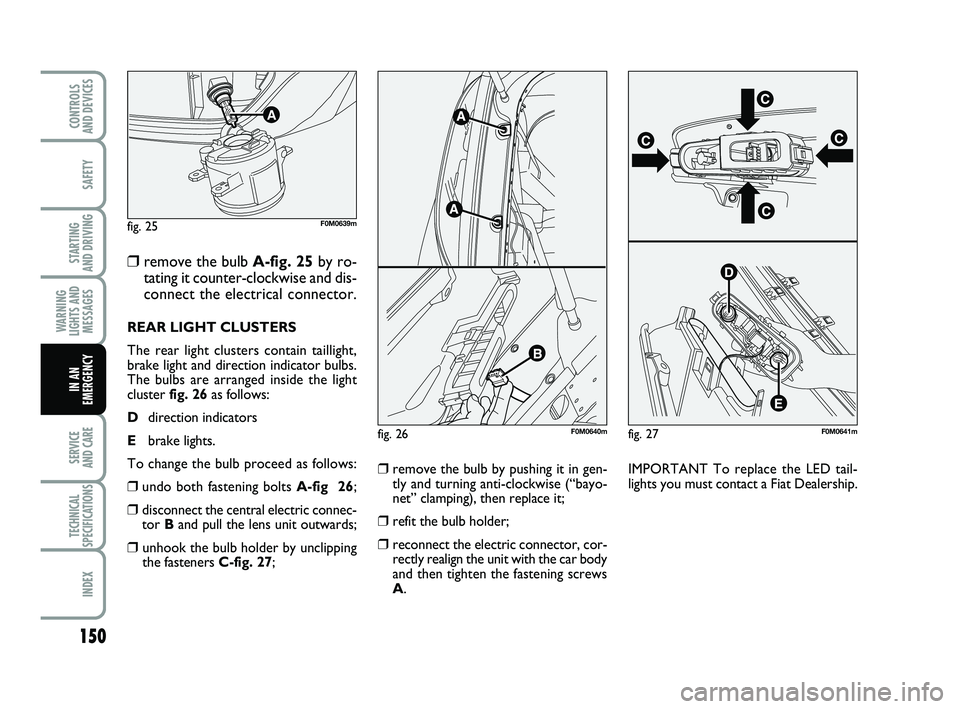

REAR LIGHT CLUSTERS
The rear light clusters contain taillight,
brake light and direction indicator bulbs.
The bulbs are arranged inside the light
cluster fig. 26 as follows:
D direction indicators
E brake lights.
To change the bulb proceed as follows:
❒undo both fastening bolts A-fig 26;
❒disconnect the central electric connec-
tor Band pull the lens unit outwards;
❒ unhook the bulb holder by unclipping
the fasteners C-fig. 27;
❒remove the bulb by pushing it in gen-
tly and turning anti-clockwise (“bayo-
net” clamping), then replace it;
❒refit the bulb holder;
❒reconnect the electric connector, cor-
rectly realign the unit with the car body
and then tighten the fastening screws
A. IMPORTANT To replace the LED tail-
lights you must contact a Fiat Dealership.
fig. 25
A
F0M0639m
fig. 26F0M0640mfig. 27F0M0641m
133-164 PUNTO POP 1ed EN 24/03/14 13:05 Pagina 150

151
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY
REAR FOG LIGHTS fig. 28
Contact a Fiat Dealership to have bulbs
for the rear fog lights Areplaced.
REVERSE LIGHTS fig. 28
Contact a Fiat Dealership to have bulbs
for the reverse lights B replaced.THIRD BRAKE LIGHT fig. 29
To change the bulb proceed as follows:
❒open the boot;
❒remove the rubber caps;
❒press in the catches and remove the
lens unit
C;
❒disconnect the electric connector;
❒press in the tabs Dand remove the
bulb holder;
❒remove the snap-fitted bulb and replace
it. NUMBER PLATE LIGHTS
To change the bulb proceed as follows:
❒manipulate the point shown by the ar-
row and remove the lens unit
A-
fig. 30;
❒change the bulb fig. 31 by releasing it
from the side contacts and making
sure the new bulb is correctly fastened
between these contacts;
❒refit the snap-fitted lens unit.
fig. 28F0M0642mfig. 29F0M0643mfig. 30F0M0644m
fig. 31F0M0645m
133-164 PUNTO POP 1ed EN 24/03/14 13:05 Pagina 151

152
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY

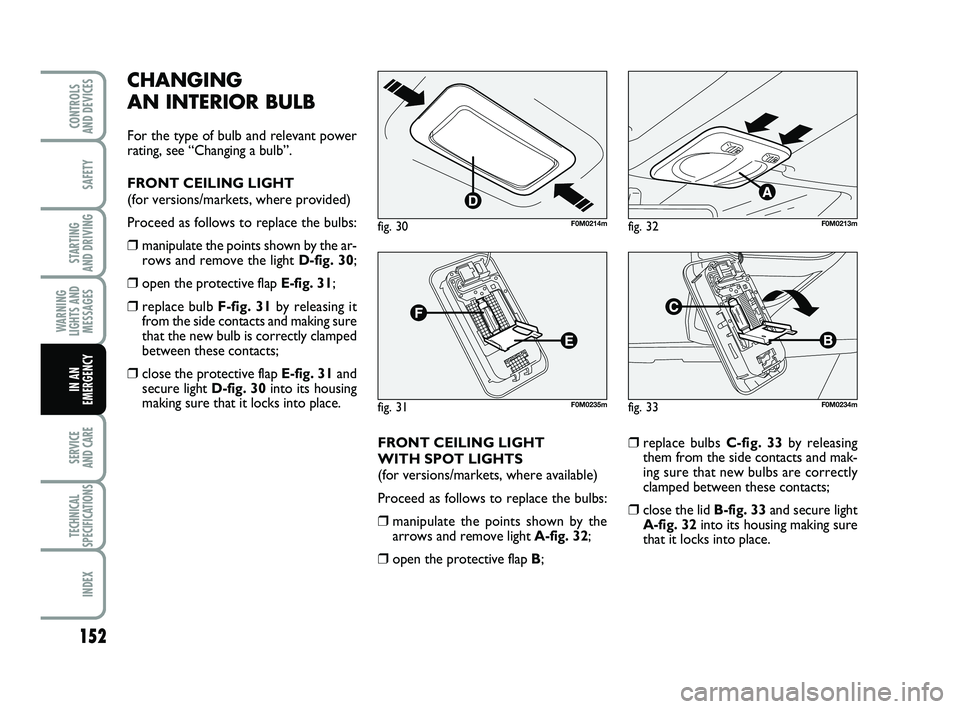

CHANGING
AN INTERIOR BULB
For the type of bulb and relevant power
rating, see “Changing a bulb”.
FRONT CEILING LIGHT
(for versions/markets, where provided)
Proceed as follows to replace the bulbs:
❒manipulate the points shown by the ar- rows and remove the light D-fig. 30 ;
❒open the protective flap E-fig. 31;
❒replace bulb F-fig. 31by releasing it
from the side contacts and making sure
that the new bulb is correctly clamped
between these contacts;
❒close the protective flap E-fig. 31and
secure light D-fig. 30 into its housing
making sure that it locks into place.
FRONT CEILING LIGHT
WITH SPOT LIGHTS
(for versions/markets, where available)
Proceed as follows to replace the bulbs:
❒manipulate the points shown by the arrows and remove light A-fig. 32;
❒open the protective flap B;
❒replace bulbs C-fig. 33 by releasing
them from the side contacts and mak-
ing sure that new bulbs are correctly
clamped between these contacts;
❒close the lid B-fig. 33 and secure light
A-fig. 32 into its housing making sure
that it locks into place.
fig. 32F0M0213m
fig. 33F0M0234m
fig. 30F0M0214m
fig. 31F0M0235m
133-164 PUNTO POP 1ed EN 24/03/14 13:05 Pagina 152
