remote start FIAT PUNTO 2017 Owner handbook (in English)

8
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
KEY WITH REMOTE CONTROL
fig. 4
(for versions/markets, where provided)
The metal insert Aenables:
❒the ignition;
❒the door locks;
❒the fuel cap lock/release (for versions/
markets, where provided).
To open/close the metal insert, press
button B.
Button Ëis used for unlocking the doors
and the boot.
Button
Áis used for locking the doors and
the boot.
Button
Ris used to open the boot re-
motely.
When unlocking the doors, the passenger
compartment lights will come on for
a preset time.

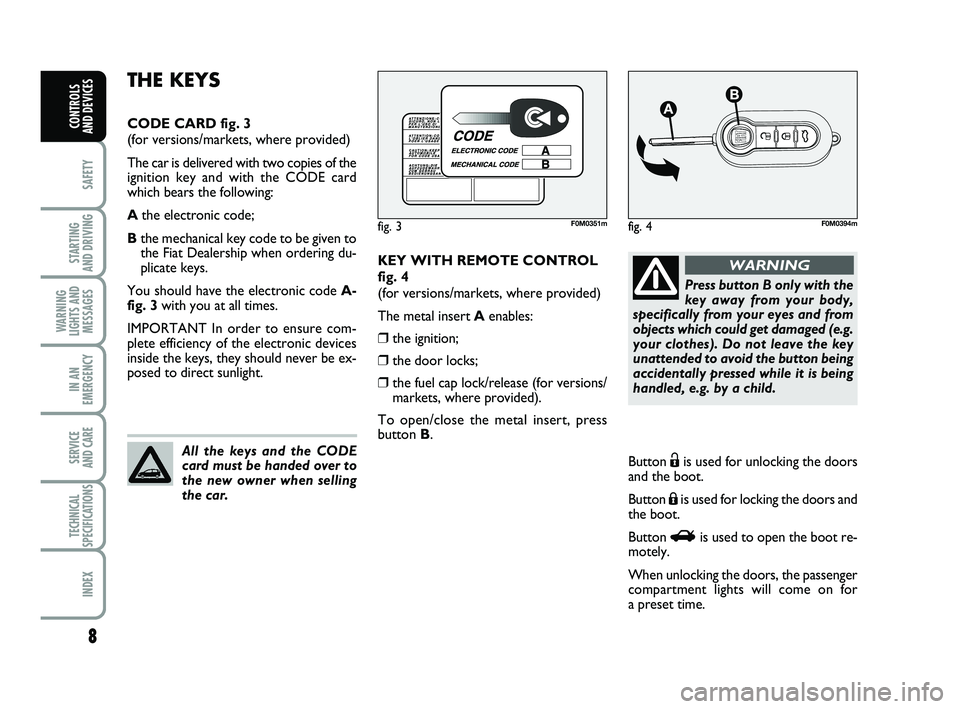

THE KEYS
CODE CARD fig. 3
(for versions/markets, where provided)
The car is delivered with two copies of the
ignition key and with the CODE card
which bears the following:
A the electronic code;
B the mechanical key code to be given to
the Fiat Dealership when ordering du-
plicate keys.
You should have the electronic code A-
fig. 3 with you at all times.
IMPORTANT In order to ensure com-
plete efficiency of the electronic devices
inside the keys, they should never be ex-
posed to direct sunlight.
All the keys and the CODE
card must be handed over to
the new owner when selling
the car.
fig. 3F0M0351m
Press button B only with the
key away from your body,
specifically from your eyes and from
objects which could get damaged (e.g.
your clothes). Do not leave the key
unattended to avoid the button being
accidentally pressed while it is being
handled, e.g. by a child.
WARNING
fig. 4F0M0394mfig.
001-032 PUNTO POP 1ed EN 31/03/14 09:03 Pagina 8

9
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

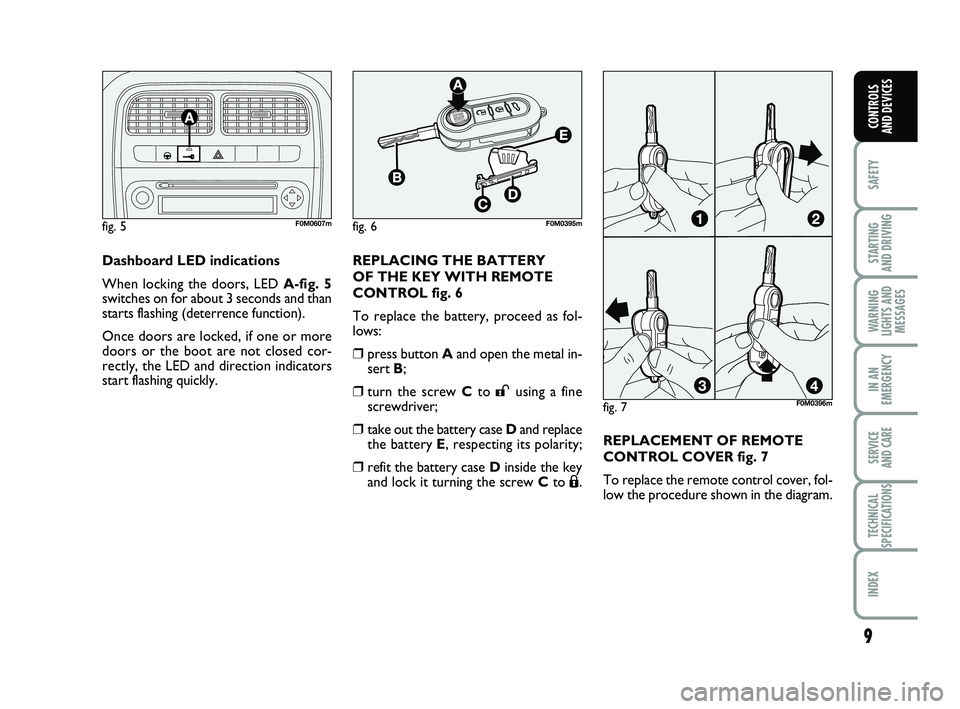

Dashboard LED indications
When locking the doors, LED A-fig. 5
switches on for about 3 seconds and than
starts flashing (deterrence function).
Once doors are locked, if one or more
doors or the boot are not closed cor-
rectly, the LED and direction indicators
start flashing quickly.
fig. 5F0M0607m
fig. 7
fig. 6F0M0395m
F0M0396m
REPLACING THE BATTERY
OF THE KEY WITH REMOTE
CONTROL fig. 6
To replace the battery, proceed as fol-
lows:
❒press button Aand open the metal in-
sert B;
❒turn the screw C to :using a fine
screwdriver;
❒take out the battery case D and replace
the battery E , respecting its polarity;
❒refit the battery case Dinside the key
and lock it turning the screw C to Á.REPLACEMENT OF REMOTE
CONTROL COVER fig. 7
To replace the remote control cover, fol-
low the procedure shown in the diagram.
001-032 PUNTO POP 1ed EN 31/03/14 09:03 Pagina 9

10
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

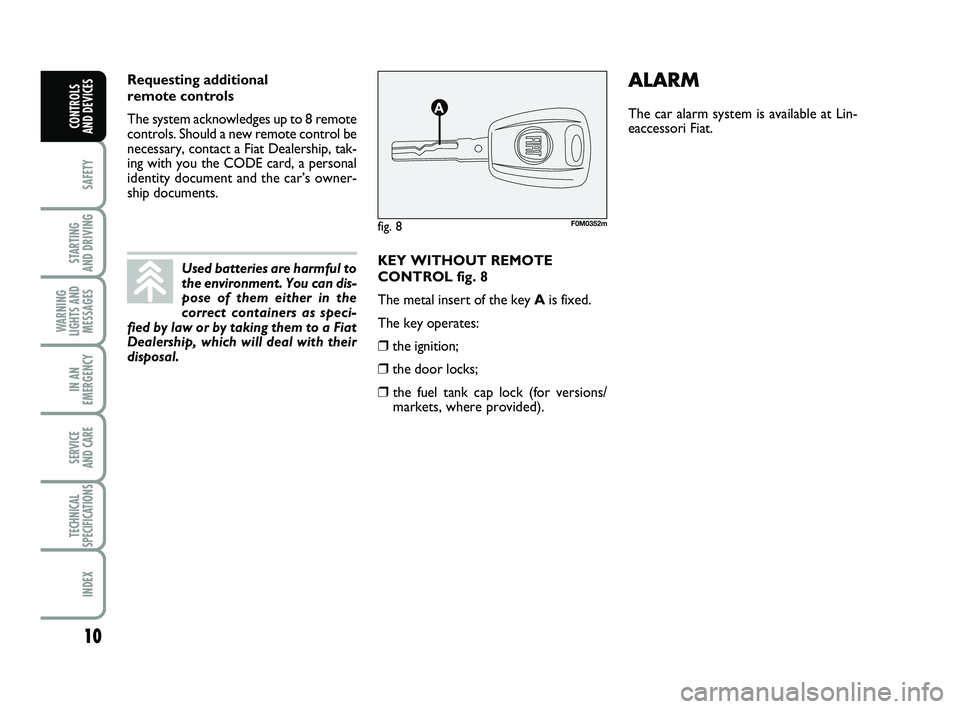

KEY WITHOUT REMOTE
CONTROL fig. 8
The metal insert of the key Ais fixed.
The key operates:
❒the ignition;
❒the door locks;
❒the fuel tank cap lock (for versions/ markets, where provided).
fig. 8F0M0352m
ALARM
The car alarm system is available at Lin-
eaccessori Fiat.
Used batteries are harmful to
the environment. You can dis-
pose of them either in the
correct containers as speci-
fied by law or by taking them to a Fiat
Dealership, which will deal with their
disposal.
Requesting additional
remote controls
The system acknowledges up to 8 remote
controls. Should a new remote control be
necessary, contact a Fiat Dealership, tak-
ing with you the CODE card, a personal
identity document and the car’s owner-
ship documents.
001-032 PUNTO POP 1ed EN 31/03/14 09:03 Pagina 10

11
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

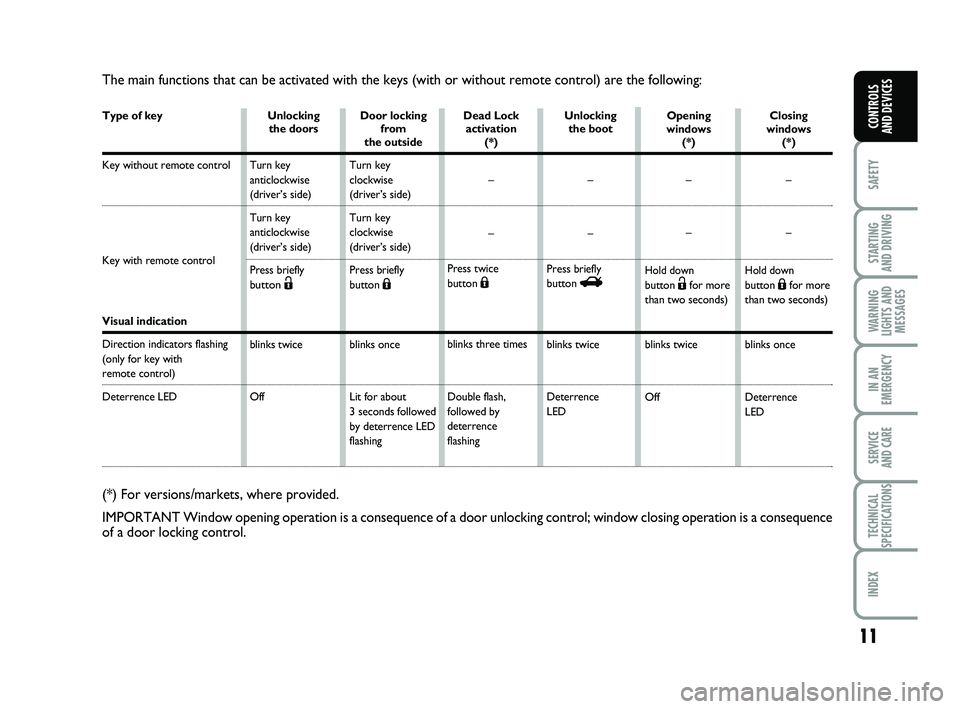

The main functions that can be activated with the keys (with or without\
remote control) are the following:
Type of key
Key without remote control
Key with remote control
Visual indication
Direction indicators flashing
(only for key with
remote control)
Deterrence LED
Unlocking
the doors
Turn key
anticlockwise
(driver’s side)
Turn key
anticlockwise
(driver’s side)
Press briefly
b
utton Ë
blinks twice
Off Door locking
from
the outside
Turn key
clockwise
(driver’s side)
Turn key
clockwise
(driver’s side)
Press briefly
button
Á
blinks once
Lit for about
3 seconds followed
by deterrence LED
flashing Dead Lock
activation (*)
–
–
Press twice
button
Á
blinks three times
Double flash,
followed by
deterrence
flashing Unlocking
the boot
–
–
Press briefly
button
R
blinks twice
Deterrence
LED
(*) For versions/markets, where provided.
IMPORTANT Window opening operation is a consequence of a door unlocking \
control; window closing operation is a consequence
of a door locking control.
Opening
windows (*)
–
–
Hold downbutton Ëfor more
than two seconds)
blinks twice
Off Closing
windows (*)
–
–Hold downbutton Áfor more
than two seconds)
blinks once
Deterrence
LED
001-032 PUNTO POP 1ed EN 31/03/14 09:03 Pagina 11

60
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

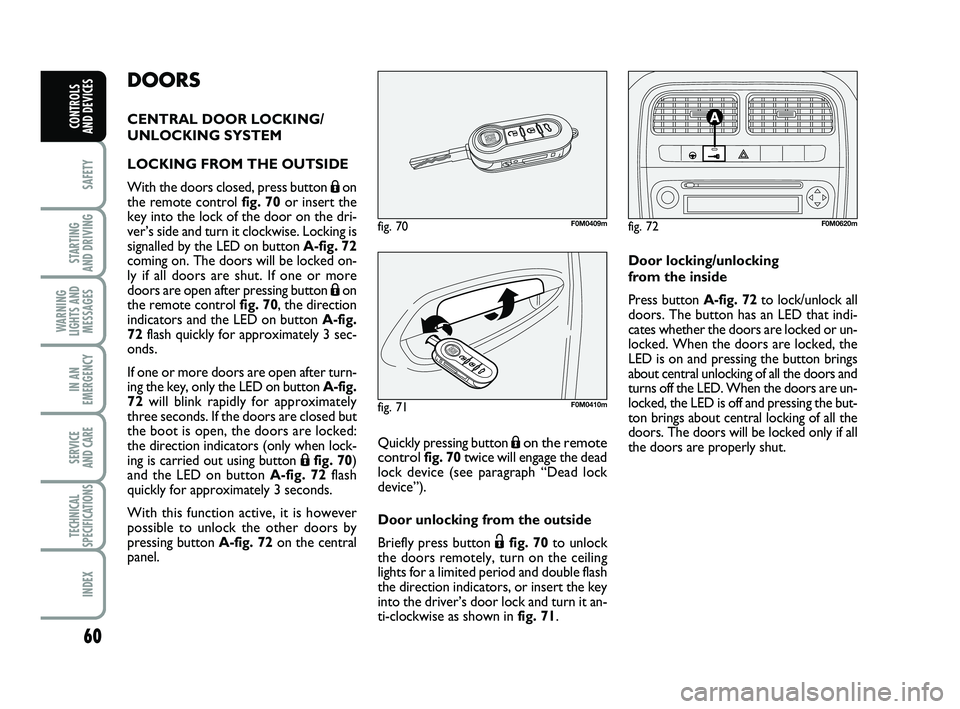

DOORS
CENTRAL DOOR LOCKING/
UNLOCKING SYSTEM
LOCKING FROM THE OUTSIDE
With the doors closed, press button
Áon
the remote control fig. 70or insert the
key into the lock of the door on the dri-
ver’s side and turn it clockwise. Locking is
signalled by the LED on button A-fig. 72
coming on. The doors will be locked on-
ly if all doors are shut. If one or more
doors are open after pressing button
Áon
the remote control fig. 70, the direction
indicators and the LED on button A-fig.
72 flash quickly for approximately 3 sec-
onds.
If one or more doors are open after turn-
ing the key, only the LED on button A-fig.
72 will blink rapidly for approximately
three seconds. If the doors are closed but
the boot is open, the doors are locked:
the direction indicators (only when lock-
ing is carried out using button
Áfig. 70)
and the LED on button A-fig. 72 flash
quickly for approximately 3 seconds.
With this function active, it is however
possible to unlock the other doors by
pressing button A-fig. 72 on the central
panel. Quickly pressing button
Á
on the remote
control fig. 70 twice will engage the dead
lock device (see paragraph “Dead lock
device”).
Door unlocking from the outside
Briefly press button
Ëfig. 70 to unlock
the doors remotely, turn on the ceiling
lights for a limited period and double flash
the direction indicators, or insert the key
into the driver’s door lock and turn it an-
ti-clockwise as shown in fig. 71.
fig. 72F0M0620m
Door locking/unlocking
from the inside
Press button A-fig. 72 to lock/unlock all
doors. The button has an LED that indi-
cates whether the doors are locked or un-
locked. When the doors are locked, the
LED is on and pressing the button brings
about central unlocking of all the doors and
turns off the LED. When the doors are un-
locked, the LED is off and pressing the but-
ton brings about central locking of all the
doors. The doors will be locked only if all
the doors are properly shut.
fig. 71F0M0410m
fig. 70F0M0409m
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 60

61
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

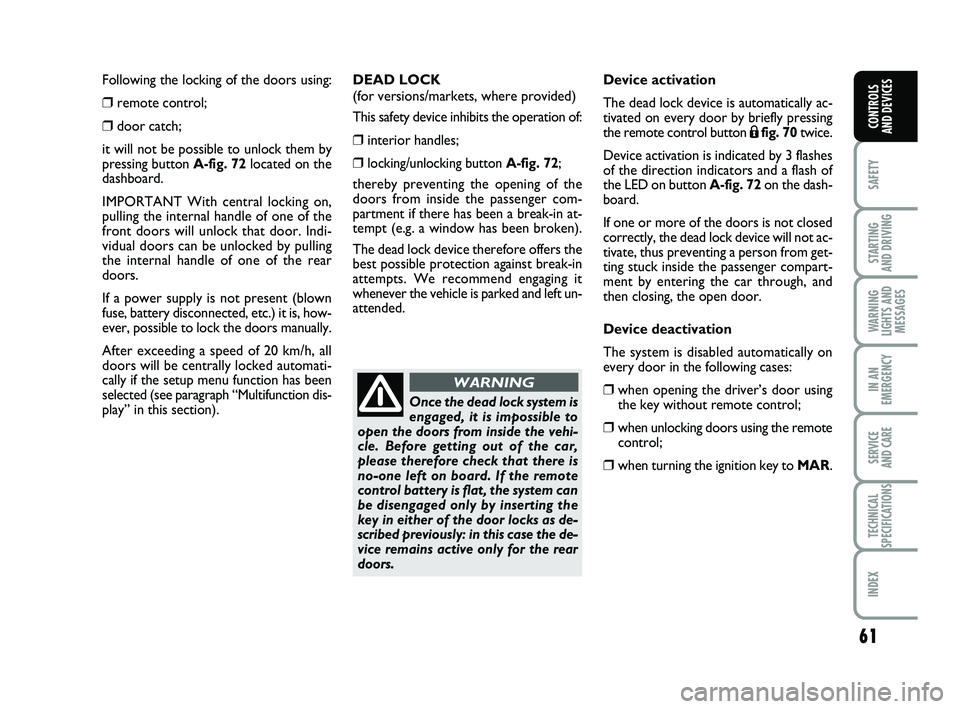

Following the locking of the doors using:
❒remote control;
❒door catch;
it will not be possible to unlock them by
pressing button
A-fig. 72located on the
dashboard.
IMPORTANT With central locking on,
pulling the internal handle of one of the
front doors will unlock that door. Indi-
vidual doors can be unlocked by pulling
the internal handle of one of the rear
doors.
If a power supply is not present (blown
fuse, battery disconnected, etc.) it is, how-
ever, possible to lock the doors manually.
After exceeding a speed of 20 km/h, all
doors will be centrally locked automati-
cally if the setup menu function has been
selected (see paragraph “Multifunction dis-
play” in this section).
Once the dead lock system is
engaged, it is impossible to
open the doors from inside the vehi-
cle. Before getting out of the car,
please therefore check that there is
no-one left on board. If the remote
control battery is flat, the system can
be disengaged only by inserting the
key in either of the door locks as de-
scribed previously: in this case the de-
vice remains active only for the rear
doors.
DEAD LOCK
(for versions/markets, where provided)
This safety device inhibits the operation of:
❒interior handles;
❒locking/unlocking button
A-fig. 72;
thereby preventing the opening of the
doors from inside the passenger com-
partment if there has been a break-in at-
tempt (e.g. a window has been broken).
The dead lock device therefore offers the
best possible protection against break-in
attempts. We recommend engaging it
whenever the vehicle is parked and left un-
attended. Device activation
The dead lock device is automatically ac-
tivated on every door by briefly pressing
the remote control button
Áfig. 70
twice.
Device activation is indicated by 3 flashes
of the direction indicators and a flash of
the LED on button
A-fig. 72on the dash-
board.
If one or more of the doors is not closed
correctly, the dead lock device will not ac-
tivate, thus preventing a person from get-
ting stuck inside the passenger compart-
ment by entering the car through, and
then closing, the open door.
Device deactivation
The system is disabled automatically on
every door in the following cases:
❒when opening the driver’s door using the key without remote control;
❒when unlocking doors using the remotecontrol;
❒when turning the ignition key to MAR.
WARNING
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 61

64
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

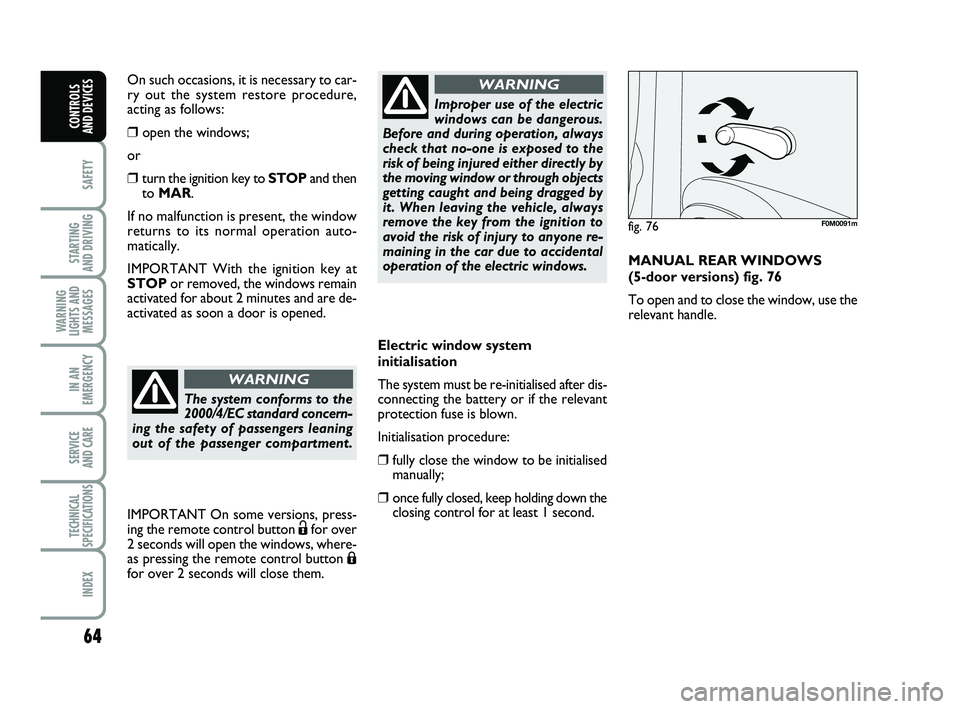

Electric window system
initialisation
The system must be re-initialised after dis-
connecting the battery or if the relevant
protection fuse is blown.
Initialisation procedure:
❒fully close the window to be initialised manually;
❒once fully closed, keep holding down theclosing control for at least 1 second.
Improper use of the electric
windows can be dangerous.
Before and during operation, always
check that no-one is exposed to the
risk of being injured either directly by
the moving window or through objects
getting caught and being dragged by
it. When leaving the vehicle, always
remove the key from the ignition to
avoid the risk of injury to anyone re-
maining in the car due to accidental
operation of the electric windows.
WARNING
MANUAL REAR WINDOWS
(5-door versions) fig. 76
To open and to close the window, use the
relevant handle.
fig. 76F0M0091m
On such occasions, it is necessary to car-
ry out the system restore procedure,
acting as follows:
❒ open the windows;
or
❒turn the ignition key to STOP and then
to MAR.
If no malfunction is present, the window
returns to its normal operation auto-
matically.
IMPORTANT With the ignition key at
STOP or removed, the windows remain
activated for about 2 minutes and are de-
activated as soon a door is opened.
The system conforms to the
2000/4/EC standard concern-
ing the safety of passengers leaning
out of the passenger compartment.
WARNING
IMPORTANT On some versions, press-
ing the remote control button Ëfor over
2 seconds will open the windows, where-
as pressing the remote control button
Áfor over 2 seconds will close them.
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 64

65
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
fig. 80F0M0095m

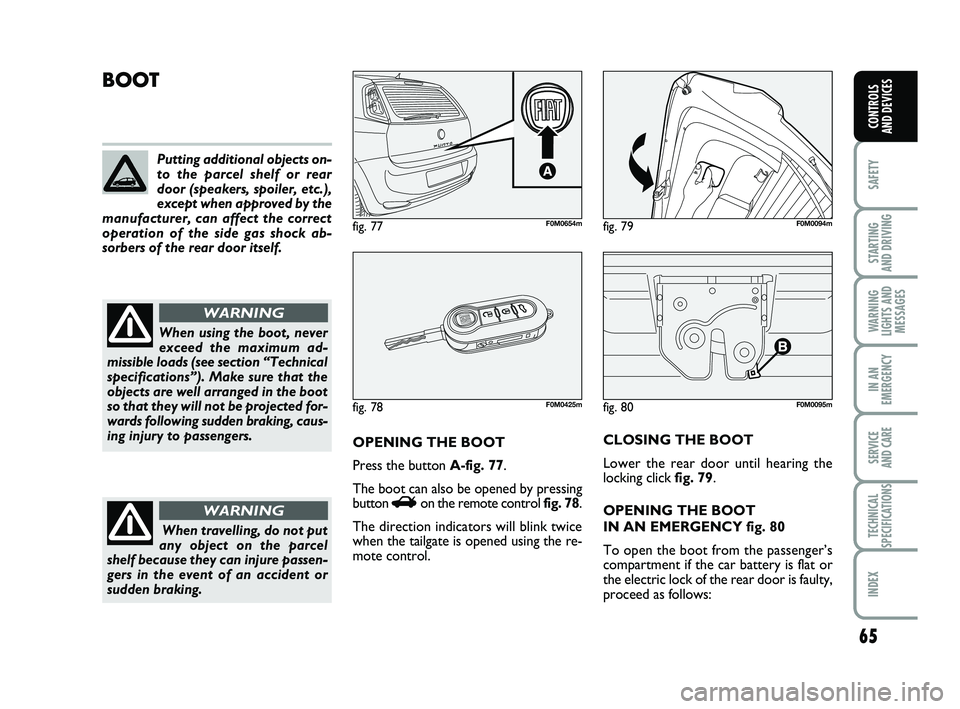

BOOT
OPENING THE BOOT
Press the button A-fig. 77.
The boot can also be opened by pressing
button
Ron the remote control fig. 78.
The direction indicators will blink twice
when the tailgate is opened using the re-
mote control. CLOSING THE BOOT
Lower the rear door until hearing the
locking click
fig. 79.
OPENING THE BOOT
IN AN EMERGENCY fig. 80
To open the boot from the passenger’s
compartment if the car battery is flat or
the electric lock of the rear door is faulty,
proceed as follows:
fig. 78F0M0425m
fig. 79F0M0094m
Putting additional objects on-
to the parcel shelf or rear
door (speakers, spoiler, etc.),
except when approved by the
manufacturer, can affect the correct
operation of the side gas shock ab-
sorbers of the rear door itself.
When using the boot, never
exceed the maximum ad-
missible loads (see section “Technical
specifications”). Make sure that the
objects are well arranged in the boot
so that they will not be projected for-
wards following sudden braking, caus-
ing injury to passengers.
WARNING
When travelling, do not put
any object on the parcel
shelf because they can injure passen-
gers in the event of an accident or
sudden braking.
WARNING
fig. 77F0M0654m
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 65

120
SAFETY
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
STARTING
AND DRIVING
CAR INACTIVITY
If the car is to be left inactive for longer
than a month, the following precautions
should be observed:
❒park the car in covered, dry and, if pos- sible, well-ventilated premises;
❒engage a gear;
❒check that the handbrake is engaged;
❒disconnect the clip for the negative bat-tery terminal and check battery charge.
Repeat this check once every three
months during storage. Recharge the
battery if the indicator is dark and the
middle area is not green;
❒clean and protect the painted parts us-ing protective wax;
❒clean and protect the shiny metal partsusing special compounds readily avail-
able;
❒sprinkle talcum powder on the rubberwindscreen and rear window wiper
blades and lift them off the glass;
❒open the windows slightly;
❒cover the car with a fabric or perfo-rated plastic sheet. Do not use compact
plastic sheets which do not allow hu-
midity to evaporate from the surface of
the car;
❒inflate tyres to a pressure of +0.5 barabove the normal specified pressure
and check regularly;
❒if you don’t disconnect the battery fromthe electrical system, check its charge
every month and recharge it if the in-
dicator shows a dark colour without
the central green area;
❒do not drain the engine cooling system.
IMPORTANT Where relevant, switch off
the car alarm with the remote control.
Keep your speed down when snow chains are fitted – do
not exceed 50 km/h. Avoid
potholes, steps and pave-
ments and also avoid driving
for long distances on roads
not covered with snow to avoid dam-
aging the car and the road surface.
WARNING
111-120 PUNTO POP 1ed EN 24/09/13 14.29 Pagina 120

210
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

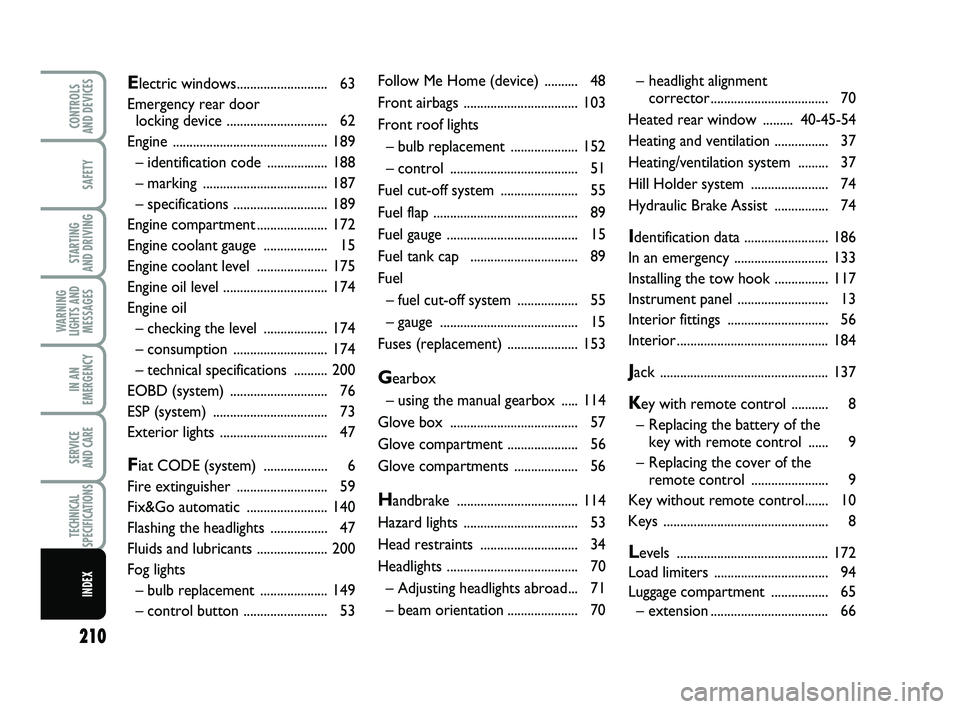

Follow Me Home (device) .......... 48
Front a irbags .................................. 103
Front roof lights – bulb replace ment .................... 152
– control ...................................... 51
Fuel cut-off system ....................... 55
Fuel flap ........................................... 89
Fuel gauge ....................................... 15
Fuel tank cap ................................ 89
Fuel – fuel cut-off system .................. 55
– gauge ......................................... 15
Fuses (replacement) ..................... 153
Gearbox
– using the manual gearbox ..... 114
Glove bo x ...................................... 57
Glove compart ment ..................... 56
Glove compart ments ................... 56
Handbrake .................................... 114
Hazard lights .................................. 53
Head restraints ............................. 34
Headlights ....................................... 70
– Adjusting headlights abroad... 71
– beam orie ntation..................... 70 – headlight alignment
corrector ................................... 70
Heated rear win dow ......... 40-45-54
Heating and vent ilation ................ 37
Heating/ventilati on system ......... 37
Hill Holder system ....................... 74
Hydraulic Brake Assist ................ 74
Identification data ......................... 186
In an emer gency ............................ 133
Installing the tow hook ................ 117
Instrument panel ........................... 13
Interior fittings .............................. 56
Interior ............................................. 184
Jack .................................................. 137
Key with remote control ........... 8
– Replacing the battery of the key with remote control ...... 9
– Replacing the cover of the remote control ....................... 9
Key without rem ote control....... 10
Keys ................................................. 8
Levels ............................................. 172
Load limiters .................................. 94
Luggage compart ment ................. 65
– extension ................................... 66
Electric win dows........................... 63
Emergency rear door locking de vice .............................. 62
Engine .............................................. 189
– identification c ode ..................188
– marking ..................................... 187
– specifications ............................ 189
Engine compa rtment..................... 172
Engine coolan t gauge ................... 15
Engine coolan t level ..................... 175
Engine oil level ............................... 174
Engine oil – checking th e level ................... 174
– consumpt ion ............................ 174
– technical specifications .......... 200
EOBD (system) ............................. 76
ESP (system) .................................. 73
Exterior lights ................................ 47
Fiat CODE (system) ................... 6
Fire exting uisher ........................... 59
Fix&Go autom atic ........................ 140
Flashing the h eadlights ................. 47
Fluids and lubricants ..................... 200
Fog lights – bulb replace ment .................... 149
– control button ......................... 53
207-214 PUNTO POP 1ed EN 31/03/14 09:59 Pagina 210
