start stop button FIAT PUNTO 2017 Owner handbook (in English)

16
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
DIGITAL DISPLAY
STANDARD SCREEN fig. 16
The standard screen shows the following
information:
A Headlamp alignment position (only
with dipped headlamps on).
B Time (always displayed, even with key
extracted and front doors closed)
C Odometer (distance covered in kilo-
metres or miles) and TRIP computer
data.
D Start&Stop indicator (for versions/
markets where provided)
E Gear Shift Indicator (for versions/
markets where provided).
NB With key removed (when opening
one of the front doors) the display turns
on and shows for a few seconds the time
and distance covered. CONTROL BUTTONS fig. 17
+To scroll the displayed menu and the
related options upwards or to in-
crease the displayed value.
MENUPress briefly to display the menu
ESCmenu and/or go to next screen
or confirm the required menu
option.
Hold down to go back to the
standard screen.
–To scroll the displayed menu and the
related options downwards or to
decrease the displayed value. NB
Buttons +and –activate different
functions according to the following sit-
uations:
Controlling the car’s interior lights
– on the standard screen, they control in-
strument panel brightness, the sound sys-
tem and the automatic climate control
system.
Setup menu
– within the menu, they scroll up and
down;
– during settings operations, they increase
or decrease values.
fig. 16F0M0537mfig. 17F0M0122m
001-032 PUNTO POP 1ed EN 31/03/14 09:03 Pagina 16

21
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
CONTROL BUTTONS fig. 19
+To scroll the displayed menu and the
related options upwards or to in-
crease the displayed value.
MENUPress briefly to display the menu
ESCand/or go to the next screen or
confirm your choice.
Hold down to go back to the
standard screen.
–To scroll the displayed menu and the
related options downwards or to de-
crease the value displayed.
MULTIFUNCTION
DISPLAY
(for versions/markets, where provided)
The car can be equipped with the multi-
function display that, depending on previ-
ous settings, shows useful information
when driving.
STANDARD SCREEN fig. 18
The standard screen shows the following
information:
A Date.
B Odometer (distance covered in km or
miles).
C Time (always displayed, even with key
removed from the ignition and front
doors closed).
D External temperature.
E Headlight alignment position (only
with dipped beam headlights on).
F Start&Stop indicator (for versions/
markets where provided).
G Gear Shift Indicator (for versions/
markets where provided).
NB When one of the front doors is
opened, the display turns on and shows
for a few seconds the time and distance
covered.
fig. 18F0M0538m
NB The +and –buttons activate differ-
ent functions according to the following
situations:
Controlling the car’s interior lights
– on the standard screen, they control in-
strument panel brightness, the sound sys-
tem and the automatic climate control
system.
Setup menu
– within the menu, they scroll up and
down;
– during settings operations, they increase
or decrease values.
fig. 19F0M0122m
001-032 PUNTO POP 1ed EN 31/03/14 09:03 Pagina 21

40
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
FRONT FAST DEMISTING/
DEFROSTING (WINDSCREEN
AND SIDE WINDOWS)
Proceed as follows:
❒turn knob A to red section;
❒turn air internal recirculation off by
pressing button D(button LED off);
❒turn knob C to -;
❒turn knob Bto 4 -(max. fan speed).
After demisting/defrosting, operate the
controls to restore the required comfort
conditions. Window demisting
In the event of considerable external
moisture and/or rain and/or large differ-
ences in temperature inside and outside
the passenger compartment, perform the
following preventive window demisting
procedure:
❒turn knob A
to red section;
❒turn air internal recirculation off by
pressing button D(button LED off);
❒turn knob C to -or to ®if the win-
dows do not demist;
❒turn knob B to 2ndspeed. HEATED REAR WINDSCREEN
AND WING MIRRORS
DEMISTING/DEFROSTING fig. 35
(for versions/markets, where provided)
Press button A
to activate; when this func-
tion is on, the button LED lights up.
This function is timed and will turn off au-
tomatically after 20 minutes. Press A again
to switch it off before 20 minutes elapses.
IMPORTANT Do not apply stickers on
the inside of the rear window over the
heating filaments to avoid damage that
might cause it to stop working properly.
fig. 35F0M0036m
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 40

45
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
Window demisting
In the event of considerable external
moisture and/or rain and/or large differ-
ences in temperature inside and outside
the passenger compartment, perform the
following preventive window demisting
procedure:
❒turn knob A to red section;
❒turn air internal recirculation off by
pressing button D so the button LED
goes out;
❒turn knob C to -or to ®if the win-
dows do not demist;
❒turn knob B to 2ndspeed.
IMPORTANT The climate control system
is very useful to prevent the windows
misting up in the presence of high humid-
ity since it dries the air introduced into the
passenger compartment. HEATED REAR WINDSCREEN
AND WING MIRRORS
DEMISTING/DEFROSTING fig. 38
(for versions/markets, where provided)
Press button A
to activate; when this func-
tion is on, the button LED lights up.
This function is timed and will turn off au-
tomatically after 20 minutes. Press A again
to switch it off before 20 minutes elapses.
IMPORTANT Do not apply stickers on
the inside of the rear window over the
heating filaments to avoid damage that
might cause it to stop working properly.
fig. 38F0M0038m
After demisting/defrosting, operate the
controls to restore the required comfort
conditions.
IMPORTANT The climate control system
is very useful for faster demisting because
it dries the air. Adjust the controls as de-
scribed above and press button Eto
switch the climate control system on; the
LED on the button will light up.
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 45

54
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
HEATED REAR WINDOW fig. 49
Press button A to activate. The device will
be switched off automatically after ap-
proximately 20 minutes.
fig. 49F0M0036m
PARKING LIGHTS
These lights can be turned on, only with
the key turned to STOPor removed, by
turning the twist switch on the left stalk
first to O and then to
6or 2.
The
3light on the instrument panel
comes on.
DUALDRIVE ELECTRIC POWER
STEERING SYSTEM fig. 48
Press button A to activate the “CITY”
function (see the “Electric power steering
system” paragraph in this section). When
the function is active, the word CITY is
lit up on the instrument panel. Press the
button again to deactivate the function.
fig. 48F0M0617m
REAR FOG LAMPS fig. 47
Press button 4to turn these lights on
with the dipped beam headlights or the
front fog lights (for versions/markets,
where provided) switched on.
The 4light on the instrument panel will
come on.
Press the button again to turn the lights
off or turn off the dipped beam headlights
and/or the front fog lights (for versions/
markets, where provided).
The use of rear fog lamps is governed by
the highway code of the country you are
in. Keep to the rules.
fig. 47F0M0071m
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 54

55
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
Door unlocking in the event of
a crash
If the fuel cut-off switch trips following an
accident, the doors will be automatically
unlocked to allow access to the passenger
compartment and the ceiling lights will be
switched on at the same time. The doors
can always be opened from the inside of
the car by using the appropriate controls.
if no fuel leakage is found and the car is
roadworthy, ensure the correct operation
of the vehicle by adhering to the following
instructions.
DOOR LOCKING fig. 50
To lock all doors at the same time, press
button
A, located on the central console
control panel, regardless of the position
of the ignition key.FUEL CUT-OFF SYSTEM
This system triggers after a collision and
activates the following:
❒cut-off of fuel supply with consequent switching off of the engine;
❒automatic door unlocking;
❒switching on of all interior lights.
When the system has been triggered, the
message “Fuel cut off, see handbook” is
displayed.
Carefully check the car for fuel leaks, for
instance in the engine compartment, un-
der the car or near the tank area.
After a crash, turn the key to STOP to
avoid draining the battery.fig. 50F0M0618m
If, after a crash, you smell fu-
el or notice leaks from the
fuel system, do not reactivate the sys-
tem to avoid the risk of fire.
WARNING
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 55

63
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
WINDOWS
ELECTRIC
Two switches fig. 75 on the armrest in-
side the driver’s door control the follow-
ing with the ignition key turned to MAR:
A opening/closing of the left front window;
B opening/closing the right front window.
Note: pressing the button the window
opens, while lifting it the window closes. Keep one of the buttons pressed for
longer than half a second
to operate
the automatic continuous operation of the
window. The window will stop when it is
fully opened or closed, or when the but-
ton is pressed again.
IMPORTANT In the event that the anti-
crushing function is activated 5 times in
only 1 minute, the system will automati-
cally enter the “recovery” mode (self-pro-
tection). This condition is apparent from
the window closing in stages.
fig. 75F0M0136m
Continuous automatic operation
The car has an automatic setting to raise
and lower the driver-side front window.
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 63

64
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
Electric window system
initialisation
The system must be re-initialised after dis-
connecting the battery or if the relevant
protection fuse is blown.
Initialisation procedure:
❒fully close the window to be initialised manually;
❒once fully closed, keep holding down theclosing control for at least 1 second.
Improper use of the electric
windows can be dangerous.
Before and during operation, always
check that no-one is exposed to the
risk of being injured either directly by
the moving window or through objects
getting caught and being dragged by
it. When leaving the vehicle, always
remove the key from the ignition to
avoid the risk of injury to anyone re-
maining in the car due to accidental
operation of the electric windows.
WARNING
MANUAL REAR WINDOWS
(5-door versions) fig. 76
To open and to close the window, use the
relevant handle.
fig. 76F0M0091m
On such occasions, it is necessary to car-
ry out the system restore procedure,
acting as follows:
❒ open the windows;
or
❒turn the ignition key to STOP and then
to MAR.
If no malfunction is present, the window
returns to its normal operation auto-
matically.
IMPORTANT With the ignition key at
STOP or removed, the windows remain
activated for about 2 minutes and are de-
activated as soon a door is opened.
The system conforms to the
2000/4/EC standard concern-
ing the safety of passengers leaning
out of the passenger compartment.
WARNING
IMPORTANT On some versions, press-
ing the remote control button Ëfor over
2 seconds will open the windows, where-
as pressing the remote control button
Áfor over 2 seconds will close them.
033-069 PUNTO POP 1ed EN 29/08/13 14.34 Pagina 64

80
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

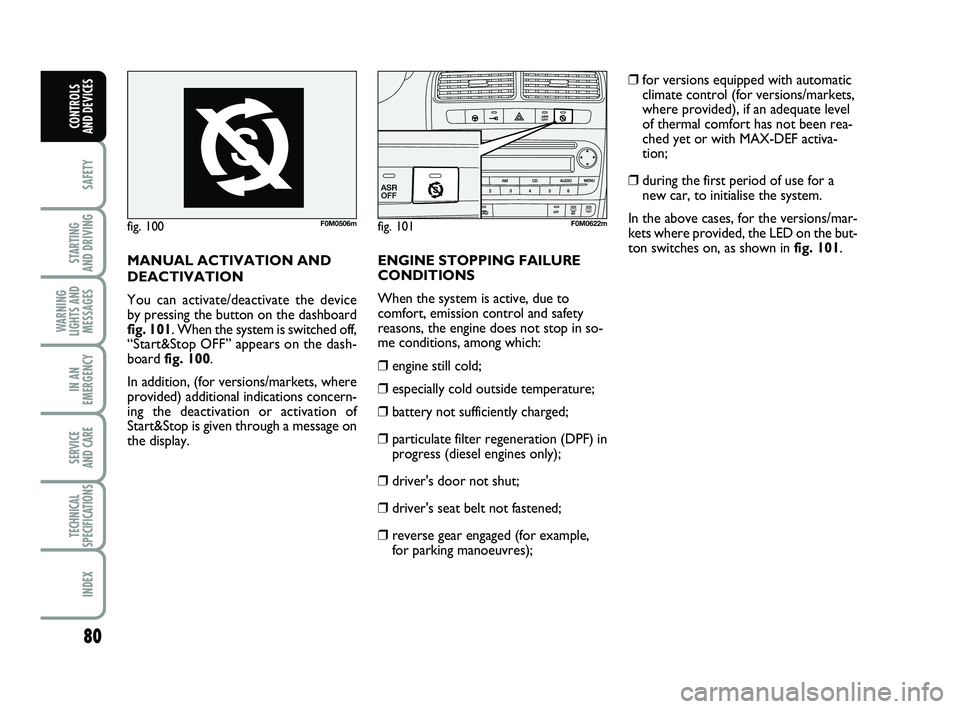

fig. 100F0M0506mfig. 101F0M0622m
MANUAL ACTIVATION AND
DEACTIVATION
You can activate/deactivate the device
by pressing the button on the dashboard
fig. 101. When the system is switched off,
“Start&Stop OFF” appears on the dash-
board fig. 100.
In addition, (for versions/markets, where
provided) additional indications concern-
ing the deactivation or activation of
Start&Stop is given through a message on
the display. ENGINE STOPPING FAILURE
CONDITIONS
When the system is active, due to
comfort, emission control and safety
reasons, the engine does not stop in so-
me conditions, among which:
❒
engine still cold;
❒ especially cold outside temperature;
❒ battery not sufficiently charged;
❒ particulate filter regeneration (DPF) in
progress (diesel engines only);
❒ driver's door not shut;
❒ driver's seat belt not fastened;
❒ reverse gear engaged (for example,
for parking manoeuvres); ❒
for versions equipped with automatic
climate control (for versions/markets,
where provided), if an adequate level
of thermal comfort has not been rea-
ched yet or with MAX-DEF activa-
tion;
❒ during the first period of use for a
new car, to initialise the system.
In the above cases, for the versions/mar-
kets where provided, the LED on the but-
ton switches on, as shown in fig. 101.
070-090 PUNTO POP 1ed EN 24/03/14 11:36 Pagina 80

82
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
CAR INACTIVITY fig. 103
In the case of car inactivity (or if the bat-
tery is replaced), it is necessary to dis-
connect the battery electric supply; to ex-
ecute this operation very carefully
proceed as follows: press the button A-
fig. 103 to remove the connector Bfrom
the sensor C monitoring the battery con-
ditions (the latter is on the negative pole
of the battery). EMERGENCY STARTING fig. 104
When jump starting, never connect the
negative lead (–) of the auxiliary battery to
the negative pole
A-fig. 104of the car
battery, but rather to an engine/gearbox
earth point.
When replacing the battery,
always go to a Fiat Dealer-
ship. Replace the battery using a new
one of the same type (HEAVY DUTY)
and having the same specifications.
WARNING
fig. 103F0M0623mfig. 104F0M0658mIMPORTANT After turning the ignition
key to STOP and having closed the driver's
side door, wait at least one minute before
disconnecting and then reconnecting the
battery electrical supply.
070-090 PUNTO POP 1ed EN 24/03/14 11:36 Pagina 82
