AUX FIAT PUNTO 2018 Owner handbook (in English)

82
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

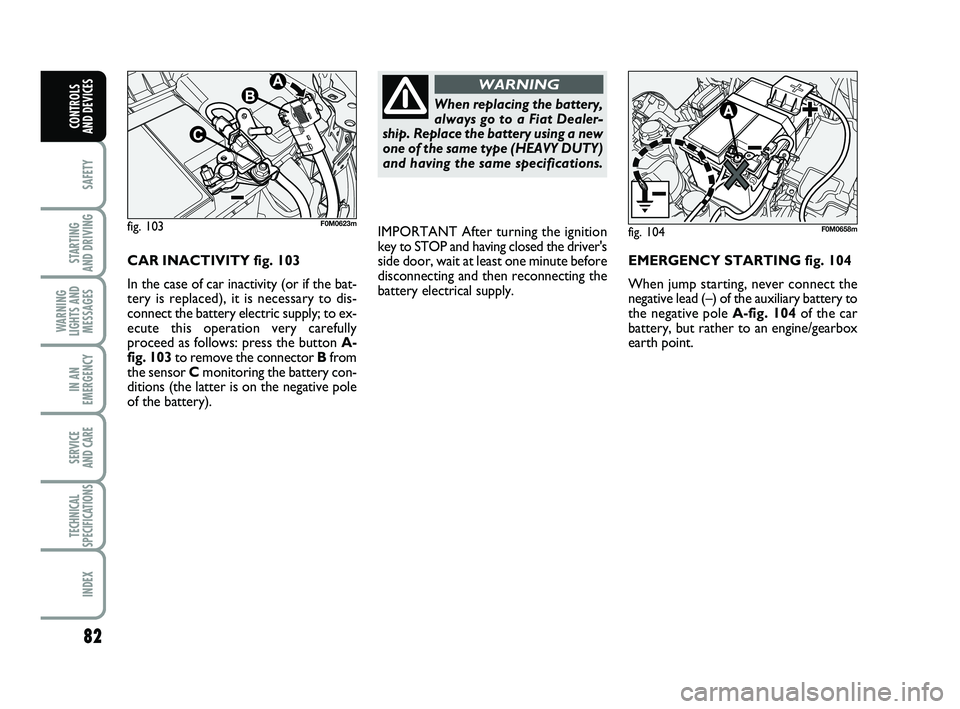

CAR INACTIVITY fig. 103
In the case of car inactivity (or if the bat-
tery is replaced), it is necessary to dis-
connect the battery electric supply; to ex-
ecute this operation very carefully
proceed as follows: press the button A-
fig. 103 to remove the connector Bfrom
the sensor C monitoring the battery con-
ditions (the latter is on the negative pole
of the battery). EMERGENCY STARTING fig. 104
When jump starting, never connect the
negative lead (–) of the auxiliary battery to
the negative pole
A-fig. 104of the car
battery, but rather to an engine/gearbox
earth point.
When replacing the battery,
always go to a Fiat Dealer-
ship. Replace the battery using a new
one of the same type (HEAVY DUTY)
and having the same specifications.
WARNING
fig. 103F0M0623mfig. 104F0M0658mIMPORTANT After turning the ignition
key to STOP and having closed the driver's
side door, wait at least one minute before
disconnecting and then reconnecting the
battery electrical supply.
070-090 PUNTO POP 1ed EN 24/03/14 11:36 Pagina 82

115
SAFETY
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
STARTING
AND DRIVING
fig. 2F0M0503m
Depress the clutch pedal ful-
ly to change gear correctly.
There should be no obstacles on the
floor underneath the pedals; make
sure that mats are always flat and do
not interfere with the pedals.
WARNING
Do not drive with your hand
resting on the gear lever as
the force exerted, even if
slight, could lead over time to
premature wear of the gearbox inter-
nal components.
Roof rack/ski rack
Remove the roof rack or ski rack from the
roof after use. These accessories decrease
aerodynamic penetration and have a neg-
ative effect on fuel consumption. It is bet-
ter to use a trailer to transport particu-
larly bulky objects.
Electrical devices
Use electrical devices only for the amount
of time needed. The heated rear window,
auxiliary headlights, windscreen wipers and
fan heater use up a considerable amount
of current, causing increased fuel con-
sumption (up to +25% in the urban cycle).
Air conditioning
Air conditioning leads to higher fuel con-
sumption (on average up to +20%). If the
temperature outside is not too extreme,
try and use the air vents.
Spoilers
The use of non-certified spoilers may ad-
versely affect aerodynamics and fuel con-
sumption.SAVING FUEL
Here are some suggestions which may
help you to save fuel and reduce the
amount of toxic emissions released into
the atmosphere.
GENERAL CONSIDERATIONS
Car maintenance
Have checks and adjustments carried out
in accordance with the “Scheduled Service
Plan”.
Tyres
Check the tyre pressure at least once
every 4 weeks: if the pressure is too low,
consumption levels increase as resistance
to rolling is higher.
Unnecessary loads
Do not travel with an overloaded boot.
The weight of the car (especially when dri-
ving in town) and its arrangement greatly
affect fuel consumption and stability.
111-120 PUNTO POP 1ed EN 24/09/13 14.29 Pagina 115

134
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY

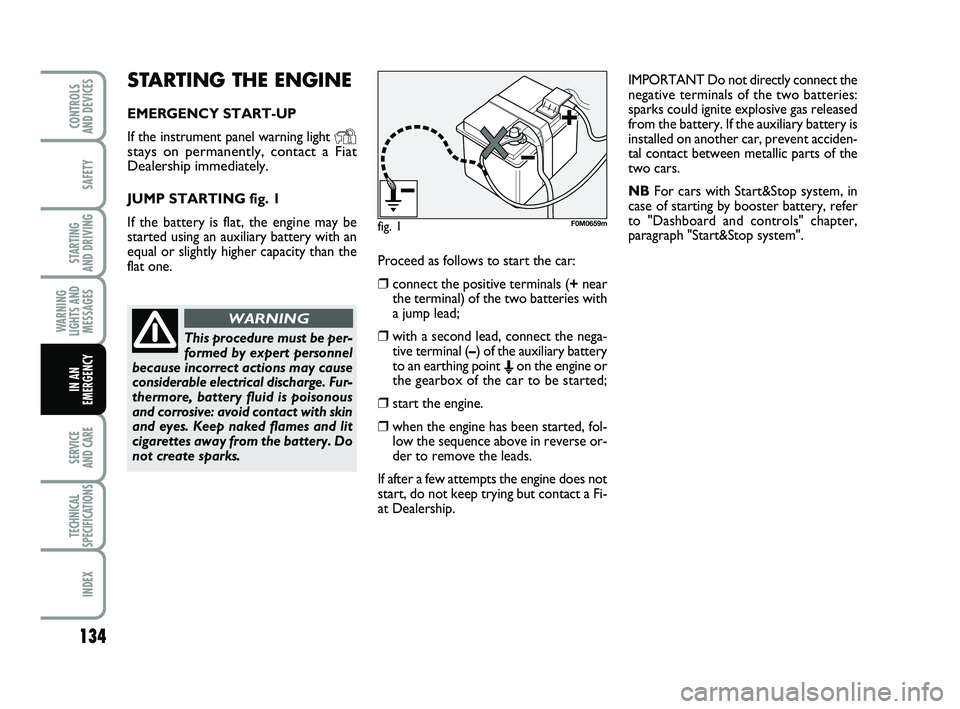

STARTING THE ENGINE
EMERGENCY START-UP
If the instrument panel warning light
Ystays on permanently, contact a Fiat
Dealership immediately.
JUMP STARTING fig. 1
If the battery is flat, the engine may be
started using an auxiliary battery with an
equal or slightly higher capacity than the
flat one. Proceed as follows to start the car:
❒connect the positive terminals (+
near
the terminal) of the two batteries with
a jump lead;
❒with a second lead, connect the nega- tive terminal (– ) of the auxiliary battery
to an earthing point
Eon the engine or
the gearbox of the car to be started;
❒start the engine.
❒when the engine has been started, fol- low the sequence above in reverse or-
der to remove the leads.
If after a few attempts the engine does not
start, do not keep trying but contact a Fi-
at Dealership. IMPORTANT Do not directly connect the
negative terminals of the two batteries:
sparks could ignite explosive gas released
from the battery. If the auxiliary battery is
installed on another car, prevent acciden-
tal contact between metallic parts of the
two cars.
NB
For cars with Start&Stop system, in
case of starting by booster battery, refer
to "Dashboard and controls" chapter,
paragraph "Start&Stop system".
This procedure must be per-
formed by expert personnel
because incorrect actions may cause
considerable electrical discharge. Fur-
thermore, battery fluid is poisonous
and corrosive: avoid contact with skin
and eyes. Keep naked flames and lit
cigarettes away from the battery. Do
not create sparks.
WARNING
fig. 1F0M0659m
133-164 PUNTO POP 1ed EN 24/03/14 13:05 Pagina 134
