ZEAir flow distribution between front and rear vents,
centre/side dashboard vents, rear vent and wind-
screen and front side window demisting/defrosting
vents.
EAir flow distribution to centre/side dashboard vents
(passenger’s body).
QAir flow distribution between the footwell
Zvents and the windscreen and front side window
demisting/defrosting vents. This distribution setting
allows warms up the passenger compartment and
prevents the windows from misting up.
ZEAir flow distribution between footwell vents (hot-
ter air) and centre/side dashboard vents and rear
vent (cooler air).
EQAir flow distribution between centre/side dash-
board vents, rear vent and windscreen and front
side window demisting/defrosting vents. This dis-
tribution setting ventilates the passenger compart-
ment and prevents the windows from misting up.
IMPORTANT For the climate control system to function,
at least one of the following buttons must be on: Q/E/Z.
The system does not allow all the buttons Q/E/Zto be
switched off.
IMPORTANT Push the OFF button to turn the climate
control system back on: in this way, all previously saved
operating conditions are restored before switching off.
To restore automatic control of the air distribution after
a manual selection, press the AUTO button.ADDITIONAL HEATER
(for versions/markets where provided)
This device warms up the passenger compartment more
quickly when it is very cold and the engine coolant tem-
perature is low.
In these conditions, the device comes on automatically
when the engine is started and the fan is on.
The additional heater turns off automatically after reach-
ing the required comfort conditions.
IMPORTANT The heater will not turn on if the battery
voltage is too low.
SWITCHING OFF THE CLIMATE CONTROL
SYSTEM
Press the OFF button.
The following information is shown on the display:
❒ the word OFF;
❒outside temperature reading;
❒indication that air recirculation is switched on (LED on
button
Tis lit).
60
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
037-081 PUNTO FL EN 4ed 18-01-2010 12:23 Pagina 60
Page 62 of 270
F0U0042mfig. 49
The daytime running lights are an alterna-
tive to the dipped beam headlights for dri-
ving during the daytime in countries where it is com-
pulsory to have lights on during the day, and they
are also permitted in those countries where this not
obligatory. Daytime running lights cannot replace
dipped headlights when driving at night or through
tunnels. The use of daytime running lights is gov-
erned by the highway code of the country in which
you are driving. Keep to the rules.
WARNING
EXTERIOR LIGHTS
The left-hand stalk operates most of the external lights.
The ignition key has to be in the MAR position for the
exterior lights to come on. The instrument panel and the
various controls on the dashboard will be lit up when the
exterior lights are switched on.
DAYTIME RUNNING LIGHTS (D.R.L.) fig. 49
(for versions/markets where provided)
With the ignition key turned to MAR and the twist switch
turned to position
Othe daytime running lights are auto-
matically activated; the other lights and interior lighting
remain off. The daytime running lights function can be
switched on/off using the display menus (see “Multifunction
display and reconfigurable multifunction display” in this sec-
tion). If the daytime running lights are deactivated, no light
comes on when the twist switch is turned to
O.DIPPED HEADLAMPS/SIDE LIGHTS fig. 49
With the ignition key turned to MAR, turn the twist switch
to
2. If dipped beams are activated, the daytime lights
go out and the side lights and dipped beams come on. The
light 3 on the instrument panel comes on. When the ig-
nition key is turned to STOP or removed and the twist
switch is turned from
Oto 2, all the side lights and tail-
lights and number plate lights come on. The
3warning
light will come on in the instrument panel.
MAIN BEAM HEADLIGHTS fig. 49
With the twist switch at position
2, push the stalk for-
wards toward the dashboard (stable position). The warn-
ing light
1on the instrument panel will come on. They
switch off when the stalk is pulled towards the wheel
(dipped beams come back on).
FLASHING fig. 49
You can flash the headlights by pulling the stalk towards
the wheel (temporary position). The light
1on the in-
strument panel will come on.
61
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
037-081 PUNTO FL EN 4ed 18-01-2010 12:23 Pagina 61
Page 63 of 270
“FOLLOW ME HOME” DEVICE
This will light up the space in front of the vehicle for
a certain period of time.
Activation
With the key turned to STOP or removed, pull the left-
hand stalk towards the steering wheel within 2 minutes
from when the engine is turned off.
Each time the stalk is moved, the lights stay on for an ex-
tra 30 seconds up to a maximum of 210 seconds; then the
lights are switched off automatically.
The warning light
3on the instrument panel will light up
and the corresponding message will appear in the display
(see “Warning lights and messages”) for as long as the func-
tion is activated. The light comes on when the stalk is first
moved and stays on until the function is automatically de-
activated. Each movement of the stalk increases only the
amount of time the lights stay on.
Deactivation
Keep the stalk pulled towards the steering wheel for more
than 2 seconds.
fig. 50F0U0043m
62
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

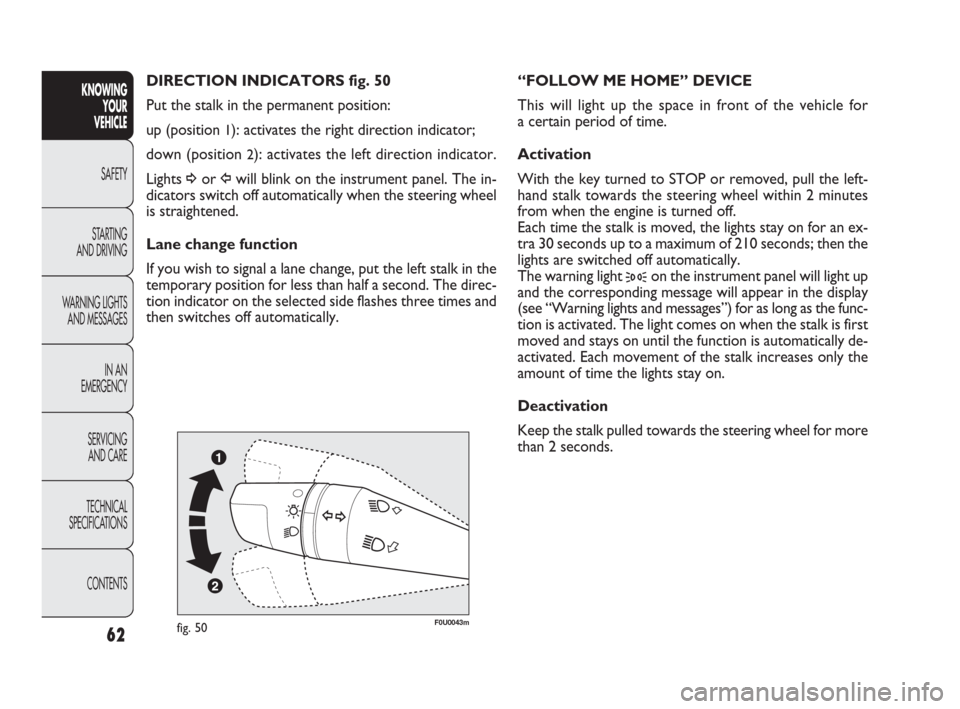

DIRECTION INDICATORS fig. 50
Put the stalk in the permanent position:
up (position
1): activates the right direction indicator;
down (position
2): activates the left direction indicator.
Lights
¥or Îwill blink on the instrument panel. The in-
dicators switch off automatically when the steering wheel
is straightened.
Lane change function
If you wish to signal a lane change, put the left stalk in the
temporary position for less than half a second. The direc-
tion indicator on the selected side flashes three times and
then switches off automatically.
037-081 PUNTO FL EN 4ed 18-01-2010 12:23 Pagina 62
Page 64 of 270
F0U0044mfig. 51
FRONT FOG LIGHTS WITH CORNERING
LIGHTS FUNCTION
When the dipped headlamps are on and the speed is be-
low 40 km/h, if the steering wheel rotation angle is large
or the direction indicators are on, a light (incorporated
in the fog light) will come on on the relevant side to im-
prove visibility at nightime. This function can be activat-
ed/deactivated via the display menu (see “Display” in this
section).WINDOW CLEANING

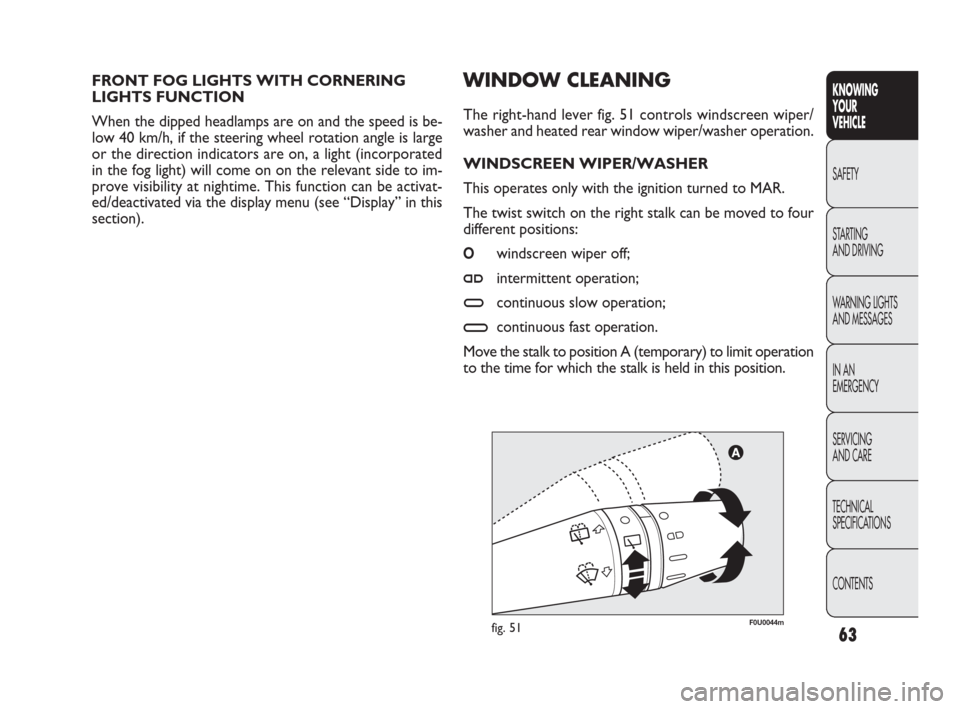

The right-hand lever fig. 51 controls windscreen wiper/

washer and heated rear window wiper/washer operation.
WINDSCREEN WIPER/WASHER
This operates only with the ignition turned to MAR.
The twist switch on the right stalk can be moved to four
different positions:
Owindscreen wiper off;
≤intermittent operation;
≥continuous slow operation;
¥continuous fast operation.
Move the stalk to position A (temporary) to limit operation
to the time for which the stalk is held in this position.
63
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
037-081 PUNTO FL EN 4ed 18-01-2010 12:23 Pagina 63
Page 65 of 270
“Smart washing” function
Pull the stalk towards the steering wheel (temporary po-
sition) to operate the windscreen washer.
Keeping the stalk pulled for more than half a second, with
just one movement it is possible to operate the washer jet
and the wiper at the same time.
The wiper stops working three strokes after releasing the
stalk. A further stroke 6 seconds later completes the wip-
ing operation.RAIN SENSOR
(for versions/markets where provided)
The rain sensor is located behind the rear-view mirror in
contact with the windscreen and has the purpose of au-
tomatically adjusting the frequency of the windscreen wiper
strokes depending on the intensity of the rain during in-
termittent operation.
IMPORTANT Keep the glass in the sensor area clean.
Activation
Move the twist switch on the right-hand stalk to
≤fig.
51. The activation of the sensor is signalled by a wiper
stroke. Through the setup menu it is possible to increase
the sensitivity of the rain sensor. The increasing of the rain
sensor sensitivity is also signalled by a stroke of the wipers.
If the windscreen washer is used with the rain sensor ac-
tivated, the normal washing cycle is performed, after which
the rain sensor resumes its normal automatic operation.
Deactivation
Move the stalk twist switch away from
≤fig. 51 or turn
the ignition key to STOP. When the engine is next start-
ed (key at MAR), the sensor will not be reactivated even
if the twist switch is still at
≤fig. 51. To activate the rain
sensor, you have to move the twist switch from
≤to an-
other position and then back to
≤. Rain sensor activa-
tion will be indicated by at least one wiper stroke, even if
the windscreen is dry.
64
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Do not use the windscreen wipers to re-
move layers of snow or ice from the wind-
screen. In such conditions, the windscreen
wipers may be subjected to excessive stress,
prompting intervention from the motor protection
which prevents operation for a few seconds. If op-
eration is not restored, even after turning the key
and restarting the engine, go to a Fiat Dealership.
When released, the stalk returns to its default position and
the wipers automatically switch off.
With the twist switch at
≤, the windscreen wiper will
automatically adapt to the speed of the car.
IMPORTANT Replace the wiper blades as specified in the
“Maintenance and care” section.
037-081 PUNTO FL EN 4ed 18-01-2010 12:23 Pagina 64
Page 66 of 270
Do not use the rear window wiper to re-
move layers of snow or ice. In such condi-
tions, the rear window wiper may be sub-
jected to excessive stress, prompting intervention
from the motor protection which prevents opera-
tion for a few seconds. If operation is not restored,
even after turning the key and restarting the engine,
go to a Fiat Dealership.The rain sensor is able to recognise, and automatically
adjust itself in the presence of, the following particular con-
ditions:
❒impurities on the surface (salt, dirt, etc.);
❒difference between day and night.
IMPORTANT Streaks of water may cause the blades to
move unnecessarily.
REAR WINDOW WIPER/WASHER
This operates only with the ignition turned to MAR. The
function stops when the stalk is released. Turning the twist
switch from Oto
'will operate the rear window wiper
as follows:
❒intermittent operation if the windscreen wiper is off;
❒synchronised operation (but with half-stroke frequen-
cy) when the windscreen wiper is on;
❒continuous operation with reverse engaged and func-
tion on.
With the windscreen wiper on and reverse gear engaged,
rear window wiping will be continuous.
Pushing the stalk towards the dashboard (temporary po-
sition) will activate the rear window washer jet.
Keeping the stalk pushed for more than half a second will
also activate the rear window wiper.
Releasing the stalk will activate the smart washing function,
as described for the windscreen wiper.
65
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
037-081 PUNTO FL EN 4ed 18-01-2010 12:23 Pagina 65
Page 67 of 270
❒move the stalk upwards (+) for at least one second, then
release it. The car speed is now memorised and you can
therefore come off the accelerator pedal.
If needed (when overtaking for instance), you can accel-
erate simply by pressing the accelerator pedal; when you
come off the pedal, the car will return to the speed mem-
orised previously.
RESTORING THE MEMORISED SPEED
If the device has been switched off, for example by press-
ing the brake or clutch pedal, the memorised speed can
be restored as follows:
❒accelerate gradually until reaching a speed approaching
the memorised speed;
❒engage the gear that was selected when you memorised
the speed;
❒press button RES B-fig. 52.
66
CRUISE CONTROL
(for versions/markets where provided)
This is an electronically controlled device which allows the
vehicle to be driven at a chosen speed above 30 km/h on
long stretches of dry, straight roads with few variations (e.g.
motorways), without having to press the accelerator ped-
al. It is therefore not recommended to use this device on
country roads with traffic. Do not use it in town.
ENGAGING THE DEVICE
Turn twist switch A-fig. 52 to ON.
The cruise control cannot be engaged in 1st or reverse
gear. It is advisable to engage it in 4th gear or higher.
When travelling downhill with the device engaged, the car
speed may slightly exceed the preset one.
When the device is activated, light
Ücomes on together
with the relevant message on the instrument panel (where
provided).
SETTING VEHICLE SPEED
Proceed as follows:
❒turn twist switch A-fig. 52 to ON and press the accel-
erator pedal until you reach the required speed;
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U0047mfig. 52
037-081 PUNTO FL EN 4ed 18-01-2010 12:23 Pagina 66
Page 68 of 270
67
INCREASING THE MEMORISED SPEED
This can be done in two ways:
❒by pressing the accelerator and then memorising the
new speed reached;
or
❒moving the stalk upwards (+).
Each movement of the stalk will correspond to an increase
in speed of about 1 km/h, while keeping the stalk held up-
wards will continuously increase the speed.
REDUCING THE MEMORISED SPEED
This can be done in two ways:
❒by turning the device off and then storing a new speed;
or
❒by moving the stalk downwards (–) until reaching the
new speed which will be memorised automatically.
Each movement of the stalk will correspond to a reduc-
tion in speed of about 1 km/h, while keeping the stalk held
downwards will continuously reduce the speed.
DISENGAGING THE DEVICE
The device can be switched off by the driver in the fol-
lowing ways:
❒turning twist switch A to OFF;
❒switching off the engine;
❒pressing the brake pedal;
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
❒pressing the clutch pedal;
❒pressing the accelerator pedal; in this case, the system
is not really switched off but the request for accelera-
tion takes priority. The cruise control is, however, ac-
tive and you do not need to press button RES B-fig. 52
to restore the previous conditions when you have fin-
ished accelerating.
The device is automatically switched off in the following
cases:
❒if the ABS or ESP systems cut in;
❒if the car speed drops below the preset limit;
❒if there is a system failure.
While travelling with the device engaged, do not
put the gear lever into neutral.
WARNING
In case of malfunctioning or if the device fails,
turn twist switch A to OFF and contact a Fiat
Dealership.
WARNING
037-081 PUNTO FL EN 4ed 18-01-2010 12:23 Pagina 67
Page 69 of 270
F0U0048mfig. 53F0U0049mfig. 54
CEILING COURTESY LIGHTS
FRONT CEILING LIGHT
WITH MOVABLE LENS
The light will turn on/off by pressing the right or left side
as shown in fig. 53.
FRONT CEILING LIGHT WITH SPOT LIGHTS
Switch A-fig. 54 switches the ceiling courtesy lights on/off.
With switch A-fig. 54 in the centre, lights C and D come
on/go off when front doors are opened/closed.
With switch A-fig. 54 pressed to the left, lights C and D
are always off.
With switch A-fig. 54 pressed to the left, lights C and D
are always on.
68
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
The lights switch on/off gradually.
Switch B-fig, 54 controls the spot light function; when the
ceiling light is off, it switches the following on individually:
❒light C if pressed on the left side;
❒light D if pressed on the right side.
CAUTION Before getting out of the car, make sure both
switches are in the centre; when the doors are closed, the
lights switch off to prevent the battery running down.
In any case, if the switch is left in on position, the courtesy
light switches off automatically 15 minutes after the engine
switching off.
037-081 PUNTO FL EN 4ed 18-01-2010 12:23 Pagina 68
Page 70 of 270
69
TIMED OPERATION FOR GETTING OUT OF THE VEHICLE
After removing the key from the ignition, the courtesy
lights switch on according to the following modes:
❒within 2 minutes from turning the engine off for about
10 seconds;
❒when opening one of the side doors for about 3 min-
utes;
❒when one of the doors is closed for a period of about
10 seconds.
Timing will stop automatically when the doors are locked.KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Courtesy light timing
On certain versions, to facilitate getting in/out of the car
at night or in poorly-lit areas, two timed modes have been
provided.
TIMED OPERATION FOR GETTING INTO THE VEHICLE
The courtesy lights switch on according to the following
modes:
❒for about 10 seconds when unlocking the front doors;
❒for about 3 minutes when opening one of the side
doors;
❒for about 10 seconds when closing the doors.
The timed period is interrupted when the ignition is turned
to MAR.
037-081 PUNTO FL EN 4ed 18-01-2010 12:23 Pagina 69
