dashboard and controls FIAT PUNTO EVO 2010 1.G Owners Manual

KNOWING YOUR VEHICLE
DASHBOARD
The presence and position of the controls, the instruments and the indicators may vary according to the versions.
F0U0001mfig. 1
1.Adjustable side air vents – 2.Fixed side air vents – 3.Left-hand lever: exterior lights control – 4.Instrument panel
–
5.Right-hand lever: front and rear windscreen wiper controls, trip computer – 6.Controls on dashboard – 7.Ad-
justable central air vents –
8.Fixed upper air vent – 9.Front airbag, passenger side – 10.Glove compartment
–
11.Sound system (for versions/markets where provided) – 12.HVAC controls – 13.Ignition – 14.Front airbag, dri-
ver’s side –
15. Steering wheel adjustment lever – 16.Control panel: headlight position adjustment/digital dis-
play/multifunction display –
17.Light-guiding plate.CONTENTS TECHNICAL
SPECIFICATIONS SERVICING
AND CARE IN AN
EMERGENCY WARNING LIGHTS
AND MESSAGES STARTING
AND DRIVING SAFETY
KNOWING
YOUR
VEHICLE
3
001-036 PUNTO FL EN 4ed 18-01-2010 12:21 Pagina 3

Knob B activates/adjusts the fan
p0= fan off
1-2-3= fan speed
4
-= max. fan speed
MANUAL CLIMATE CONTROL
(for versions/markets where provided)
CONTROLS fig. 46
Knob A regulates the air temperature
(mixing hot and cold air)
Red section = hot air
Blue section = cold air
52
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
fig. 46F0M0039m
Knob C adjusts air distribution
¶to direct air to the centre and side vents;
ßto send air to the feet and direct cooler air to the
dashboard vents, in intermediate temperature con-
ditions;
©for heating when the outside temperature is very low:
to direct as much air as possible to the feet;
®to warm the feet and, at the same time, demist the
windscreen;
-for quick windscreen demisting.
037-081 PUNTO FL EN 4ed 18-01-2010 12:23 Pagina 52

F0U0042mfig. 49
The daytime running lights are an alterna-
tive to the dipped beam headlights for dri-
ving during the daytime in countries where it is com-
pulsory to have lights on during the day, and they
are also permitted in those countries where this not
obligatory. Daytime running lights cannot replace
dipped headlights when driving at night or through
tunnels. The use of daytime running lights is gov-
erned by the highway code of the country in which
you are driving. Keep to the rules.
WARNING
EXTERIOR LIGHTS
The left-hand stalk operates most of the external lights.
The ignition key has to be in the MAR position for the
exterior lights to come on. The instrument panel and the
various controls on the dashboard will be lit up when the
exterior lights are switched on.
DAYTIME RUNNING LIGHTS (D.R.L.) fig. 49
(for versions/markets where provided)
With the ignition key turned to MAR and the twist switch
turned to position
Othe daytime running lights are auto-
matically activated; the other lights and interior lighting
remain off. The daytime running lights function can be
switched on/off using the display menus (see “Multifunction
display and reconfigurable multifunction display” in this sec-
tion). If the daytime running lights are deactivated, no light
comes on when the twist switch is turned to
O.DIPPED HEADLAMPS/SIDE LIGHTS fig. 49
With the ignition key turned to MAR, turn the twist switch
to
2. If dipped beams are activated, the daytime lights
go out and the side lights and dipped beams come on. The
light 3 on the instrument panel comes on. When the ig-
nition key is turned to STOP or removed and the twist
switch is turned from
Oto 2, all the side lights and tail-
lights and number plate lights come on. The
3warning
light will come on in the instrument panel.
MAIN BEAM HEADLIGHTS fig. 49
With the twist switch at position
2, push the stalk for-
wards toward the dashboard (stable position). The warn-
ing light
1on the instrument panel will come on. They
switch off when the stalk is pulled towards the wheel
(dipped beams come back on).
FLASHING fig. 49
You can flash the headlights by pulling the stalk towards
the wheel (temporary position). The light
1on the in-
strument panel will come on.
61
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
037-081 PUNTO FL EN 4ed 18-01-2010 12:23 Pagina 61

144
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
To manually deactivate the passenger’s
front and side chest/pelvis airbags (for ver-
sions/markets where provided), refer to para-
graphs “Digital display” and “Multifunction dis-
play” in the section “Dashboard and controls”.
WARNINGSIDE AIRBAGS
The car is fitted with front side airbags for driver and pas-
senger (for versions/markets where provided) for pro-
tecting the chest and pelvis, and window bags (for ver-
sions/markets where provided) for protecting the heads
of front and rear occupants.
Side airbags (for versions/markets where provided) pro-
tect car occupants from side-on crashes of medium/high
severity by placing the bag between the occupant and the
internal parts of the side structure of the car. Non-acti-
vation of side bags in other types of collisions (head-on
collisions, rear shunts, roll-overs, etc...) is not an indica-
tion of system malfunction. In the event of a side-on crash,
an electronic control unit triggers the inflation of the bag
if required. The cushion immediately inflates, placing it-
self between the occupant’s body and structures that could
cause injuries, the cushion deflates Immediately afterwards.
Side bags (for versions/markets where provided) are not
a replacement for, but rather a complement to, the seat
belts, which should be worn at all times as specified by law
in Europe and most non-European countries.
129-148 PUNTO FL EN 4ed 18-01-2010 12:26 Pagina 144

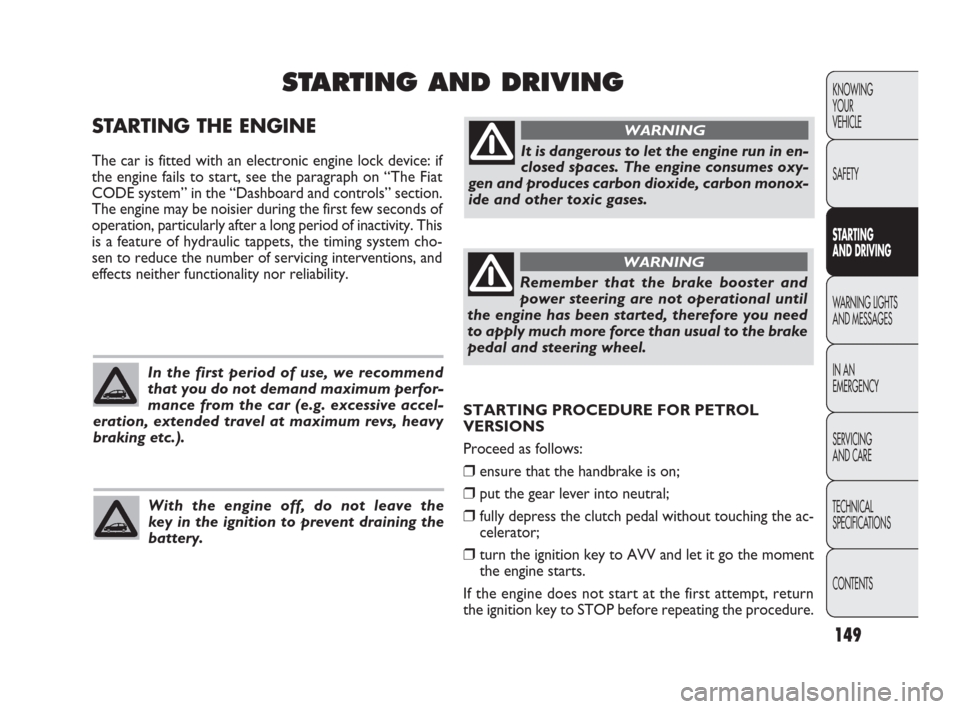

149
STARTING PROCEDURE FOR PETROL
VERSIONS
Proceed as follows:
❒ensure that the handbrake is on;
❒put the gear lever into neutral;
❒fully depress the clutch pedal without touching the ac-
celerator;
❒turn the ignition key to AVV and let it go the moment
the engine starts.
If the engine does not start at the first attempt, return
the ignition key to STOP before repeating the procedure.
STARTING THE ENGINE
The car is fitted with an electronic engine lock device: if
the engine fails to start, see the paragraph on “The Fiat
CODE system” in the “Dashboard and controls” section.
The engine may be noisier during the first few seconds of
operation, particularly after a long period of inactivity. This
is a feature of hydraulic tappets, the timing system cho-
sen to reduce the number of servicing interventions, and
effects neither functionality nor reliability.
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
STARTING AND DRIVING
It is dangerous to let the engine run in en-
closed spaces. The engine consumes oxy-
gen and produces carbon dioxide, carbon monox-
ide and other toxic gases.
WARNING
In the first period of use, we recommend
that you do not demand maximum perfor-
mance from the car (e.g. excessive accel-
eration, extended travel at maximum revs, heavy
braking etc.).
With the engine off, do not leave the
key in the ignition to prevent draining the
battery.
Remember that the brake booster and
power steering are not operational until
the engine has been started, therefore you need
to apply much more force than usual to the brake
pedal and steering wheel.
WARNING
149-160 PUNTO FL EN 4ed 20-01-2010 14:37 Pagina 149

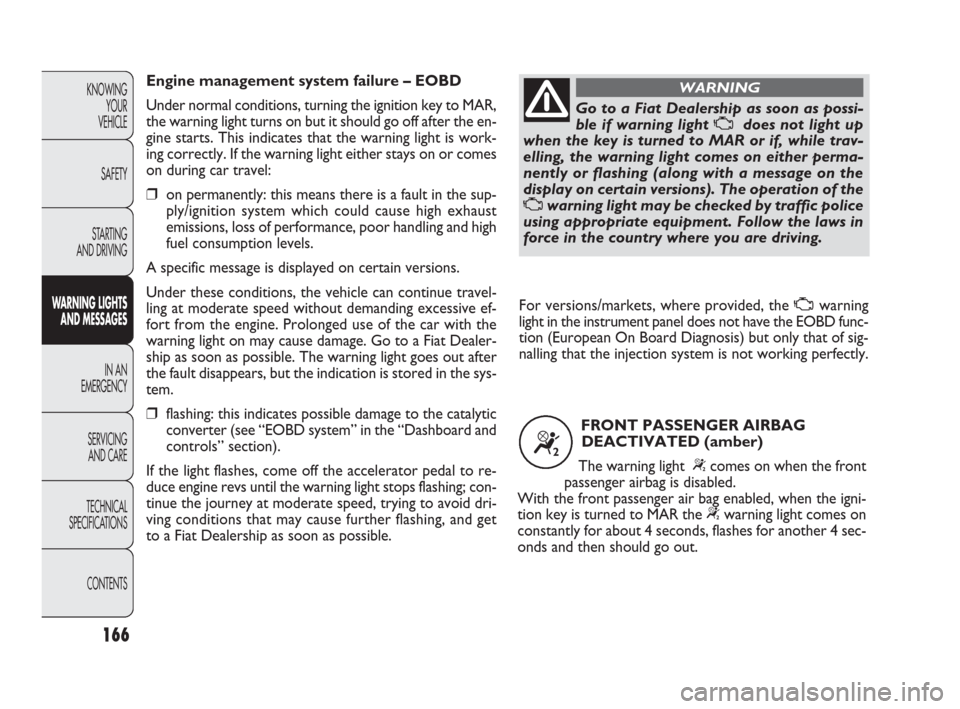

166
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Go to a Fiat Dealership as soon as possi-
ble if warning light Udoes not light up
when the key is turned to MAR or if, while trav-
elling, the warning light comes on either perma-
nently or flashing (along with a message on the
display on certain versions). The operation of the
Uwarning light may be checked by traffic police
using appropriate equipment. Follow the laws in
force in the country where you are driving.
WARNING
FRONT PASSENGER AIRBAG
DEACTIVATED (amber)
The warning light
“comes on when the front
passenger airbag is disabled.
With the front passenger air bag enabled, when the igni-
tion key is turned to MAR the
“warning light comes on
constantly for about 4 seconds, flashes for another 4 sec-
onds and then should go out.
“
Engine management system failure – EOBD
Under normal conditions, turning the ignition key to MAR,
the warning light turns on but it should go off after the en-
gine starts. This indicates that the warning light is work-
ing correctly. If the warning light either stays on or comes
on during car travel:
❒on permanently: this means there is a fault in the sup-
ply/ignition system which could cause high exhaust
emissions, loss of performance, poor handling and high
fuel consumption levels.
A specific message is displayed on certain versions.
Under these conditions, the vehicle can continue travel-
ling at moderate speed without demanding excessive ef-
fort from the engine. Prolonged use of the car with the
warning light on may cause damage. Go to a Fiat Dealer-
ship as soon as possible. The warning light goes out after
the fault disappears, but the indication is stored in the sys-
tem.
❒flashing: this indicates possible damage to the catalytic
converter (see “EOBD system” in the “Dashboard and
controls” section).
If the light flashes, come off the accelerator pedal to re-
duce engine revs until the warning light stops flashing; con-
tinue the journey at moderate speed, trying to avoid dri-
ving conditions that may cause further flashing, and get
to a Fiat Dealership as soon as possible.For versions/markets, where provided, the
Uwarning
light in the instrument panel does not have the EOBD func-
tion (European On Board Diagnosis) but only that of sig-
nalling that the injection system is not working perfectly.
161-174 PUNTO FL EN 4ed 18-01-2010 12:27 Pagina 166

170
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
DPF (PARTICULATE FILTER)
CLEANING IN PROGRESS
(only Multijet with DPF – amber)
When the ignition key is moved to MAR position,
the warnintg light turns on but should go off after a few
seconds. The warning light stays on constantly to notify
the driver that the DPF system needs to eliminate cap-
tured pollutants (particulate) by the regeneration process.
The warning light does not come on during every DPF
regeneration, but only when driving conditions require no-
tification to the driver. The warning light will go off if the
vehicle stays in motion until regeneration has been com-
pleted. The process normally takes about 15 minutes. Op-
timal conditions for completing the process are achieved
by travelling at 60 km/h with engine revs above 2000 rpm.
If this light comes on, it does not mean the car is defec-
tive, so there is no need to take it to a garage. A specific
message will appear on the display when the warning light
comes on (for versions/markets, where provided).
h
Always drive at a speed appropriate to the
traffic conditions, the weather and speed
limits. The engine may be turned off while the
DPF light is on; however, repeated interruption of
the regeneration process may result in premature
degradation of engine oil. For this reason it is al-
ways advisable to wait for the light to go off be-
fore turning off the engine, following the instruc-
tions appearing above. It is not a good idea to
complete DPF regeneration with the vehicle sta-
tionary.
WARNINGSpeed limit exceeded
(for versions/markets where provided)
The display shows the associated message when the car
exceeds the set speed limit (see “Multifunction display”
in the “Dashboard and controls” section).
161-174 PUNTO FL EN 4ed 18-01-2010 12:27 Pagina 170

171
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS

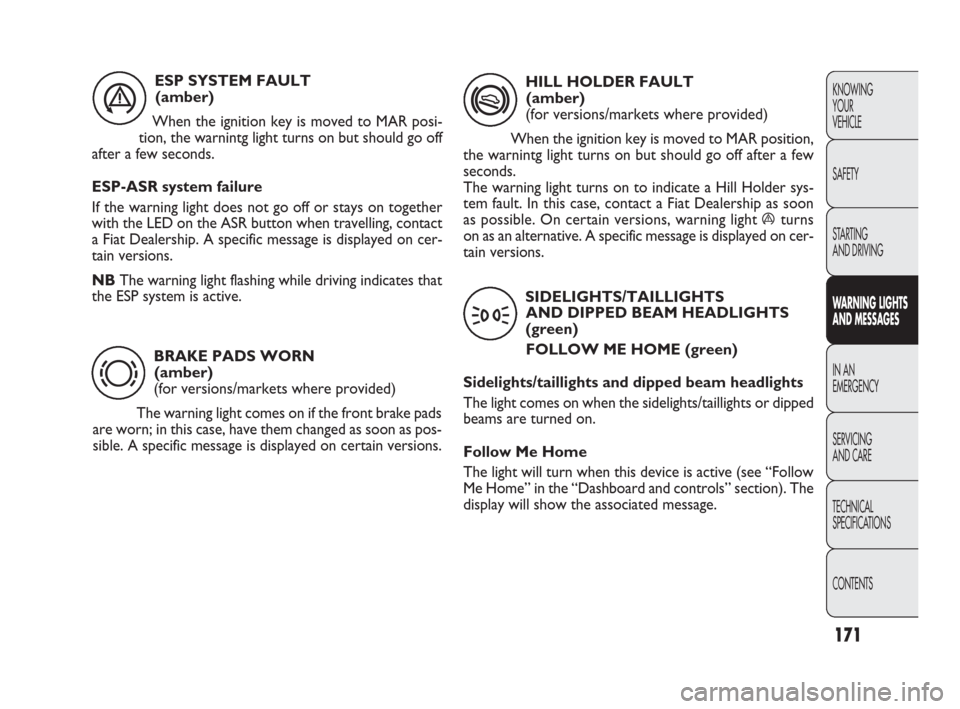

CONTENTSBRAKE PADS WORN
(amber)
(for versions/markets where provided)
The warning light comes on if the front brake pads
are worn; in this case, have them changed as soon as pos-
sible. A specific message is displayed on certain versions.
d
HILL HOLDER FAULT
(amber)
(for versions/markets where provided)
When the ignition key is moved to MAR position,
the warnintg light turns on but should go off after a few
seconds.
The warning light turns on to indicate a Hill Holder sys-
tem fault. In this case, contact a Fiat Dealership as soon
as possible. On certain versions, warning light
áturns
on as an alternative. A specific message is displayed on cer-
tain versions.
*
SIDELIGHTS/TAILLIGHTS
AND DIPPED BEAM HEADLIGHTS
(green)
FOLLOW ME HOME (green)
Sidelights/taillights and dipped beam headlights
The light comes on when the sidelights/taillights or dipped
beams are turned on.
Follow Me Home
The light will turn when this device is active (see “Follow
Me Home” in the “Dashboard and controls” section). The
display will show the associated message.
3
ESP SYSTEM FAULT
(amber)
When the ignition key is moved to MAR posi-
tion, the warnintg light turns on but should go off
after a few seconds.
ESP-ASR system failure
If the warning light does not go off or stays on together
with the LED on the ASR button when travelling, contact
a Fiat Dealership. A specific message is displayed on cer-
tain versions.
NBThe warning light flashing while driving indicates that
the ESP system is active.
á
161-174 PUNTO FL EN 4ed 18-01-2010 12:27 Pagina 171

265
RIGHT HAND DRIVE VERSION
DASHBOARD
The presence and position of the controls, the instruments and the indicators may vary according to the versions.
F0U0531mfig. 221
1. Adjustable side air vents - 2. Fixed side air vents - 3. Left-hand lever: exterior lights control - 4. Instrument panel -
5. Right-hand lever: front and rear windscreen wiper controls, trip computer - 6. Controls on dashboard - 7. Ad-
justable central air vents - 8. Fixed upper air vent - 9. Front airbag, passenger side - 10. Glove compartment - 11. Sound
system (for versions/markets where provided) - 12. HVAC controls - 13. Ignition - 14. Front airbag, driver’s side -
15. Steering wheel adjustment lever - 16. Control panel: headlight position adjustment/digital display/multifunction dis-
play - 17. Light-guiding plate.
RIGHT HAND DRIVE VERSION
259-268 PUNTO FL EN 4ed 18-01-2010 12:29 Pagina 265
