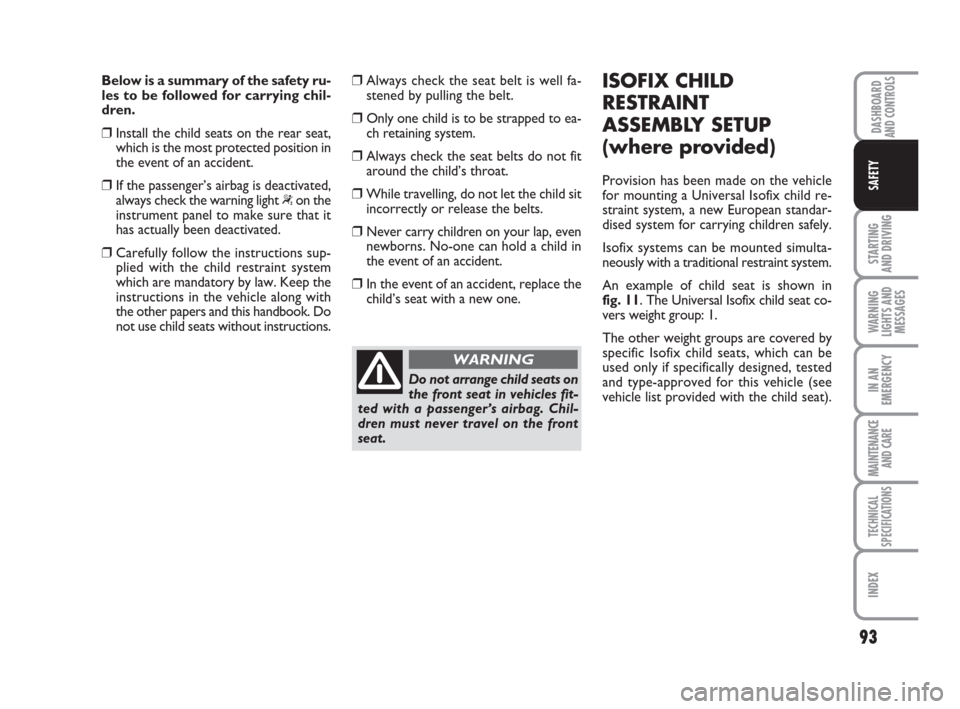

Below is a summary of the safety ru-
les to be followed for carrying chil-
dren.
❒Install the child seats on the rear seat,
which is the most protected position in
the event of an accident.
❒If the passenger’s airbag is deactivated,
always check the warning light
“on the
instrument panel to make sure that it
has actually been deactivated.
❒Carefully follow the instructions sup-
plied with the child restraint system
which are mandatory by law. Keep the
instructions in the vehicle along with
the other papers and this handbook. Do
not use child seats without instructions.❒Always check the seat belt is well fa-
stened by pulling the belt.
❒Only one child is to be strapped to ea-
ch retaining system.
❒Always check the seat belts do not fit
around the child’s throat.
❒While travelling, do not let the child sit
incorrectly or release the belts.
❒Never carry children on your lap, even
newborns. No-one can hold a child in
the event of an accident.
❒In the event of an accident, replace the
child’s seat with a new one.
Do not arrange child seats on
the front seat in vehicles fit-
ted with a passenger’s airbag. Chil-
dren must never travel on the front
seat.
WARNING
ISOFIX CHILD
RESTRAINT
ASSEMBLY SETUP
(where provided)
Provision has been made on the vehicle
for mounting a Universal Isofix child re-
straint system, a new European standar-
dised system for carrying children safely.
Isofix systems can be mounted simulta-
neously with a traditional restraint system.
An example of child seat is shown in
fig. 11. The Universal Isofix child seat co-
vers weight group: 1.
The other weight groups are covered by
specific Isofix child seats, which can be
used only if specifically designed, tested
and type-approved for this vehicle (see
vehicle list provided with the child seat).
083-100 Fiorino GB 1ed 21-10-2008 14:59 Pagina 93

94
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
SAFETY

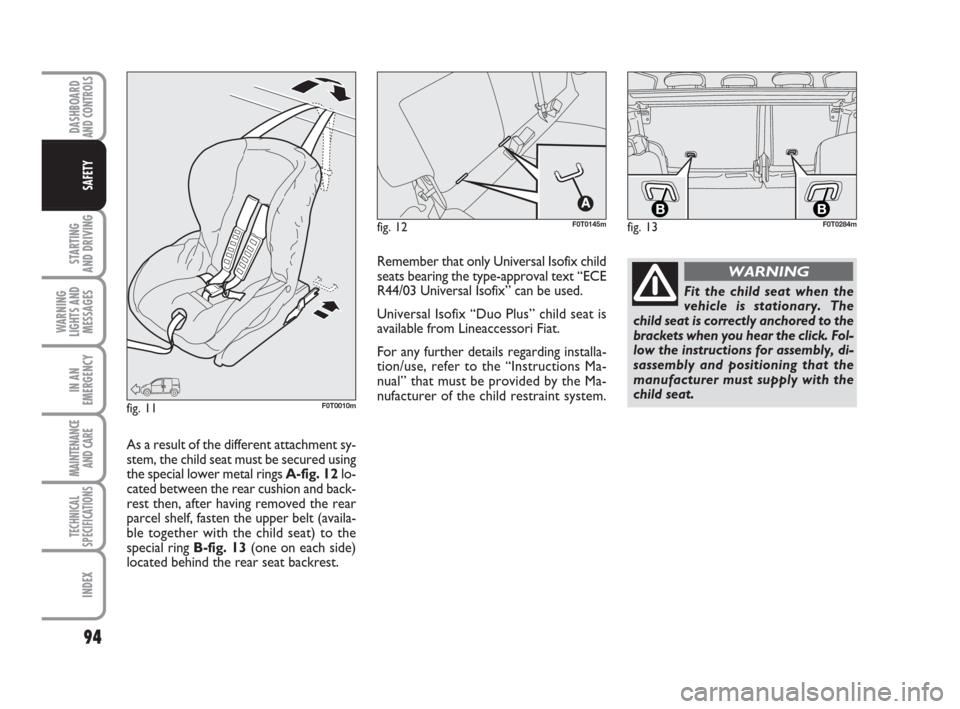

fig. 12F0T0145m
fig. 11F0T0010m
Fit the child seat when the
vehicle is stationary. The
child seat is correctly anchored to the
brackets when you hear the click. Fol-
low the instructions for assembly, di-
sassembly and positioning that the
manufacturer must supply with the
child seat.
WARNINGRemember that only Universal Isofix child
seats bearing the type-approval text “ECE
R44/03 Universal Isofix” can be used.
Universal Isofix “Duo Plus” child seat is
available from Lineaccessori Fiat.
For any further details regarding installa-
tion/use, refer to the “Instructions Ma-
nual” that must be provided by the Ma-
nufacturer of the child restraint system.
As a result of the different attachment sy-
stem, the child seat must be secured using
the special lower metal rings A-fig. 12lo-
cated between the rear cushion and back-
rest then, after having removed the rear
parcel shelf, fasten the upper belt (availa-
ble together with the child seat) to the
special ring B-fig. 13(one on each side)
located behind the rear seat backrest.
fig. 13
BBF0T0284m
083-100 Fiorino GB 1ed 21-10-2008 14:59 Pagina 94

95
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
SAFETY
