2
FIAT FIORINO/QUBO NATURAL POWER
This supplement is about the Fiat Fiori-
no/Qubo Natural Power Petrol-Methane.
For anything not included in this supple-
ment, refer to the enclosed Owner Hand-
book.CONTENTS
INTRODUCTION ............................................................................................................ 3
SYSTEM FUNCTIONAL DIAGRAM ............................................................................ 5
CYLINDERS ....................................................................................................................... 6
SOLENOID VALVES/SAFETY DEVICES ...................................................................... 7
PIPING ................................................................................................................................. 8
PRESSURE REGULATOR/REDUCTION UNIT ......................................................... 8
METHANE INJECTORS .................................................................................................. 8
PETROL/METHANE SWITCH ...................................................................................... 8
STARTING THE ENGINE .............................................................................................. 10
PROTECTION FUSES ...................................................................................................... 10
FUEL CUT-OFF SYSTEM................................................................................................ 10
REAR SEATS ...................................................................................................................... 11
AT THE FILLING STATION .......................................................................................... 11
IDENTIFICATION DATA .............................................................................................. 12
CARGO BOX .................................................................................................................... 12
CHECKING LEVELS......................................................................................................... 13
SCHEDULED SERVICING PLAN .................................................................................. 14
ENGINE ............................................................................................................................... 16
WEIGHTS ........................................................................................................................... 17
BRAKES ............................................................................................................................... 18
SUSPENSION .....................................................................................................................18
STEERING ........................................................................................................................... 18
TRASMISSION ...................................................................................................................18
DIMENSIONS ....................................................................................................................19
LOAD COMPARTMENT VOLUME ............................................................................. 20
TYRES .................................................................................................................................. 20
CAPACITIES ....................................................................................................................... 21
CO
2EMISSIONS ............................................................................................................... 22
FUEL CONSUMPTION ................................................................................................... 23
FLUIDS AND LUBRICANTS .......................................................................................... 24
603.97.591 FiorinoQubo Nat P 1ed EN 1-12-2009 14:35 Pagina 2

7
FIAT FIORINO/QUBO NATURAL POWER3) Excess flow,intervenes if the pipes
break and limits the flow of methane ex-
iting to non dangerous levels.
The flow restrictor valve is located to al-
low it to operate even if the solenoid valve
casing is broken due to an impact.
4) Manual tap,it is located upstream of
the solenoid valve.
SOLENOID
VALVES/SAFETY
DEVICES
The solenoid valves Fig. 5and Fig. 6are
bolted directly onto the methane cylinders
with the main function of interrupting the
flow of methane to the supply circuit.
The solenoid valves are open when:
❒the switching button is in the methane
position;
❒the pressure in the cylinder is sufficient
for operation;
❒the engine is running.
The solenoid valve assembly is equipped
with the following safety devices:
1) Fuse pad,in the case of overheating
(temperature above 110 °C), it totally
eliminates the danger of excess pressure
making the methane in the cylinder flow
out as quickly as possible in a controlled
manner.
2) Mechanical excess pressure device
(Burt Disk),in the case of excess pres-
sure (above 330 bar), it ensures that the
methane escapes as quickly as possible in
a controlled manner.It separates the cylinder from the methane
system to allow maintenance operations.
The taps are accessible from outside the
vehicle and are located, in the case of the
lengthwise middle cylinder, at the rear of
the cylinder and, in the case of the trans-
verse rear cylinder, towards the wheel
right side.
To close the taps D-Fig.7: turn the knob
in the direction (1) shown by the arrow
(clockwise
OFF).
To open the taps D-Fig.7: turn the knob
in the direction (2) shown by the arrow
(anticlockwise
ON).
5) Check valve,this prevents the
methane from flowing back to the filler.
Fig. 5F0T0347m
Fig. 6F0T0348m
Fig. 7
1
2
D
F0T0349m
603.97.591 FiorinoQubo Nat P 1ed EN 1-12-2009 14:35 Pagina 7

13
FIAT FIORINO/QUBO NATURAL POWER

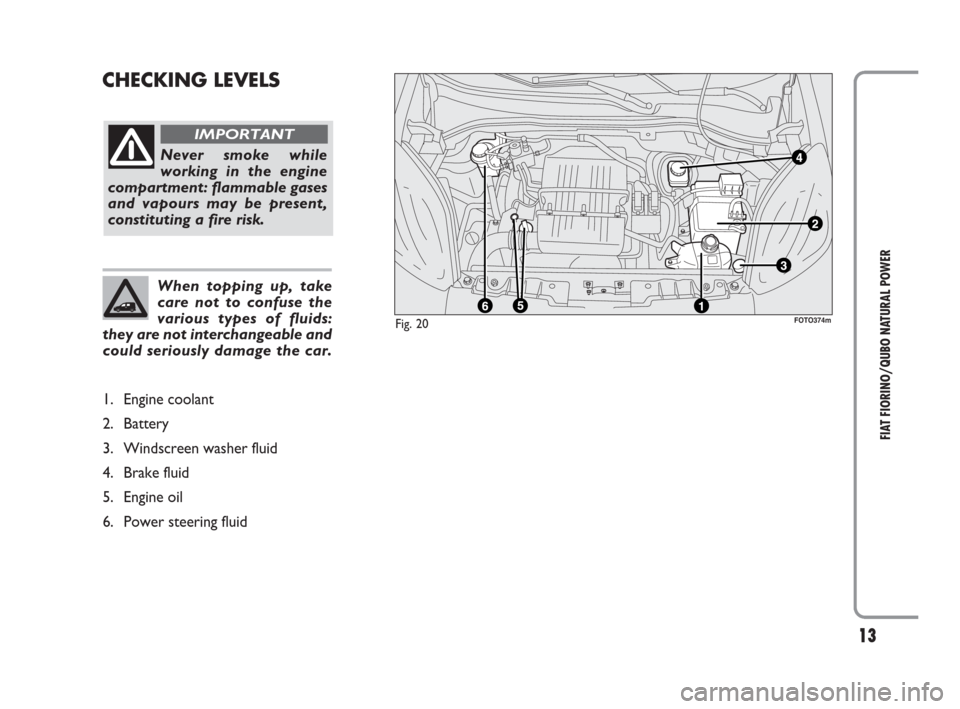

CHECKING LEVELS
Fig. 20
Never smoke while
working in the engine
compartment: flammable gases
and vapours may be present,
constituting a fire risk.
IMPORTANT
When topping up, take
care not to confuse the
various types of fluids:
they are not interchangeable and
could seriously damage the car.
1. Engine coolant
2. Battery
3. Windscreen washer fluid
4. Brake fluid
5. Engine oil
6. Power steering fluid
FOTO374m
603.97.591 FiorinoQubo Nat P 1ed EN 1-12-2009 14:35 Pagina 13

●● ●● ● ●
●● ●● ● ●
●● ●● ● ●
●● ●● ● ●
●● ●
●● ●● ● ●
●● ●● ● ●
●● ●● ● ●
●● ●● ● ●
●●
●●
●●
●● ●● ● ●
●● ●● ● ●
14
FIAT FIORINO/QUBO NATURAL POWER
SCHEDULED SERVICING PLAN
Thousands of kilometres 30 60 90 120 150 180
Check tyre condition/wear and adjust pressure if required
Check operation of lighting system (headlamps, direction indicators,
hazard warning lights, luggage compartment, passenger compartment,
glove box, instrument panel warning lights, etc.)
Check windscreen wash/wipe operation
Check front disc brake pad condition and wear
Check rear drum brake linings condition and wear
Visually inspect the condition of: exterior bodywork, underbody
protection, rigid pipes and hoses (exhaust – fuel supply – brakes),
rubber parts (boots, sleeves, bushes, etc.)
Check cleanliness of locks, lids, engine and boot, and the cleanliness
and lubrication of linkage
Check and, if necessary, top up fluid levels (brakes/hydraulic
clutch, windscreen washer, battery, engine coolant, etc.)
Check the handbrake lever travel and adjust it, if necessary
Visually inspect the condition of accessory drive belt/s
Visually inspect the condition of toothed timing belt
Check tension of accessory drive belts and adjust, if necessary
Check tappet clearance and adjust, if necessary
Check exhaust gas emissions
603.97.591 FiorinoQubo Nat P 1ed EN 1-12-2009 14:35 Pagina 14

●● ●● ● ●
●
●
●● ●● ● ●
●● ●
●● ●● ● ●
●● ●
●● ●● ● ●
●● ●● ● ●
●● ●● ● ●
●● ●● ● ●
●●●
15
FIAT FIORINO/QUBO NATURAL POWER
If the car is mainly used in town, change the engine oil and filter every 12 months.
Thousands of kilometres 30 60 90 120 150 180
Check engine management system operation (using diagnosis socket)
Replace accessory drive belt/s
Replace toothed timing belt (*)
Replace spark plugs
Replace air filter cartridge
Change engine oil and oil filter (or every 24 months)
Change brake fluid (or every 24 months)
Replace pollen filter (or every 24 months)
Visually inspect condition of: methane pipes and connectors,
methane tank fastening, restore, if necessary (**)
Check pressure regulator and, if necessary, replace internal filter (**)
Check operation and parameters of fuel supply system using
the self-diagnosis socket
Check tightening torque of the cylinder fastening bands
(*) Regardless of the mileage, the timing drive belt shall be replaced every 4 years for particularly demanding use (cold climates, town driving,
idling for a long time, dusty areas) or, in any case, every 5 years.
(**) or every 12 months.
