DASHBOARD
AND CONTROLS

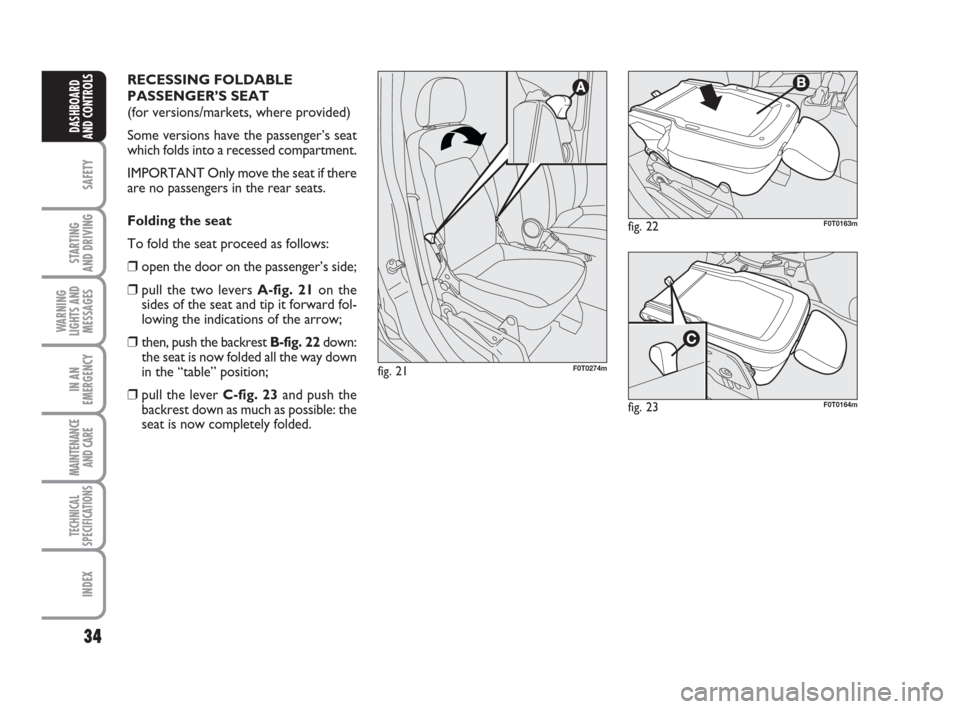

RECESSING FOLDABLE
PASSENGER’S SEAT
(for versions/markets, where provided)
Some versions have the passenger’s seat
which folds into a recessed compartment.
IMPORTANT Only move the seat if there
are no passengers in the rear seats.
Folding the seat
To fold the seat proceed as follows:
❒open the door on the passenger’s side;
❒pull the two levers A-fig. 21on the
sides of the seat and tip it forward fol-
lowing the indications of the arrow;
❒then, push the backrest B-fig. 22down:
the seat is now folded all the way down
in the “table” position;
❒pull the lever C-fig. 23and push the
backrest down as much as possible: the
seat is now completely folded.
fig. 21F0T0274m
fig. 22F0T0163m
fig. 23F0T0164m
001-035 QUBO GB 1ed:001-035 Fiorino GB 1ed 3-12-2009 15:59 Pagina 34

35
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
fig. 24F0T0165mfig. 25F0T0237m

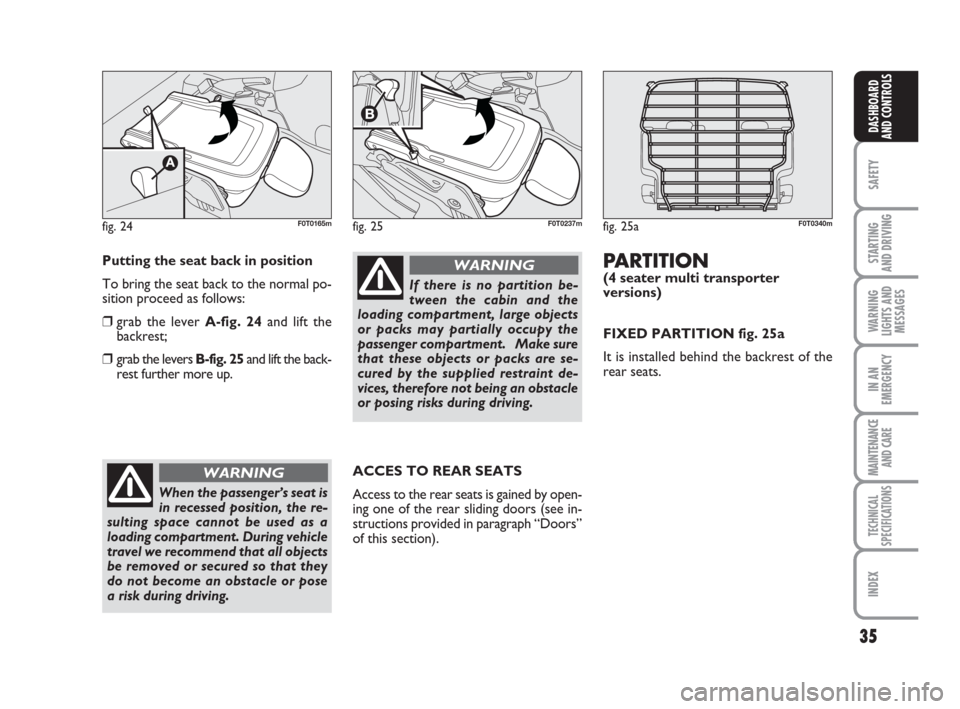

Putting the seat back in position
To bring the seat back to the normal po-
sition proceed as follows:
❒grab the lever A-fig. 24and lift the
backrest;
❒grab the levers B-fig. 25and lift the back-
rest further more up.
When the passenger’s seat is
in recessed position, the re-
sulting space cannot be used as a
loading compartment. During vehicle
travel we recommend that all objects
be removed or secured so that they
do not become an obstacle or pose
a risk during driving.
WARNING
If there is no partition be-
tween the cabin and the
loading compartment, large objects
or packs may partially occupy the
passenger compartment. Make sure
that these objects or packs are se-
cured by the supplied restraint de-
vices, therefore not being an obstacle
or posing risks during driving.
WARNING
ACCES TO REAR SEATS
Access to the rear seats is gained by open-
ing one of the rear sliding doors (see in-
structions provided in paragraph “Doors”
of this section).
fig. 25aF0T0340m
PARTITION(4 seater multi transporter
versions)
FIXED PARTITION fig. 25a
It is installed behind the backrest of the
rear seats.
001-035 QUBO GB 1ed:001-035 Fiorino GB 1ed 3-12-2009 15:59 Pagina 35

36
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

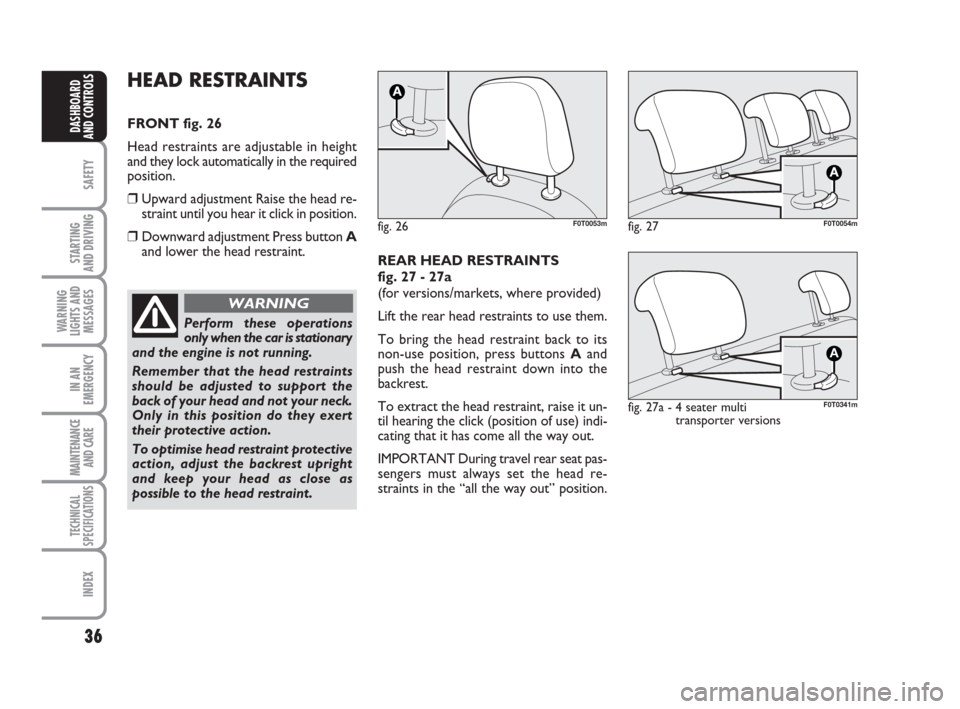

HEAD RESTRAINTS
FRONT fig. 26
Head restraints are adjustable in height
and they lock automatically in the required
position.
❒Upward adjustment Raise the head re-
straint until you hear it click in position.
❒Downward adjustment Press button A
and lower the head restraint.
fig. 26F0T0053m
Perform these operations
only when the car is stationary
and the engine is not running.
Remember that the head restraints
should be adjusted to support the
back of your head and not your neck.
Only in this position do they exert
their protective action.
To optimise head restraint protective
action, adjust the backrest upright
and keep your head as close as
possible to the head restraint.
WARNING
REAR HEAD RESTRAINTS
fig. 27 - 27a
(for versions/markets, where provided)
Lift the rear head restraints to use them.
To bring the head restraint back to its
non-use position, press buttons Aand
push the head restraint down into the
backrest.
To extract the head restraint, raise it un-
til hearing the click (position of use) indi-
cating that it has come all the way out.
IMPORTANT During travel rear seat pas-
sengers must always set the head re-
straints in the “all the way out” position.
fig. 27F0T0054m
fig. 27a - 4 seater multi
transporter versions
A
F0T0341m
036-082 QUBO GB 1ed:_ 3-12-2009 11:55 Pagina 36

37
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Perform these adjustments
only when the vehicle is sta-
tionary and the engine is not running.
WARNING
Under no circumstances
should aftermarket opera-
tions involving steering system or
steering column modifications (e.g.:
installation of anti-theft device) be
carried out that could badly affect
performance and safety. This also
causes the warranty to become null
and void and results in vehicle non-
compliance with type-approval re-
quirements.
WARNING
fig. 28F0T0040m

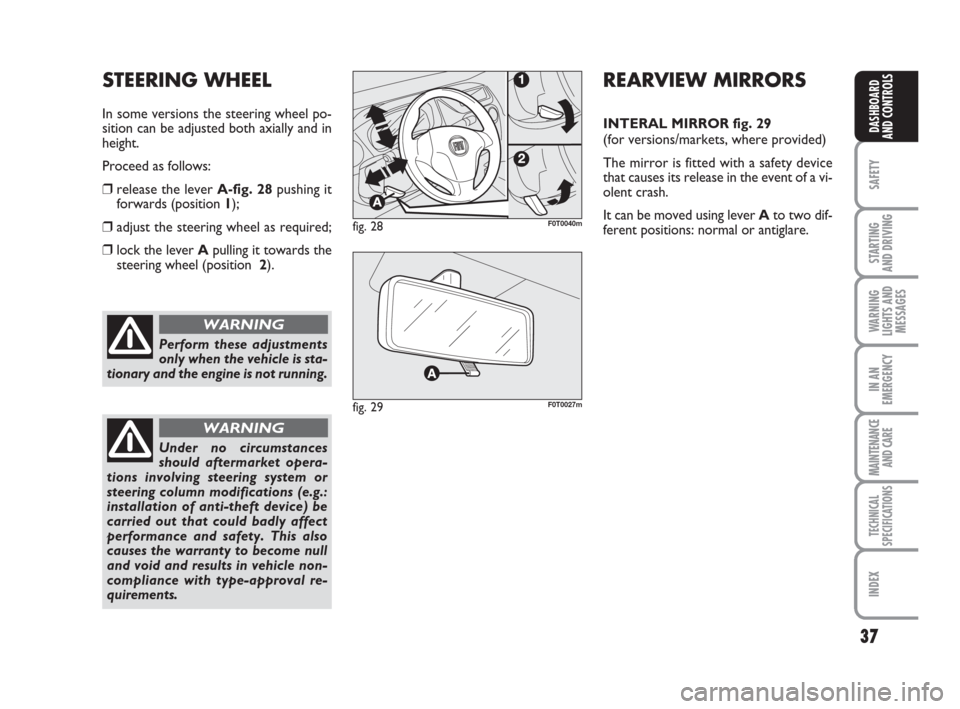

STEERING WHEEL
In some versions the steering wheel po-
sition can be adjusted both axially and in
height.
Proceed as follows:
❒release the lever A-fig. 28pushing it
forwards (position 1);
❒adjust the steering wheel as required;
❒lock the lever Apulling it towards the
steering wheel (position 2).
REARVIEW MIRRORS
INTERAL MIRROR fig. 29
(for versions/markets, where provided)
The mirror is fitted with a safety device
that causes its release in the event of a vi-
olent crash.
It can be moved using lever Ato two dif-
ferent positions: normal or antiglare.
fig. 29F0T0027m
036-082 QUBO GB 1ed:_ 3-12-2009 11:55 Pagina 37

38
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
fig. 30F0T0042m
During vehicle travel the mir-
rors must always be posi-
tioned as shown in A-fig. 30.
WARNING
fig. 31F0T0194mfig. 32
B
C
D
F0T0041m

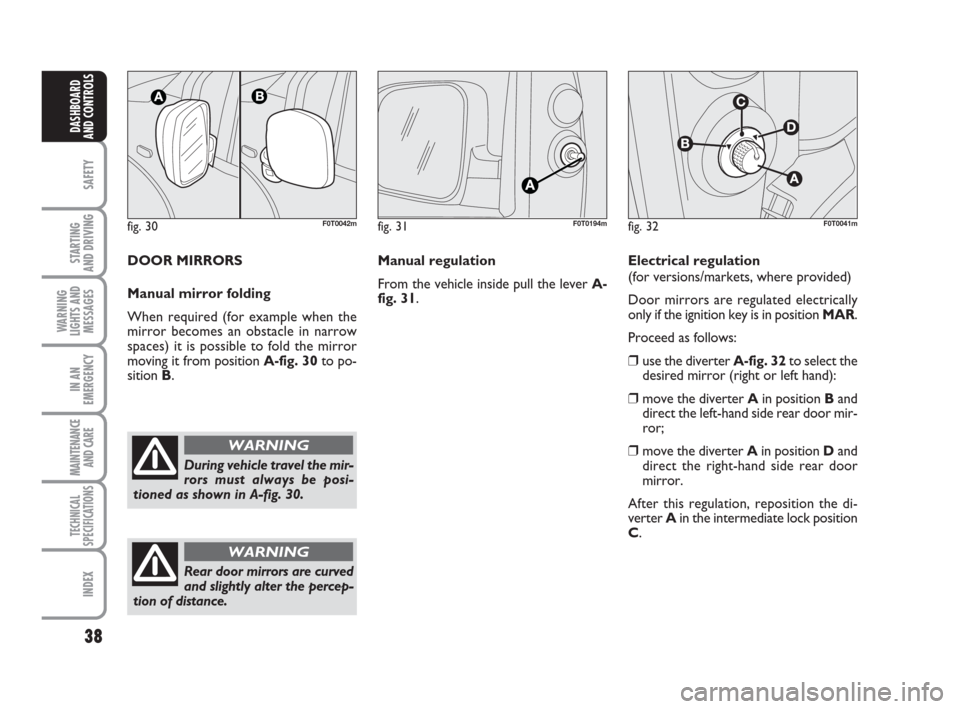

Manual regulation
From the vehicle inside pull the lever A-
fig. 31. DOOR MIRRORS
Manual mirror folding
When required (for example when the
mirror becomes an obstacle in narrow
spaces) it is possible to fold the mirror
moving it from position A-fig. 30to po-
sition B.Electrical regulation
(for versions/markets, where provided)
Door mirrors are regulated electrically
only if the ignition key is in position MAR.
Proceed as follows:
❒use the diverter A-fig. 32to select the
desired mirror (right or left hand):
❒move the diverter Ain position Band
direct the left-hand side rear door mir-
ror;
❒move the diverter Ain position Dand
direct the right-hand side rear door
mirror.
After this regulation, reposition the di-
verter Ain the intermediate lock position
C.
Rear door mirrors are curved
and slightly alter the percep-
tion of distance.
WARNING
036-082 QUBO GB 1ed:_ 3-12-2009 11:55 Pagina 38

39
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

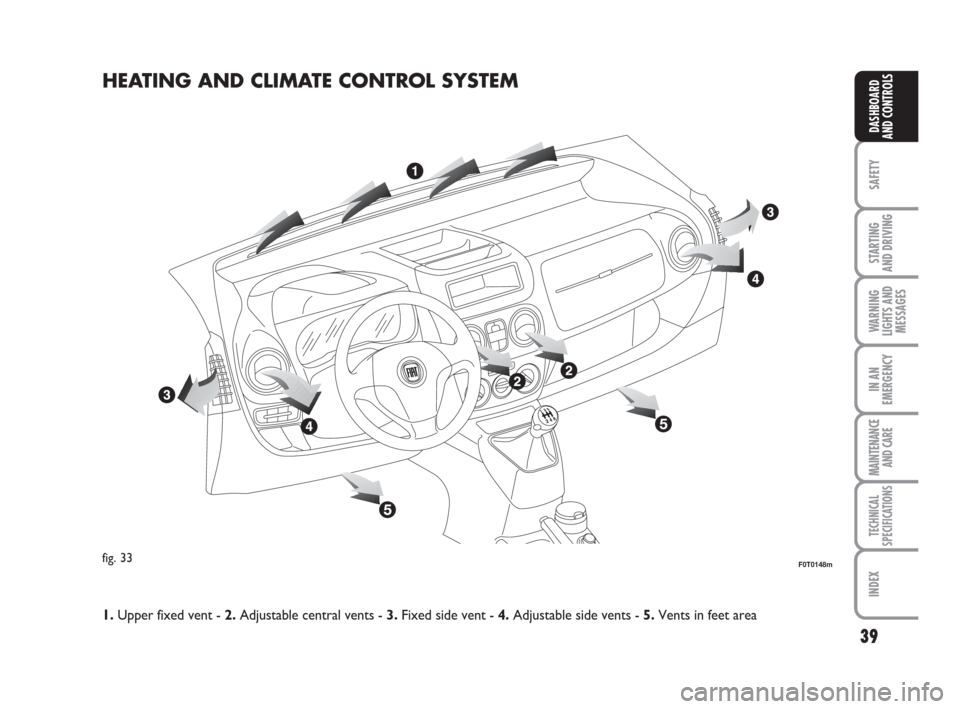

HEATING AND CLIMATE CONTROL SYSTEM
fig. 33F0T0148m
1.Upper fixed vent - 2.Adjustable central vents - 3.Fixed side vent - 4.Adjustable side vents - 5.Vents in feet area
036-082 QUBO GB 1ed:_ 3-12-2009 11:55 Pagina 39

40
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
fig. 35F0T0030mfig. 34F0T0031m

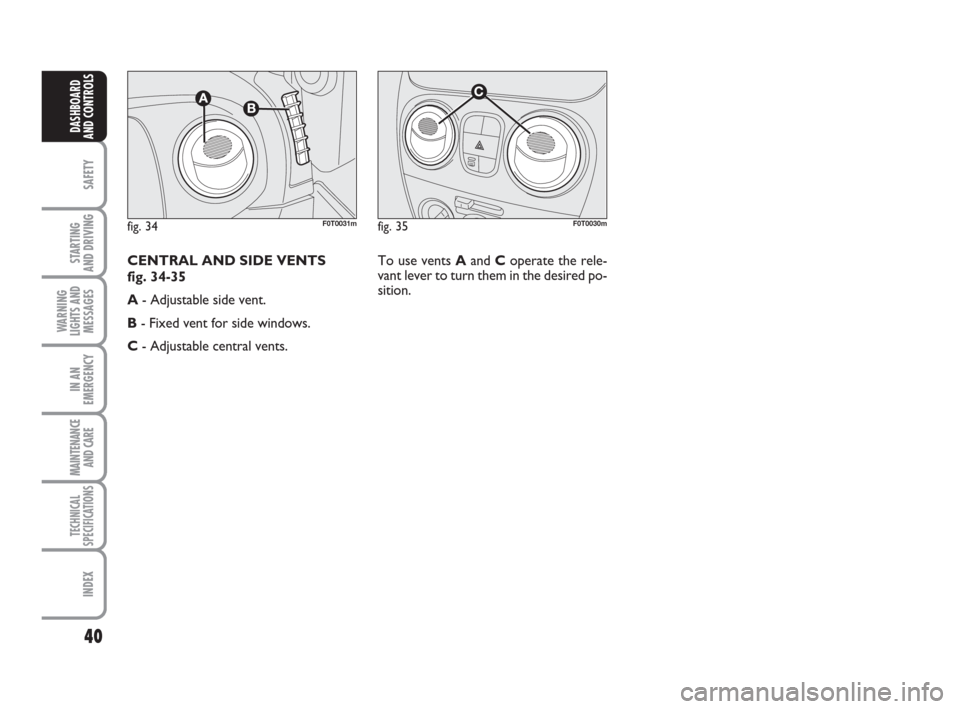

To use vents Aand Coperate the rele-
vant lever to turn them in the desired po-
sition. CENTRAL AND SIDE VENTS
fig. 34-35
A- Adjustable side vent.
B- Fixed vent for side windows.
C- Adjustable central vents.
036-082 QUBO GB 1ed:_ 3-12-2009 11:55 Pagina 40

41
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

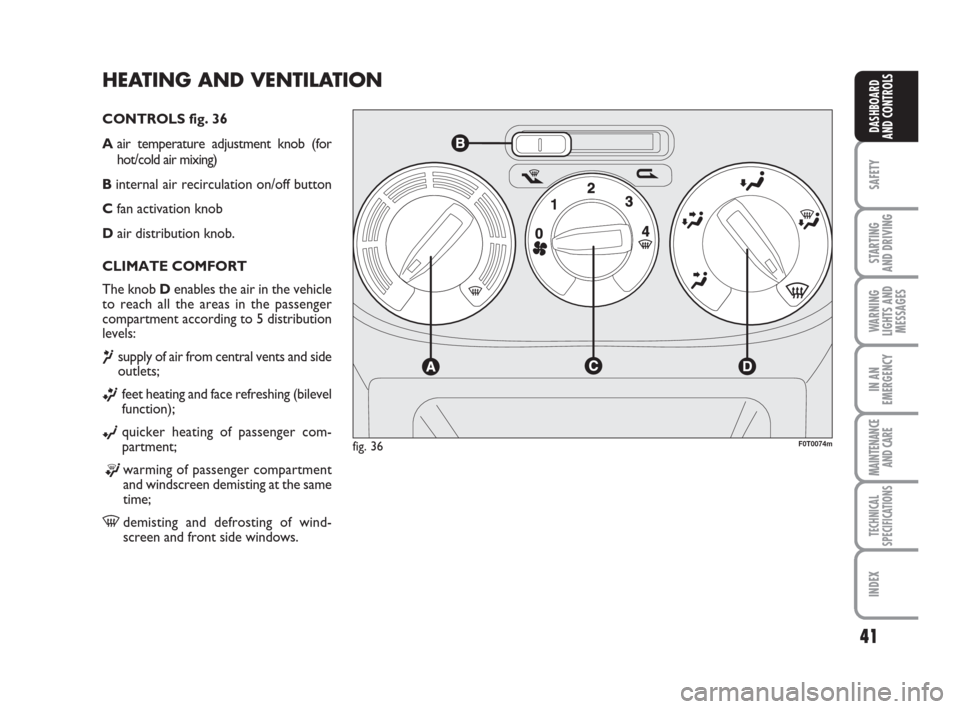

HEATING AND VENTILATION
CONTROLS fig. 36
Aair temperature adjustment knob (for
hot/cold air mixing)
Binternal air recirculation on/off button
Cfan activation knob
Dair distribution knob.
CLIMATE COMFORT
The knob Denables the air in the vehicle
to reach all the areas in the passenger
compartment according to 5 distribution
levels:
¶supply of air from central vents and side
outlets;
ßfeet heating and face refreshing (bilevel
function);
©quicker heating of passenger com-
partment;
®warming of passenger compartment
and windscreen demisting at the same
time;
-demisting and defrosting of wind-
screen and front side windows.
fig. 36F0T0074m
036-082 QUBO GB 1ed:_ 3-12-2009 11:55 Pagina 41

42
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

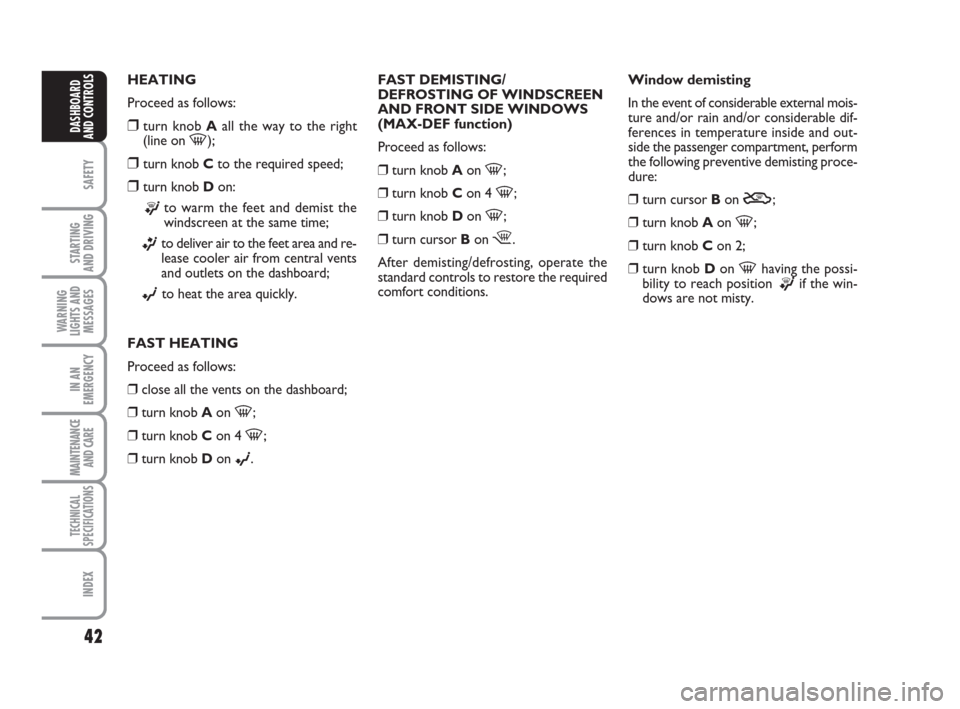

HEATING
Proceed as follows:
❒turn knob Aall the way to the right
(line on -);
❒turn knob Cto the required speed;
❒turn knob Don:
®to warm the feet and demist the
windscreen at the same time;
ßto deliver air to the feet area and re-
lease cooler air from central vents
and outlets on the dashboard;
©to heat the area quickly.
FAST HEATING
Proceed as follows:
❒close all the vents on the dashboard;
❒turn knob Aon
-;
❒turn knob Con 4
-;
❒turn knob Don
©.FAST DEMISTING/
DEFROSTING OF WINDSCREEN
AND FRONT SIDE WINDOWS
(MAX-DEF function)
Proceed as follows:
❒turn knob Aon
-;
❒turn knob Con 4
-;
❒turn knob Don
-;
❒turn cursor Bon
¶.
After demisting/defrosting, operate the
standard controls to restore the required
comfort conditions.Window demisting
In the event of considerable external mois-
ture and/or rain and/or considerable dif-
ferences in temperature inside and out-
side the passenger compartment, perform
the following preventive demisting proce-
dure:
❒turn cursor Bon
Y;
❒turn knob Aon
-;
❒turn knob Con 2;
❒turn knob Don
-having the possi-
bility to reach position
®if the win-
dows are not misty.
036-082 QUBO GB 1ed:_ 3-12-2009 11:55 Pagina 42

43
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

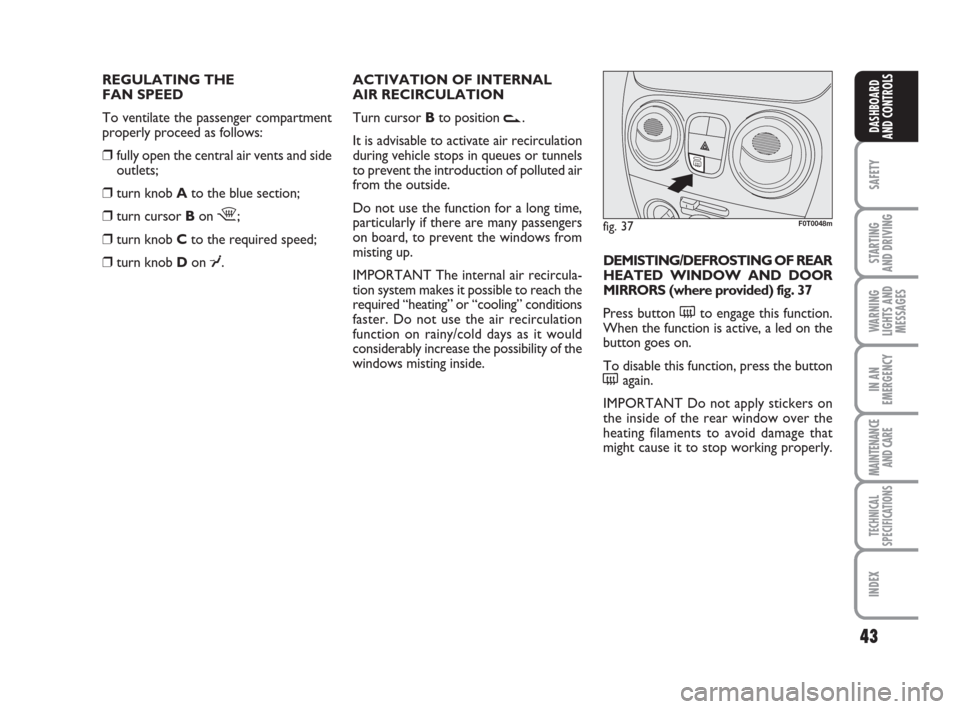

REGULATING THE
FAN SPEED
To ventilate the passenger compartment
properly proceed as follows:
❒fully open the central air vents and side
outlets;
❒turn knob Ato the blue section;
❒turn cursor Bon
¶;
❒turn knob Cto the required speed;
❒turn knob Don
¥.ACTIVATION OF INTERNAL
AIR RECIRCULATION
Turn cursor Bto position
v.
It is advisable to activate air recirculation
during vehicle stops in queues or tunnels
to prevent the introduction of polluted air
from the outside.
Do not use the function for a long time,
particularly if there are many passengers
on board, to prevent the windows from
misting up.
IMPORTANT The internal air recircula-
tion system makes it possible to reach the
required “heating” or “cooling” conditions
faster. Do not use the air recirculation
function on rainy/cold days as it would
considerably increase the possibility of the
windows misting inside.DEMISTING/DEFROSTING OF REAR
HEATED WINDOW AND DOOR
MIRRORS (where provided) fig. 37
Press button (to engage this function.
When the function is active, a led on the
button goes on.
To disable this function, press the button
(again.
IMPORTANT Do not apply stickers on
the inside of the rear window over the
heating filaments to avoid damage that
might cause it to stop working properly.
fig. 37F0T0048m
036-082 QUBO GB 1ed:_ 3-12-2009 11:55 Pagina 43
