relay FIAT QUBO 2009 1.G Owners Manual

145
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
DEVICE PROTECTED FUSE AMPERE FIGURE
Fog lights F30 15 50
Available F08 – 50
Cigar lighter/Passenger compartment current outlets/Heated seats F85 30 50
+15 Reverse lights/decimetre/Water sensor in diesel fuel/
Reels for relays T02, T05, T14, T17 and T19 F87 7.5 50
119-150 QUBO GB 1ed:123-154 Fiorino GB 1ed 3-12-2009 16:00 Pagina 145

147
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
DEVICE PROTECTED FUSE AMPERE FIGURE
Dipped beam headlight (on passenger’s side) F12 7.5 53
Dipped beam headlight (on driver’s side)/Headlight aiming control F13 7.5 53
INT/A relay reels SCM F31 5 53
Timed internal lighting F32 7.5 53
Bluetooth
®sound system/central unit node/Blue&Me™ node/Troubleshooting outlet for EOBD system/Volumetric alarm control unit/Alarm siren control unit F36 10 53
Instrument panel/Stop light control node (NA) F37 5 53
Door/boot lock actuators F38 20 53
Widow/rear window washer two direction pump F43 15 53
Front power window (on driver’s side) F47 20 53
Front power window (on passenger’s side) F48 20 53
Control lighting/Parking sensor control unit/
Electric door mirror control/Volumetric alarm control unit F49 5 53
INT Sound system node/Bluetooth
®central unit node/Blue&Me™ node/Movement of electric door mirrors/Clutch switch/Stop light control (NC) F51 5 53
Instrument panel node F53 5 53
119-150 QUBO GB 1ed:123-154 Fiorino GB 1ed 3-12-2009 16:00 Pagina 147

171
SAFETY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE

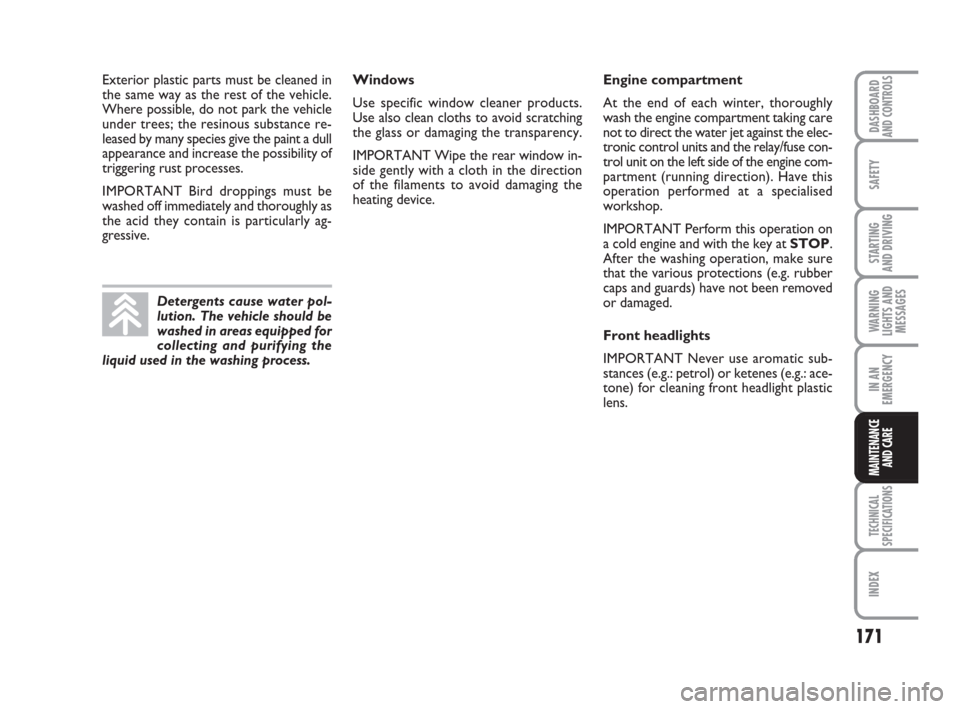

Windows
Use specific window cleaner products.
Use also clean cloths to avoid scratching
the glass or damaging the transparency.
IMPORTANT Wipe the rear window in-
side gently with a cloth in the direction
of the filaments to avoid damaging the
heating device.Engine compartment
At the end of each winter, thoroughly
wash the engine compartment taking care
not to direct the water jet against the elec-
tronic control units and the relay/fuse con-
trol unit on the left side of the engine com-
partment (running direction). Have this
operation performed at a specialised
workshop.
IMPORTANT Perform this operation on
a cold engine and with the key at STOP.
After the washing operation, make sure
that the various protections (e.g. rubber
caps and guards) have not been removed
or damaged.
Front headlights
IMPORTANT Never use aromatic sub-
stances (e.g.: petrol) or ketenes (e.g.: ace-
tone) for cleaning front headlight plastic
lens. Exterior plastic parts must be cleaned in
the same way as the rest of the vehicle.
Where possible, do not park the vehicle
under trees; the resinous substance re-
leased by many species give the paint a dull
appearance and increase the possibility of
triggering rust processes.
IMPORTANT Bird droppings must be
washed off immediately and thoroughly as
the acid they contain is particularly ag-
gressive.
Detergents cause water pol-
lution. The vehicle should be
washed in areas equipped for
collecting and purifying the
liquid used in the washing process.
151-172 QUBO GB 1ed:- 3-12-2009 12:01 Pagina 171
