73
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
ESP SYSTEM ACTIVATION
The ESP system is automatically activat-
ed when the car is started and cannot be
de-activated.
FAILURE INDICATIONS
In the event of failure, the ESP system is
automatically disconnected, the warning
light
á, comes on with fixed light on the
instrument panel, together with the mes-
sage on the multifunction display (for ver-
sions/markets, where provided) (see sec-
tion “Warning lights and messages”) and
with the button led ASR OFF. In this case
contact a Fiat Dealership as soon as pos-
sible.
Performance of the ESP sys-
tem, in terms of active safe-
ty should not induce the driver to take
pointless and unnecessary risks. The
style of driving must in any case al-
ways be adapted to the conditions of
the road surface, visibility and traffic.
Road safety is always the driver’s re-
sponsibility.
WARNING
HILL HOLDER SYSTEM
This system is an integral part of the ESP
system and it is provided to facilitate start-
ing on slopes.
It will activate automatically with the fol-
lowing conditions:
❒uphill: vehicle stationary on a road with
a gradient of more than 5%, engine run-
ning, brake pressed and gearbox in neu-
tral or gear other than reverse engaged;
❒downhill: vehicle stationary on a road
with a gradient of more than 5%, engine
running, brake pressed and reverse gear
engaged.
At pickup the ESP system control unit will
keep brake force on wheels until reaching
the torque suitable for starting, or in any
case for max. 2 seconds in order to pass
easily from the brake pedal to the accel-
erator pedal.
After two seconds without starting, the
system will deactivate automatically by re-
leasing gradually the brake force.
At releasing, the typical brake disengage-
ment noise indicating that the car is go-
ing to move will be heard.FAILURE INDICATIONS
System failure is indicated by the turning
on of warning light *on the instrument
panel with digital display and warning light
áon the instrument panel with multi-
function display (for versions/markets,
where provided) (see section “Warning
lights and messages”).
IMPORANT The Hill Holder system is not
a parking brake therefore, never leave the
car without having engaged the handbrake,
turned the engine off and engaged the first
speed.
For correct operation of the
ESP and ASR systems, the
tyres must absolutely be of the same
brand and type on all wheels, in per-
fect conditions and, above all, of
type, brand and size specified.
WARNING
036-082 QUBO GB 1ed:_ 3-12-2009 11:55 Pagina 73

74
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
MSR system (engine braking
torque control)
It is an integral part of the ASR system that
in case of sudden gear shifting, cuts in pro-
viding torque to the engine thus prevent-
ing excessive driving wheel drive that, spe-
cially in poor grip conditions, can lead to
loss of stability.
Switching the systemon/off
The ASR system switches on automatically
each time the engine is started.
When travelling, the ASR can be switched
off and on again pressing button A - fig. 93
set on the dashboard.When the ASR is switched off this is
shown by the lighting up of the led on the
button and by relevant message on the
multifunction display, for versions/mar-
kets, where provided.
If the ASR is switched off when travelling,
it will turn on again automatically the next
time the engine is started.
When travelling on snowy roads with
snow chains, it may be helpful to turn the
ASR off: in fact, in these conditions, slip-
ping of the driving wheels when moving off
makes it possible to obtain better drive.
For correct operation of the
ESP and ASR systems, the
tyres must absolutely be of the same
brand and type on all wheels, in per-
fect conditions and, above all, of
type, brand and size specified.
WARNING
fig. 93F0M0317m
ASR SYSTEM (Antislip Regulator)
The ASR function controls car drive and
cuts in automatically every time one or
both driving wheels slip.
According to slipping conditions, two dif-
ferent control systems are activated:
❒if slipping involves both driving wheels,
the ASR function intervenes reducing
the power transmitted by the engine;
❒if the slipping involves only one driving
wheel, the ASR system cuts in auto-
matically braking the wheel that is slip-
ping.
The action of the ASR is particularly help-
ful in the following circumstances:
❒ slipping of the inner wheel due to the
effect of dynamic load changes or ex-
cessive acceleration;
❒ too much power transmitted to the
wheels also in relation to the conditions
of the road surface;
❒ acceleration on slippery, snowy or
frozen surfaces;
❒ in the case of loss of grip on a wet sur-
face (aquaplaning).
036-082 QUBO GB 1ed:_ 3-12-2009 11:55 Pagina 74

75
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
The performance of the sys-
tem, in terms of active safe-
ty should not induce the driver to take
pointless and unnecessary risks. The
style of driving must in any case al-
ways be adapted to the conditions of
the road surface, visibility an traffic.
Road safety is always the driver’s re-
sponsibility.
WARNING
For correct operation of the ASR system,
the tyres must absolutely be of the same
brand and type on all wheels, in perfect
conditions and, above all, of type, brand
and size specified.
FAILURE INDICATIONS
In the event of malfunctioning, the ASR
system is automatically disconnected and
the warning light
áwill come with fixed
light on the instrument panel together
with the message on the multifunction dis-
play, for versions/markets, where provid-
ed, (see section “Warning lights and mes-
sages”). In this case contact Fiat Dealer-
ship as soon as possible.
TRACTION PLUS
SYSTEM
(for versions/markets, where provided)
Traction Plus is a help with driving and set-
ting off in poor grip conditions (snow, ice,
mud, etc.) which allows the drive force to
be evenly distributed over the same axle
when both wheels are slipping.
In effect, Traction Plus acts by braking the
wheels with poor grip (or those slipping
more than the others), thereby transfer-
ring the drive force to those which have
more grip on the ground.
This function can be turned on manually
by pressing the T+ button located in the
dashboard (fig. 94) and operates
below a threshold of 30 km/h. When this
speed is exceeded, it is automatically de-
activated (the LED in the button remains
on) and it is reactivated as soon as the
speed goes below the level of 30 km/h.Traction Plus operation
The system is deactivated when starting
up. To activate the Traction Plus system,
press the T+ button (fig. 94): the LED in
the button will come on.
The activation of the Traction Plus system
involves the following functions being swit-
ched on:
❒inhibition of the ASR function, in order
to fully exploit the engine torque;
❒differential lock effect on the front ax-
le, via the braking system, to improve
drive on uneven surfaces.
If this is a problem with the Traction Plus
system the warning light
áin the instru-
ment panel will come on constantly.
fig. 94F0M0311m
036-082 QUBO GB 1ed:_ 3-12-2009 11:55 Pagina 75

121
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY

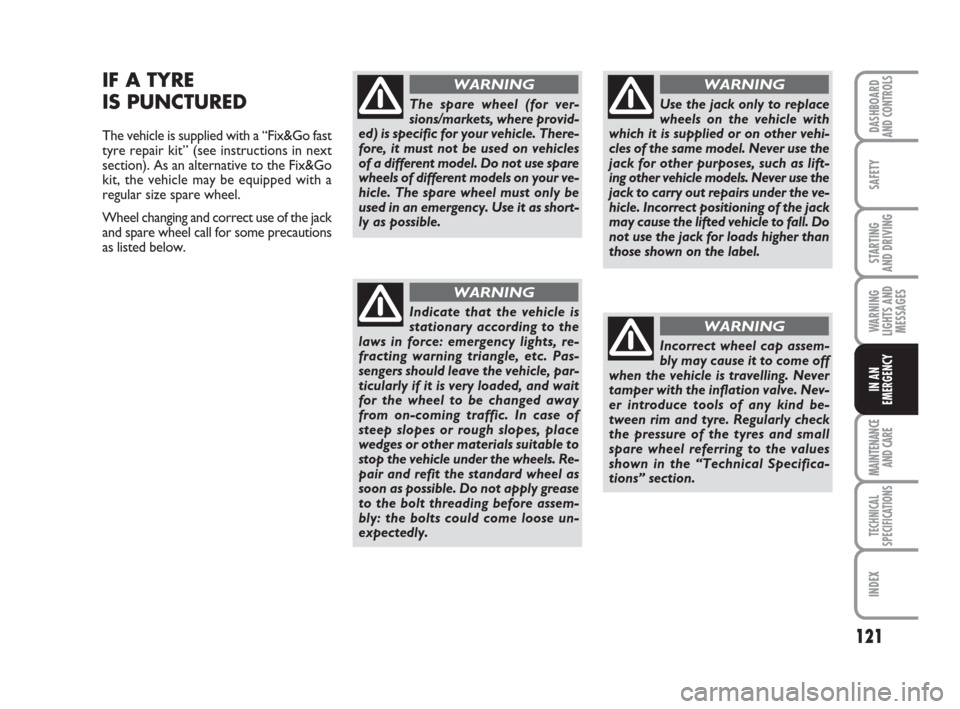

IF A TYRE
IS PUNCTURED
The vehicle is supplied with a “Fix&Go fast
tyre repair kit” (see instructions in next
section). As an alternative to the Fix&Go
kit, the vehicle may be equipped with a
regular size spare wheel.
Wheel changing and correct use of the jack
and spare wheel call for some precautions
as listed below.
The spare wheel (for ver-
sions/markets, where provid-
ed) is specific for your vehicle. There-
fore, it must not be used on vehicles
of a different model. Do not use spare
wheels of different models on your ve-
hicle. The spare wheel must only be
used in an emergency. Use it as short-
ly as possible.
WARNING
Indicate that the vehicle is
stationary according to the
laws in force: emergency lights, re-
fracting warning triangle, etc. Pas-
sengers should leave the vehicle, par-
ticularly if it is very loaded, and wait
for the wheel to be changed away
from on-coming traffic. In case of
steep slopes or rough slopes, place
wedges or other materials suitable to
stop the vehicle under the wheels. Re-
pair and refit the standard wheel as
soon as possible. Do not apply grease
to the bolt threading before assem-
bly: the bolts could come loose un-
expectedly.
WARNING
Use the jack only to replace
wheels on the vehicle with
which it is supplied or on other vehi-
cles of the same model. Never use the
jack for other purposes, such as lift-
ing other vehicle models. Never use the
jack to carry out repairs under the ve-
hicle. Incorrect positioning of the jack
may cause the lifted vehicle to fall. Do
not use the jack for loads higher than
those shown on the label.
WARNING
Incorrect wheel cap assem-
bly may cause it to come off
when the vehicle is travelling. Never
tamper with the inflation valve. Nev-
er introduce tools of any kind be-
tween rim and tyre. Regularly check
the pressure of the tyres and small
spare wheel referring to the values
shown in the “Technical Specifica-
tions” section.
WARNING
119-150 QUBO GB 1ed:123-154 Fiorino GB 1ed 3-12-2009 16:00 Pagina 121

180
SAFETY
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS

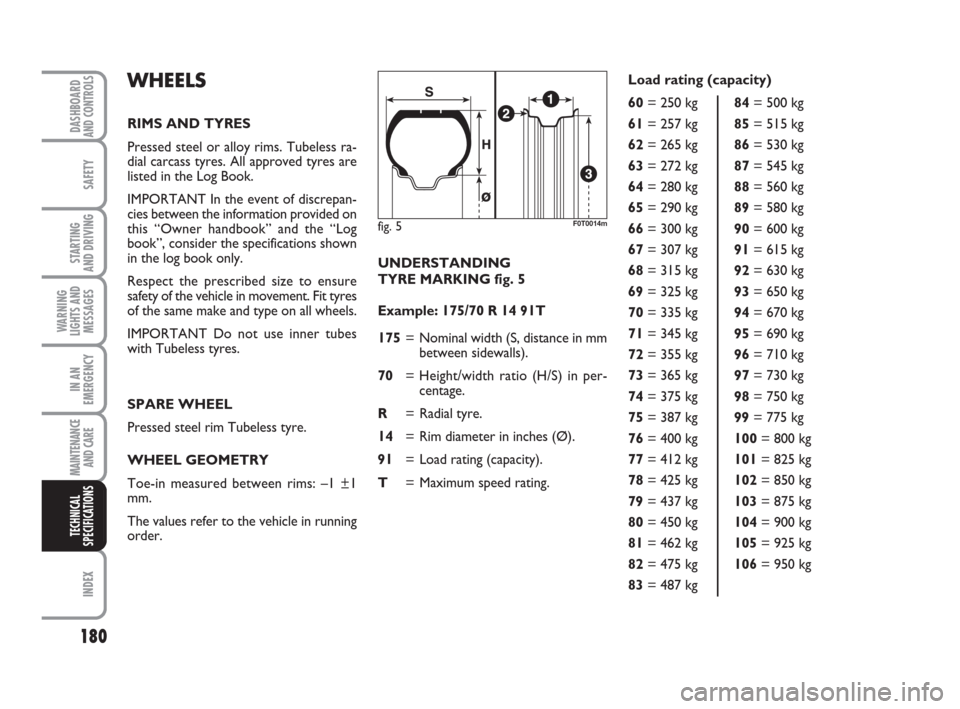

Load rating (capacity)
60= 250 kg 84= 500 kg
61= 257 kg 85= 515 kg
62= 265 kg 86= 530 kg
63= 272 kg 87= 545 kg
64= 280 kg 88= 560 kg
65= 290 kg 89= 580 kg
66= 300 kg 90= 600 kg
67= 307 kg 91= 615 kg
68= 315 kg 92= 630 kg
69= 325 kg 93= 650 kg
70= 335 kg 94= 670 kg
71= 345 kg 95= 690 kg
72= 355 kg 96= 710 kg
73= 365 kg 97= 730 kg
74= 375 kg 98= 750 kg
75= 387 kg 99= 775 kg
76= 400 kg 100= 800 kg
77= 412 kg 101= 825 kg
78= 425 kg 102= 850 kg
79= 437 kg 103= 875 kg
80= 450 kg 104= 900 kg
81= 462 kg 105= 925 kg
82= 475 kg 106= 950 kg
83= 487 kgWHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Tubeless ra-
dial carcass tyres. All approved tyres are
listed in the Log Book.
IMPORTANT In the event of discrepan-
cies between the information provided on
this “Owner handbook” and the “Log
book”, consider the specifications shown
in the log book only.
Respect the prescribed size to ensure
safety of the vehicle in movement. Fit tyres
of the same make and type on all wheels.
IMPORTANT Do not use inner tubes
with Tubeless tyres.
SPARE WHEEL
Pressed steel rim Tubeless tyre.
WHEEL GEOMETRY
Toe-in measured between rims: –1 ±1
mm.
The values refer to the vehicle in running
order.UNDERSTANDING
TYRE MARKING fig. 5
Example: 175/70 R 14 91T
175= Nominal width (S, distance in mm
between sidewalls).
70= Height/width ratio (H/S) in per-
centage.
R= Radial tyre.
14= Rim diameter in inches (Ø).
91= Load rating (capacity).
T= Maximum speed rating.
fig. 5F0T0014m
173-193 QUBO GB 1ed:177-201 Fiorino GB 1ed 4-12-2009 9:38 Pagina 180

182
SAFETY
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
COLD TYRE INFLATION PRESSURES (bar)
Add +0.3 bar to the prescribed inflation pressure when the tyres are warm. Recheck pressure value with cold tyres.
With snow tyres, add +0.2 bar to the inflation pressure value prescribed for standard tyres.
When running over 160 km/h, inflate tyres at full load inflation values.
185/65 R15 88 T 2.3 2.1 2.3 2.1 2.3 2.5 2.5
195/55 R16 87 H 2.3 2.1 2.3 2.1 2.4 2.4 2.5
1.4
1.3 Multijet
VERSIONS RIMS TYRES SPARE WHEEL(for versions/markets, where provided)
In std supply Snow Rim Tyre
6J x 15 H2 – ET44 185/65 R15 88 T 185/65 R15Q (M+S) 6J x 15 H2 – ET44 185/65 R15
6J x 16 ET 45 195/55 R16 87H _6J x 16 ET 45 195/55 R16
6J x 15 H2 – ET44 185/65 R15 88 T 185/65 R15Q (M+S) 6J x 15 H2 – ET44 185/65 R15
185/65 R15T (M+S) (*) 6J x 15 H2 – ET44 185/65 R15
6J x 16 ET 45 195/55 R16 87H_6J x 15 H2 – ET 44 (●)185/65 R15 (●)
(*) Versions QUBO Trekking
(
●) Correctly using this spare wheel necessarily involves complying with the WARNING below:
Never use it for more than strictly necessary and never exceed 80 km/h. On the spare wheel there is an orange
label, summarizing the main warnings about the spare wheel usage restrictions. Never remove or cover the la-
bel. The label contains the following indications in four languages: Warning! For temporary use only! 80 km/h max! Re-
place as soon as possible with a standard service wheel. Never cover this indication.
WARNING
Tyre size TYRES SUPPLIEDSPARE WHEELLoadless Medium load Full load(for versions/markets,Front Rear Front Rear Front Rearwhere provided)
173-193 QUBO GB 1ed:177-201 Fiorino GB 1ed 4-12-2009 9:38 Pagina 182
