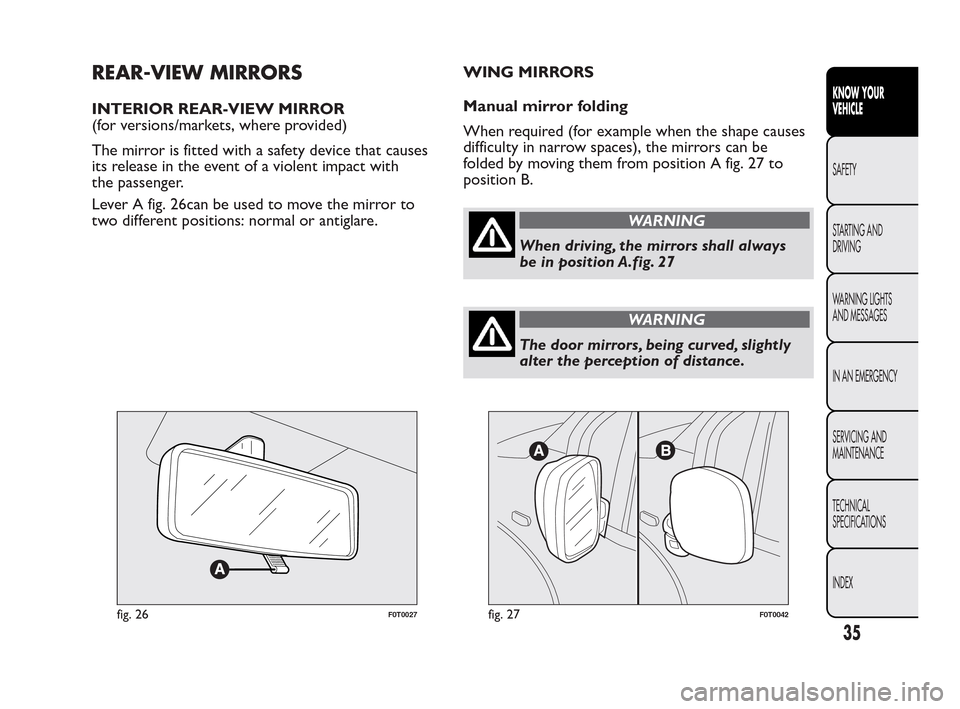

REAR-VIEW MIRRORS
INTERIOR REAR-VIEW MIRROR
(for versions/markets, where provided)
The mirror is fitted with a safety device that causes
its release in the event of a violent impact with
the passenger.
Lever A fig. 26can be used to move the mirror to
two different positions: normal or antiglare.WING MIRRORS
Manual mirror folding
When required (for example when the shape causes
difficulty in narrow spaces), the mirrors can be
folded by moving them from position A fig. 27 to
position B.
WARNING
When driving, the mirrors shall always
be
in position A.fig. 27
WARNING
The door mirrors, being curved, slightly
al
ter the perception of distance.
fig. 26F0T0027fig. 27F0T0042
35
KNOW YOUR
VEHICLE
SAFETY
ST
ARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

TOWING TRAILERS
IMPORTANT
The vehicle must be provided with a type-approved
tow hitch and adequate electrical system to tow
trailers. Installation must be performed by specialised
personnel who will issue the required papers for
travelling on roads.
Install any specific and/or additional rear-view mirrors
in accordance with the highway code of the country
in which you are travelling.
Remember that when towing a trailer, steep hills are
harder to climb, braking distances increase and
overtaking takes longer depending on the overall
weight of the trailer.
Engage a low gear when driving downhill, rather than
constantly using the brake.
The weight of the trailer on the vehicle tow hitch
will reduce the loading capacity of the vehicle by the
same amount.
Consider the weight at full load, including accessories
and luggage, to make sure you do not exceed the
maximum towable weight (shown in the log book).
Respect each country's speed limits for vehicles
towing trailers. In all cases, the top speed must not
exceed 80 km/h.
WARNING
The ABS with which the vehicle may be
equipped
will not control the braking
system of the trailer. Particular caution is
therefore required on slippery roads.
WARNING
Never modify the braking system of the
v
ehicle to control the trailer brake.
The trailer braking system must be fully
independent from the hydraulic system of the
vehicle.
118
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND
MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Keys
– Key without remote
control ..................................... 6
– Key with remote control..... 6
– Ordering additional
remote controls .................... 8
Left direction indicator
warning light ............................. 130
Lifting the vehicle....................... 164
Light beam direction .................. 73
Low battery charge warning
light ............................................. 122
Low engine oil level ................... 124
Low engine oil pressure
warning light.............................. 123
Main beam headlights ............... 45
Maintenance and care -
regular checks........................... 170
Maintenance and care -
scheduled servicing.................. 167
Maintenance and care -
scheduled servicing plan......... 168
Manual climate control
system ......................................... 41
Manual deactivation of
passenger front airbag and
side bag ...................................... 107
MSR system.................................. 79Multifunction display
– Control buttons .................... 16
– Setup menu............................. 17
– Standard screen ..................... 15
Number plate lights (bulb
replacement)............................. 150
Number plate lights................... 150
Oddment tray ............................. 55
Ordering additional remote
controls ....................................... 8
Parking......................................... 113
Parking lights ................................ 45
Parking sensor fault warning
light ............................................. 129
Parking sensors ........................... 82
Parking sensors (warning
light) ............................................ 129
Particulate filter (DPF) .............. 90
Partition ........................................ 31
Passenger air bag/side bag
off warning light ....................... 121
Passenger air bag/side bag
(warning light)........................... 121
Passenger compartment
fuse box ..................................... 160
Passenger compartment
fuse box table ........................... 160Performance................................ 200
Pollen filter .................................. 177
Power steering fluid .................. 176
Pressure check and
correction.................................. 142
Prolonged vehicle inactivity ..... 119
Protecting the environment ..... 90
Radio ............................................. 84
Radio transmitters and
mobile phones ........................... 86
Rear ceiling light ......................... 152
Rear fog lights (changing a
bulb) ............................................ 149
Rear fog lights .............................. 54
– Warning light ......................... 129
Rear fog lights warning light .... 129
Rear light clusters (changing
a bulb)......................................... 148
Rear light clusters ...................... 148
Rear side windows ..................... 57
Rear-view mirrors
– Interior rear-view mirror..... 35
– Wing mirrors ......................... 35
Rear window washer ................. 48
Rear window wiper ............. 48-182
Refuelling the vehicle ................. 87
Removable ceiling light ............. 153
