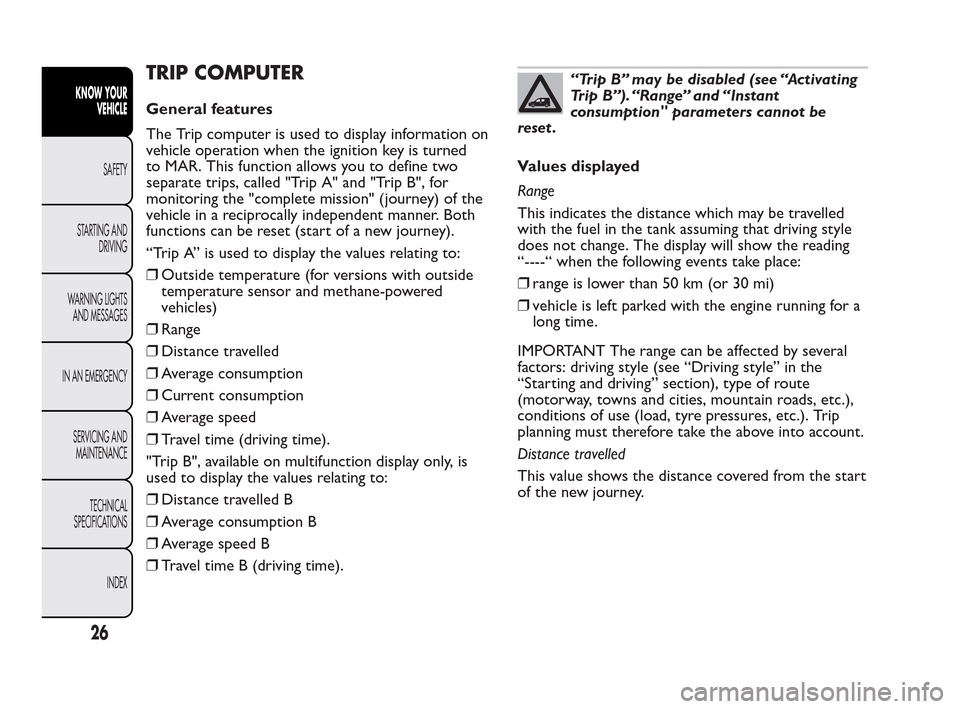

TRIP COMPUTER
General features
The Trip computer is used to display information on
vehicle operation when the ignition key is turned
to MAR. This function allows you to define two
separate trips, called "Trip A" and "Trip B", for
monitoring the "complete mission" (journey) of the
vehicle in a reciprocally independent manner. Both
functions can be reset (start of a new journey).
“Trip A” is used to display the values relating to:
❒Outside temperature (for versions with outside
temperature sensor and methane-powered
vehicles)
❒Range
❒Distance travelled
❒Average consumption
❒Current consumption
❒Average speed
❒Travel time (driving time).
"Trip B", available on multifunction display only, is
used to display the values relating to:
❒Distance travelled B
❒Average consumption B
❒Average speed B
❒Travel time B (driving time).
“Trip B” may be disabled (see “Activating
Trip B”). “Range” and “Instant
consumption" parameters cannot be
reset .
Values displayed
Range
This indicates the distance which may be travelled
with the fuel in the tank assuming that driving style
does not change. The display will show the reading
“----“ when the following events take place:
❒range is lower than 50 km (or 30 mi)
❒vehicle is left parked with the engine running for a
long time.
IMPORTANT The range can be affected by several
factors: driving style (see “Driving style” in the
“Starting and driving” section), type of route
(motorway, towns and cities, mountain roads, etc.),
conditions of use (load, tyre pressures, etc.). Trip
planning must therefore take the above into account.
Distance travelled
This value shows the distance covered from the start
of the new journey.
26
KNOW YOUR
VEHICLE
SAFETY
ST
ARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 83 of 230

WARNING
Go to a Fiat Dealership as soon as
possible
if warning light
either does
not light up when the key is turned to MAR to if
while travelling the warning lights comes on
either steady or blinking (along with a message
on the display).The operation of warning light
may be checked by the traffic police using
specific devices. Follow the laws in force in
the country where you are driving.

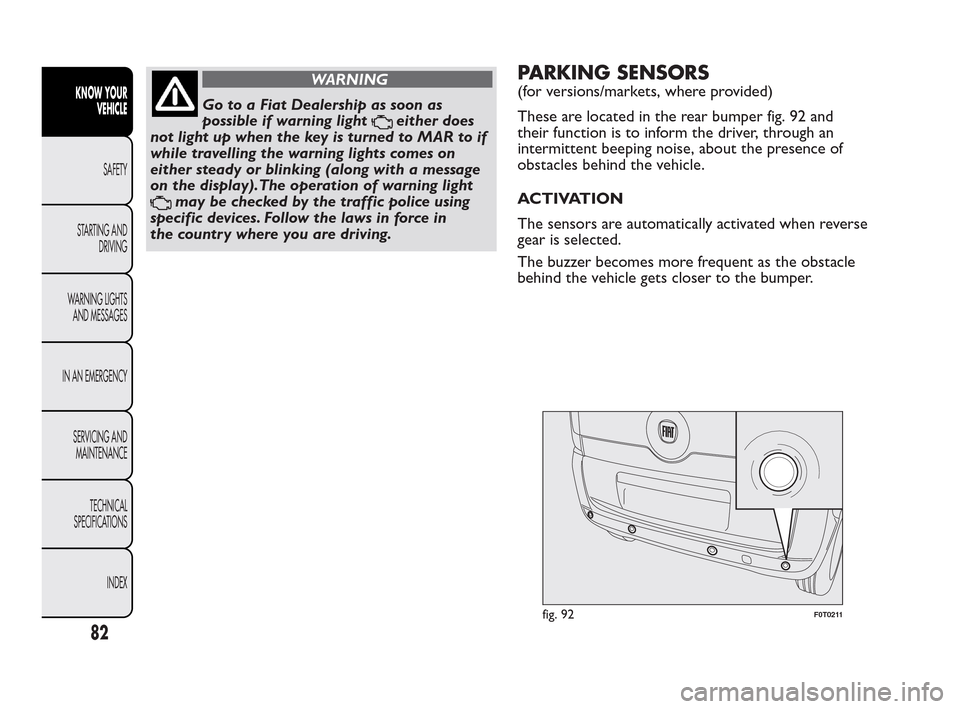

PARKING SENSORS
(for versions/markets, where provided)
These are located in the rear bumper fig. 92 and
their function is to inform the driver, through an
intermittent beeping noise, about the presence of
obstacles behind the vehicle.
ACTIVATION
The sensors are automatically activated when reverse
gear is selected.
The buzzer becomes more frequent as the obstacle
behind the vehicle gets closer to the bumper.
fig. 92F0T0211
82
KNOW YOUR
VEHICLE
SAFETY
ST
ARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 84 of 230

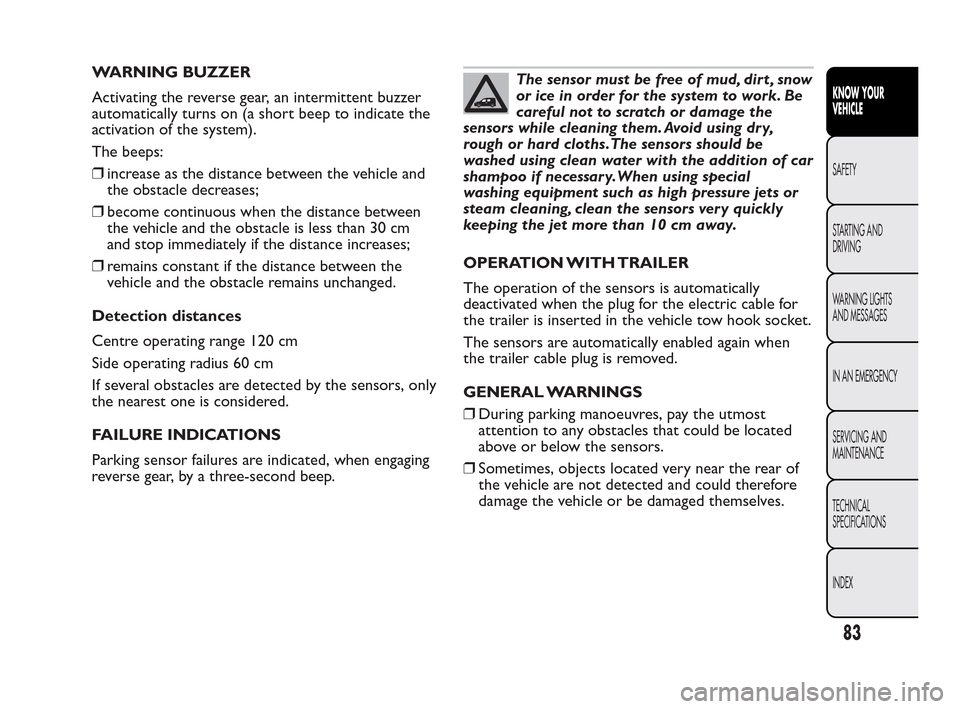

WARNING BUZZER
Activating the reverse gear, an intermittent buzzer
automatically turns on (a short beep to indicate the
activation of the system).
The beeps:
❒increase as the distance between the vehicle and
the obstacle decreases;
❒become continuous when the distance between
the vehicle and the obstacle is less than 30 cm
and stop immediately if the distance increases;
❒remains constant if the distance between the
vehicle and the obstacle remains unchanged.
Detection distances
Centre operating range 120 cm
Side operating radius 60 cm
If several obstacles are detected by the sensors, only
the nearest one is considered.
FAILURE INDICATIONS
Parking sensor failures are indicated, when engaging
reverse gear, by a three-second beep.The sensor must be free of mud, dirt , snow
or ice in order for the system to work. Be
careful not to scratch or damage the
sensors while cleaning them. Avoid using dry,
rough or hard cloths.The sensors should be
washed using clean water with the addition of car
shampoo if necessary.When using special
washing equipment such as high pressure jets or
steam cleaning, clean the sensors very quickly
keeping the jet more than 10 cm away.
OPERATION WITH TRAILER
The operation of the sensors is automatically
deactivated when the plug for the electric cable for
the trailer is inserted in the vehicle tow hook socket.
The sensors are automatically enabled again when
the trailer cable plug is removed.
GENERAL WARNINGS
❒During parking manoeuvres, pay the utmost
attention to any obstacles that could be located
above or below the sensors.
❒Sometimes, objects located very near the rear of
the vehicle are not detected and could therefore
damage the vehicle or be damaged themselves.
83
KNOW YOUR
VEHICLE
SAFETY
ST
ARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 85 of 230

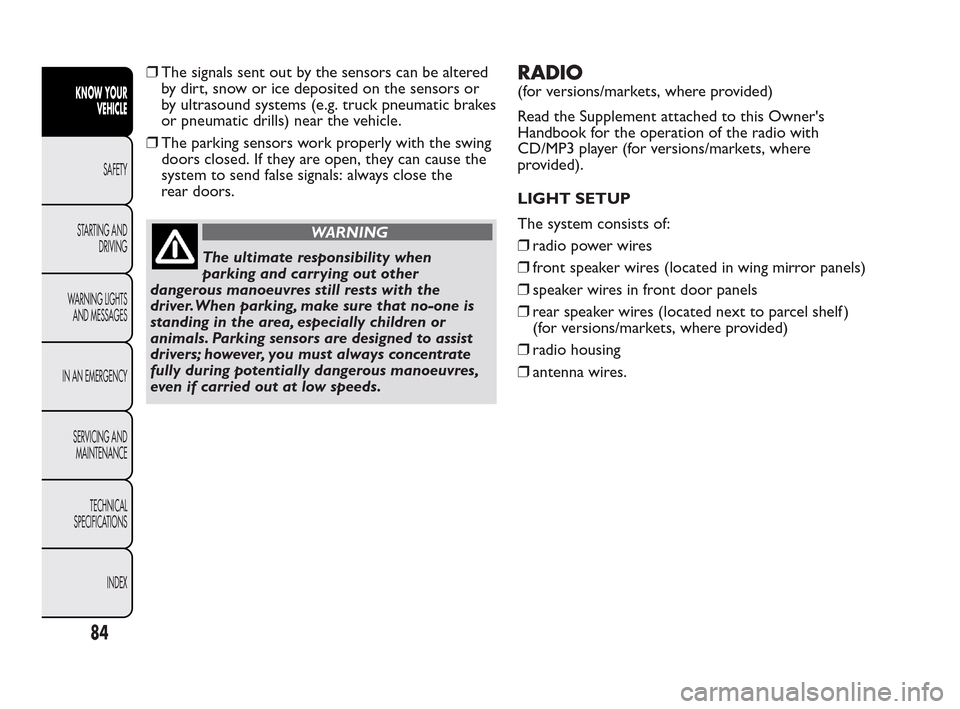

❒The signals sent out by the sensors can be altered
by dirt, snow or ice deposited on the sensors or
by ultrasound systems (e.g. truck pneumatic brakes
or pneumatic drills) near the vehicle.
❒The parking sensors work properly with the swing
doors closed. If they are open, they can cause the
system to send false signals: always close the
rear doors.
WARNING
The ultimate responsibility when
par
king and carrying out other
dangerous manoeuvres still rests with the
driver.When parking, make sure that no-one is
standing in the area, especially children or
animals. Parking sensors are designed to assist
drivers; however, you must always concentrate
fully during potentially dangerous manoeuvres,
even if carried out at low speeds.
RADIO
(for versions/markets, where provided)
Read the Supplement attached to this Owner's
Handbook for the operation of the radio with
CD/MP3 player (for versions/markets, where
provided).
LIGHT SETUP
The system consists of:
❒radio power wires
❒front speaker wires (located in wing mirror panels)
❒speaker wires in front door panels
❒rear speaker wires (located next to parcel shelf )
(for versions/markets, where provided)
❒radio housing
❒antenna wires.
84
KNOW YOUR
VEHICLE
SAFETY
ST
ARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 129 of 230

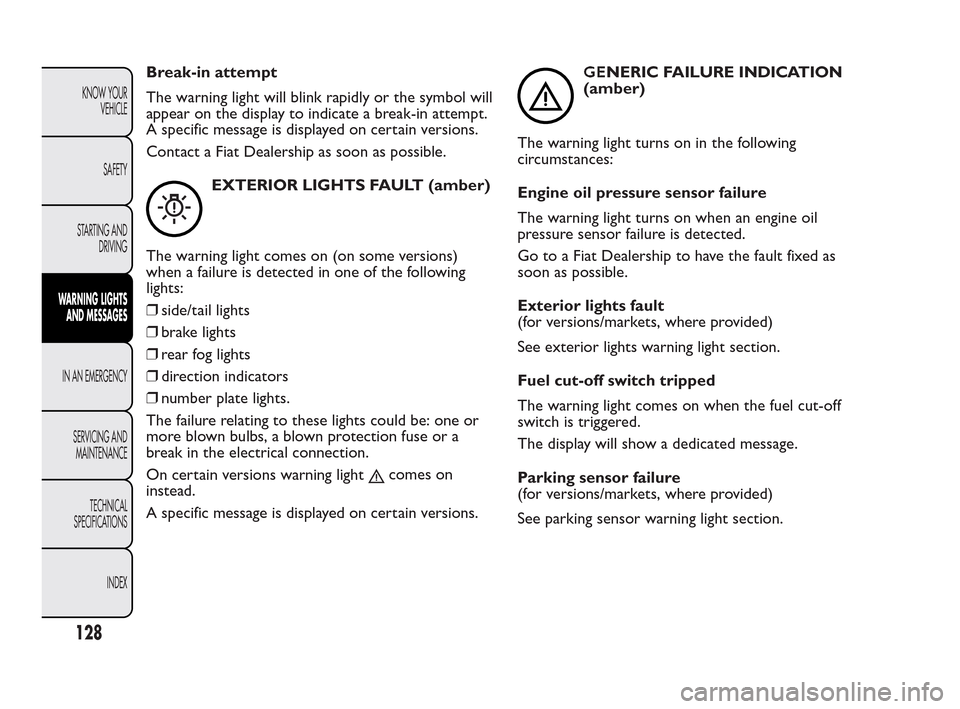

Break-in attempt
The warning light will blink rapidly or the symbol will
appear on the display to indicate a break-in attempt.
A specific message is displayed on certain versions.
Contact a Fiat Dealership as soon as possible.
EXTERIOR LIGHTS FAULT (amber)
The warning light comes on (on some versions)
when a failure is detected in one of the following
lights:
❒side/tail lights
❒brake lights
❒rear fog lights
❒direction indicators
❒number plate lights.
The failure relating to these lights could be: one or
more blown bulbs, a blown protection fuse or a
break in the electrical connection.
On certain versions warning light
comes on
instead.
A specific message is displayed on certain versions.
GENERIC FAILURE INDICATION
(amber)
The warning light turns on in the following
circumstances:
Engine oil pressure sensor failure
The warning light turns on when an engine oil
pressure sensor failure is detected.
Go to a Fiat Dealership to have the fault fixed as
soon as possible.
Exterior lights fault
(for versions/markets, where provided)
See exterior lights warning light section.
Fuel cut-off switch tripped
The warning light comes on when the fuel cut-off
switch is triggered.
The display will show a dedicated message.
Parking sensor failure
(for versions/markets, where provided)
See parking sensor warning light section.
128
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND
MESSAGES
IN AN EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 130 of 230

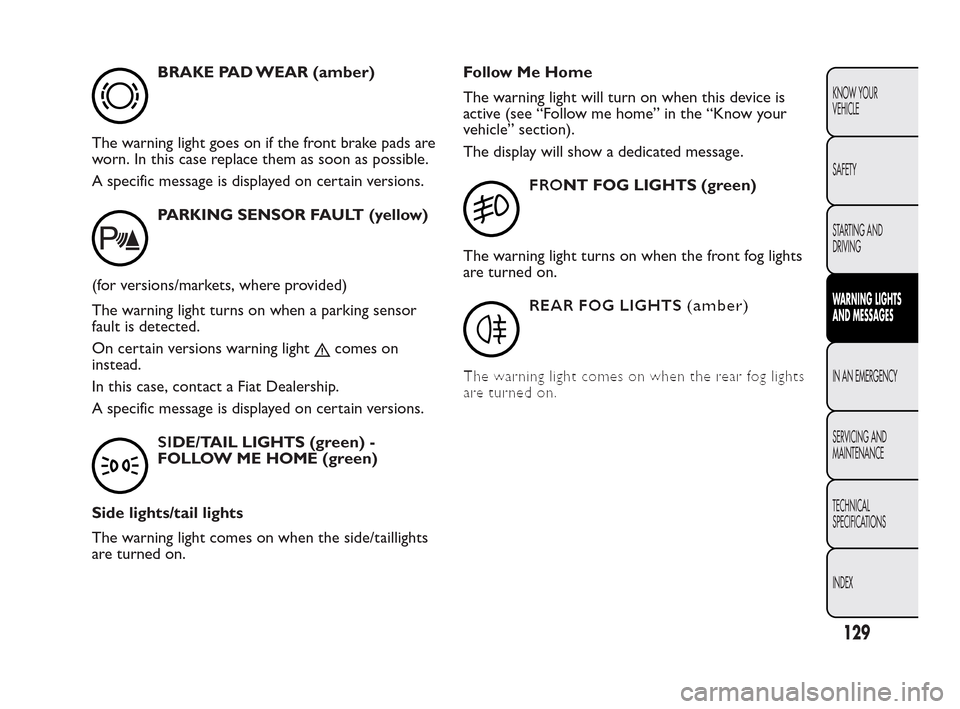

BRAKE PAD WEAR (amber)
The warning light goes on if the front brake pads are
worn. In this case replace them as soon as possible.
A specific message is displayed on certain versions.
PARKING SENSOR FAULT (yellow)
(for versions/markets, where provided)
The warning light turns on when a parking sensor
fault is detected.
On certain versions warning light
comes on
instead.
In this case, contact a Fiat Dealership.
A specific message is displayed on certain versions.
SIDE/TAIL LIGHTS (green) -
FOLLOW ME HOME (green)
Side lights/tail lights
The warning light comes on when the side/taillights
are turned on.Follow Me Home
The warning light will turn on when this device is
active (see “Follow me home” in the “Know your
vehicle” section).
The display will show a dedicated message.
FRONT FOG LIGHTS (green)
The warning light turns on when the front fog lights
are turned on.
REAR FOG LIGHTS (amber)
The warning light comes on when the rear fog lights
are turned on.
129
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND
MESSAGES
IN AN EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Page 160 of 230

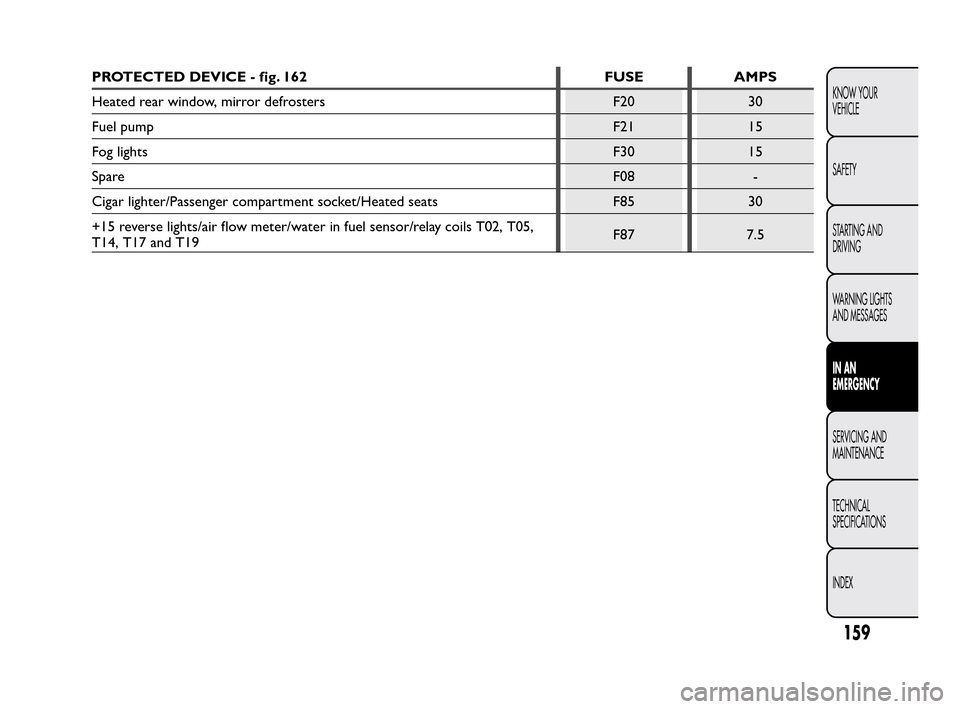

PROTECTED DEVICE - fig. 162 FUSE AMPS
Heated rear window, mirror defrosters F20 30
Fuel pump F21 15
Fog lights F30 15
SpareF08 -
Cigar lighter/Passenger compartment socket/Heated seats F85 30
+15 reverse lights/air flow meter/water in fuel sensor/relay coils T02, T05,
T14, T17 and T19F87 7.5
159
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX
Page 162 of 230

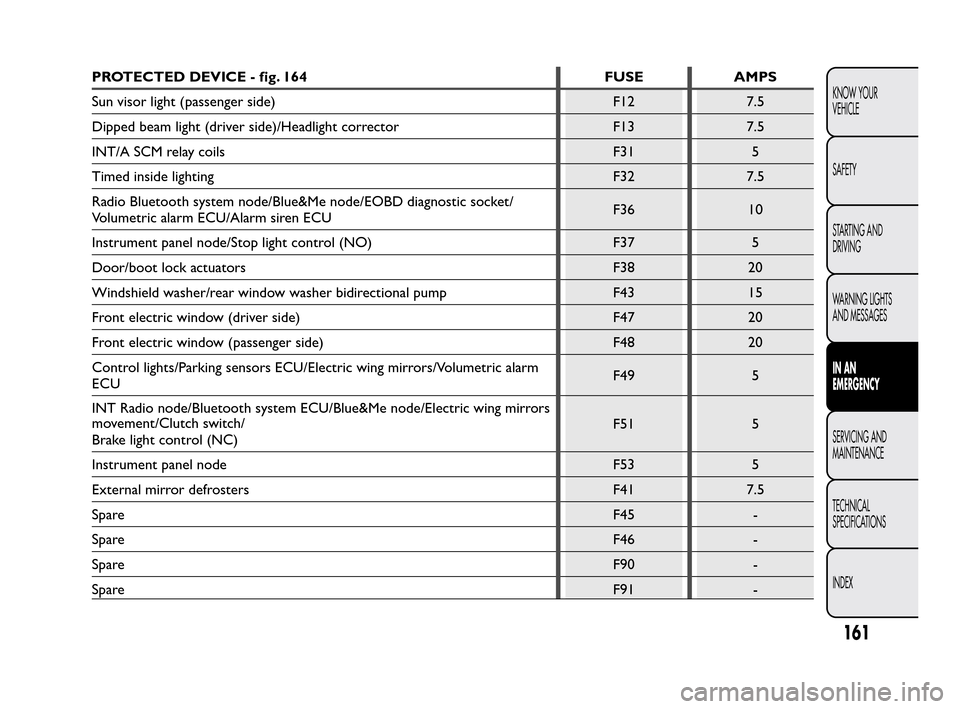

PROTECTED DEVICE - fig. 164 FUSE AMPS
Sun visor light (passenger side) F12 7.5
Dipped beam light (driver side)/Headlight corrector F13 7.5
INT/A SCM relay coils F31 5
Timed inside lighting F32 7.5
Radio Bluetooth system node/Blue&Me node/EOBD diagnostic socket/
Volumetric alarm ECU/Alarm siren ECUF36 10
Instrument panel node/Stop light control (NO) F37 5
Door/boot lock actuators F38 20
Windshield washer/rear window washer bidirectional pump F43 15
Front electric window (driver side) F47 20
Front electric window (passenger side) F48 20
Control lights/Parking sensors ECU/Electric wing mirrors/Volumetric alarm
ECUF49 5
INT Radio node/Bluetooth system ECU/Blue&Me node/Electric wing mirrors
movement/Clutch switch/
Brake light control (NC)F51 5
Instrument panel node F53 5
External mirror defrosters F41 7.5
SpareF45 -
SpareF46 -
SpareF90 -
SpareF91 -
161
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX
Page 226 of 230

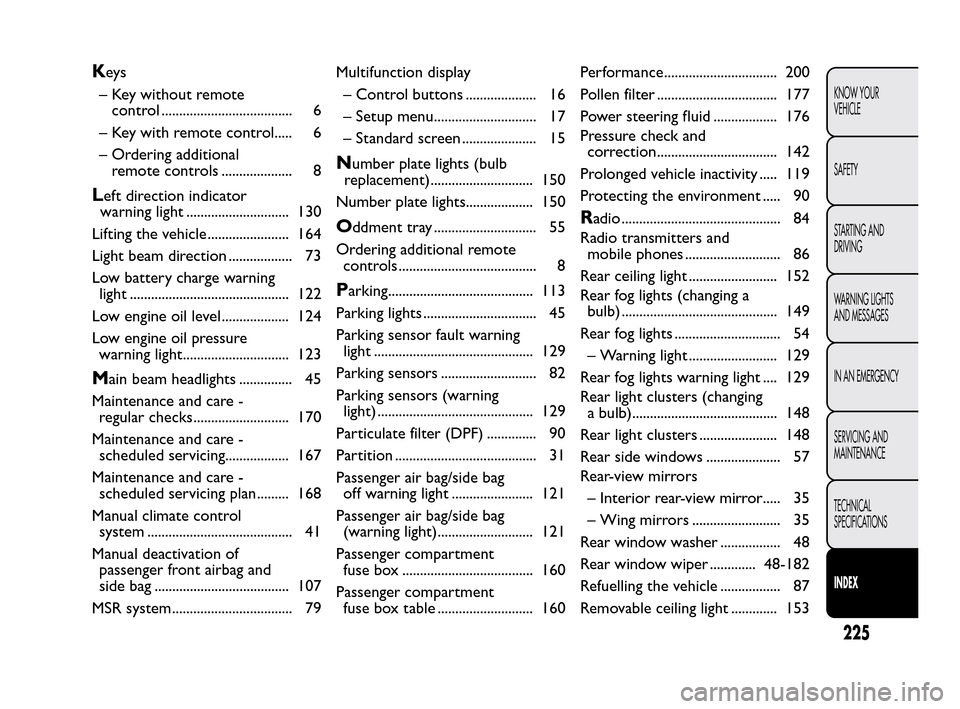

Keys
– Key without remote
control ..................................... 6
– Key with remote control..... 6
– Ordering additional
remote controls .................... 8
Left direction indicator
warning light ............................. 130
Lifting the vehicle....................... 164
Light beam direction .................. 73
Low battery charge warning
light ............................................. 122
Low engine oil level ................... 124
Low engine oil pressure
warning light.............................. 123
Main beam headlights ............... 45
Maintenance and care -
regular checks........................... 170
Maintenance and care -
scheduled servicing.................. 167
Maintenance and care -
scheduled servicing plan......... 168
Manual climate control
system ......................................... 41
Manual deactivation of
passenger front airbag and
side bag ...................................... 107
MSR system.................................. 79Multifunction display
– Control buttons .................... 16
– Setup menu............................. 17
– Standard screen ..................... 15
Number plate lights (bulb
replacement)............................. 150
Number plate lights................... 150
Oddment tray ............................. 55
Ordering additional remote
controls ....................................... 8
Parking......................................... 113
Parking lights ................................ 45
Parking sensor fault warning
light ............................................. 129
Parking sensors ........................... 82
Parking sensors (warning
light) ............................................ 129
Particulate filter (DPF) .............. 90
Partition ........................................ 31
Passenger air bag/side bag
off warning light ....................... 121
Passenger air bag/side bag
(warning light)........................... 121
Passenger compartment
fuse box ..................................... 160
Passenger compartment
fuse box table ........................... 160Performance................................ 200
Pollen filter .................................. 177
Power steering fluid .................. 176
Pressure check and
correction.................................. 142
Prolonged vehicle inactivity ..... 119
Protecting the environment ..... 90
Radio ............................................. 84
Radio transmitters and
mobile phones ........................... 86
Rear ceiling light ......................... 152
Rear fog lights (changing a
bulb) ............................................ 149
Rear fog lights .............................. 54
– Warning light ......................... 129
Rear fog lights warning light .... 129
Rear light clusters (changing
a bulb)......................................... 148
Rear light clusters ...................... 148
Rear side windows ..................... 57
Rear-view mirrors
– Interior rear-view mirror..... 35
– Wing mirrors ......................... 35
Rear window washer ................. 48
Rear window wiper ............. 48-182
Refuelling the vehicle ................. 87
Removable ceiling light ............. 153
225
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
