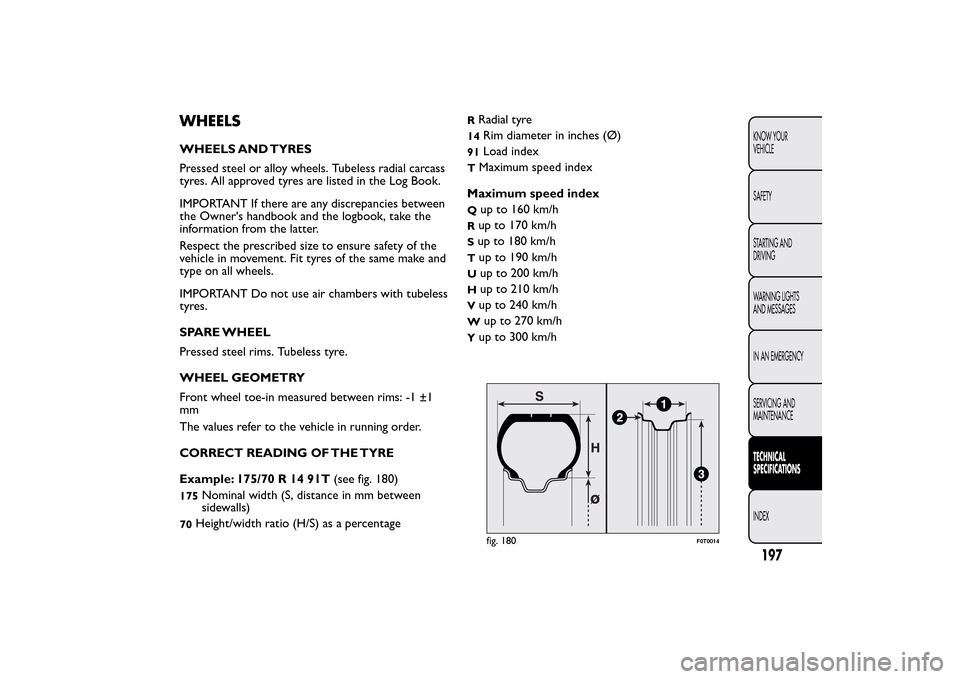

FIAT QUBO 2014 1.G Owners Manual

WHEELSWHEELS AND TYRES
Pressed steel or alloy wheels. Tubeless radial carcass
tyres. All approved tyres are listed in the Log Book.
IMPORTANT If there are any discrepancies between
the Owner's handbook and the logbook, take the
information from the latter.
Respect the prescribed size to ensure safety of the
vehicle in movement. Fit tyres of the same make and
type on all wheels.
IMPORTANT Do not use air chambers with tubeless
tyres.
SPARE WHEEL
Pressed steel rims. Tubeless tyre.
WHEEL GEOMETRY
Front wheel toe-in measured between rims: -1 ±1
mm
The values refer to the vehicle in running order.
CORRECT READING OF THE TYRE
Example: 175/70 R 14 91T(see fig. 180)175
Nominal width (S, distance in mm between
sidewalls)
70
Height/width ratio (H/S) as a percentage
RRadial tyre14
Rim diameter in inches (Ø)
91
Load index
T
Maximum speed index
Maximum speed index
Q
up to 160 km/h
Rup to 170 km/hSup to 180 km/hT
up to 190 km/h
U
up to 200 km/h
H
up to 210 km/h
V
up to 240 km/h
W
up to 270 km/h
Y
up to 300 km/hfig. 180
F0T0014
197KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

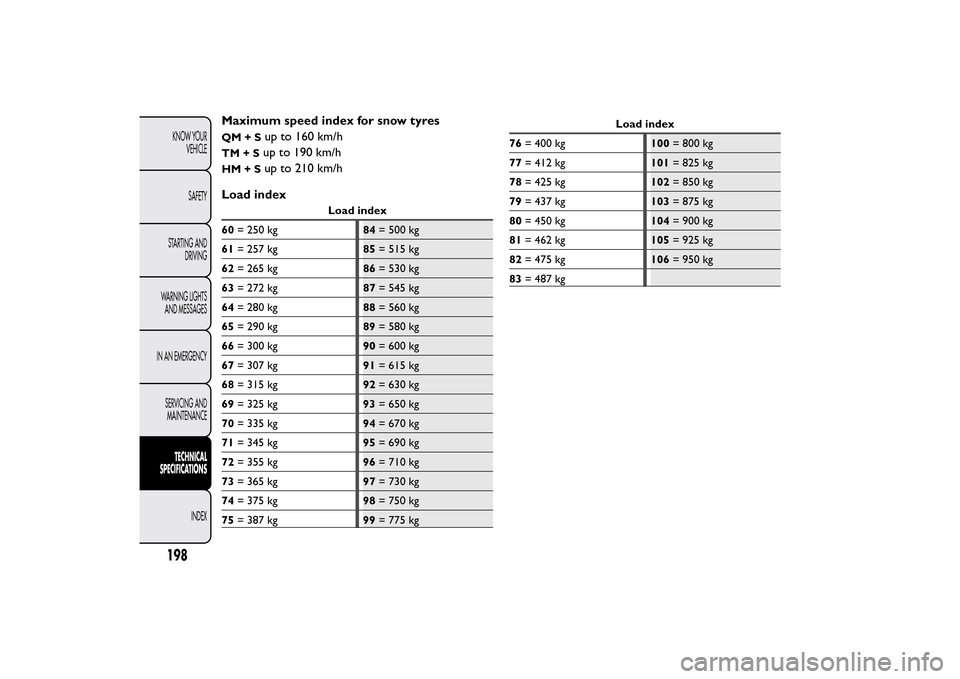

Maximum speed index for snow tyresQM+S
up to 160 km/h
TM+S
up to 190 km/h
HM+S
up to 210 km/h
Load index
Load index
60= 250 kg84= 500 kg
61= 257 kg85= 515 kg
62= 265 kg86= 530 kg
63= 272 kg87= 545 kg
64= 280 kg88= 560 kg
65= 290 kg89= 580 kg
66= 300 kg90= 600 kg
67= 307 kg91= 615 kg
68= 315 kg92= 630 kg
69= 325 kg93= 650 kg
70= 335 kg94= 670 kg
71= 345 kg95= 690 kg
72= 355 kg96= 710 kg
73= 365 kg97= 730 kg
74= 375 kg98= 750 kg
75= 387 kg99= 775 kg
Load index
76= 400 kg100= 800 kg
77= 412 kg101= 825 kg
78= 425 kg102= 850 kg
79= 437 kg103= 875 kg
80= 450 kg104= 900 kg
81= 462 kg105= 925 kg
82= 475 kg106= 950 kg
83= 487 kg
198KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONS
INDEX

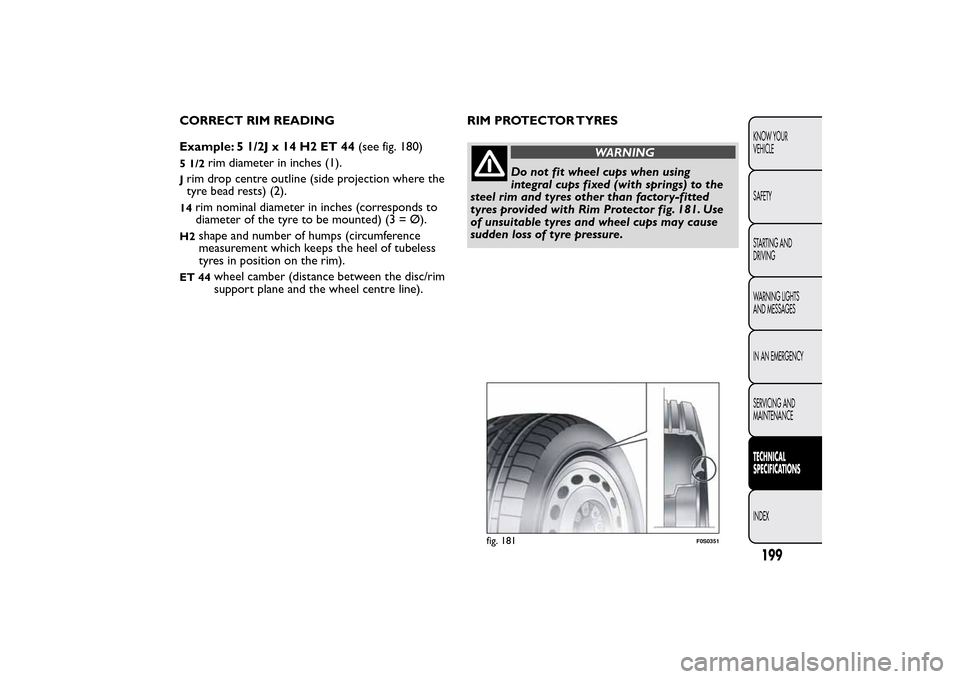

CORRECT RIM READING
Example: 5 1/2J x 14 H2 ET 44(see fig. 180)5 1/2
rim diameter in inches (1).
Jrim drop centre outline (side projection where the
tyre bead rests) (2).14
rim nominal diameter in inches (corresponds to
diameter of the tyre to be mounted) (3 = Ø).
H2
shape and number of humps (circumference
measurement which keeps the heel of tubeless
tyres in position on the rim).
ET 44
wheel camber (distance between the disc/rim
support plane and the wheel centre line).RIM PROTECTOR TYRES
WARNING
Do not fit wheel cups when using
integral cups fixed (with springs) to the
steel rim and tyres other than factory-fitted
tyres provided with Rim Protector fig. 181. Use
of unsuitable tyres and wheel cups may cause
sudden loss of tyre pressure.
fig. 181
F0S0351
199KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

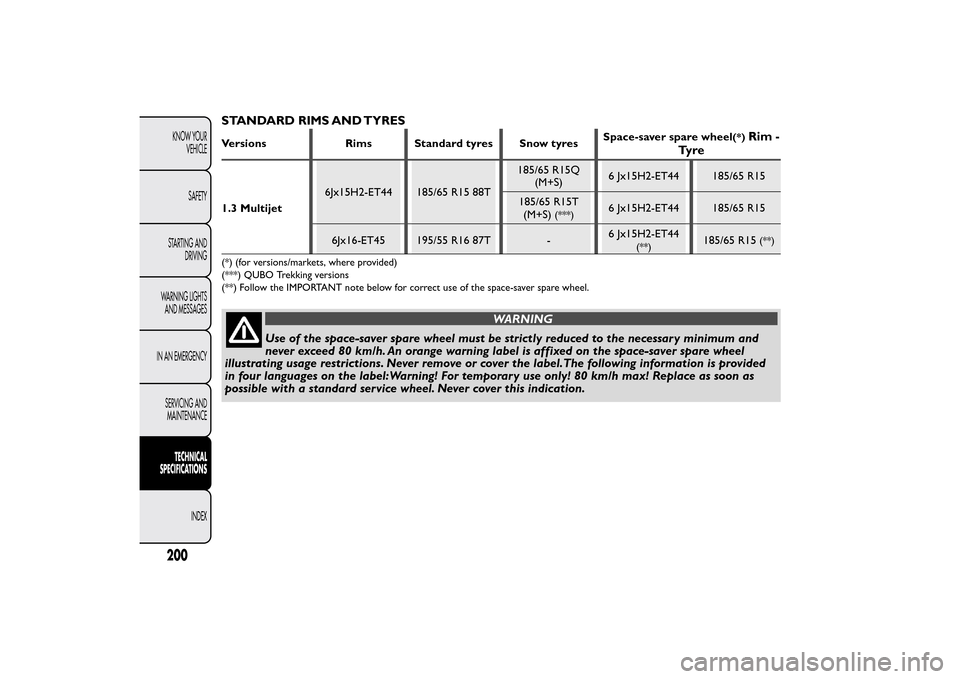

STANDARD RIMS AND TYRESVersions Rims Standard tyres Snow tyresSpace-saver spare wheel
(*)
Rim -
Ty r e
1.3 Multijet6Jx15H2-ET44 185/65 R15 88T185/65 R15Q
(M+S)6 Jx15H2-ET44 185/65 R15
185/65 R15T
(M+S)
(***)
6 Jx15H2-ET44 185/65 R15
6Jx16-ET45 195/55 R16 87T -6 Jx15H2-ET44
(**)
185/65 R15
(**)
(*) (for versions/markets, where provided)
(***) QUBO Trekking versions
(**) Follow the IMPORTANT note below for correct use of the space-saver spare wheel.
WARNING
Use of the space-saver spare wheel must be strictly reduced to the necessary minimum and
never exceed 80 km/h. An orange warning label is affixed on the space-saver spare wheel
illustrating usage restrictions. Never remove or cover the label.The following information is provided
in four languages on the label:Warning! For temporary use only! 80 km/h max! Replace as soon as
possible with a standard service wheel. Never cover this indication.
200KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONS
INDEX

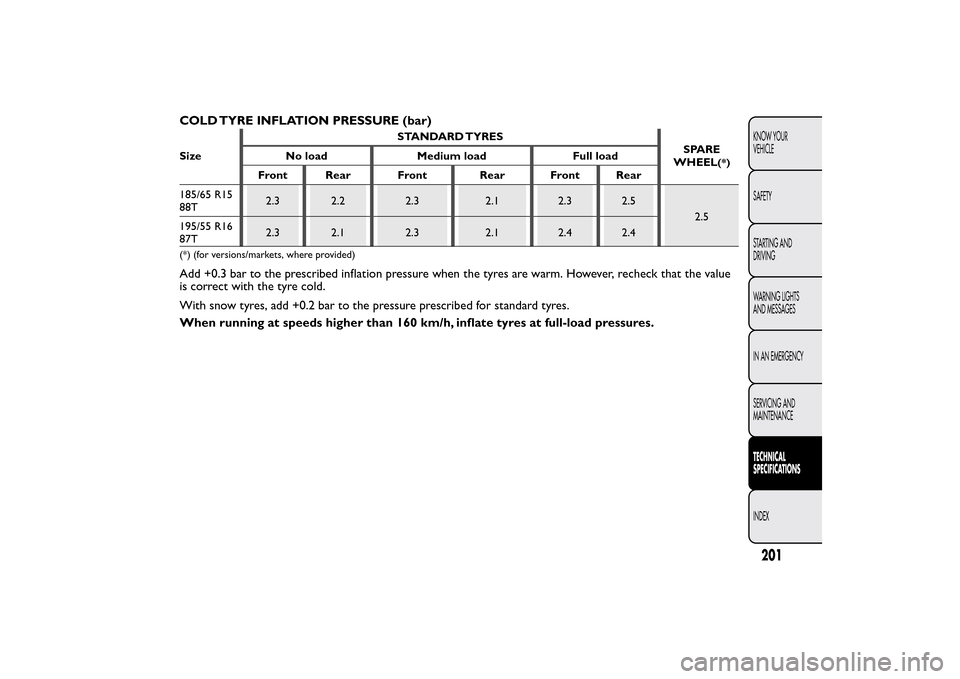

COLD TYRE INFLATION PRESSURE (bar)SizeSTANDARD TYRES
SPARE
WHEEL
(*)
No load Medium load Full load
Front Rear Front Rear Front Rear
185/65 R15
88T2.3 2.2 2.3 2.1 2.3 2.5
2.5
195/55 R16
87T2.3 2.1 2.3 2.1 2.4 2.4
(*) (for versions/markets, where provided)Add +0.3 bar to the prescribed inflation pressure when the tyres are warm. However, recheck that the value
is correct with the tyre cold.
With snow tyres, add +0.2 bar to the pressure prescribed for standard tyres.
When running at speeds higher than 160 km/h, inflate tyres at full-load pressures.
201KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

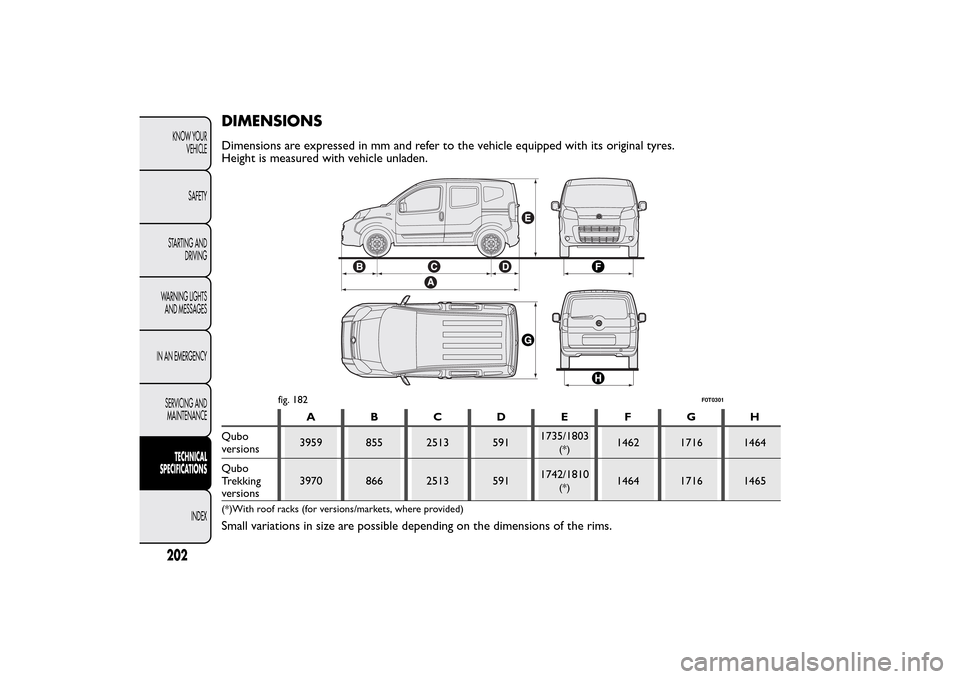

DIMENSIONSDimensions are expressed in mm and refer to the vehicle equipped with its original tyres.
Height is measured with vehicle unladen.
ABCDE FGH
Qubo
versions3959 855 2513 5911735/1803
(*)
1462 1716 1464
Qubo
Trekking
versions3970 866 2513 5911742/1810
(*)
1464 1716 1465
(*)With roof racks (for versions/markets, where provided)Small variations in size are possible depending on the dimensions of the rims.
fig. 182
F0T0301
202KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONS
INDEX

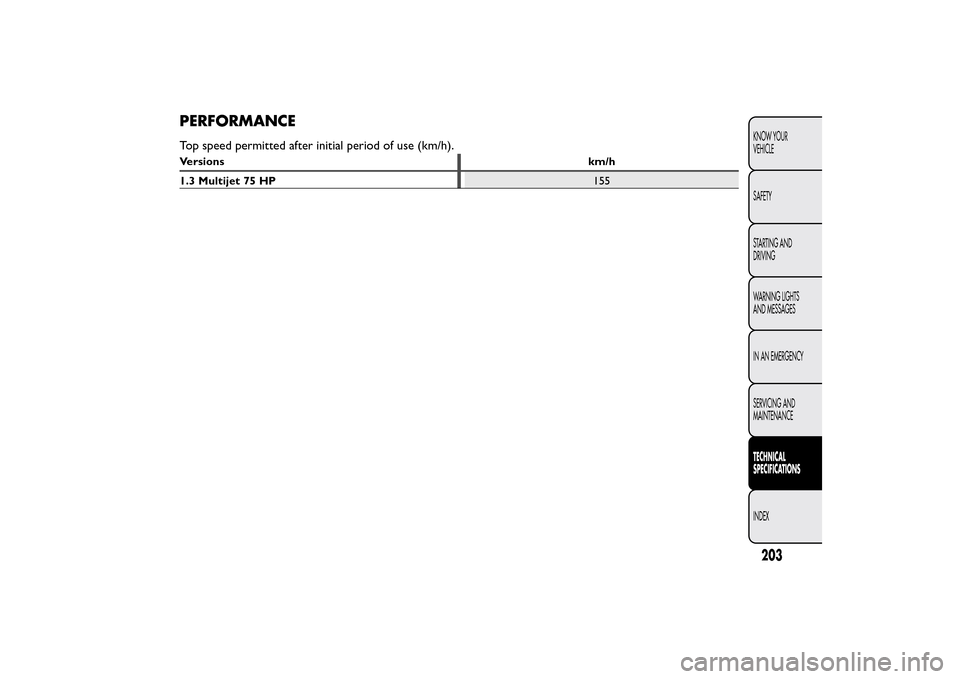

PERFORMANCETop speed permitted after initial period of use (km/h).Versions km/h
1.3 Multijet 75 HP155
203KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

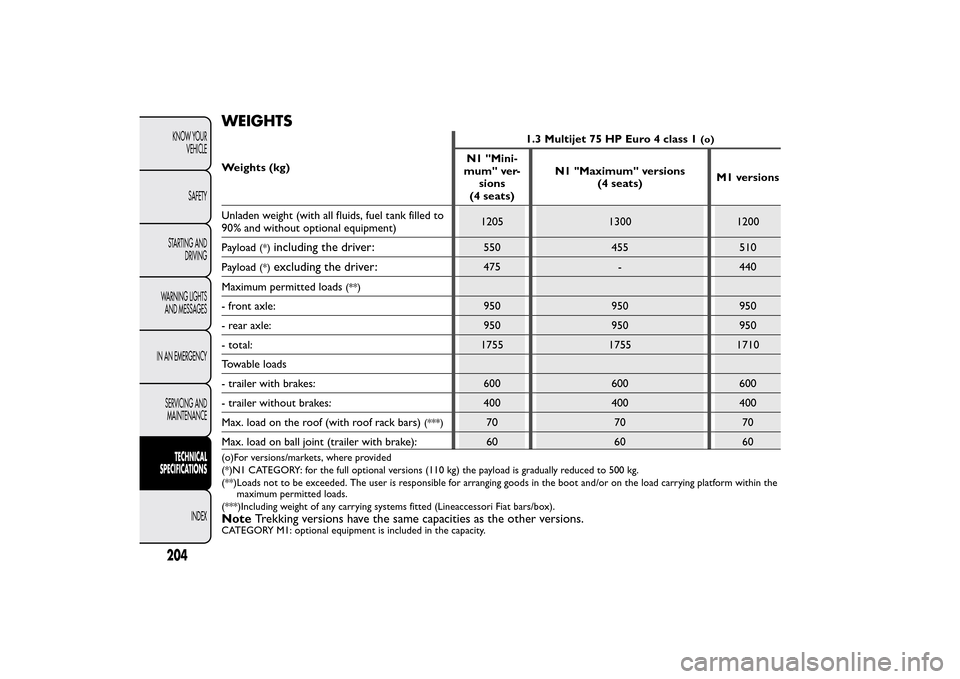

WEIGHTSWeights (kg)1.3 Multijet 75 HP Euro 4 class 1
(o)
N1 "Mini-
mum" ver-
sions
(4 seats)N1 "Maximum" versions
(4 seats)M1 versions
Unladen weight (with all fluids, fuel tank filled to
90% and without optional equipment)1205 1300 1200
Payload
(*)
including the driver:
550 455 510
Payload
(*)
excluding the driver:
475 - 440
Maximum permitted loads
(**)
- front axle: 950 950 950
- rear axle: 950 950 950
- total: 1755 1755 1710
Towable loads
- trailer with brakes: 600 600 600
- trailer without brakes: 400 400 400
Max. load on the roof (with roof rack bars)
(***)
70 70 70
Max. load on ball joint (trailer with brake): 60 60 60
(o)For versions/markets, where provided
(*)N1 CATEGORY: for the full optional versions (110 kg) the payload is gradually reduced to 500 kg.
(**)Loads not to be exceeded. The user is responsible for arranging goods in the boot and/or on the load carrying platform within the
maximum permitted loads.
(***)Including weight of any carrying systems fitted (Lineaccessori Fiat bars/box).NoteTrekking versions have the same capacities as the other versions.CATEGORY M1: optional equipment is included in the capacity.
204KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONS
INDEX

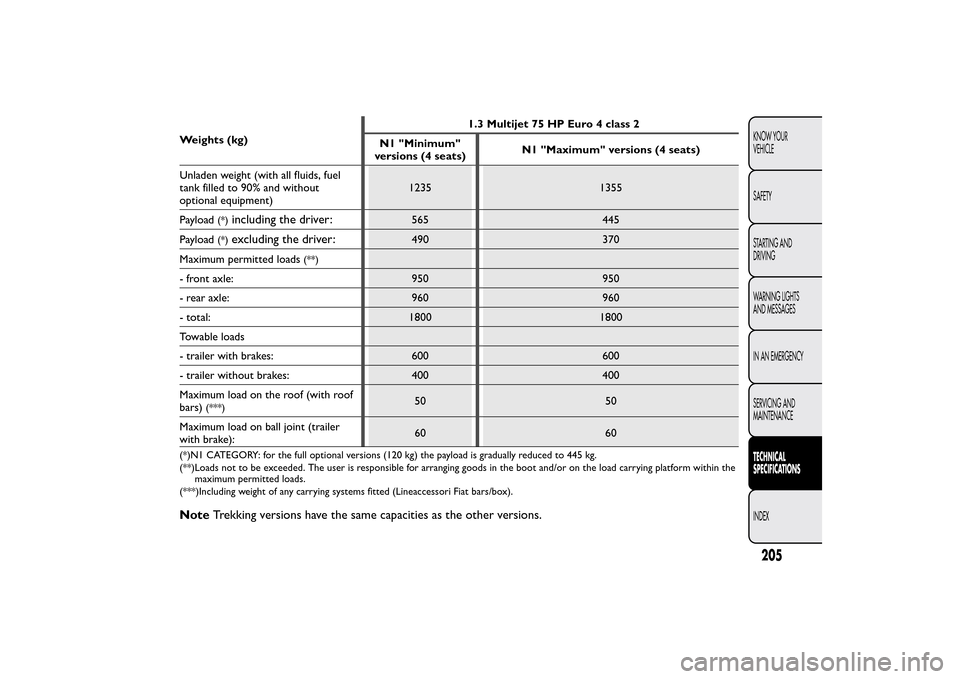

Weights (kg)1.3 Multijet 75 HP Euro 4 class 2
N1 "Minimum"
versions (4 seats)N1 "Maximum" versions (4 seats)
Unladen weight (with all fluids, fuel
tank filled to 90% and without
optional equipment)1235 1355
Payload
(*)
including the driver:
565 445
Payload
(*)
excluding the driver:
490 370
Maximum permitted loads
(**)
- front axle: 950 950
- rear axle: 960 960
- total: 1800 1800
Towable loads
- trailer with brakes: 600 600
- trailer without brakes: 400 400
Maximum load on the roof (with roof
bars)
(***)
50 50
Maximum load on ball joint (trailer
with brake):60 60
(*)N1 CATEGORY: for the full optional versions (120 kg) the payload is gradually reduced to 445 kg.
(**)Loads not to be exceeded. The user is responsible for arranging goods in the boot and/or on the load carrying platform within the
maximum permitted loads.
(***)Including weight of any carrying systems fitted (Lineaccessori Fiat bars/box).NoteTrekking versions have the same capacities as the other versions.
205KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

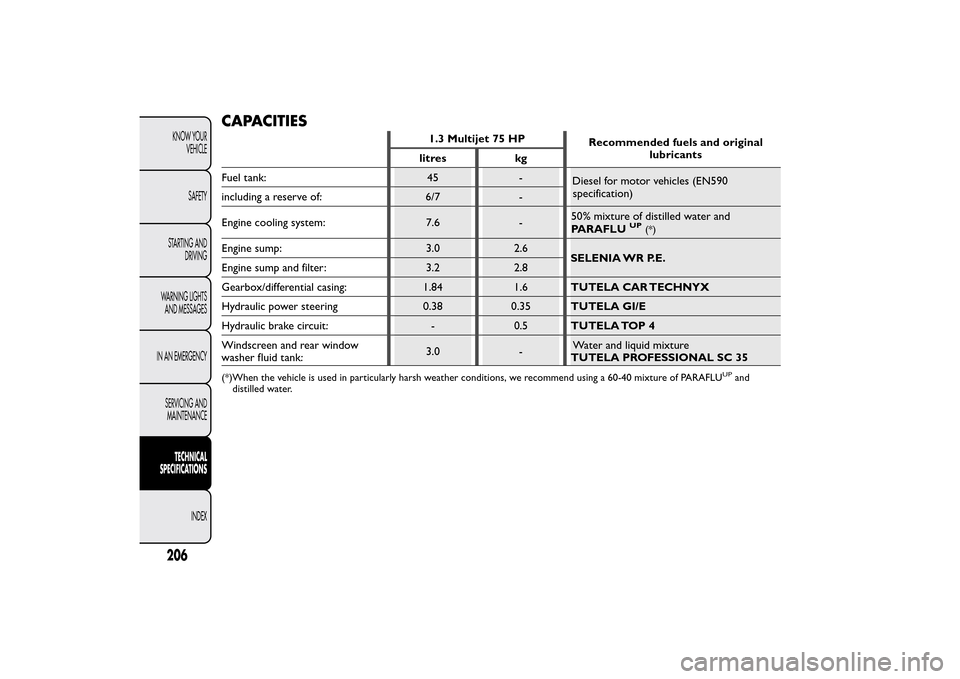

CAPACITIES
1.3 Multijet 75 HP
Recommended fuels and original
lubricants
litres kg
Fuel tank: 45 -
Diesel for motor vehicles (EN590
specification)
including a reserve of: 6/7 -
Engine cooling system: 7.6 -50% mixture of distilled water and
PARAFLU
UP
(*)
Engine sump: 3.0 2.6
SELENIA WR P.E.
Engine sump and filter: 3.2 2.8
Gearbox/differential casing: 1.84 1.6TUTELA CAR TECHNYX
Hydraulic power steering 0.38 0.35TUTELA GI/E
Hydraulic brake circuit: - 0.5TUTELA TOP 4
Windscreen and rear window
washer fluid tank:3.0 -Water and liquid mixture
TUTELA PROFESSIONAL SC 35(*)When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLU
UP
and
distilled water.
