INSTRUMENT PANELVersions with multifunction display
Warning lights
and
are available on diesel versions only.
A. Speedometer (speed indicator) B. Fuel level gauge with reserve warning light C. Engine coolant temperature gauge
with overheating warning light D. Rev counter E. Multifunction displayfig. 2
F0T0460
4
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

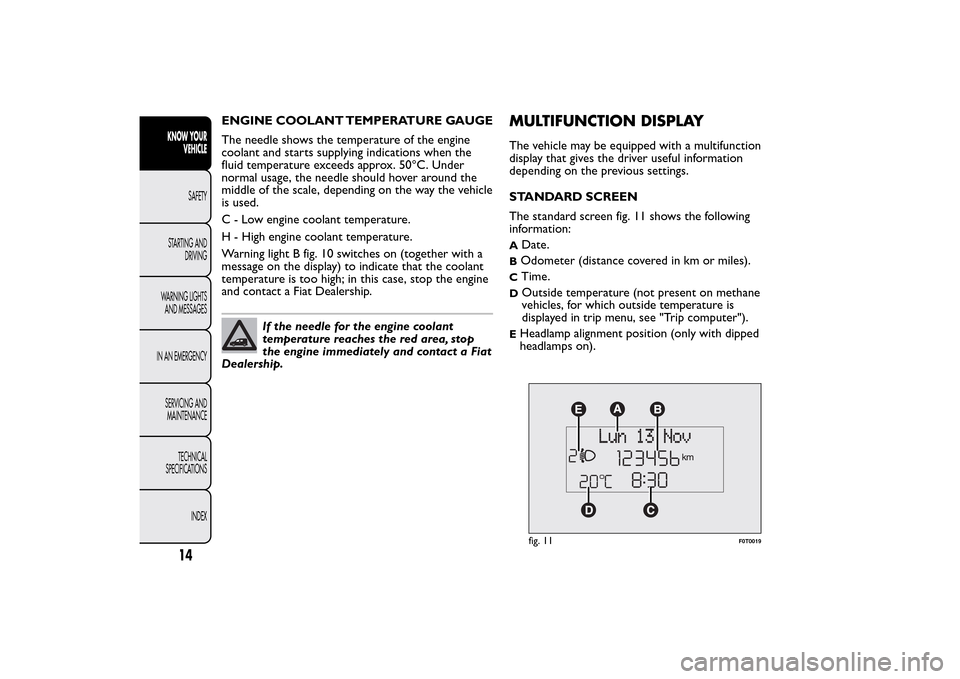

ENGINE COOLANT TEMPERATURE GAUGE
The needle shows the temperature of the engine
coolant and starts supplying indications when the
fluid temperature exceeds approx. 50°C. Under
normal usage, the needle should hover around the
middle of the scale, depending on the way the vehicle
is used.
C - Low engine coolant temperature.
H - High engine coolant temperature.
Warning light B fig. 10 switches on (together with a
message on the display) to indicate that the coolant
temperature is too high; in this case, stop the engine
and contact a Fiat Dealership.
If the needle for the engine coolant
temperature reaches the red area, stop
the engine immediately and contact a Fiat
Dealership.
MULTIFUNCTION DISPLAYThe vehicle may be equipped with a multifunction
display that gives the driver useful information
depending on the previous settings.
STANDARD SCREEN
The standard screen fig. 11 shows the following
information:A
Date.
BOdometer (distance covered in km or miles).C
Time.
D
Outside temperature (not present on methane
vehicles, for which outside temperature is
displayed in trip menu, see "Trip computer").
EHeadlamp alignment position (only with dipped
headlamps on).fig. 11
F0T0019
14KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

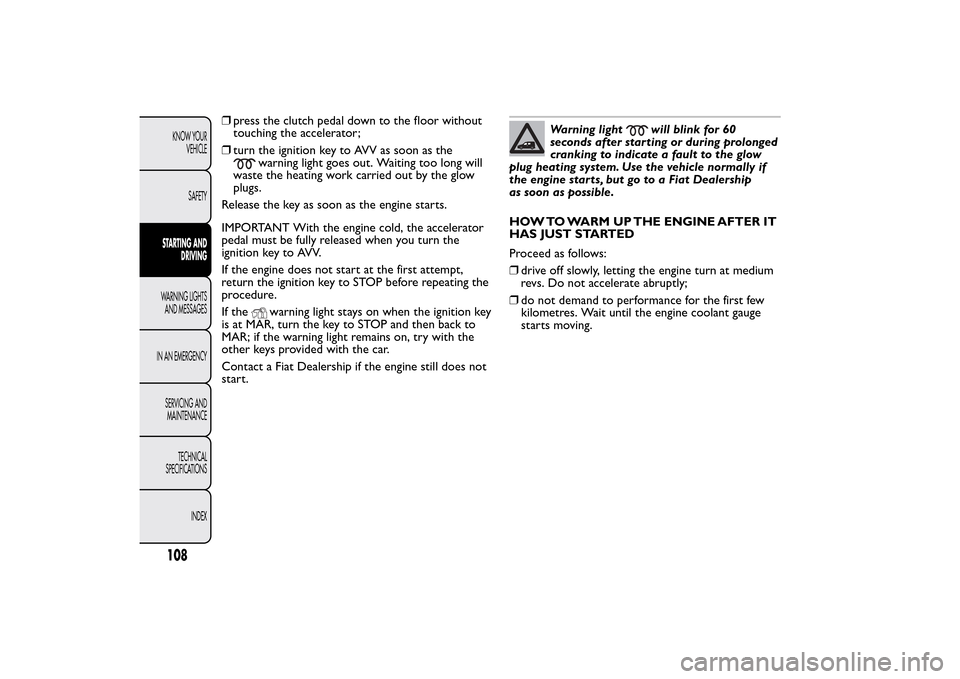

❒press the clutch pedal down to the floor without
touching the accelerator;
❒turn the ignition key to AVV as soon as the
warning light goes out. Waiting too long will
waste the heating work carried out by the glow
plugs.
Release the key as soon as the engine starts.
IMPORTANT With the engine cold, the accelerator
pedal must be fully released when you turn the
ignition key to AVV.
If the engine does not start at the first attempt,
return the ignition key to STOP before repeating the
procedure.
If thewarning light stays on when the ignition key
is at MAR, turn the key to STOP and then back to
MAR; if the warning light remains on, try with the
other keys provided with the car.
Contact a Fiat Dealership if the engine still does not
start.
Warning light
will blink for 60
seconds after star ting or during prolonged
cranking to indicate a fault to the glow
plug heating system. Use the vehicle normally if
the engine starts, but go to a Fiat Dealership
as soon as possible.
HOW TO WARM UP THE ENGINE AFTER IT
HAS JUST STARTED
Proceed as follows:
❒drive off slowly, letting the engine turn at medium
revs. Do not accelerate abruptly;
❒do not demand to performance for the first few
kilometres. Wait until the engine coolant gauge
starts moving.
108KNOW YOUR
VEHICLE
SAFETYSTARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

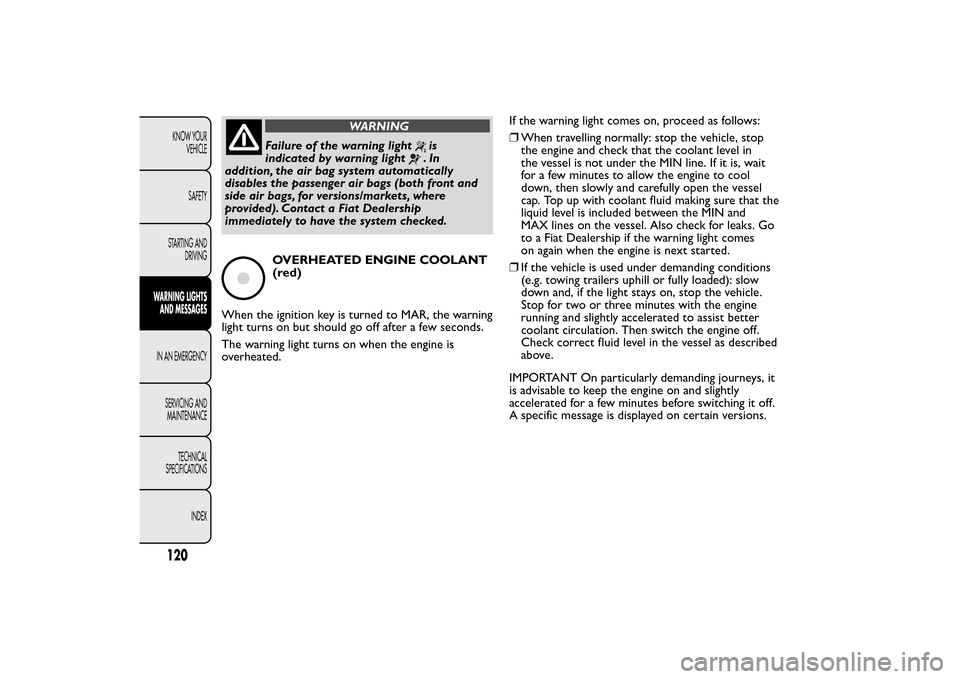

WARNING
Failure of the warning light
is
indicated by warning light.In
addition, the air bag system automatically
disables the passenger air bags (both front and
side air bags, for versions/markets, where
provided). Contact a Fiat Dealership
immediately to have the system checked.
OVERHEATED ENGINE COOLANT
(red)
When the ignition key is turned to MAR, the warning
light turns on but should go off after a few seconds.
The warning light turns on when the engine is
overheated.If the warning light comes on, proceed as follows:
❒When travelling normally: stop the vehicle, stop
the engine and check that the coolant level in
the vessel is not under the MIN line. If it is, wait
for a few minutes to allow the engine to cool
down, then slowly and carefully open the vessel
cap. Top up with coolant fluid making sure that the
liquid level is included between the MIN and
MAX lines on the vessel. Also check for leaks. Go
to a Fiat Dealership if the warning light comes
on again when the engine is next started.
❒If the vehicle is used under demanding conditions
(e.g. towing trailers uphill or fully loaded): slow
down and, if the light stays on, stop the vehicle.
Stop for two or three minutes with the engine
running and slightly accelerated to assist better
coolant circulation. Then switch the engine off.
Check correct fluid level in the vessel as described
above.
IMPORTANT On particularly demanding journeys, it
is advisable to keep the engine on and slightly
accelerated for a few minutes before switching it off.
A specific message is displayed on certain versions.
120KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

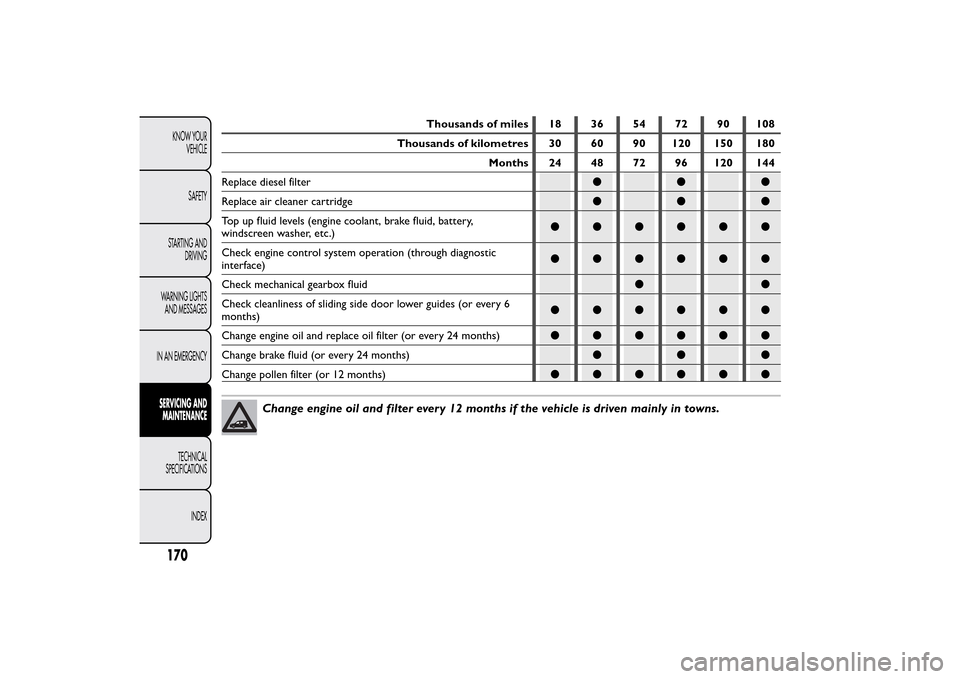

Thousands of miles 18 36 54 72 90 108
Thousands of kilometres 30 60 90 120 150 180
Months 24 48 72 96 120 144
Replace diesel filter●●●
Replace air cleaner cartridge●●●
Top up fluid levels (engine coolant, brake fluid, battery,
windscreen washer, etc.)●●●●●●
Check engine control system operation (through diagnostic
interface)●●●●●●
Check mechanical gearbox fluid●●
Check cleanliness of sliding side door lower guides (or every 6
months)●●●●●●
Change engine oil and replace oil filter (or every 24 months)●●●●●●
Change brake fluid (or every 24 months)●●●
Change pollen filter (or 12 months)●●●●●●
Change engine oil and filter ever y 12 months if the vehicle is driven mainly in towns.
170KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

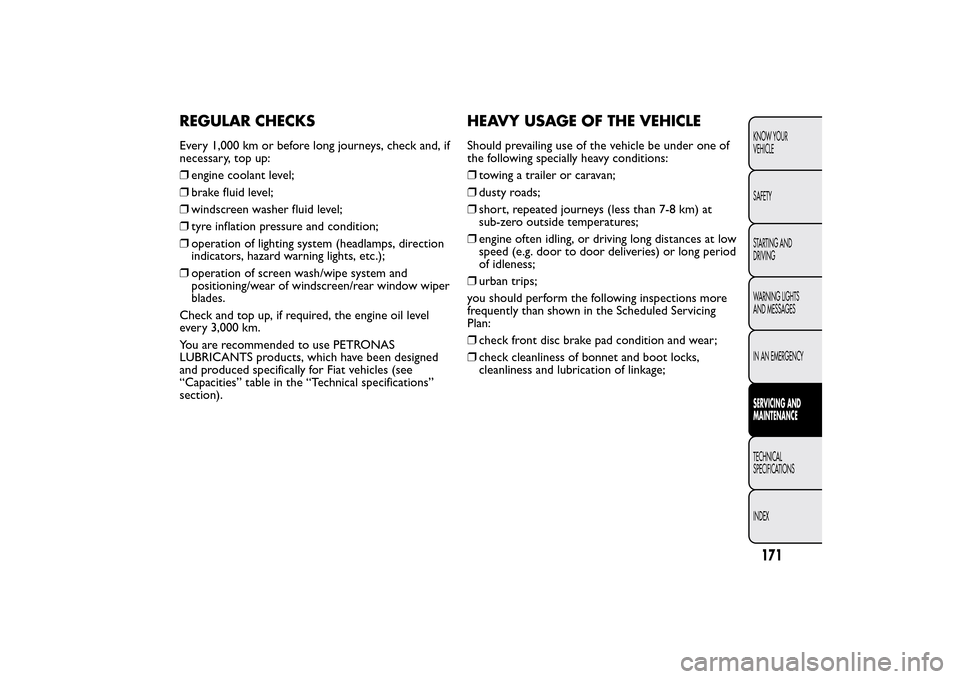

REGULAR CHECKSEvery 1,000 km or before long journeys, check and, if
necessary, top up:
❒engine coolant level;
❒brake fluid level;
❒windscreen washer fluid level;
❒tyre inflation pressure and condition;
❒operation of lighting system (headlamps, direction
indicators, hazard warning lights, etc.);
❒operation of screen wash/wipe system and
positioning/wear of windscreen/rear window wiper
blades.
Check and top up, if required, the engine oil level
every 3,000 km.
You are recommended to use PETRONAS
LUBRICANTS products, which have been designed
and produced specifically for Fiat vehicles (see
“Capacities” table in the “Technical specifications”
section).
HEAVY USAGE OF THE VEHICLEShould prevailing use of the vehicle be under one of
the following specially heavy conditions:
❒towing a trailer or caravan;
❒dusty roads;
❒short, repeated journeys (less than 7-8 km) at
sub-zero outside temperatures;
❒engine often idling, or driving long distances at low
speed (e.g. door to door deliveries) or long period
of idleness;
❒urban trips;
you should perform the following inspections more
frequently than shown in the Scheduled Servicing
Plan:
❒check front disc brake pad condition and wear;
❒check cleanliness of bonnet and boot locks,
cleanliness and lubrication of linkage;
171KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCYSERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONS
INDEX

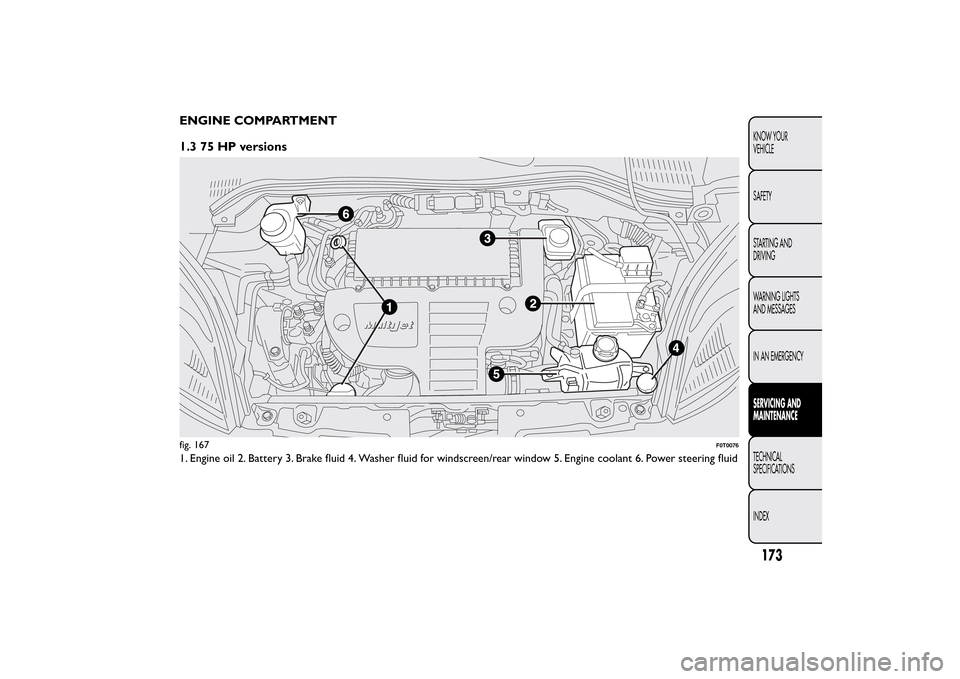

ENGINE COMPARTMENT
1.3 75 HP versions1. Engine oil 2. Battery 3. Brake fluid 4. Washer fluid for windscreen/rear window 5. Engine coolant 6. Power steering fluidfig. 167
F0T0076
173KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCYSERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONS
INDEX

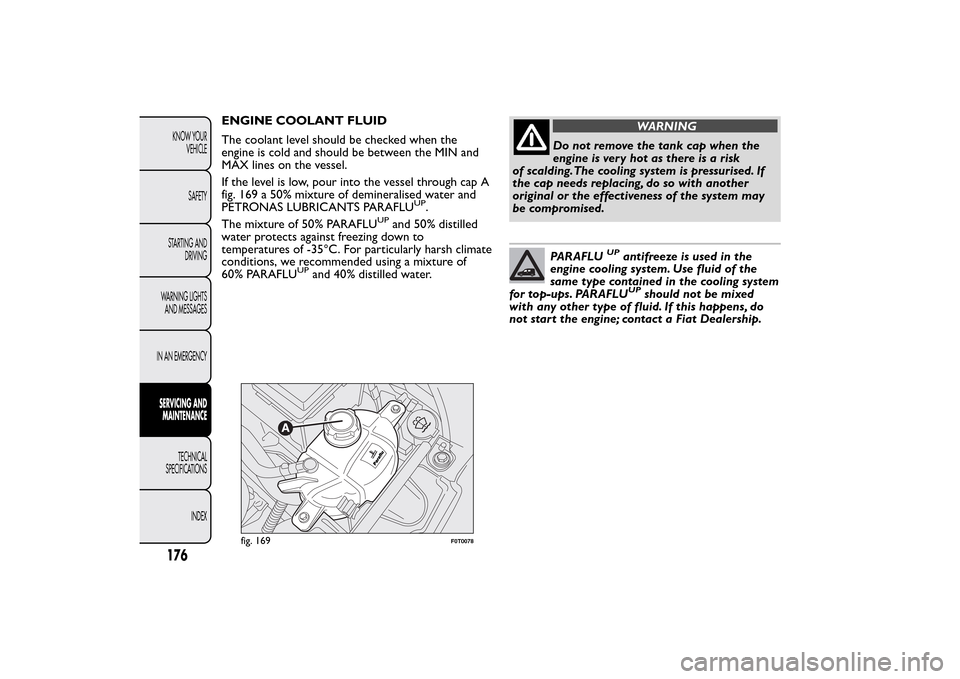

ENGINE COOLANT FLUID
The coolant level should be checked when the
engine is cold and should be between the MIN and
MAX lines on the vessel.
If the level is low, pour into the vessel through cap A
fig. 169 a 50% mixture of demineralised water and
PETRONAS LUBRICANTS PARAFLU
UP
.
The mixture of 50% PARAFLU
UP
and 50% distilled
water protects against freezing down to
temperatures of -35°C. For particularly harsh climate
conditions, we recommended using a mixture of
60% PARAFLU
UP
and 40% distilled water.
WARNING
Do not remove the tank cap when the
engine is very hot as there is a risk
of scalding.The cooling system is pressurised. If
the cap needs replacing, do so with another
original or the effectiveness of the system may
be compromised.PARAFLU
UP
antifreeze is used in the
engine cooling system. Use fluid of the
same type contained in the cooling system
for top-ups. PARAFLUUP
should not be mixed
with any other type of fluid. If this happens, do
not start the engine; contact a Fiat Dealership.
fig. 169
F0T0078
176KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

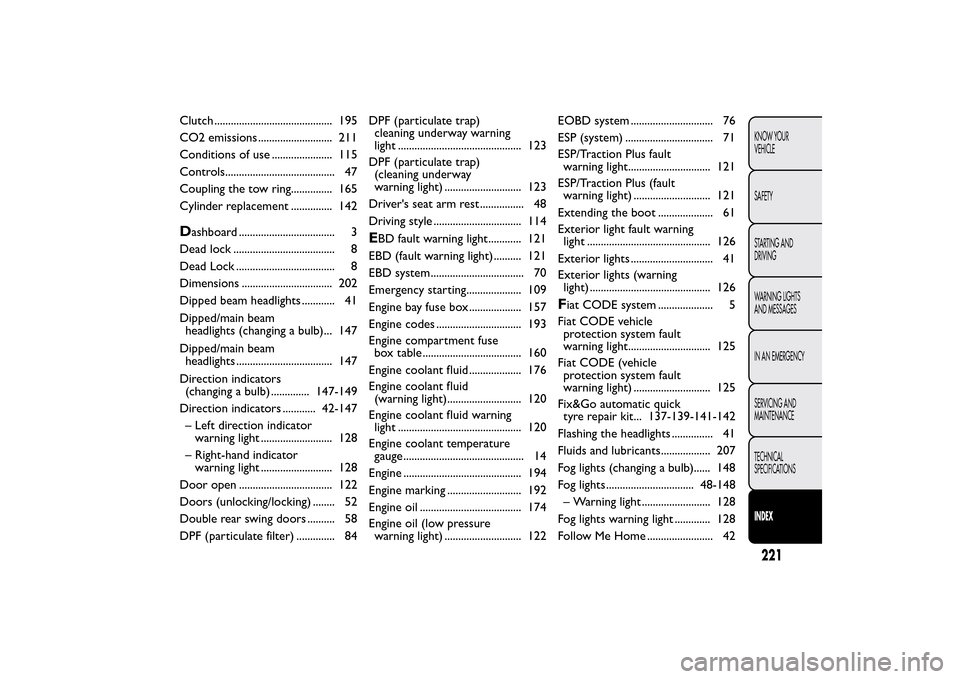

Clutch ........................................... 195
CO2 emissions ........................... 211
Conditions of use ...................... 115
Controls........................................ 47
Coupling the tow ring............... 165
Cylinder replacement ............... 142D
ashboard ................................... 3
Dead lock ..................................... 8
Dead Lock .................................... 8
Dimensions ................................. 202
Dipped beam headlights ............ 41
Dipped/main beam
headlights (changing a bulb)... 147
Dipped/main beam
headlights ................................... 147
Direction indicators
(changing a bulb) .............. 147-149
Direction indicators ............ 42-147
– Left direction indicator
warning light .......................... 128
– Right-hand indicator
warning light .......................... 128
Door open .................................. 122
Doors (unlocking/locking) ........ 52
Double rear swing doors .......... 58
DPF (particulate filter) .............. 84DPF (particulate trap)
cleaning underway warning
light ............................................. 123
DPF (particulate trap)
(cleaning underway
warning light) ............................ 123
Driver's seat arm rest ................ 48
Driving style ................................ 114
EBD fault warning light............ 121
EBD (fault warning light) .......... 121
EBD system .................................. 70
Emergency starting.................... 109
Engine bay fuse box ................... 157
Engine codes ............................... 193
Engine compartment fuse
box table .................................... 160
Engine coolant fluid ................... 176
Engine coolant fluid
(warning light)........................... 120
Engine coolant fluid warning
light ............................................. 120
Engine coolant temperature
gauge............................................ 14
Engine ........................................... 194
Engine marking ........................... 192
Engine oil ..................................... 174
Engine oil (low pressure
warning light) ............................ 122EOBD system .............................. 76
ESP (system) ................................ 71
ESP/Traction Plus fault
warning light.............................. 121
ESP/Traction Plus (fault
warning light) ............................ 121
Extending the boot .................... 6
Exterior light fault warning
light ............................................. 126
Exterior lights .............................. 41
Exterior lights (warning
light) ............................................ 126
Fiat CODE system .................... 5
Fiat CODE vehicle
protection system fault
warning light.............................. 125
Fiat CODE (vehicle
protection system fault
warning light) ............................ 125
Fix&Go automatic quick
tyre repair kit... 137-139-141-142
Flashing the headlights ............... 41
Fluids and lubricants.................. 207
Fog lights (changing a bulb)...... 148
Fog lights ................................ 48-148
– Warning light ......................... 128
Fog lights warning light ............. 128
Follow Me Home ........................ 42
221KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONSINDEX
1
