air filter FIAT QUBO 2015 1.G Owners Manual

PROTECTING THE ENVIRONMENTThe following devices are used for reducing diesel
fuel engine emissions:
❒oxidising catalytic converter
❒exhaust gas recirculation system (EGR)
❒diesel particulate filter (DPF) (for versions/
markets, where provided).
DIESEL PARTICULATE FILTER (DPF)
(for versions/markets, where provided)
The Diesel Particulate Filter is a mechanical filter,
integral to the exhaust system, that physically traps
carbon particulates present in the exhaust gases
of diesel engines.
The diesel particulate filter has been adopted to
eliminate almost all particulates in compliance with
current/future regulations.
During normal use of the vehicle, the engine
management control unit records a set of data
(travel time, type of route, temperatures reached
etc.) and calculates how much particulate has been
trapped by the filter.Since this filter physically traps particulate, it must be
regenerated (cleaned) at regular intervals by burning
the carbon particles.
The regeneration procedure is managed
automatically by the engine management control unit
according to the filter conditions and vehicle use
conditions.
During regeneration, the following may occur: a
limited increase in the engine speed, activation of the
fan, a limited increase in fumes and high
temperatures at the exhaust.
These are not faults; they do not impair vehicle
performance or damage the environment. If
the dedicated message is displayed, refer to the
“Warning lights and messages” section.
84KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Thousands of miles 18 36 54 72 90 108
Thousands of kilometres 30 60 90 120 150 180
Months 24 48 72 96 120 144
Replace diesel filter●●●
Replace air cleaner cartridge●●●
Top up fluid levels (engine coolant, brake fluid, battery,
windscreen washer, etc.)●●●●●●
Check engine control system operation (through diagnostic
interface)●●●●●●
Check mechanical gearbox fluid●●
Check cleanliness of sliding side door lower guides (or every 6
months)●●●●●●
Change engine oil and replace oil filter (or every 24 months)●●●●●●
Change brake fluid (or every 24 months)●●●
Change pollen filter (or 12 months)●●●●●●
Change engine oil and filter ever y 12 months if the vehicle is driven mainly in towns.
170KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

❒visually inspect conditions of: engine, gearbox,
transmission, pipes and hoses (exhaust - fuel
system - brakes) and rubber elements (boots -
sleeves - bushes - etc.);
❒check battery charge status and fluid (electrolyte)
level (refer to "Battery - Check state of charge
and electrolyte level" paragraph in this chapter);
❒visually inspect condition of the auxiliary drive
belts;
❒check and, if necessary, replace pollen filter, in
particular it should be replaced if there is a
noticeable decrease in the passenger compartment
air intake flow rate.
❒check and, if necessary, replace air filter.
CHECKING LEVELS
When topping up, take care not to mix up
the various types of fluids: they are not
compatible with each other and could
seriously damage the vehicle.
WARNING
Never smoke while working in the
engine compar tment : inflammable gases
and vapours may be present , constituting a fire
risk.
172KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

BRAKE FLUID
Undo the cap A fig. 171 and check that the liquid
contained in the reservoir is at the maximum level.
Fluid level in the reservoir must not exceed the MAX
mark.
If you do need to top up, use the brake fluid shown
in the "Fluids and lubricants" table (see "Technical
Specifications"). When opening the cap A, make sure
that no dirt gets into the reservoir.
Always use a funnel with a built-in filter with a mesh
of 0.12 mm or less for topping up.
IMPORTANT Brake fluid absorbs moisture. For this
reason, if the vehicle is mainly used in areas with a
high degree of atmospheric humidity, the fluid should
be replaced at more frequent intervals than specified
in the “Schedule Servicing Plan”.
Prevent brake fluid, which is highly
corrosive, from coming into contact with
painted parts.Wash with water
immediately if this should happen.
WARNING
Brake fluid is poisonous and highly
corrosive. In the event of accidental
contact , wash the parts immediately with water
and mild soap, then rinse with plenty of water.
Call a doctor immediately if swallowed.
WARNING
Symbol
on the contain indicates a
synthetic brake fluid, which is different
from a mineral fluid. Using a mineral-type fluid
will damage the special rubber seals of the
braking system beyond repair.
fig. 171
F0T0080
178KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

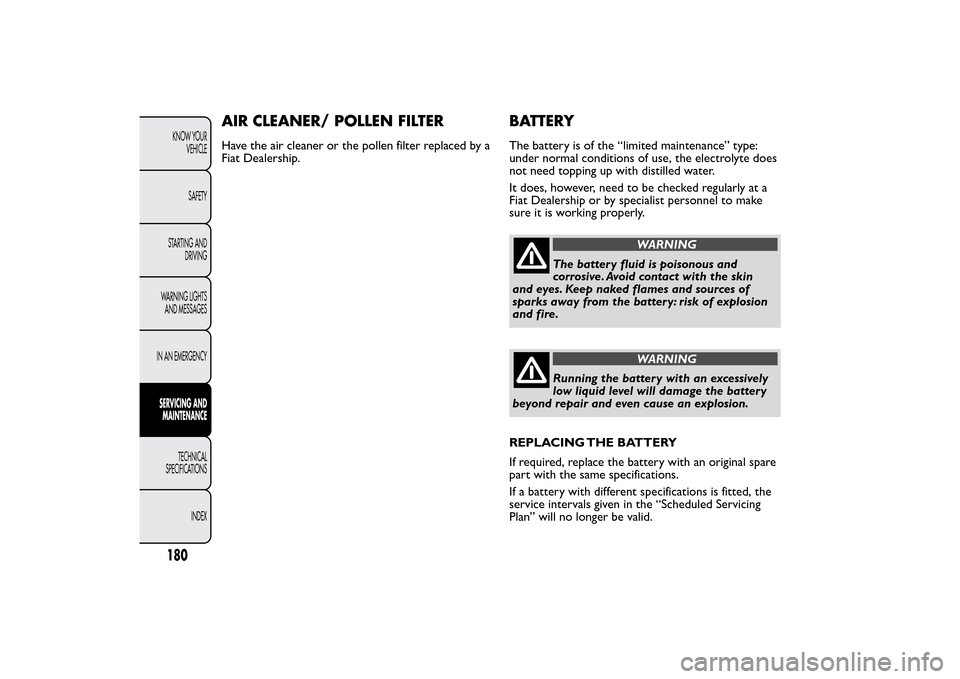

AIR CLEANER/ POLLEN FILTERHave the air cleaner or the pollen filter replaced by a
Fiat Dealership.
BATTERYThe battery is of the “limited maintenance” type:
under normal conditions of use, the electrolyte does
not need topping up with distilled water.
It does, however, need to be checked regularly at a
Fiat Dealership or by specialist personnel to make
sure it is working properly.
WARNING
The battery fluid is poisonous and
corrosive. Avoid contact with the skin
and eyes. Keep naked flames and sources of
sparks away from the battery: risk of explosion
and fire.
WARNING
Running the battery with an excessively
low liquid level will damage the battery
beyond repair and even cause an explosion.
REPLACING THE BATTERY
If required, replace the battery with an original spare
part with the same specifications.
If a battery with different specifications is fitted, the
service intervals given in the “Scheduled Servicing
Plan” will no longer be valid.
180KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Clutch ........................................... 195
CO2 emissions ........................... 211
Conditions of use ...................... 115
Controls........................................ 47
Coupling the tow ring............... 165
Cylinder replacement ............... 142D
ashboard ................................... 3
Dead lock ..................................... 8
Dead Lock .................................... 8
Dimensions ................................. 202
Dipped beam headlights ............ 41
Dipped/main beam
headlights (changing a bulb)... 147
Dipped/main beam
headlights ................................... 147
Direction indicators
(changing a bulb) .............. 147-149
Direction indicators ............ 42-147
– Left direction indicator
warning light .......................... 128
– Right-hand indicator
warning light .......................... 128
Door open .................................. 122
Doors (unlocking/locking) ........ 52
Double rear swing doors .......... 58
DPF (particulate filter) .............. 84DPF (particulate trap)
cleaning underway warning
light ............................................. 123
DPF (particulate trap)
(cleaning underway
warning light) ............................ 123
Driver's seat arm rest ................ 48
Driving style ................................ 114
EBD fault warning light............ 121
EBD (fault warning light) .......... 121
EBD system .................................. 70
Emergency starting.................... 109
Engine bay fuse box ................... 157
Engine codes ............................... 193
Engine compartment fuse
box table .................................... 160
Engine coolant fluid ................... 176
Engine coolant fluid
(warning light)........................... 120
Engine coolant fluid warning
light ............................................. 120
Engine coolant temperature
gauge............................................ 14
Engine ........................................... 194
Engine marking ........................... 192
Engine oil ..................................... 174
Engine oil (low pressure
warning light) ............................ 122EOBD system .............................. 76
ESP (system) ................................ 71
ESP/Traction Plus fault
warning light.............................. 121
ESP/Traction Plus (fault
warning light) ............................ 121
Extending the boot .................... 6
Exterior light fault warning
light ............................................. 126
Exterior lights .............................. 41
Exterior lights (warning
light) ............................................ 126
Fiat CODE system .................... 5
Fiat CODE vehicle
protection system fault
warning light.............................. 125
Fiat CODE (vehicle
protection system fault
warning light) ............................ 125
Fix&Go automatic quick
tyre repair kit... 137-139-141-142
Flashing the headlights ............... 41
Fluids and lubricants.................. 207
Fog lights (changing a bulb)...... 148
Fog lights ................................ 48-148
– Warning light ......................... 128
Fog lights warning light ............. 128
Follow Me Home ........................ 42
221KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONSINDEX
1

Front airbags ............................... 100
– Front airbag driver's side .... 102
– Front airbag passenger's
side .......................................... 102
– Manual deactivation of
passenger front airbag
and side bag ........................... 103
Front ceiling light ....................... 152
Front ceiling light with map
reading lights (changing a
bulb) ............................................ 153
Front light clusters
(changing a bulb) ...................... 146
Front light clusters .................... 146
Front power socket ................... 49
Fuel consumption ...................... 210
Fuel cut-off system ..................... 83
Fuel filter (water in fuel
warning light) ............................ 124
Fuel level gauge ........................... 13
Fuel reserve warning light........ 124
Fuel (reserve warning light) ..... 124
Fuel system.................................. 195
Fuses (replacement) .. 155-157-161G
ear lever................................... 112
Generic failure indication
warning light.............................. 127Generic failure indication
(warning light)........................... 127
Glove compartment................... 49
Glow plug preheating fault
warning light.............................. 124
Glow plugs (preheating/fault
warning light) ............................ 124
Glow plugs preheating
warning light.............................. 124
Handbrake ................................... 110
Handbrake lever ......................... 110
Handbrake (warning light) ....... 118
Hazard lights ................................ 47
Headlight alignment
corrector .................................... 68
Headlights
– Headlight alignment
corrector................................. 68
– Light beam direction ............ 68
Headrest
– Front ........................................ 29
– Rear .......................................... 30
Heating and ventilation ............. 35
Heating and ventilation
system; ........................................ 34
Heavy use of the vehicle .......... 171
Hill Holder (system) .................. 72How to warm up the engine
after it has just started ........... 108
Identification data ..................... 191
Ignition switch
– Ignition ..................................... 11
– Steering lock........................... 12
In an emergency ......................... 129
Inflation pressure ....................... 201
Inflation procedure .................... 139
Injection system/EOBD
engine control system fault
warning light.............................. 123
Injection system (warning
light) ............................................ 123
Installing
electrical/electronic devices ... 80
Instrument panel ......................... 4
Instruments .................................. 12
Interior fittings ............................ 48
Interiors ....................................... 189
Isofix child seat assembly
setup ............................................ 97
Isofix child seats (fitting
arrangement) ............................. 97
– Seat compliance with
child seat use.......................... 99Jack ............................................... 131
222KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Jump starting............................... 129Keys
– Key without remote
control ..................................... 6
– Key with remote control..... 7
– Ordering additional
remote controls .................... 8Left direction indicator
warning light ............................. 128
Lifting the vehicle....................... 165
Light beam direction .................. 68
Low battery charge warning
light ............................................. 121
Low engine oil level ................... 122
Low engine oil pressure
warning light.............................. 122M
ain beam headlights ............... 41
Maintenance and care -
regular checks........................... 171
Maintenance and care -
Scheduled Servicing ................. 168
Maintenance and care -
scheduled servicing plan......... 169
Manual climate control
system ......................................... 38Manual deactivation of
passenger front airbag and
side bag ...................................... 103
MSR system.................................. 73
Multifunction display
– Control buttons .................... 15
– Setup menu............................. 16
– Standard screen ..................... 14
N
umber plate lights (bulb
replacement)............................. 151
Number plate lights................... 151
O
ddment tray ............................. 49
Ordering additional remote
controls ....................................... 8
Parking......................................... 111
Parking lights ................................ 41
Parking sensor fault warning
light ............................................. 127
Parking sensors ........................... 77
Parking sensors (warning
light) ............................................ 127
Particulate filter (DPF) .............. 84
Partition ........................................ 29
Passenger air bag/side bag
off warning light ....................... 119
Passenger air bag/side bag
(warning light)........................... 119Passenger compartment
fuse box ..................................... 161
Passenger compartment
fuse box table ........................... 161
Performance................................ 203
Pollen filter .................................. 180
Power steering fluid .................. 179
Pressure check and
correction.................................. 141
Pretensioners............................... 87
Prolonged vehicle inactivity ..... 117
Protecting the environment ..... 84
Radio ............................................. 79
Radio transmitters and
mobile phones ........................... 80
Rear ceiling light ......................... 153
Rear fog lights (changing a
bulb) ............................................ 149
Rear fog lights .............................. 48
– Warning light ......................... 128
Rear fog lights warning light .... 128
Rear light clusters (changing
a bulb)......................................... 149
Rear light clusters ...................... 149
Rear side windows ..................... 51
Rear-view mirrors
– Interior rear-view mirror..... 32
223KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONSINDEX
