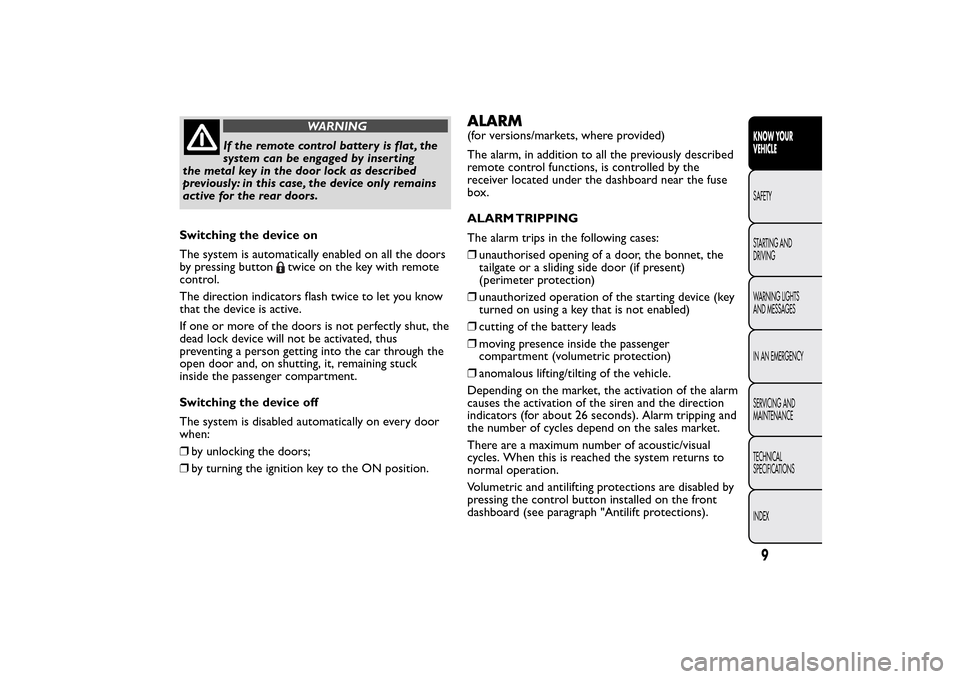

WARNING
If the remote control battery is flat , the
system can be engaged by inser ting
the metal key in the door lock as described
previously: in this case, the device only remains
active for the rear doors.
Switching the device on
The system is automatically enabled on all the doors
by pressing button
twice on the key with remote
control.
The direction indicators flash twice to let you know
that the device is active.
If one or more of the doors is not perfectly shut, the
dead lock device will not be activated, thus
preventing a person getting into the car through the
open door and, on shutting, it, remaining stuck
inside the passenger compartment.
Switching the device off
The system is disabled automatically on every door
when:
❒by unlocking the doors;
❒by turning the ignition key to the ON position.
ALARM(for versions/markets, where provided)
The alarm, in addition to all the previously described
remote control functions, is controlled by the
receiver located under the dashboard near the fuse
box.
ALARM TRIPPING
The alarm trips in the following cases:
❒unauthorised opening of a door, the bonnet, the
tailgate or a sliding side door (if present)
(perimeter protection)
❒unauthorized operation of the starting device (key
turned on using a key that is not enabled)
❒cutting of the battery leads
❒moving presence inside the passenger
compartment (volumetric protection)
❒anomalous lifting/tilting of the vehicle.
Depending on the market, the activation of the alarm
causes the activation of the siren and the direction
indicators (for about 26 seconds). Alarm tripping and
the number of cycles depend on the sales market.
There are a maximum number of acoustic/visual
cycles. When this is reached the system returns to
normal operation.
Volumetric and antilifting protections are disabled by
pressing the control button installed on the front
dashboard (see paragraph "Antilift protections).
9KNOW YOUR
VEHICLESAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

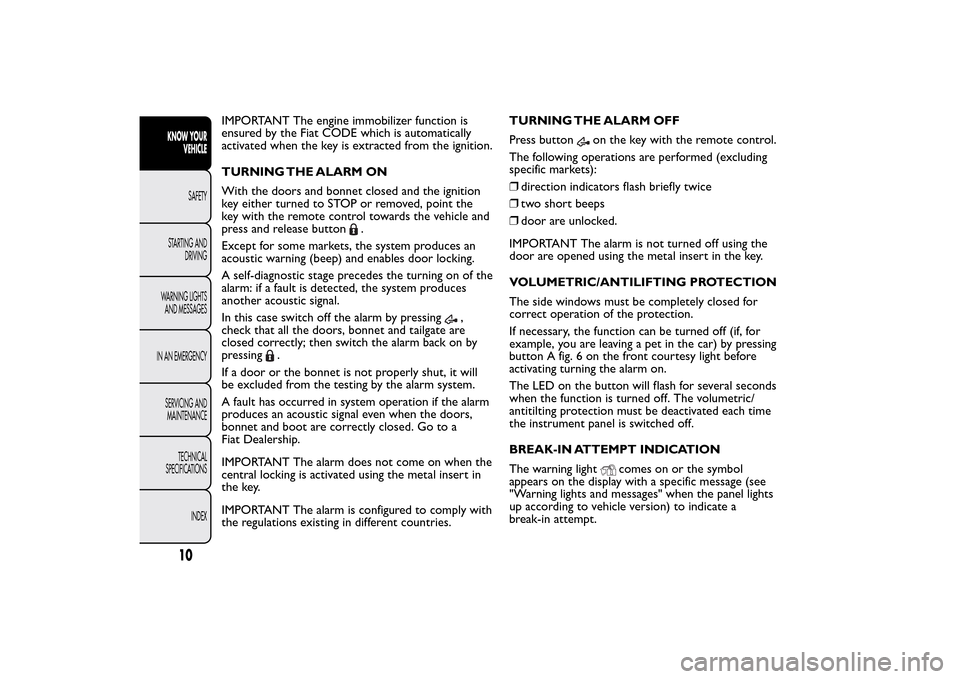

IMPORTANT The engine immobilizer function is
ensured by the Fiat CODE which is automatically
activated when the key is extracted from the ignition.
TURNING THE ALARM ON
With the doors and bonnet closed and the ignition
key either turned to STOP or removed, point the
key with the remote control towards the vehicle and
press and release button
.
Except for some markets, the system produces an
acoustic warning (beep) and enables door locking.
A self-diagnostic stage precedes the turning on of the
alarm: if a fault is detected, the system produces
another acoustic signal.
In this case switch off the alarm by pressing
,
check that all the doors, bonnet and tailgate are
closed correctly; then switch the alarm back on by
pressing
.
If a door or the bonnet is not properly shut, it will
be excluded from the testing by the alarm system.
A fault has occurred in system operation if the alarm
produces an acoustic signal even when the doors,
bonnet and boot are correctly closed. Go to a
Fiat Dealership.
IMPORTANT The alarm does not come on when the
central locking is activated using the metal insert in
the key.
IMPORTANT The alarm is configured to comply with
the regulations existing in different countries.TURNING THE ALARM OFF
Press button
on the key with the remote control.
The following operations are performed (excluding
specific markets):
❒direction indicators flash briefly twice
❒two short beeps
❒door are unlocked.
IMPORTANT The alarm is not turned off using the
door are opened using the metal insert in the key.
VOLUMETRIC/ANTILIFTING PROTECTION
The side windows must be completely closed for
correct operation of the protection.
If necessary, the function can be turned off (if, for
example, you are leaving a pet in the car) by pressing
button A fig. 6 on the front courtesy light before
activating turning the alarm on.
The LED on the button will flash for several seconds
when the function is turned off. The volumetric/
antitilting protection must be deactivated each time
the instrument panel is switched off.
BREAK-IN ATTEMPT INDICATION
The warning light
comes on or the symbol
appears on the display with a specific message (see
"Warning lights and messages" when the panel lights
up according to vehicle version) to indicate a
break-in attempt.
10KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

MANUAL FRONT WINDOWS
On some versions, the front windows are opened
and closed manually.
Wind the handle to open/close.

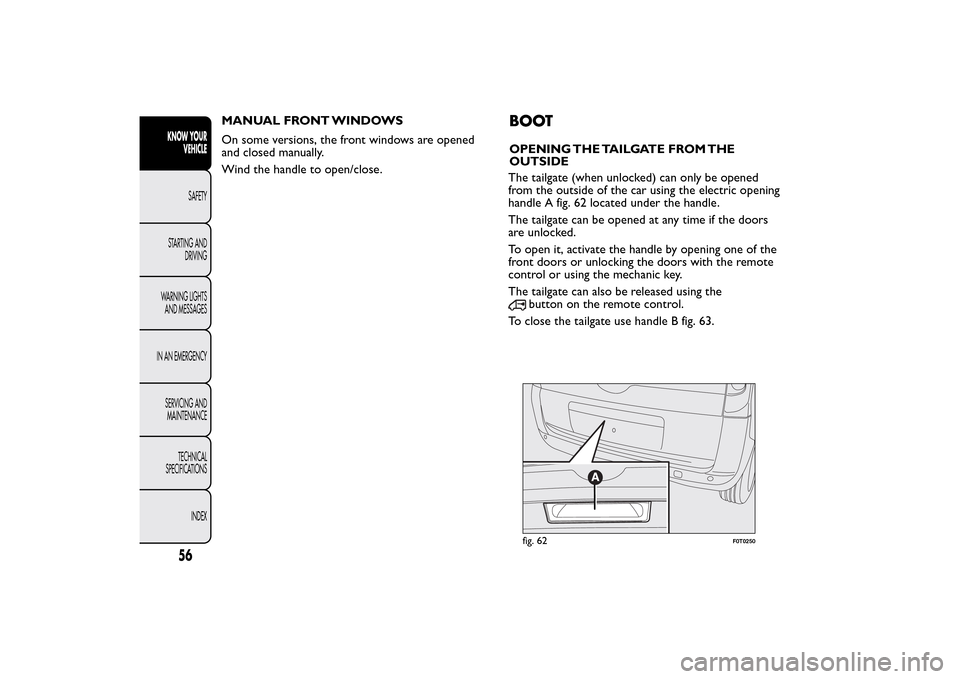

BOOTOPENING THE TAILGATE FROM THE
OUTSIDE
fig. 62
F0T0250
56KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
The tailgate (when unlocked) can only be opened
from the outside of the car using the electric opening
handle A fig. 62 located under the handle.
The tailgate can be opened at any time if the doors
are unlocked.
To open it, activate the handle by opening one of the
front doors or unlocking the doors with the remote
control or using the mechanic key.
The tailgate can also be released using the
button on the remote control.
To close the tailgate use handle B fig. 63.

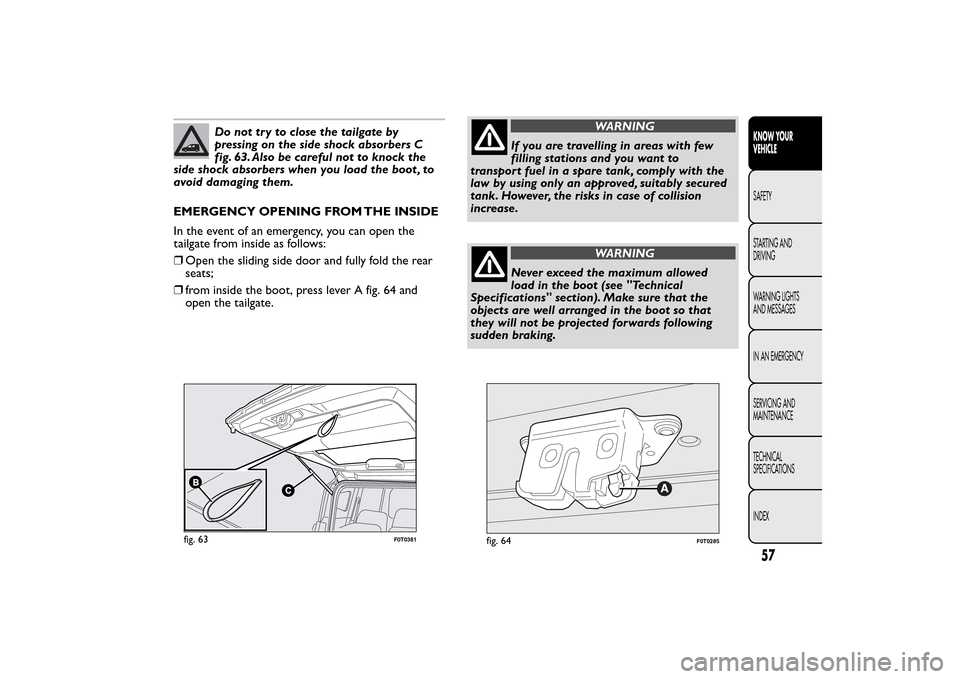

Do not tr y to close the tailgate by
pressing on the side shock absorbers C
fig. 63. Also be careful not to knock the
side shock absorbers when you load the boot , to
avoid damaging them.
EMERGENCY OPENING FROM THE INSIDE
In the event of an emergency, you can open the
tailgate from inside as follows:
❒Open the sliding side door and fully fold the rear
seats;
❒from inside the boot, press lever A fig. 64 and
open the tailgate.
WARNING
If you are travelling in areas with few
filling stations and you want to
transport fuel in a spare tank, comply with the
law by using only an approved, suitably secured
tank.However, the risks in case of collision
increase.
WARNING
Never exceed the maximum allowed
load in the boot (see "Technical
Specifications" section). Make sure that the
objects are well arranged in the boot so that
they will not be projected forwards following
sudden braking.
fig. 64
F0T0285
57KNOW YOUR
VEHICLESAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
fig. 63
F0T0381

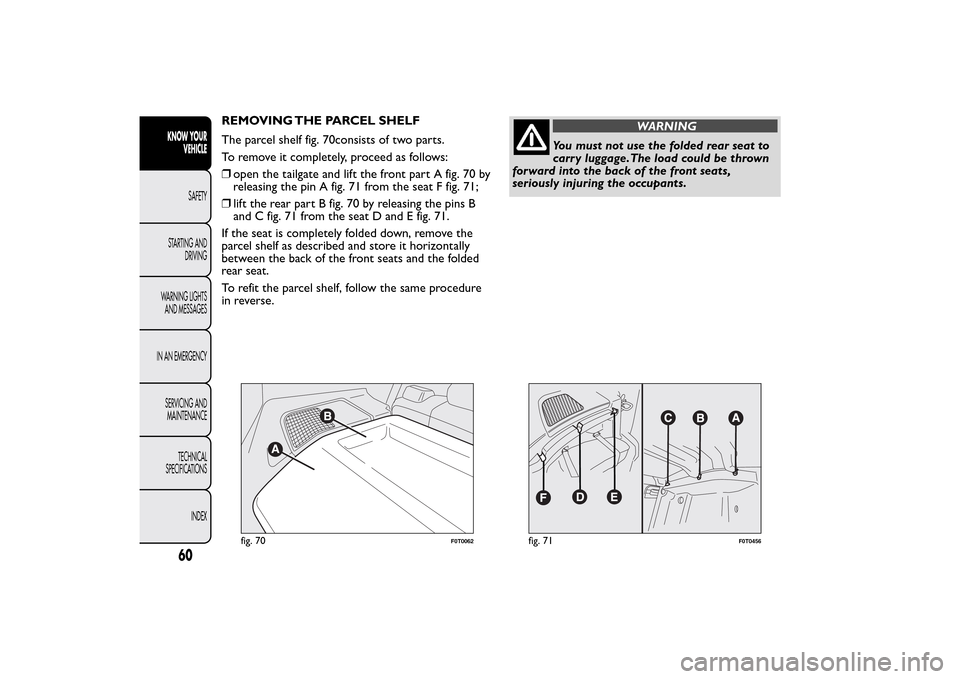

REMOVING THE PARCEL SHELF
The parcel shelf fig. 70consists of two parts.
To remove it completely, proceed as follows:
❒open the tailgate and lift the front part A fig. 70 by
releasing the pin A fig. 71 from the seat F fig. 71;
❒lift the rear part B fig. 70 by releasing the pins B
and C fig. 71 from the seat D and E fig. 71.
If the seat is completely folded down, remove the
parcel shelf as described and store it horizontally
between the back of the front seats and the folded
rear seat.
To refit the parcel shelf, follow the same procedure
in reverse.
WARNING
You must not use the folded rear seat to
carr y luggage.The load could be thrown
forward into the back of the front seats,
seriously injuring the occupants.
fig. 70
F0T0062
fig. 71
F0T0456
60KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

❒for versions with single rear seat: operate backrest
retainer lever A fig. 72 and fold the backrest
forwards to obtain a flat loading area. When you
lift the lever, you will see a red band B fig. 72.❒for versions with split rear seat: lift backrest retainer
lever A fig. 73 and fold the backrest forwards to
obtain a flat loading area. When you lift the lever,
you will see a red band B fig. 73.
B
A
fig. 72
F0T0444
fig. 73
F0T0288
61KNOW YOUR
VEHICLESAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

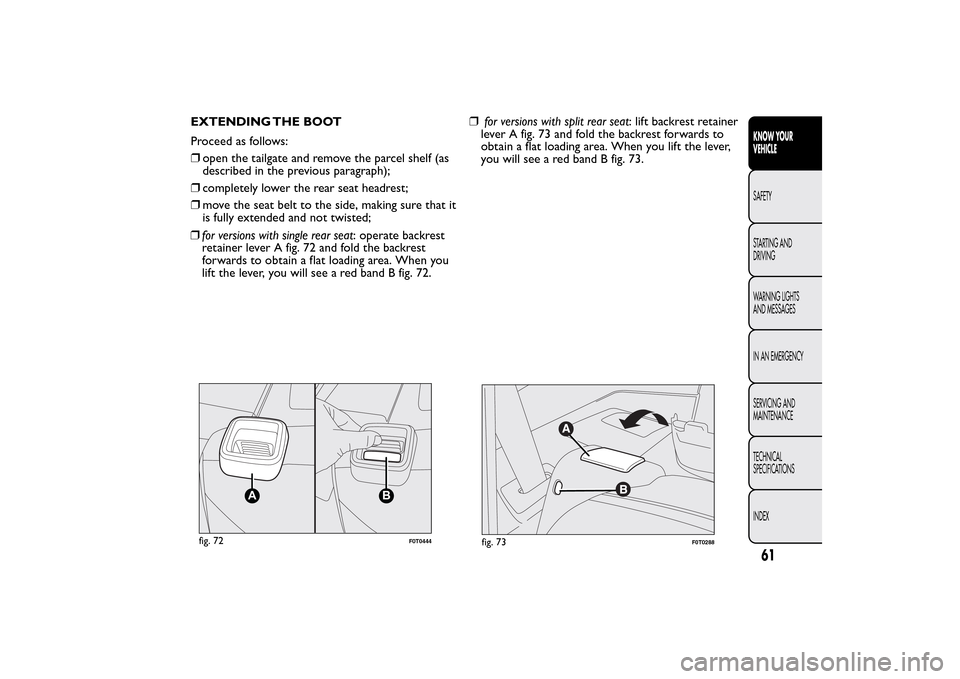

EXTENDING THE BOOT
Proceed as follows:
❒open the tailgate and remove the parcel shelf (as
described in the previous paragraph);
❒completely lower the rear seat headrest;
❒move the seat belt to the side, making sure that it
is fully extended and not twisted;

❒indicate that the vehicle is parked up by using the
devices required by law in the country in which
you are travelling (e.g. warning triangle, hazard
lights etc.);

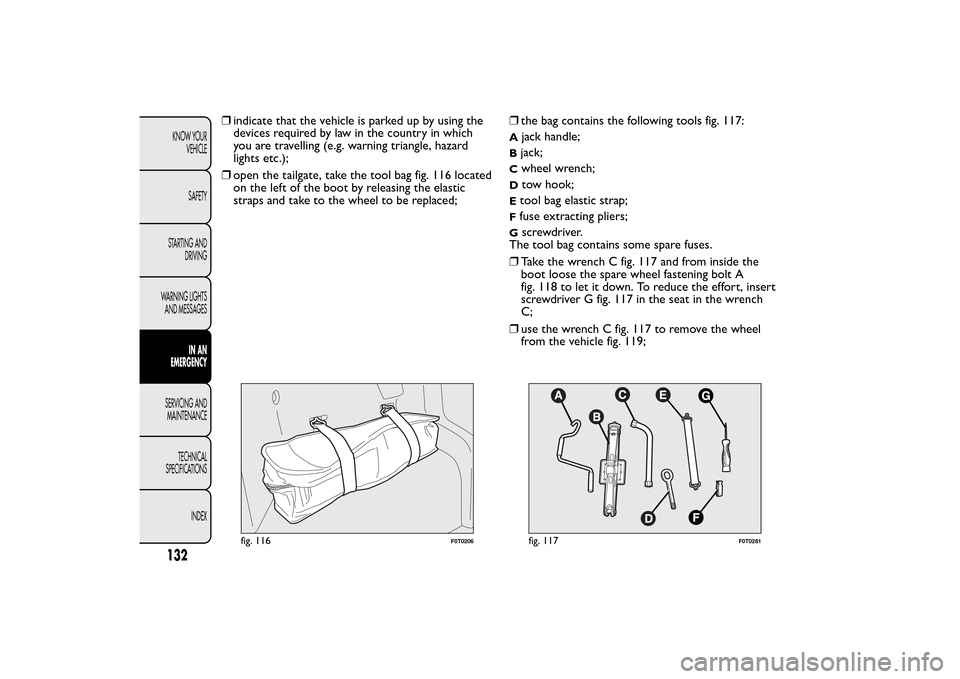

❒open the tailgate, take the tool bag fig. 116 located
on the left of the boot by releasing the elastic
straps and take to the wheel to be replaced;❒the bag contains the following tools fig. 117:
A
jack handle;
Bjack;C
wheel wrench;
D
tow hook;
Etool bag elastic strap;Ffuse extracting pliers;G
screwdriver.
The tool bag contains some spare fuses.
❒Take the wrench C fig. 117 and from inside the
boot loose the spare wheel fastening bolt A
fig. 118 to let it down. To reduce the effort, insert
screwdriver G fig. 117 in the seat in the wrench
C;
❒use the wrench C fig. 117 to remove the wheel
from the vehicle fig. 119;
fig. 116
F0T0206
fig. 117
F0T0281
132KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

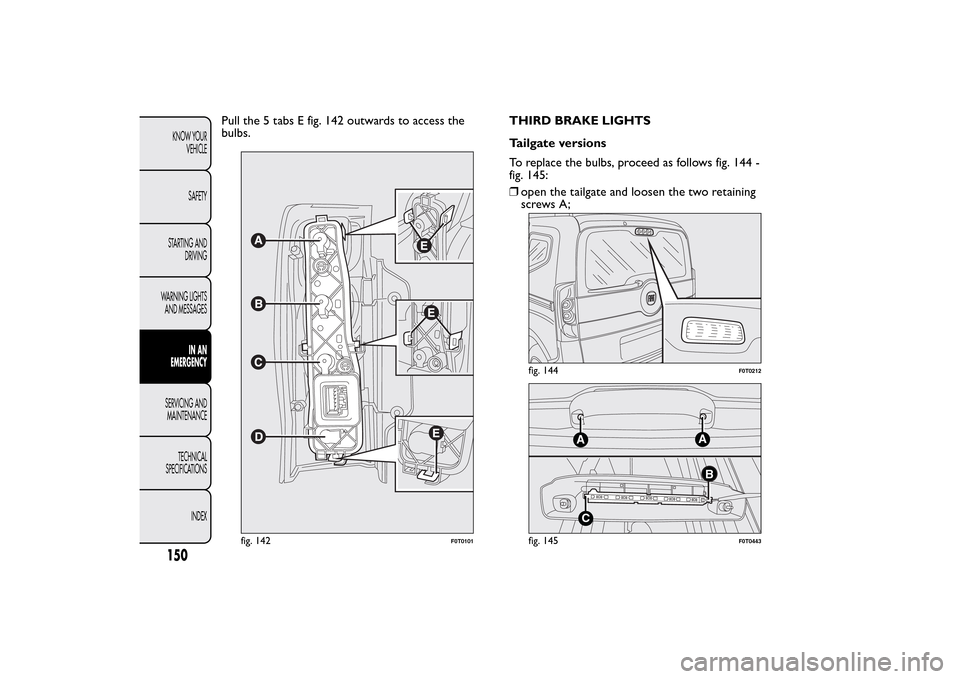

Pull the 5 tabs E fig. 142 outwards to access the
bulbs.THIRD BRAKE LIGHTS
Tailgate versions
To replace the bulbs, proceed as follows fig. 144 -
fig. 145:
fig. 142
F0T0101
fig. 144
F0T0212
AC
AB
fig. 145
F0T0443
150KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
❒open the tailgate and loosen the two retaining
screws A;

❒disconnect the electrical connector B;
❒release the retainer tab C and open the bulb
holder assembly;

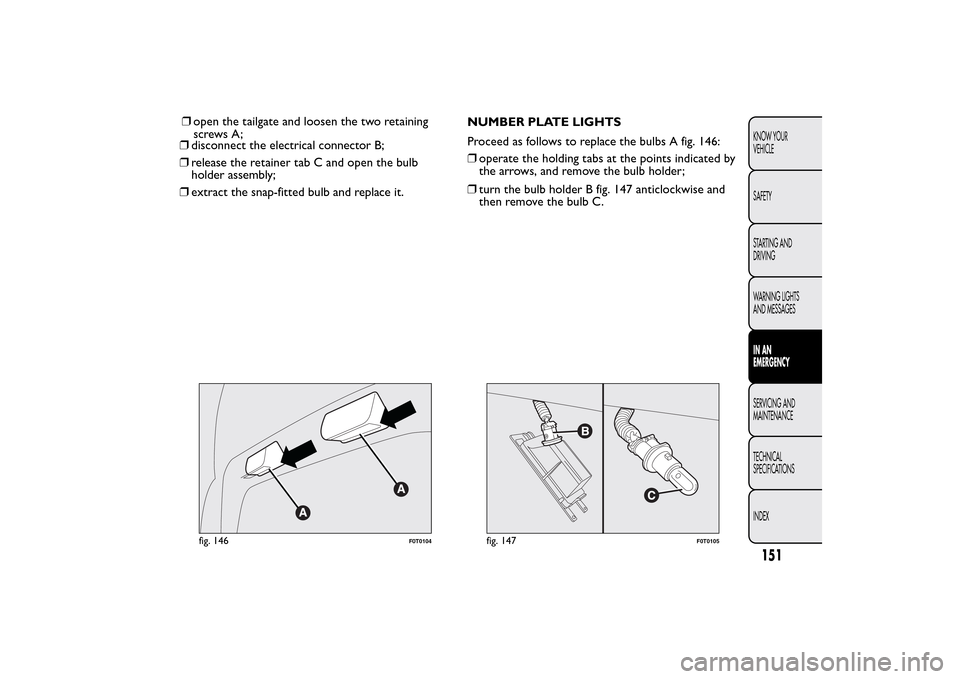

❒extract the snap-fitted bulb and replace it.NUMBER PLATE LIGHTS
Proceed as follows to replace the bulbs A fig. 146:
❒operate the holding tabs at the points indicated by
the arrows, and remove the bulb holder;
❒turn the bulb holder B fig. 147 anticlockwise and
then remove the bulb C.
fig. 146
F0T0104
fig. 147
F0T0105
151KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
❒open the tailgate and loosen the two retaining
screws A;

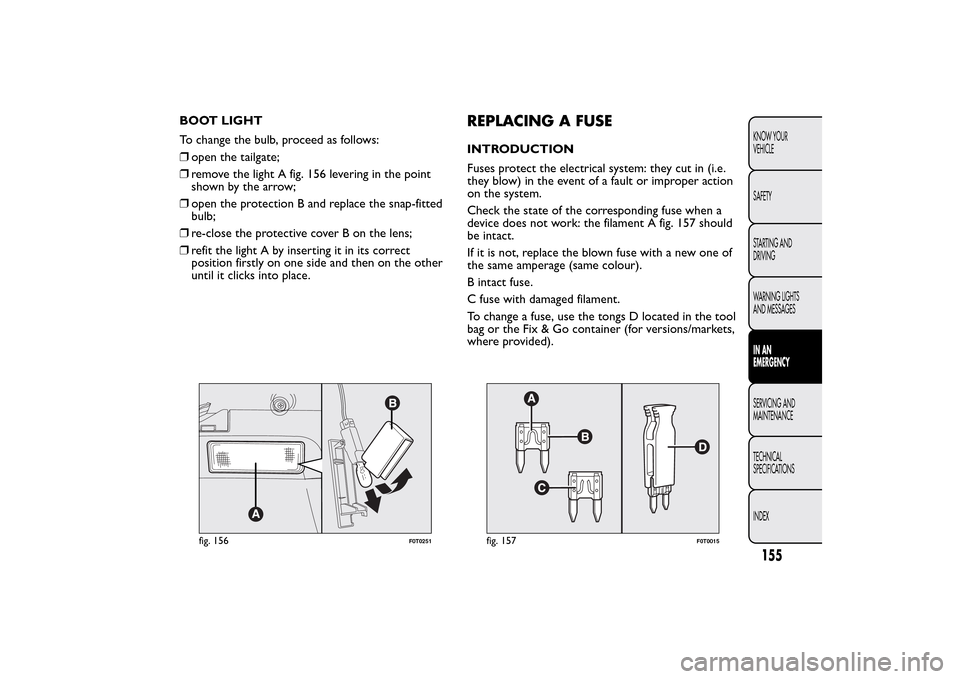

BOOT LIGHT
To change the bulb, proceed as follows:
❒open the tailgate;
❒remove the light A fig. 156 levering in the point
shown by the arrow;
❒open the protection B and replace the snap-fitted
bulb;
❒re-close the protective cover B on the lens;
❒refit the light A by inserting it in its correct
position firstly on one side and then on the other
until it clicks into place.
REPLACING A FUSEINTRODUCTION
Fuses protect the electrical system: they cut in (i.e.
they blow) in the event of a fault or improper action
on the system.
Check the state of the corresponding fuse when a
device does not work: the filament A fig. 157 should
be intact.
If it is not, replace the blown fuse with a new one of
the same amperage (same colour).
B intact fuse.
C fuse with damaged filament.
To change a fuse, use the tongs D located in the tool
bag or the Fix & Go container (for versions/markets,
where provided).
fig. 156
F0T0251
fig. 157
F0T0015
155KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
