FIAT QUBO 2016 1.G Owners Manual

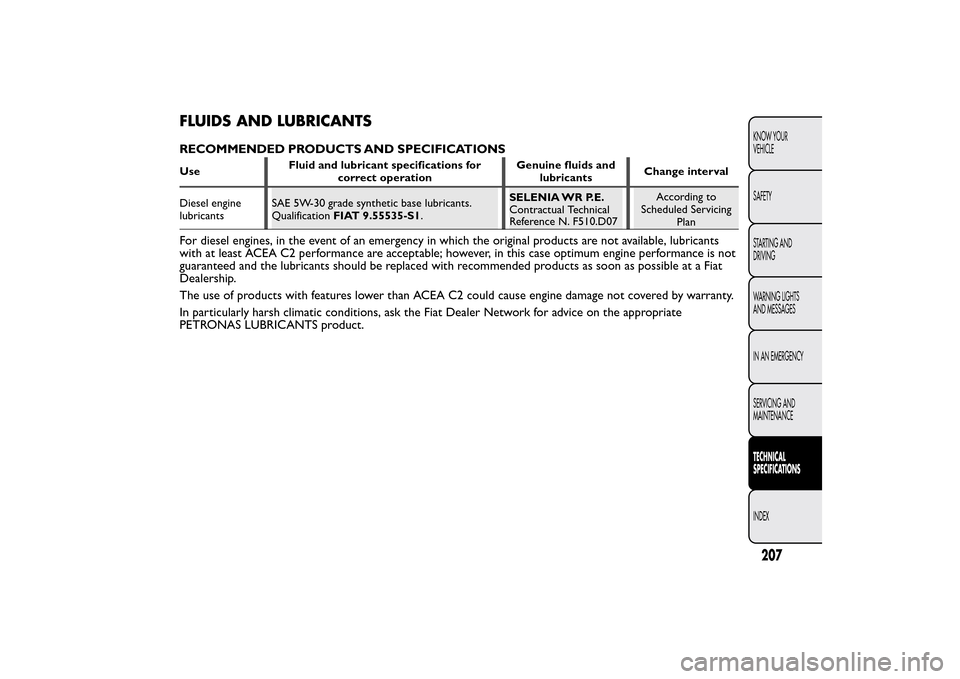

FLUIDS AND LUBRICANTSRECOMMENDED PRODUCTS AND SPECIFICATIONSUseFluid and lubricant specifications for
correct operationGenuine fluids and
lubricantsChange interval
Diesel engine
lubricantsSAE 5W-30 grade synthetic base lubricants.
QualificationFIAT 9.55535-S1.SELENIA WR P.E.
Contractual Technical
Reference N. F510.D07According to
Scheduled Servicing
PlanFor diesel engines, in the event of an emergency in which the original products are not available, lubricants
with at least ACEA C2 performance are acceptable; however, in this case optimum engine performance is not
guaranteed and the lubricants should be replaced with recommended products as soon as possible at a Fiat
Dealership.
The use of products with features lower than ACEA C2 could cause engine damage not covered by warranty.
In particularly harsh climatic conditions, ask the Fiat Dealer Network for advice on the appropriate
PETRONAS LUBRICANTS product.
207KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

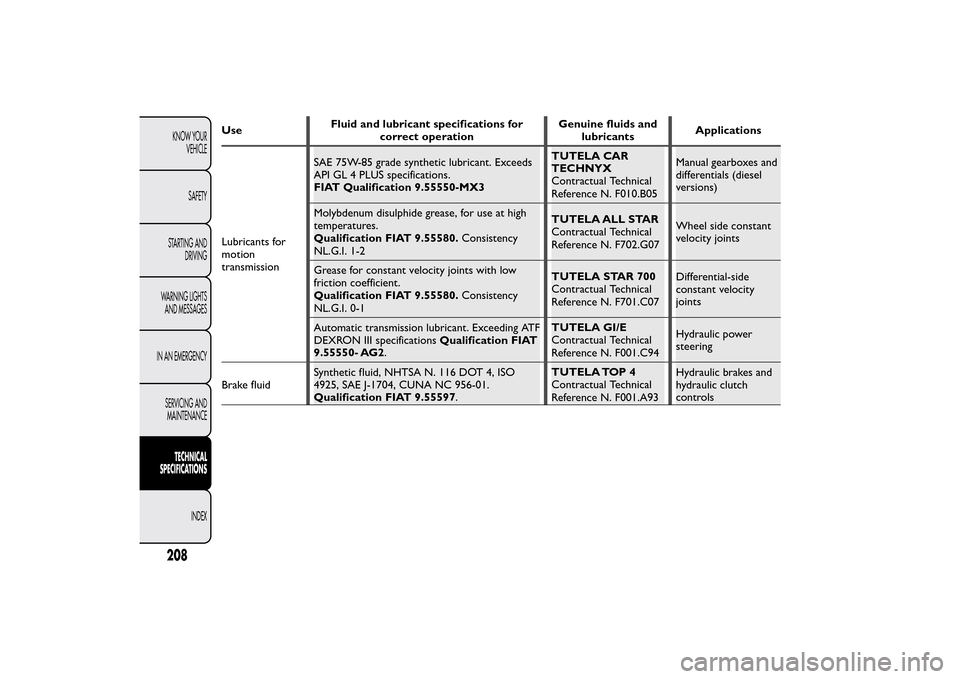

UseFluid and lubricant specifications for
correct operationGenuine fluids and
lubricantsApplications
Lubricants for
motion
transmissionSAE 75W-85 grade synthetic lubricant. Exceeds
API GL 4 PLUS specifications.
FIAT Qualification 9.55550-MX3TUTELA CAR
TECHNYX
Contractual Technical
Reference N. F010.B05Manual gearboxes and
differentials (diesel
versions)
Molybdenum disulphide grease, for use at high
temperatures.
Qualification FIAT 9.55580.Consistency
NL.G.I. 1-2TUTELA ALL STAR
Contractual Technical
Reference N. F702.G07Wheel side constant
velocity joints
Grease for constant velocity joints with low
friction coefficient.
Qualification FIAT 9.55580.Consistency
NL.G.I. 0-1TUTELA STAR 700
Contractual Technical
Reference N. F701.C07Differential-side
constant velocity
joints
Automatic transmission lubricant. Exceeding ATF
DEXRON III specificationsQualification FIAT
9.55550- AG2.TUTELA GI/E
Contractual Technical
Reference N. F001.C94Hydraulic power
steering
Brake fluidSynthetic fluid, NHTSA N. 116 DOT 4, ISO
4925, SAE J-1704, CUNA NC 956-01.
Qualification FIAT 9.55597.TUTELA TOP 4
Contractual Technical
Reference N. F001.A93Hydraulic brakes and
hydraulic clutch
controls
208KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONS
INDEX

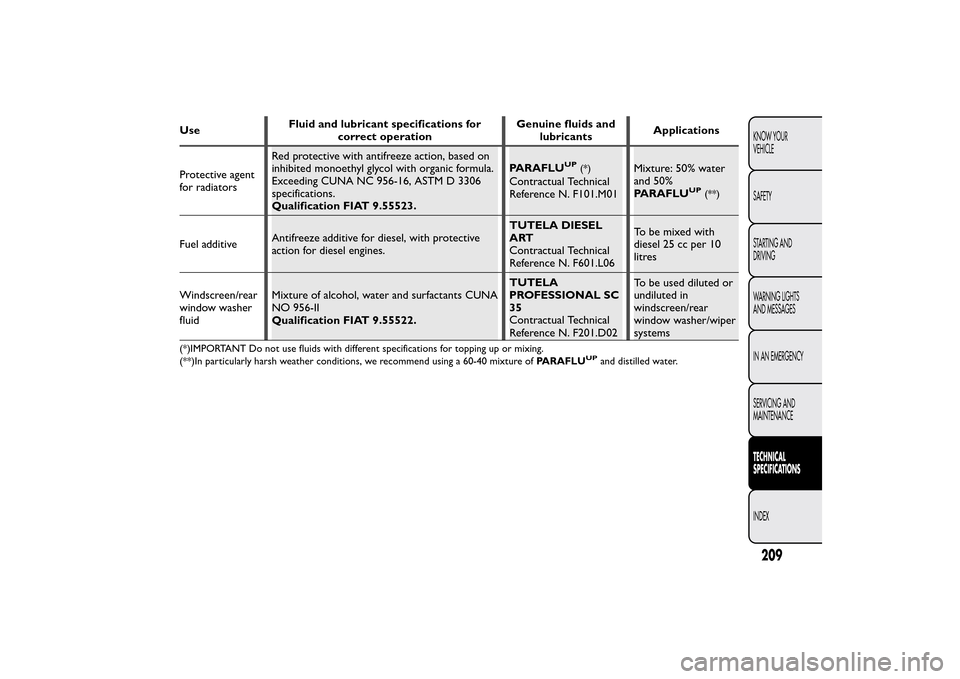

UseFluid and lubricant specifications for
correct operationGenuine fluids and
lubricantsApplications
Protective agent
for radiatorsRed protective with antifreeze action, based on
inhibited monoethyl glycol with organic formula.
Exceeding CUNA NC 956-16, ASTM D 3306
specifications.
Qualification FIAT 9.55523.PARAFLU
UP
(*)
Contractual Technical
Reference N. F101.M01Mixture: 50% water
and 50%
PARAFLU
UP
(**)
Fuel additiveAntifreeze additive for diesel, with protective
action for diesel engines.TUTELA DIESEL
ART
Contractual Technical
Reference N. F601.L06To be mixed with
diesel 25 cc per 10
litres
Windscreen/rear
window washer
fluidMixture of alcohol, water and surfactants CUNA
NO 956-II
Qualification FIAT 9.55522.TUTELA
PROFESSIONAL SC
35
Contractual Technical
Reference N. F201.D02To be used diluted or
undiluted in
windscreen/rear
window washer/wiper
systems(*)IMPORTANT Do not use fluids with different specifications for topping up or mixing.
(**)In particularly harsh weather conditions, we recommend using a 60-40 mixture ofPARAFLU
UP
and distilled water.
209KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

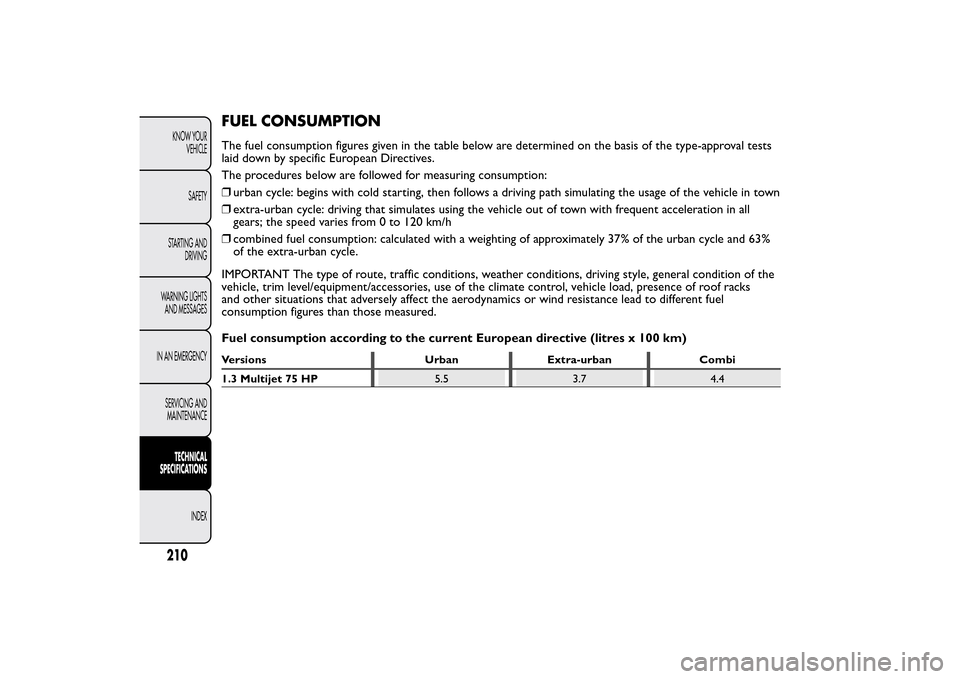

FUEL CONSUMPTIONThe fuel consumption figures given in the table below are determined on the basis of the type-approval tests
laid down by specific European Directives.
The procedures below are followed for measuring consumption:
❒urban cycle: begins with cold starting, then follows a driving path simulating the usage of the vehicle in town
❒extra-urban cycle: driving that simulates using the vehicle out of town with frequent acceleration in all
gears; the speed varies from 0 to 120 km/h
❒combined fuel consumption: calculated with a weighting of approximately 37% of the urban cycle and 63%
of the extra-urban cycle.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the
vehicle, trim level/equipment/accessories, use of the climate control, vehicle load, presence of roof racks
and other situations that adversely affect the aerodynamics or wind resistance lead to different fuel
consumption figures than those measured.
Fuel consumption according to the current European directive (litres x 100 km)Versions Urban Extra-urban Combi
1.3 Multijet 75 HP5.5 3.7 4.4
210KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONS
INDEX

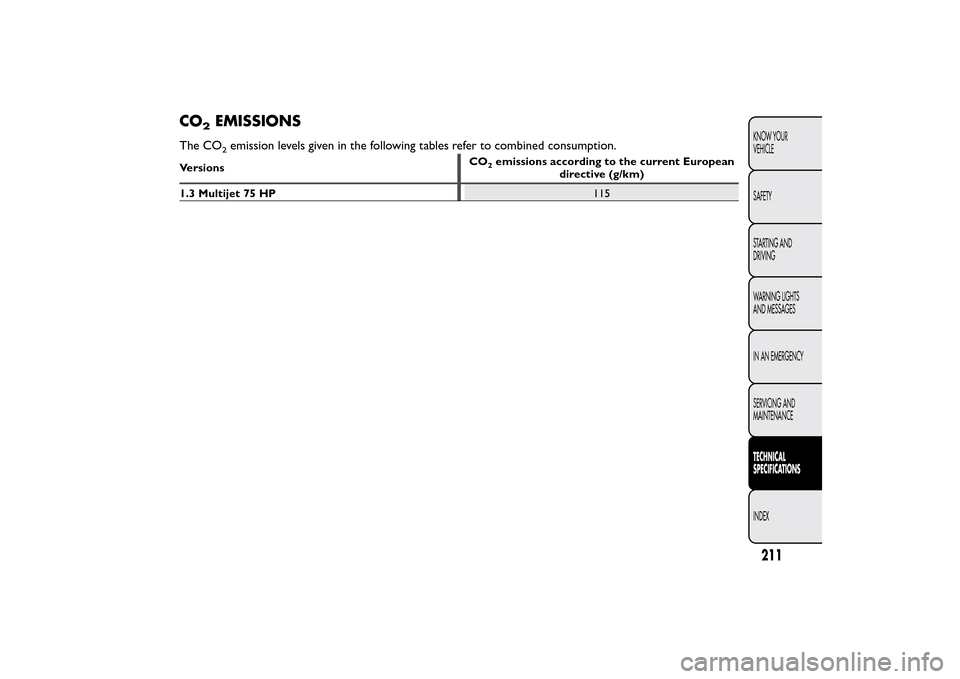

CO
2
EMISSIONS
The CO
2emission levels given in the following tables refer to combined consumption.
VersionsCO
2emissions according to the current European
directive (g/km)
1.3 Multijet 75 HP115
211KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

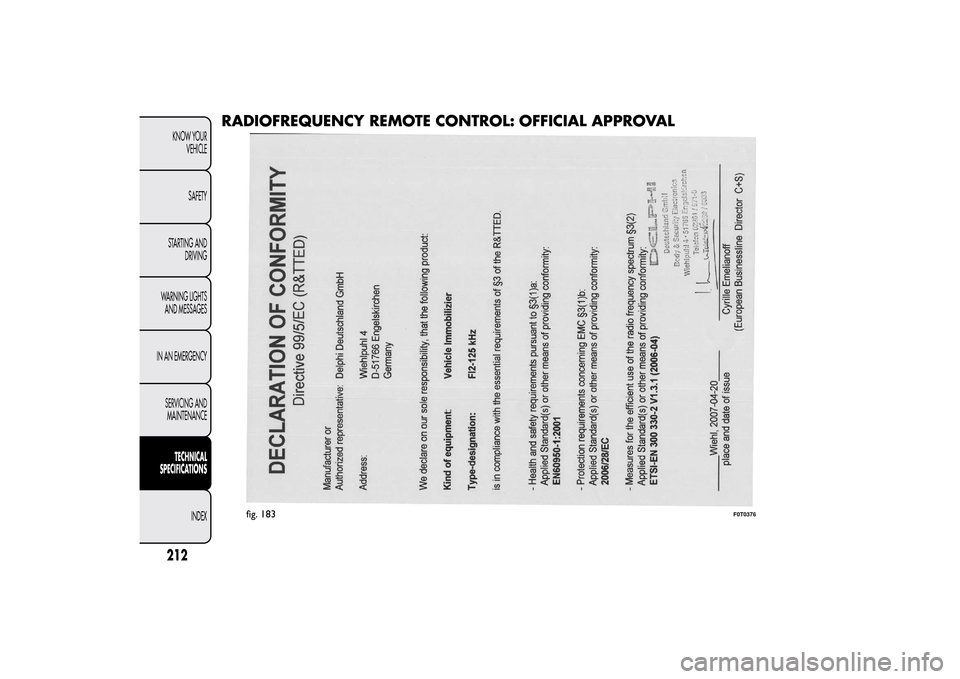

RADIOFREQUENCY REMOTE CONTROL: OFFICIAL APPROVAL
fig. 183
F0T0376
212KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONS
INDEX

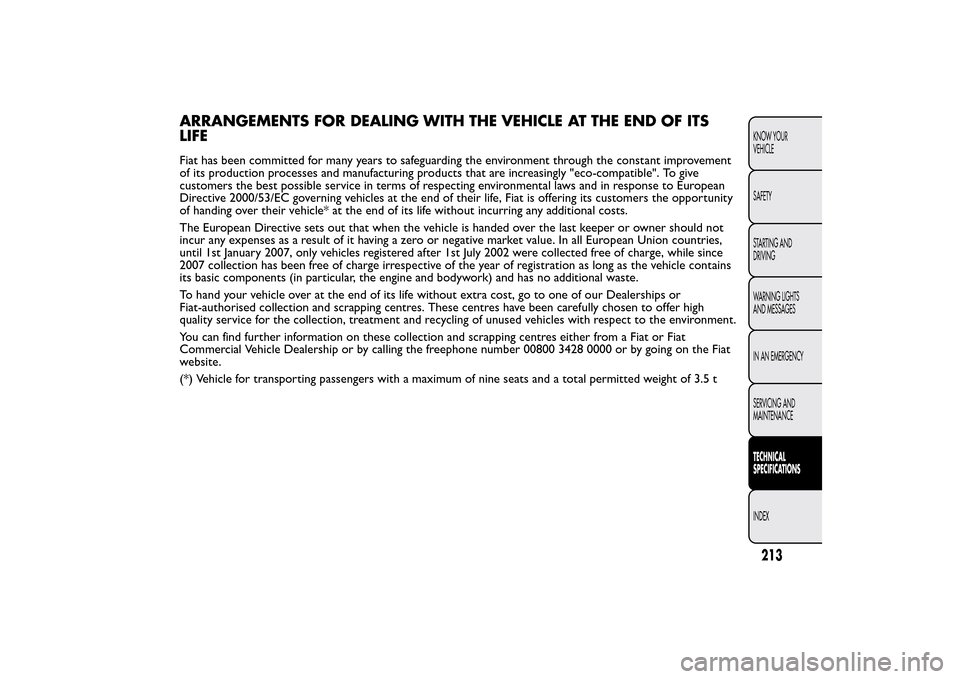

ARRANGEMENTS FOR DEALING WITH THE VEHICLE AT THE END OF ITS
LIFEFiat has been committed for many years to safeguarding the environment through the constant improvement
of its production processes and manufacturing products that are increasingly "eco-compatible". To give
customers the best possible service in terms of respecting environmental laws and in response to European
Directive 2000/53/EC governing vehicles at the end of their life, Fiat is offering its customers the opportunity
of handing over their vehicle* at the end of its life without incurring any additional costs.
The European Directive sets out that when the vehicle is handed over the last keeper or owner should not
incur any expenses as a result of it having a zero or negative market value. In all European Union countries,
until 1st January 2007, only vehicles registered after 1st July 2002 were collected free of charge, while since
2007 collection has been free of charge irrespective of the year of registration as long as the vehicle contains
its basic components (in particular, the engine and bodywork) and has no additional waste.
To hand your vehicle over at the end of its life without extra cost, go to one of our Dealerships or
Fiat-authorised collection and scrapping centres. These centres have been carefully chosen to offer high
quality service for the collection, treatment and recycling of unused vehicles with respect to the environment.
You can find further information on these collection and scrapping centres either from a Fiat or Fiat
Commercial Vehicle Dealership or by calling the freephone number 00800 3428 0000 or by going on the Fiat
website.
(*) Vehicle for transporting passengers with a maximum of nine seats and a total permitted weight of 3.5 t
213KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

®
®

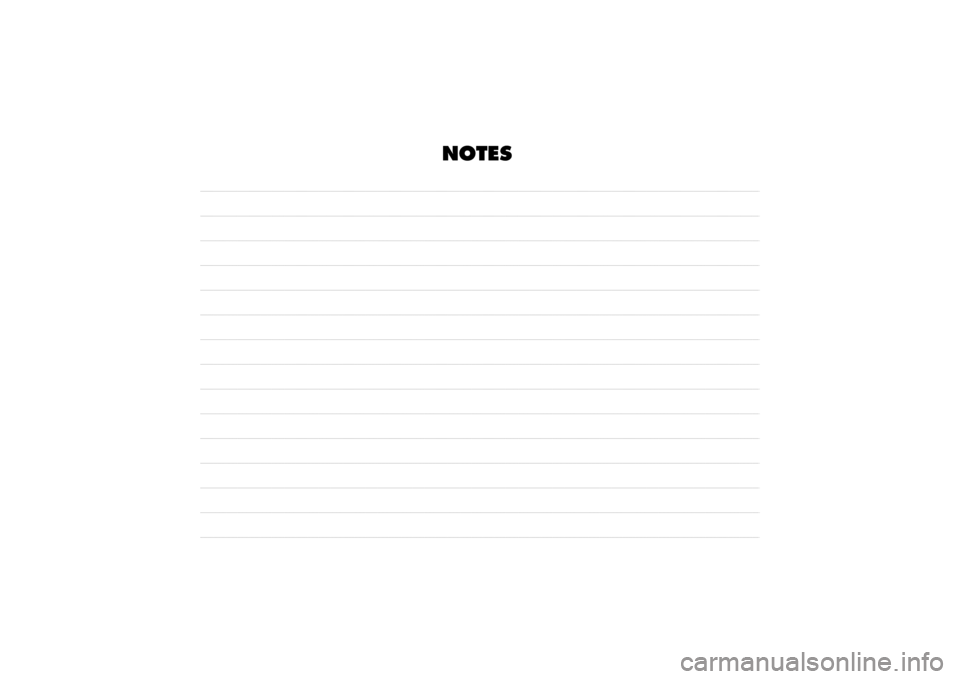

NOTES
