ESP FIAT SCUDO 2007 2.G Radio CD Manual

11SOUND SYSTEM
Loudness function
This function automatically enhances
bass and treble when the volume is low.
Press button Nor Oto switch the func-
tion on and off.
Front/rear sound balance
adjustment
When the display shows “FAD”, press
button Nor Oto adjust the setting.
Press button Nto enhance the sound
from the front speakers or press button
Oto enhance the sound from the rear
speakers .Right/left sound balance
adjustment
When the display shows “BAL”, press
button NorOto adjust the setting.
Press button Nto enhance the sound
from the right speakers or press button
Oto enhance the sound from the left
speakers.
Automatic volume adjustment
This function makes it possible to auto-
matically adapt the volume level to the
speed of the car. Press button Nor Oto
switch this function on and off.
RADIOListening to the radio
Press repeatedly button SOURCE(C)
and select radio.
Selecting the waveband
Press repeatedly button BAND(D) to
select FM1, FM2, FMast or AM.
Automatic station search
Briefly press either button ÷or ˜
to start the automatic search from the
next or previous station, respectively.
Keep the required key pressed to con-
tinue tuning in the chosen range.
The station search operation will stop at
the first station which can be received
when the button is released.

12
SOUND SYSTEM
When the TA function is on, only the
stations broadcasting traffic announce-
ments will be tuned to.
The station search will initially be carried
out with low sensitivity (tuning to the
most powerful stations) and then with
high sensitivity (tuning to the weakest and
most distant stations).
To run a search in “DX” sensitivity di-
rectly, press button ÷or ˜twice.
Manual station search
Briefly press either button Nor Oto
select the next or previous station, re-
spectively.
Hold the buttons pressed in the required
direction to change frequency. The search
will stop as soon as the button is released.
Manual station storage
Proceed as follows to manually store the
stations:
1)select the required station with but-
ton ÷or ˜;
2)hold one of the buttons from 1to 6
(P) pressed for over 2 seconds.Automatic FM station storage
(Autostore)
The sound system can automatically
store the six strongest FM stations in the
FMast storage waveband.
Hold button BAND(D) pressed for
longer than two seconds to store the sta-
tions.
IMPORTANTThe Autostore function
will replace the six previously stored FM
stations. If less than six stations can be re-
ceived, the memory position will not be
changed or cleared.
Tuning to stored stations
Proceed as follows to tune to a stored
station:
1)press button BAND(D) to select
the waveband FM1, FM2, FMast or AM;
2)press one of the buttons from 1to
6(P). The sound system will tune to the
corresponding station.Displaying the list of local
radio stations
Press button LIST(G) to display the list
(in alphabetical order) of the radio stations
with the strongest signal.
Select the required stations using but-
tons Nor Oand then confirm with but-
ton OK(N).
RDS FUNCTIONS
RDS function (Radio Data System)
The RDS function makes it possible to
receive a station on whatever frequency
used by the broadcasting station in the
area you are driving in.
Press briefly button RDS(
I) to switch
the function on and off. The name of the
tuned station and wording ”RDS” will ap-
pear on the display when the RDSfunc-
tion is on. The display shows “(RDS)”
when the function is active but not avail-
able yet.

14
SOUND SYSTEM

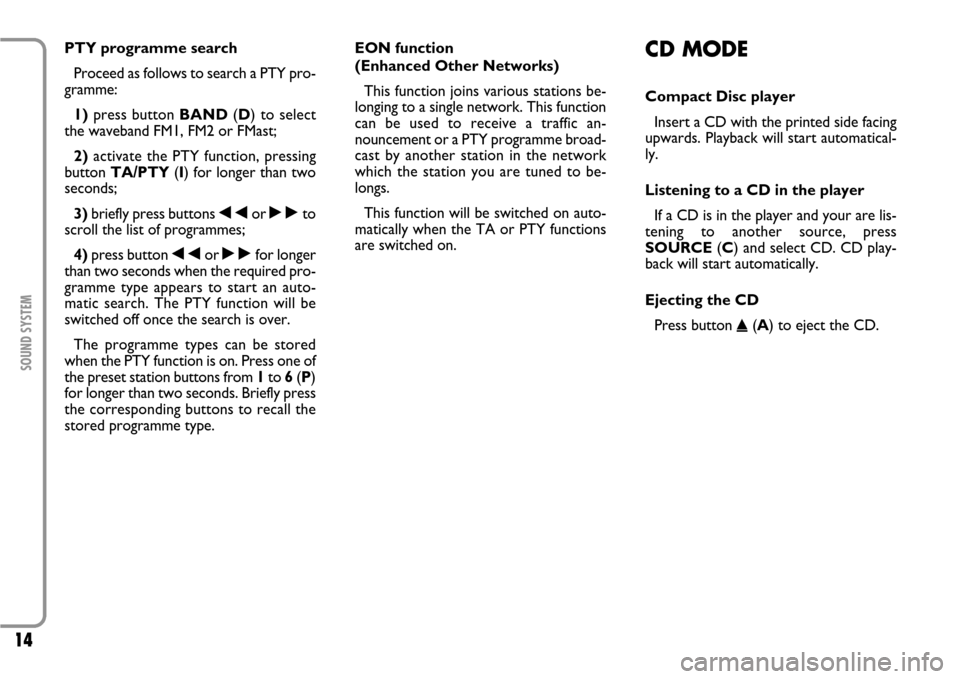

PTY programme search
Proceed as follows to search a PTY pro-
gramme:
1)press button BAND(D) to select
the waveband FM1, FM2 or FMast;
2)activate the PTY function, pressing
button TA/PTY(I) for longer than two
seconds;
3)briefly press buttons ÷or ˜to
scroll the list of programmes;
4)press button ÷or ˜for longer
than two seconds when the required pro-
gramme type appears to start an auto-
matic search. The PTY function will be
switched off once the search is over.
The programme types can be stored
when the PTY function is on. Press one of
the preset station buttons from 1to 6(P)
for longer than two seconds. Briefly press
the corresponding buttons to recall the
stored programme type.EON function
(Enhanced Other Networks)
This function joins various stations be-
longing to a single network. This function
can be used to receive a traffic an-
nouncement or a PTY programme broad-
cast by another station in the network
which the station you are tuned to be-
longs.
This function will be switched on auto-
matically when the TA or PTY functions
are switched on.
CD MODECompact Disc player
Insert a CD with the printed side facing
upwards. Playback will start automatical-
ly.
Listening to a CD in the player
If a CD is in the player and your are lis-
tening to another source, press
SOURCE(C) and select CD. CD play-
back will start automatically.
Ejecting the CD
Press button
˚(A) to eject the CD.

16
SOUND SYSTEM
HANDS-FREE KIT WITH VOICE RECOGNITION
AND Bluetooth
®WIRELESS TECHNOLOGY
Bluetooth
®wireless technology enables
wireless connection between your mobile
phone and the hands-free kit installed on
your vehicle.
The services offered by the Blue-
tooth
®wireless technology depend
on your mobile phone carrier, on the
SIM card and on the compatibility
between phones used; check the
available services on your mobile
phone handbook and with your mo-
bile phone carrier.To pair your mobile phone with your
hands-free kit for the first time you shall ac-
tivate the Bluetooth
®function on your
phone as described on your phone user's
guide. When the function is active, the cor-
responding icon is displayed on your phone
and the hands-free kit attempts to detect a
phone equipped with Bluetooth
®.
Select the phone corresponding to the
vehicle name, the display will then show
a configuration message.
During the pairing procedure the mes-
sage asking for the passcode will be dis-
played; enter “1234” as passcode and then
confirm it (according to mobile phone
model, the request for entering the code
could be displayed before the configura-
tion message).
Use keys ˜or ÷(L) to select
“YES” on the sound system display and
then press OK(N) to confirm. Answering a call
Incoming calls are indicated by a beep
and by the dedicated message on the mul-
tifunction display.
Use keys ˜or ÷(L) to select
“YES” on the sound system display and
then press OK(N) to confirm.
Press the end of the radio steering col-
umn stalk (5) to accept the call.
Making a call
Dial the number on the mobile phone
keypad.
Press for long the end of the radio steer-
ing column stalk (5) to display the phone-
book on the sound system display.
Due to safety reasons, the
Bluetooth
®pairing proce-
dure between your mobile phone and
the hands-free kit shall only be per-
formed with the vehicle stationary
and ignition key to M.
WARNING
