bluetooth FIAT SCUDO 2007 2.G Radio CD Manual

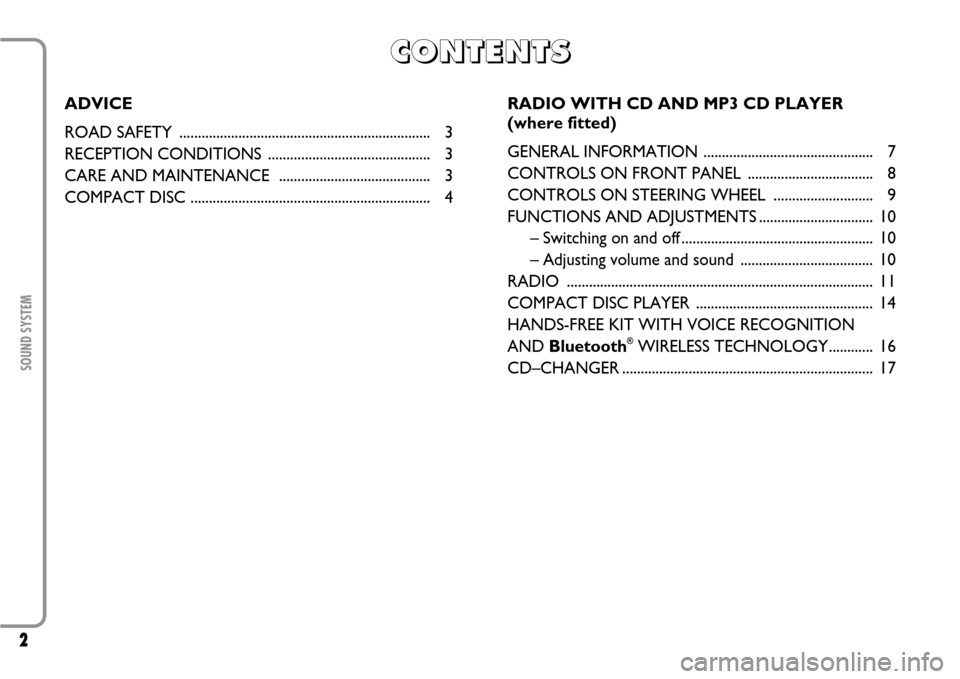

2SOUND SYSTEM
C C C C
O O O O
N N N N
T T T T
E E E E
N N N N
T T T T
S S S S
ADVICE
ROAD SAFETY .................................................................... 3
RECEPTION CONDITIONS ............................................ 3
CARE AND MAINTENANCE ......................................... 3
COMPACT DISC................................................................. 4RADIO WITH CD AND MP3 CD PLAYER
(where fitted)
GENERAL INFORMATION .............................................. 7
CONTROLS ON FRONT PANEL .................................. 8
CONTROLS ON STEERING WHEEL........................... 9
FUNCTIONS AND ADJUSTMENTS ...............................10
– Switching on and off ....................................................10
– Adjusting volume and sound .................................... 10
RADIO................................................................................... 11
COMPACT DISC PLAYER................................................ 14
HANDS-FREE KIT WITH VOICE RECOGNITION
AND Bluetooth
®WIRELESS TECHNOLOGY............ 16
CD–CHANGER.................................................................... 17

16

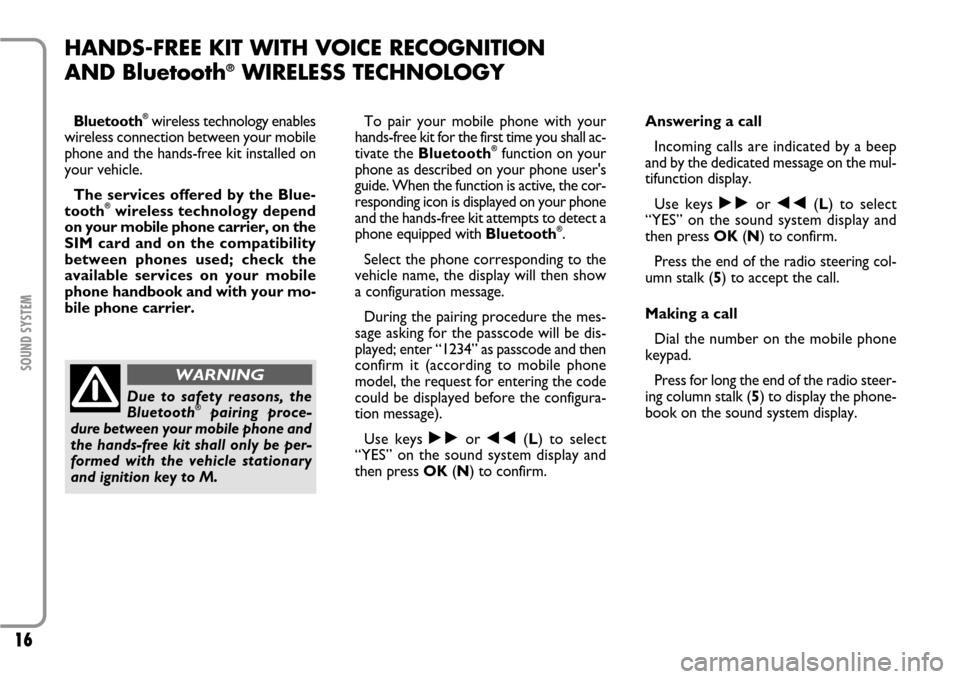

SOUND SYSTEM
HANDS-FREE KIT WITH VOICE RECOGNITION
AND Bluetooth
®WIRELESS TECHNOLOGY
Bluetooth
®wireless technology enables
wireless connection between your mobile
phone and the hands-free kit installed on
your vehicle.
The services offered by the Blue-
tooth
®wireless technology depend
on your mobile phone carrier, on the
SIM card and on the compatibility
between phones used; check the
available services on your mobile
phone handbook and with your mo-
bile phone carrier.To pair your mobile phone with your
hands-free kit for the first time you shall ac-
tivate the Bluetooth
®function on your
phone as described on your phone user's
guide. When the function is active, the cor-
responding icon is displayed on your phone
and the hands-free kit attempts to detect a
phone equipped with Bluetooth
®.
Select the phone corresponding to the
vehicle name, the display will then show
a configuration message.
During the pairing procedure the mes-
sage asking for the passcode will be dis-
played; enter “1234” as passcode and then
confirm it (according to mobile phone
model, the request for entering the code
could be displayed before the configura-
tion message).
Use keys ˜or ÷(L) to select
“YES” on the sound system display and
then press OK(N) to confirm. Answering a call
Incoming calls are indicated by a beep
and by the dedicated message on the mul-
tifunction display.
Use keys ˜or ÷(L) to select
“YES” on the sound system display and
then press OK(N) to confirm.
Press the end of the radio steering col-
umn stalk (5) to accept the call.
Making a call
Dial the number on the mobile phone
keypad.
Press for long the end of the radio steer-
ing column stalk (5) to display the phone-
book on the sound system display.
Due to safety reasons, the
Bluetooth
®pairing proce-
dure between your mobile phone and
the hands-free kit shall only be per-
formed with the vehicle stationary
and ignition key to M.
WARNING
