key FIAT SCUDO 2007 2.G Radio CD Manual

10

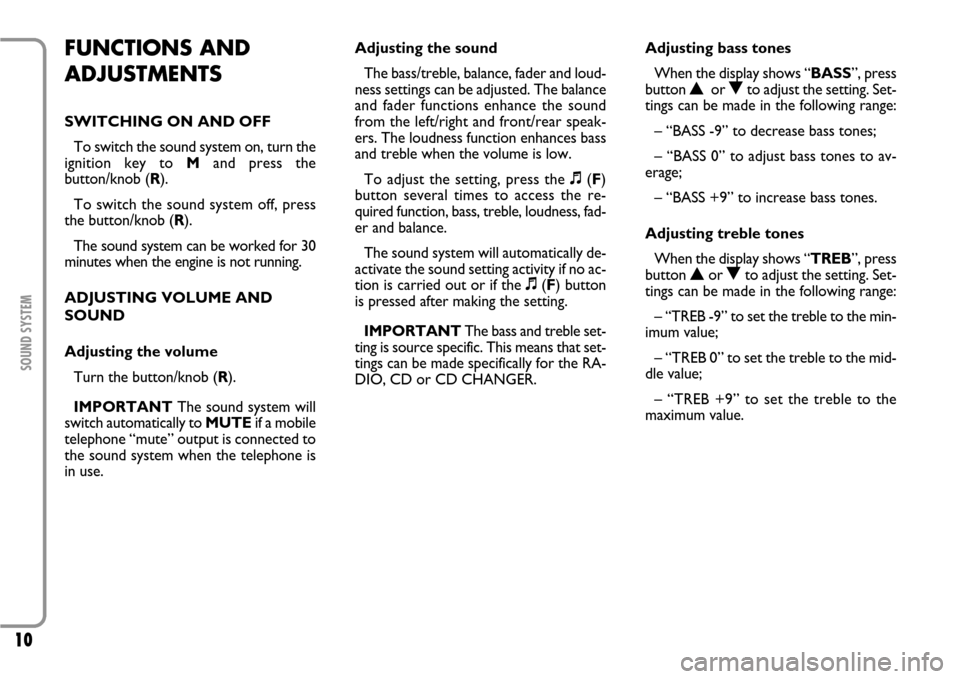

SOUND SYSTEM
FUNCTIONS AND
ADJUSTMENTSSWITCHING ON AND OFF
To switch the sound system on, turn the
ignition key to M and press the
button/knob (R).
To switch the sound system off, press
the button/knob (R).
The sound system can be worked for 30
minutes when the engine is not running.
ADJUSTING VOLUME AND
SOUND
Adjusting the volume
Turn the button/knob (R).
IMPORTANTThe sound system will
switch automatically to MUTE if a mobile
telephone “mute” output is connected to
the sound system when the telephone is
in use.Adjusting the sound
The bass/treble, balance, fader and loud-
ness settings can be adjusted. The balance
and fader functions enhance the sound
from the left/right and front/rear speak-
ers. The loudness function enhances bass
and treble when the volume is low.
To adjust the setting, press the +(F)
button several times to access the re-
quired function, bass, treble, loudness, fad-
er and balance.
The sound system will automatically de-
activate the sound setting activity if no ac-
tion is carried out or if the +(F) button
is pressed after making the setting.
IMPORTANTThe bass and treble set-
ting is source specific. This means that set-
tings can be made specifically for the RA-
DIO, CD or CD CHANGER.Adjusting bass tones
When the display shows “BASS”, press
button Nor Oto adjust the setting. Set-
tings can be made in the following range:
– “BASS -9” to decrease bass tones;
– “BASS 0” to adjust bass tones to av-
erage;
– “BASS +9” to increase bass tones.
Adjusting treble tones
When the display shows “TREB”, press
button Nor Oto adjust the setting. Set-
tings can be made in the following range:
– “TREB -9” to set the treble to the min-
imum value;
– “TREB 0” to set the treble to the mid-
dle value;
– “TREB +9” to set the treble to the
maximum value.

11SOUND SYSTEM
Loudness function
This function automatically enhances
bass and treble when the volume is low.
Press button Nor Oto switch the func-
tion on and off.
Front/rear sound balance
adjustment
When the display shows “FAD”, press
button Nor Oto adjust the setting.
Press button Nto enhance the sound
from the front speakers or press button
Oto enhance the sound from the rear
speakers .Right/left sound balance
adjustment
When the display shows “BAL”, press
button NorOto adjust the setting.
Press button Nto enhance the sound
from the right speakers or press button
Oto enhance the sound from the left
speakers.
Automatic volume adjustment
This function makes it possible to auto-
matically adapt the volume level to the
speed of the car. Press button Nor Oto
switch this function on and off.
RADIOListening to the radio
Press repeatedly button SOURCE(C)
and select radio.
Selecting the waveband
Press repeatedly button BAND(D) to
select FM1, FM2, FMast or AM.
Automatic station search
Briefly press either button ÷or ˜
to start the automatic search from the
next or previous station, respectively.
Keep the required key pressed to con-
tinue tuning in the chosen range.
The station search operation will stop at
the first station which can be received
when the button is released.

16
SOUND SYSTEM
HANDS-FREE KIT WITH VOICE RECOGNITION
AND Bluetooth
®WIRELESS TECHNOLOGY
Bluetooth
®wireless technology enables
wireless connection between your mobile
phone and the hands-free kit installed on
your vehicle.
The services offered by the Blue-
tooth
®wireless technology depend
on your mobile phone carrier, on the
SIM card and on the compatibility
between phones used; check the
available services on your mobile
phone handbook and with your mo-
bile phone carrier.To pair your mobile phone with your
hands-free kit for the first time you shall ac-
tivate the Bluetooth
®function on your
phone as described on your phone user's
guide. When the function is active, the cor-
responding icon is displayed on your phone
and the hands-free kit attempts to detect a
phone equipped with Bluetooth
®.
Select the phone corresponding to the
vehicle name, the display will then show
a configuration message.
During the pairing procedure the mes-
sage asking for the passcode will be dis-
played; enter “1234” as passcode and then
confirm it (according to mobile phone
model, the request for entering the code
could be displayed before the configura-
tion message).
Use keys ˜or ÷(L) to select
“YES” on the sound system display and
then press OK(N) to confirm. Answering a call
Incoming calls are indicated by a beep
and by the dedicated message on the mul-
tifunction display.
Use keys ˜or ÷(L) to select
“YES” on the sound system display and
then press OK(N) to confirm.
Press the end of the radio steering col-
umn stalk (5) to accept the call.
Making a call
Dial the number on the mobile phone
keypad.
Press for long the end of the radio steer-
ing column stalk (5) to display the phone-
book on the sound system display.
Due to safety reasons, the
Bluetooth
®pairing proce-
dure between your mobile phone and
the hands-free kit shall only be per-
formed with the vehicle stationary
and ignition key to M.
WARNING
