INSTALLING THE TOW HOOK
The towing device should be fastened to
the body by specialised personnel accord-
ing to any additional and/or integrative in-
formation supplied by the Manufacturer of
the device. Engage a low gear when driving downhill,
rather than constantly using the brake.
The weight the trailer exerts on the vehi-
cle tow hook reduces by the same amount
the actual vehicle loading capacity.
To make sure the maximum towable
weight is not exceeded (given in the log
book) account should be taken of the ful-
ly laden trailer, including accessories and
personal belongings.
Do not exceed the speed limits of the
country you are driving in. In any case do
not exceed 100 km/h.
The ABS system with which
the vehicle may be fitted
does not control the trailer braking
system. Therefore be cautious on slip-
pery roads.
WARNING
Under no circumstances
should the vehicle brake sys-
tem be altered to control the trailer
brake. The trailer braking system
must be fully independent of the ve-
hicle’s hydraulic system.
WARNING

190
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS

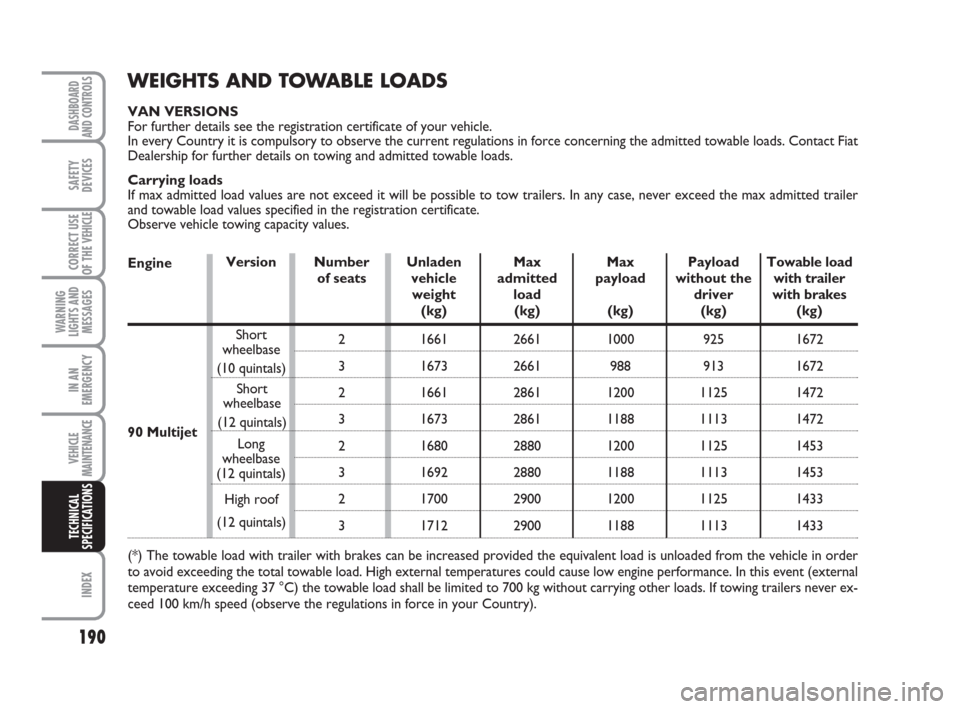

WEIGHTS AND TOWABLE LOADS
VAN VERSIONS
For further details see the registration certificate of your vehicle.
In every Country it is compulsory to observe the current regulations in force concerning the admitted towable loads. Contact Fiat
Dealership for further details on towing and admitted towable loads.
Carrying loads
If max admitted load values are not exceed it will be possible to tow trailers. In any case, never exceed the max admitted trailer
and towable load values specified in the registration certificate.
Observe vehicle towing capacity values.
Number
of seats
2
3
2
3
2
3
2
3
90 Multijet
High roof
(12 quintals)
Payload
without the
driver
(kg)
925
913
1125
1113
1125
1113
1125
1113Towable load
with trailer
with brakes
(kg)
1672
1672
1472
1472
1453
1453
1433
1433
(*) The towable load with trailer with brakes can be increased provided the equivalent load is unloaded from the vehicle in order
to avoid exceeding the total towable load. High external temperatures could cause low engine performance. In this event (external
temperature exceeding 37 °C) the towable load shall be limited to 700 kg without carrying other loads. If towing trailers never ex-
ceed 100 km/h speed (observe the regulations in force in your Country). Engine
Version
Short
wheelbase
(10 quintals)
Long
wheelbase
(12 quintals)Unladen
vehicle
weight
(kg)
1661
1673
1661
1673
1680
1692
1700
1712Max
admitted
load
(kg)
2661
2661
2861
2861
2880
2880
2900
2900Max
payload
(kg)
1000
988
1200
1188
1200
1188
1200
1188 Short
wheelbase
(12 quintals)
173-199 Nuovo ScudoG9 GB 25-09-2008 15:58 Pagina 190

192
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS

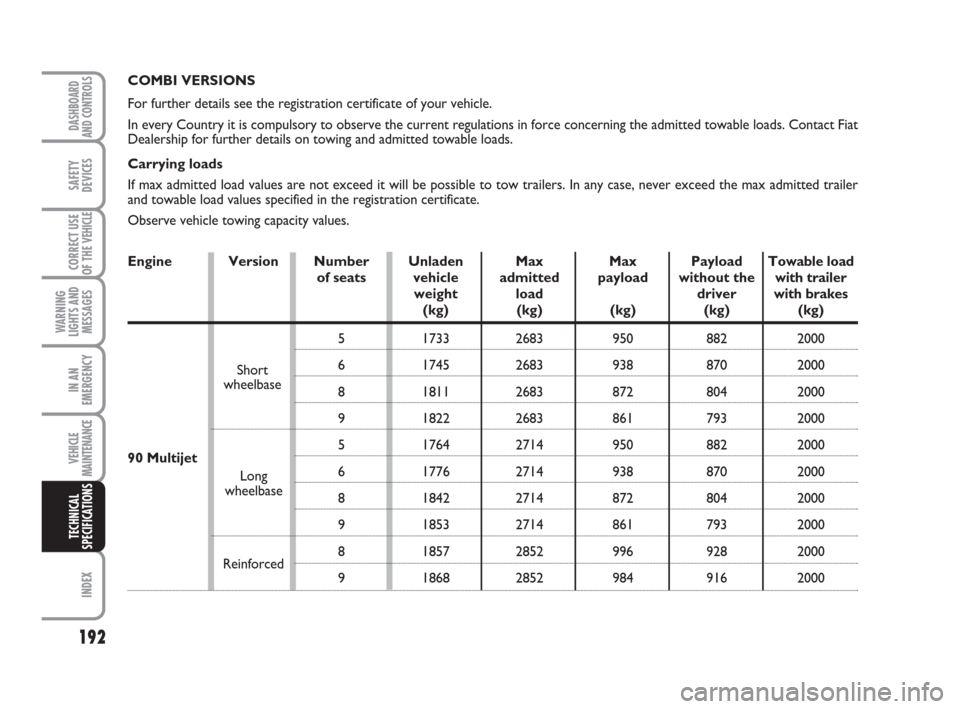

COMBI VERSIONS
