ALARM
(where provided)
The alarm function is provided in addition
to all remote control functions previous-
ly described and it is controlled by the re-
ceiver located under the dashboard, next
to the fuse box.
WHEN THE ALARM IS
TRIGGERED
The alarm comes into action in the fol-
lowing cases:
❒ unlawful opening of one of the doors,
bonnet or boot (perimetral protec-
tion);
❒attempt to start the engine (turning the
ignition key to MAR);
❒ battery cable cutting;
❒ presence of moving bodies in the pas-
senger’s compartment (volumetric pro-
tection);
❒ abnormal raising/sloping of the car. Depending on the markets, the cutting in
of the alarm causes operation of the siren
and direction indicators (for about 26 sec-
onds). The ways of operating and the num-
ber of cycles may vary depending on the
markets.
A maximum number of sound/sight cycles
is however envisaged.
Volumetric and anti-raising protections
can be cut off by operating the front ceil-
ing light controls (see paragraphs “Volu-
metric protection sensors” and “Anti-rais-
ing sensor” on the following pages).
IMPORTANT The engine immobiliser
function is guaranteed by the Fiat CODE
system, which is automatically activated
when the ignition key is removed.HOW TO ACTIVATE THE
ALARM
With the doors, bonnet and boot shut and
the ignition key in the STOPposition or
with the key removed, point the key with
remote control in the direction of the car,
then press and release the button
Á.
With the exception of certain markets,
the system sounds a “beep” and the doors
are locked.
Engagement of the alarm is preceded by
a self-diagnostic test. If a fault is detected
the system sounds a further warning
“beep” and the display shows the relevant
message (see section “Warning lights and
messages”).
In this case, switch the alarm system off by
pressing button
Ë, check that the doors,
bonnet and tailgate are properly shut, then
switch the alarm on again by pressing but-
ton
Á.
Otherwise, the door, bonnet or tailgate
that is not shut properly will be excluded
from the alarm system control.

196
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
If a general fuse (MEGA-
FUSE, MIDI-FUSE, MAXI-
FUSE) cuts in, do not attempt any re-
pair and contact a Fiat Dealership.
Before replacing a fuse, make sure
the ignition key has been removed
and that all the other services are
switched off and/or disengaged.
WARNING
If a fuse blows again, contact
a Fiat Dealership.
WARNING
IF A FUSE BLOWS
GENERAL

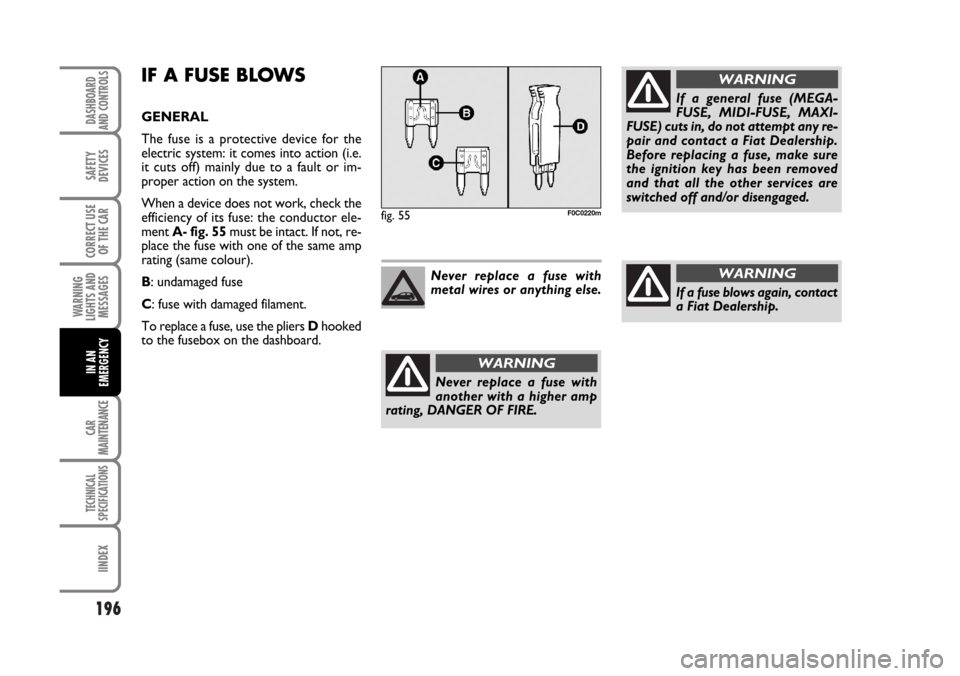

The fuse is a protective device for the
electric system: it comes into action (i.e.
it cuts off) mainly due to a fault or im-
proper action on the system.
When a device does not work, check the
efficiency of its fuse: the conductor ele-
ment A- fig. 55must be intact. If not, re-
place the fuse with one of the same amp
rating (same colour).
B: undamaged fuse
C: fuse with damaged filament.
To replace a fuse, use the pliers Dhooked
to the fusebox on the dashboard.Never replace a fuse with
metal wires or anything else.
fig. 55F0C0220m
Never replace a fuse with
another with a higher amp
rating, DANGER OF FIRE.
WARNING

197
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
FUSE LOCATION
Fuses are grouped into four fuse boxes, to
be found respectively on the dashboard,
on the battery positive pole, next to the
battery and in the boot (left-hand side).
Certain versions are also fitted with a sin-
gle fuse set inside the engine compartment
fuse box.
fig. 57F0C0266m
fig. 56F0C0193m

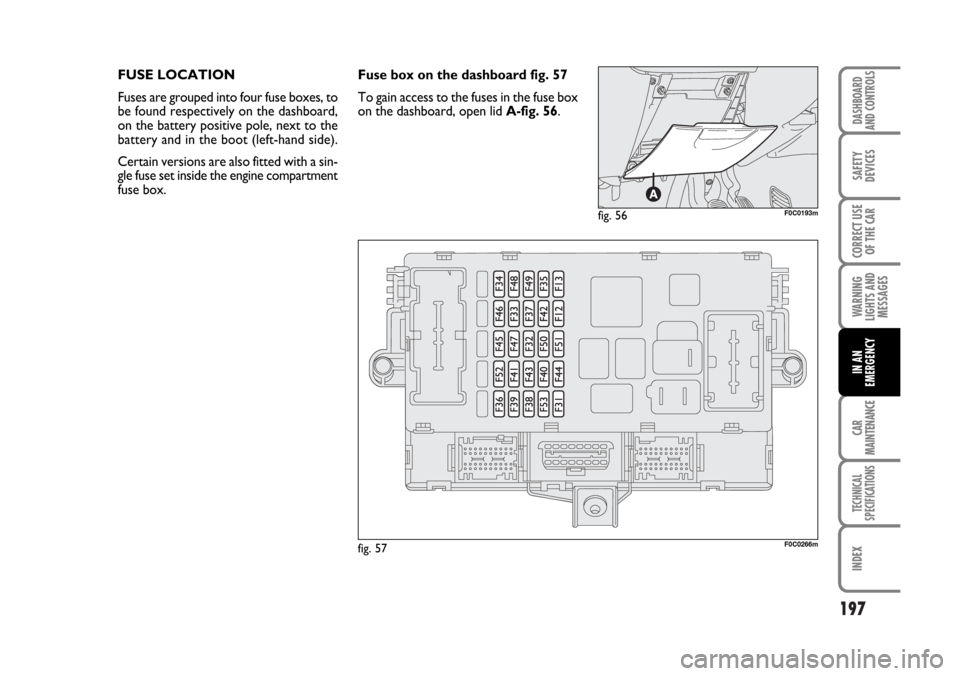

Fuse box on the dashboard fig. 57
To gain access to the fuses in the fuse box
on the dashboard, open lid A-fig. 56.

198
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

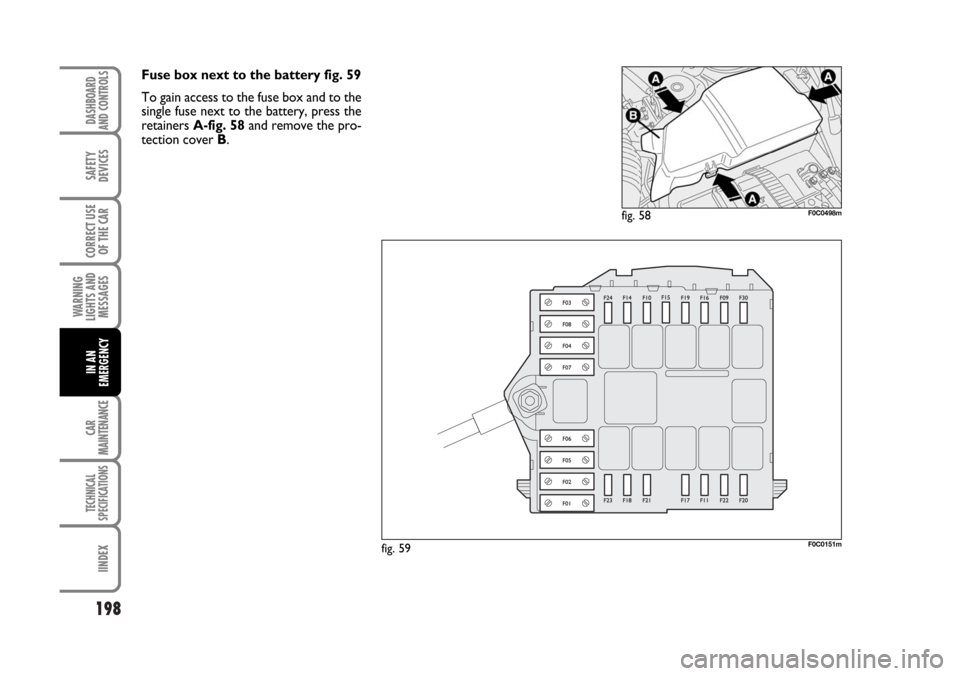

Fuse box next to the battery fig. 59
To gain access to the fuse box and to the
single fuse next to the battery, press the
retainers A-fig. 58and remove the pro-
tection cover B.
fig. 59F0C0151m
fig. 58F0C0498m

199
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

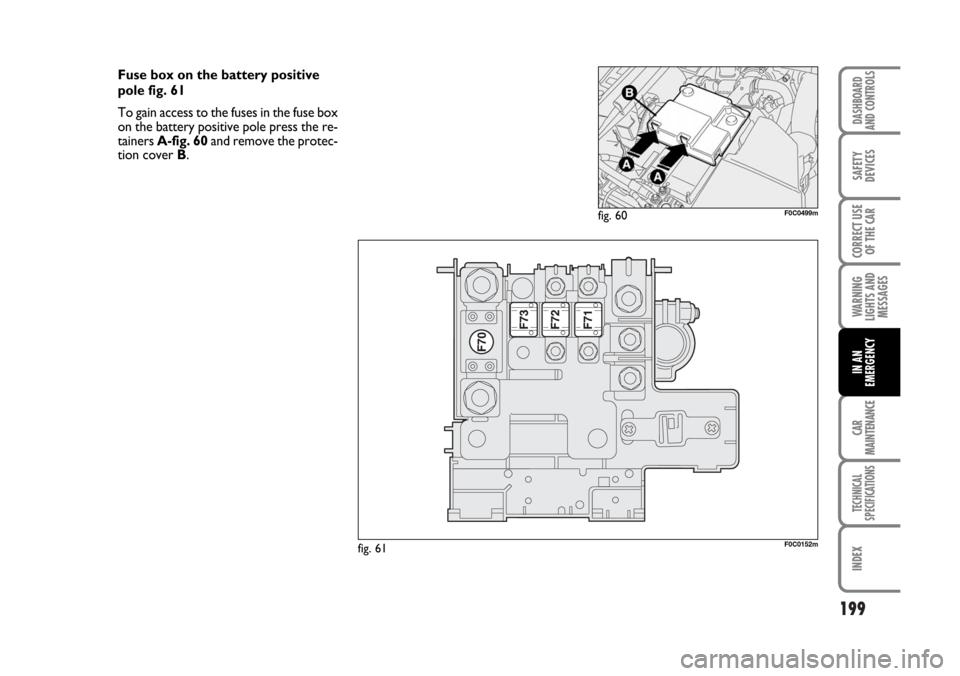

Fuse box on the battery positive
pole fig. 61
To gain access to the fuses in the fuse box
on the battery positive pole press the re-
tainers A-fig. 60and remove the protec-
tion cover B.
fig. 61F0C0152m
fig. 60F0C0499m

200
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

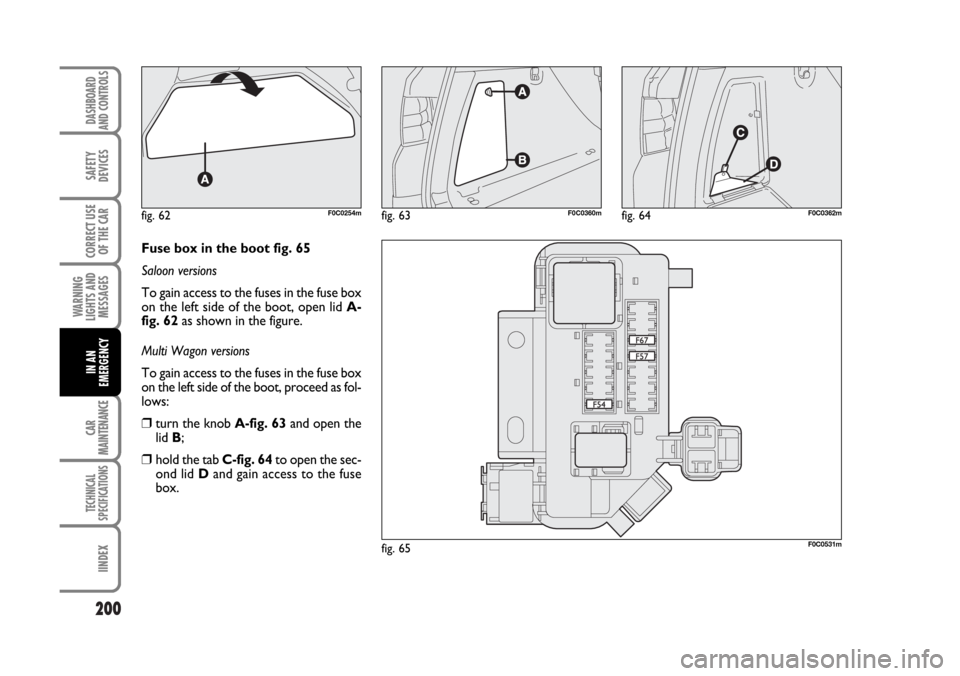

Fuse box in the boot fig. 65
Saloon versions
To gain access to the fuses in the fuse box
on the left side of the boot, open lid A-
fig. 62as shown in the figure.
Multi Wagon versions
To gain access to the fuses in the fuse box
on the left side of the boot, proceed as fol-
lows:
❒turn the knob A-fig. 63and open the
lid B;
❒hold the tab C-fig. 64to open the sec-
ond lid Dand gain access to the fuse
box.
fig. 62F0C0254mfig. 63F0C0360mfig. 64F0C0362m
fig. 65F0C0531m

201
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
FUSE SUMMARY TABLE
LIGHTS
Right dipped beam headlight
Left dipped beam headlight
Right main beam headlight
Left main beam headlight
Front fog lights
Brake light/third stop light
Reversing light
Front/rear ceiling light/s
Door/puddle lights
+30 rear fog lights
RH/LH headlight fuse boxes
(versions with gas-discharge headlights)
COMPONENTS
Selespeed transmission pump (2.420V versions)
Ignition switch
Headlight aiming device
Climate control compressor
Anti-pollution sensor (versions with automatic two-zone climate
control system)/headlight washer relay coil/
Body Computer/Climate control system fan
Powered door mirrors control
(movement, ideograph lighting)
FIGURE
57
57
59
59
59
57
57
57
57
57
57
FIGURE
59
59
57
59
57
57
FUSE
F12
F13
F14
F15
F30
F37
F31
F32
F32
F53
F37
FUSE
F05 (MAXI-FUSE)
F03 (MAXI-FUSE)
F13
F19
F31
F51
AMPERE
15
15
10
10
15
7.5
7.5
10
10
7.5
7.5
AMPERE
30
20
15
7.5
7.5
7.5

265
